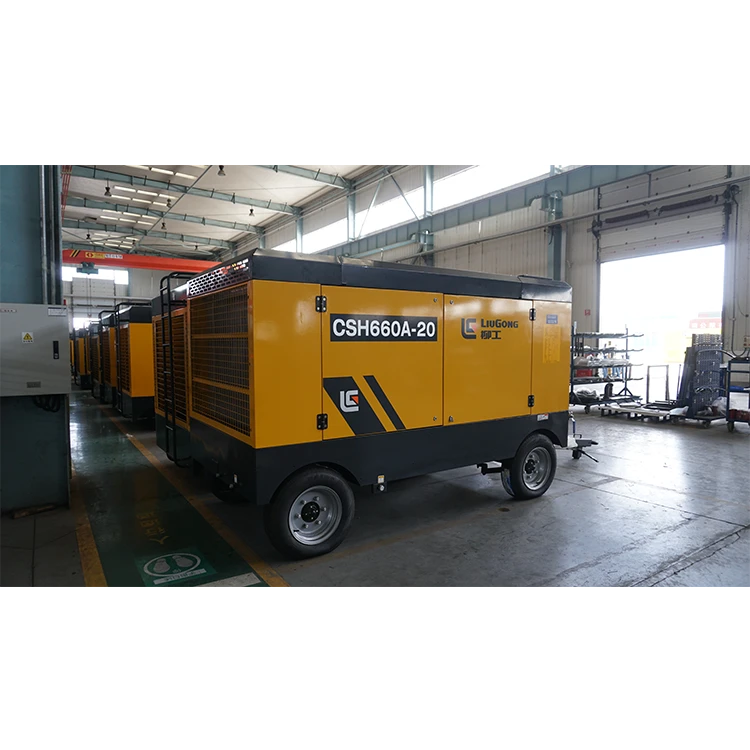

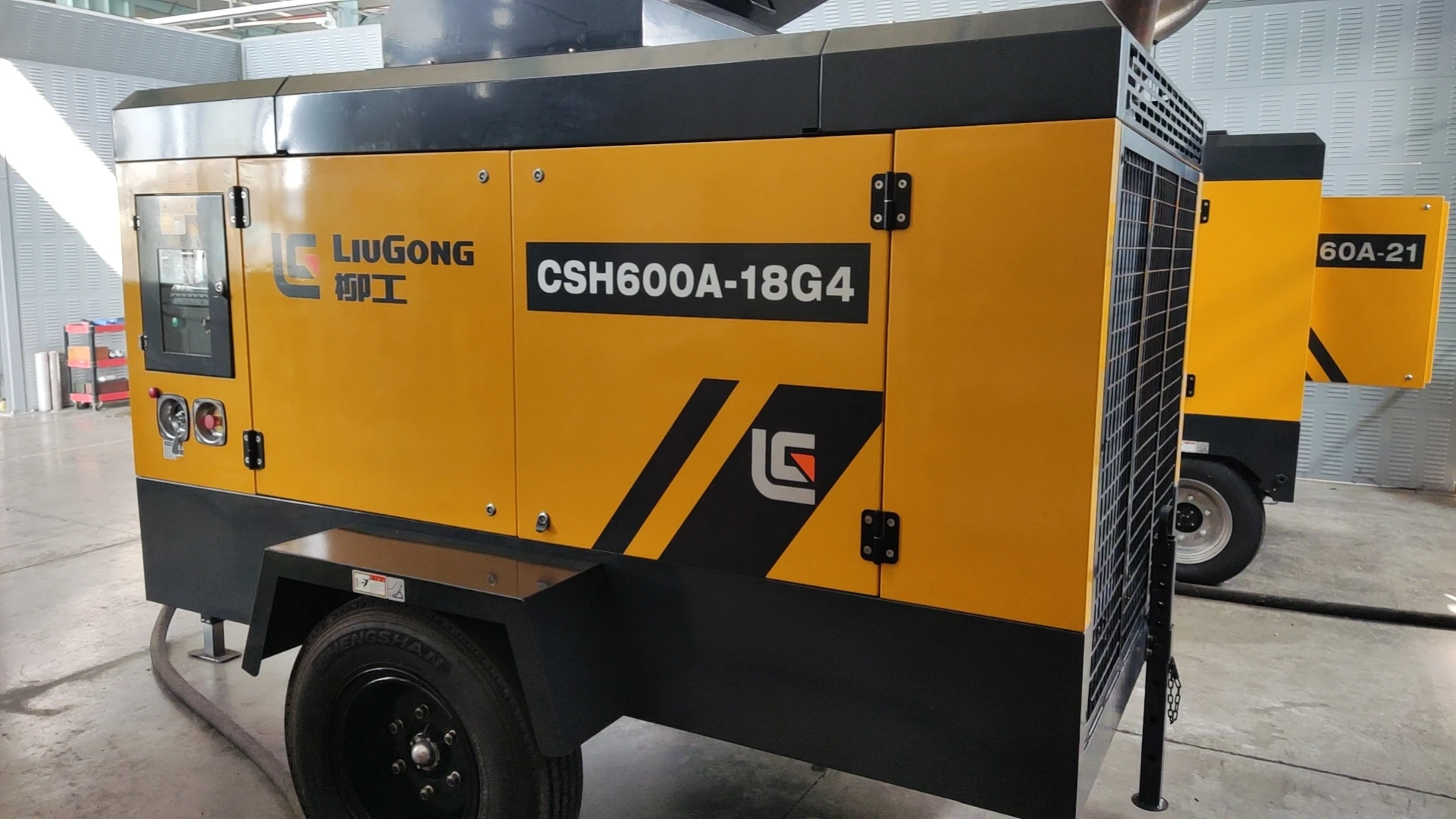

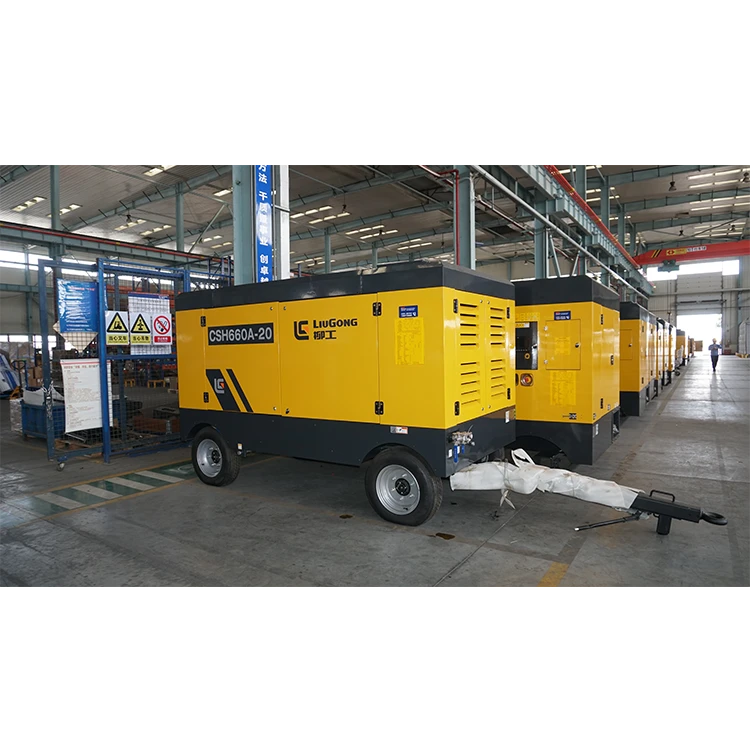

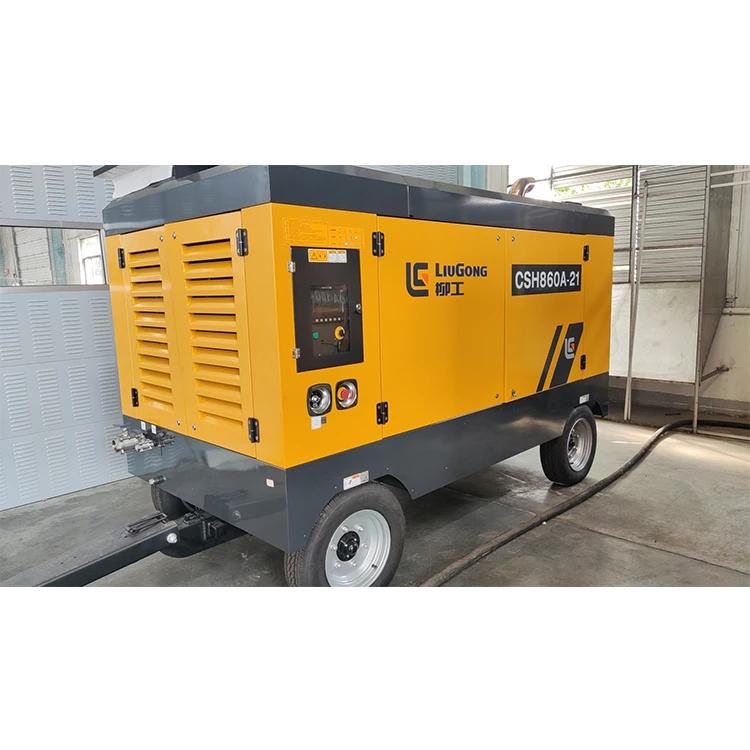

The CSH series of high-pressure screw air compressors rely on the rich industry experience and strong R&D capabilities of the Liugong brand. The products have stable and reliable performance, are easy to operate, have high efficiency, and are widely applied, earning high praise from customers.
Main Applications:
Water well drilling
Pile foundation construction
Anti-floating anchor rod
Channel reef blasting
Oil and gas pipeline cleaning and pressure testing
Product features

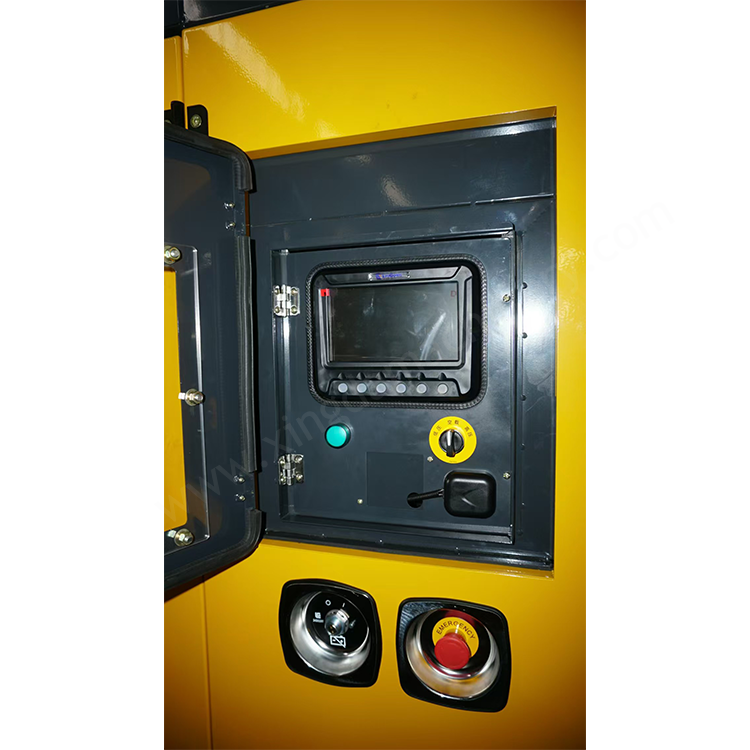

1. Intelligent intelligent control
2. Abundant air volume, energy-saving and fuel-efficient
3. The chassis adopts modular design, allowing for easy switching between two-wheel, four-wheel and skid-mounted configurations
4. Compact body, suitable for excavation, drilling and drilling rigs on vehicles
Technical specification
| Technical specification | CSH600A-18 | CSH780A-22 | CSH860A-21 | CSH920A-22 | |
| Pressure[Bar] | 18 | 22 | 21 | 21 | 22 |
| Free air delivery [m³/min] | 17 | 22 | 24 | 18 | 26 |
| Compressor oil[L] | 35 | 35 | 80 | 100 | |
| Element | LGIR | LGIR | LGIR | LGIR | |
| Dual transformation | Single | Single | Dual | Single | |
| Engine | |||||
| Manufacturer | Yuchai | Cummins | Cummins | Cummins | |
| Type | YC6J220-T300 | B7 | B7-T3 | L9CSIV364C | |
| Rated Power[kW] | 162 | 221 | 221 | 272 | |
| Max.working speed/idle speed | 2000/1400 | 2000/1300 | 2000/1300 | 1600/1300 | 1900/1400 |
| Number of cylinders | 6 | 6 | 6 | 6 | |
| Displacement[L] | 6.494 | 6.700 | 6.790 | 8.900 | |
| Emission levels(Standard) | Stage III | Stage Ⅳ | Stage III | Stage Ⅳ | |
| Fuel capacity [L] | 340 | 340 | 340 | 650 | |
| UNIT | |||||
| Total weight[t] | 2.70 | 2.80 | 3.20 | 4.50 | |
| Outlet*quantity | G½×1 & G¾×1 | G½×1 & G¾×1 | G2×1 & G¾×1 | G2×1 & G¾×1 | |
| Tire size×quantit | two-wheeled | four-wheeled | four-wheeled | four-wheeled | |
| Overall dimensions [mm] | 3897*2120*2247 | 4450*2120*2142 | 3787*1601*2226 | 4500*1800*2550 | |
| Noise[dB(A)] | 82±3 | 82±3 | 83±3 | 83±3 | |

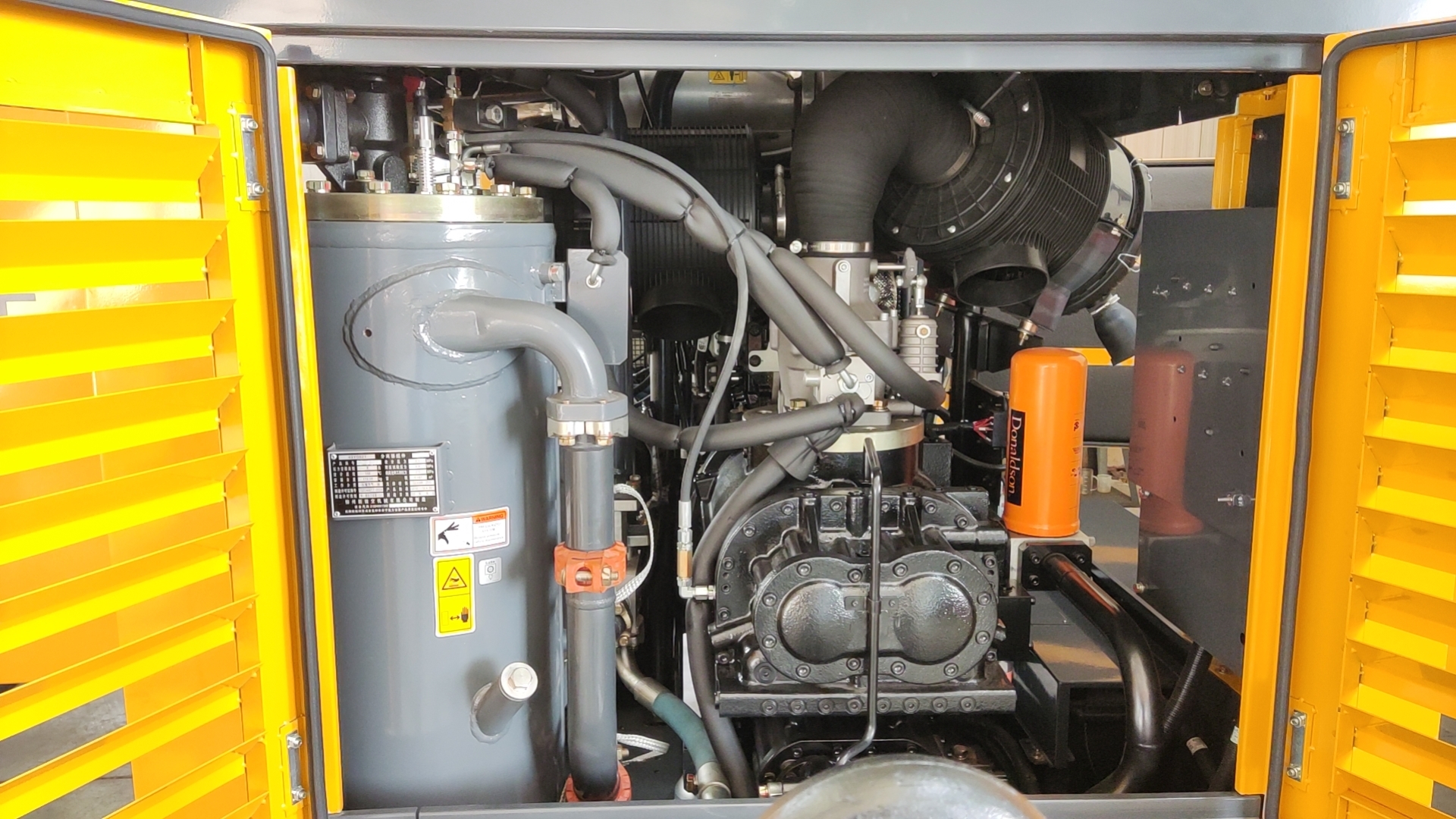

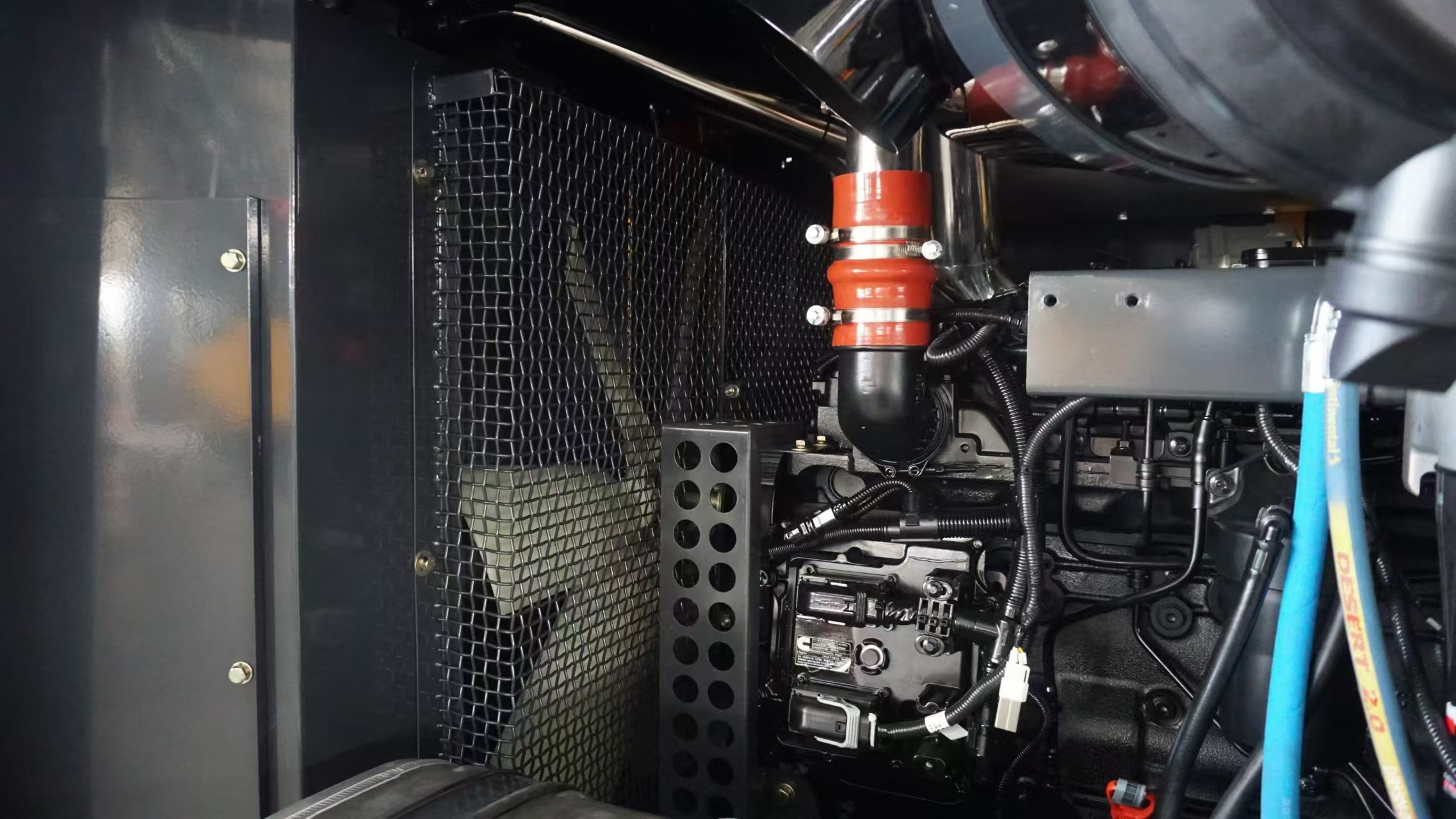

Structural details
Related Products
CSH series air compressors
Main Applications:
SCY series air compressors
Brief Introduction
High air pressure screw compressor series primarily used with water well and geothermal project required 115-254mm drill rigs and various other air source requirement. To add to the benefits of the portable compressors, high air compresso: series specially good for continues running and with transportation requirement in consideration, upgraded for better durability and lower fuel consumption. All the high air pressure screw compressors with EU3A compatible engines.
