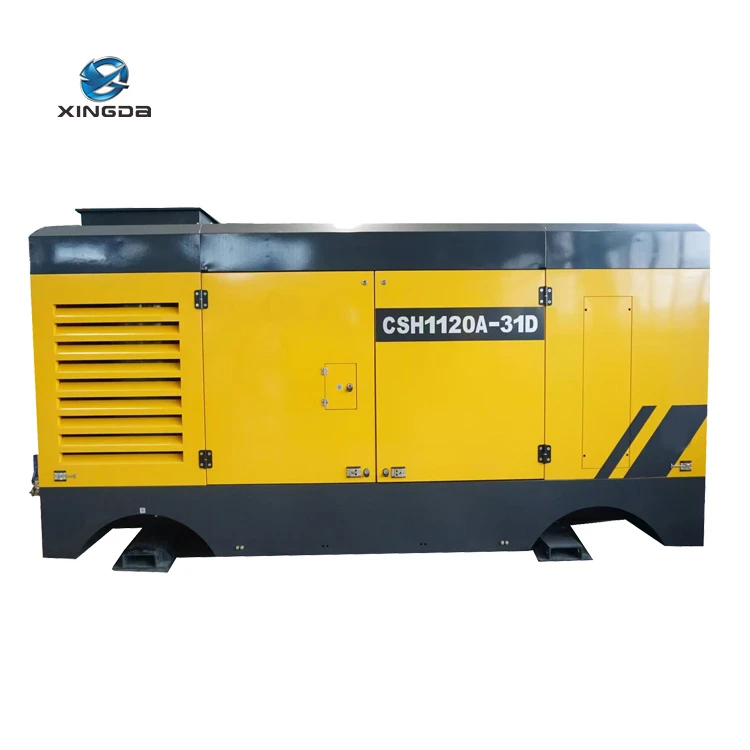

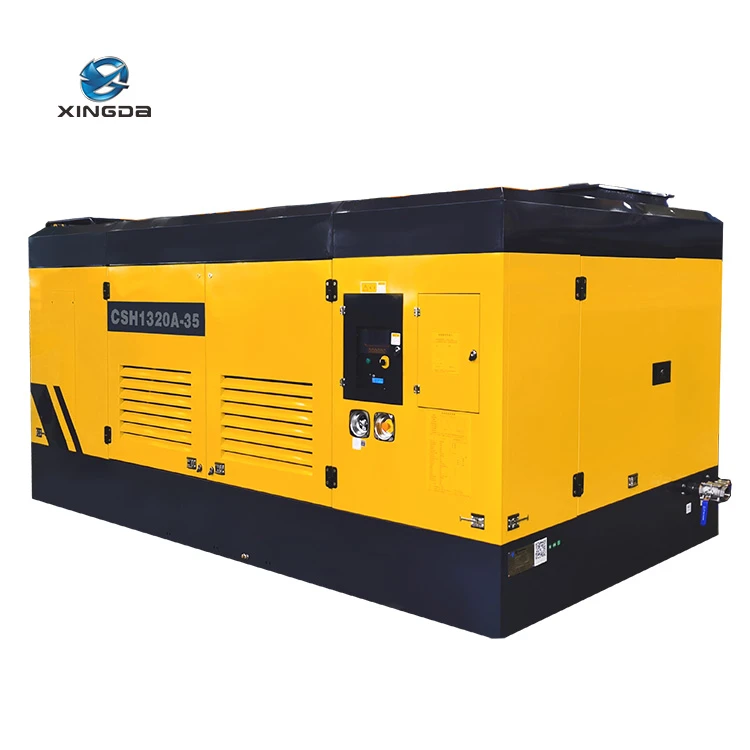

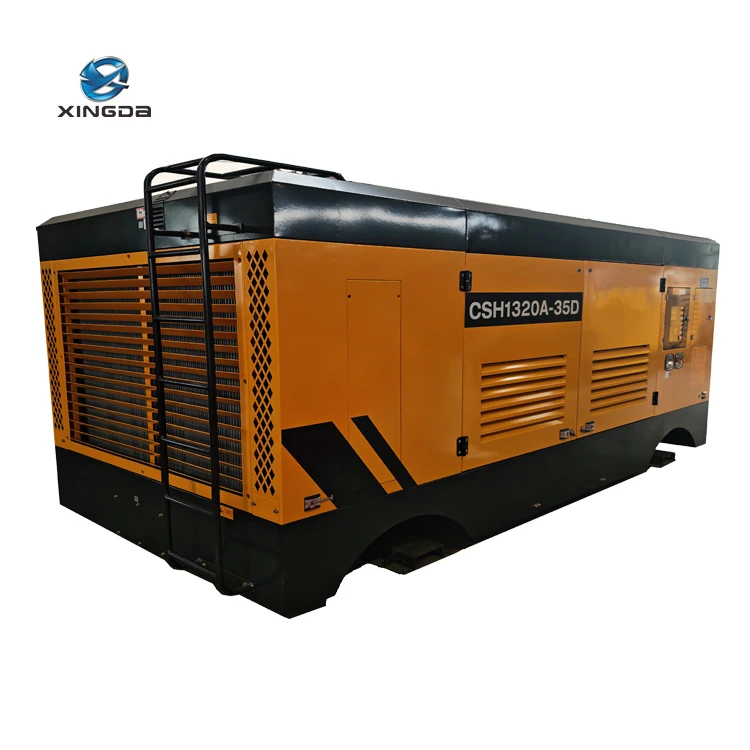

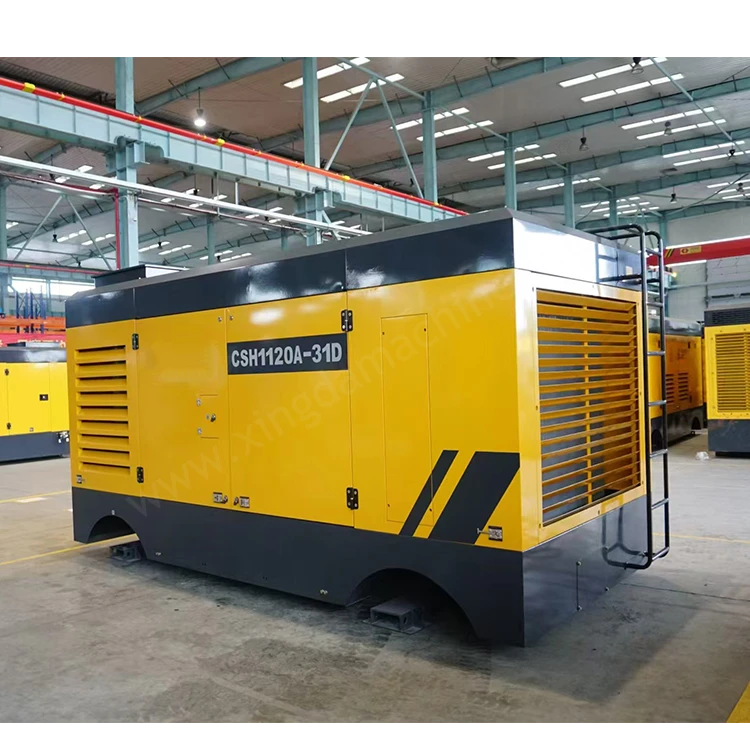

The CSH series high-pressure screw air compressors are widely used, with excellent performance, simple operation and high efficiency. They have received unanimous praise from customers.
Main Applications:
Product features
1. LGIR two-stage compressor head, high compression efficiency, reduce the leakage of compressed air, to ensure sufficient pressure and exhaust volume.
2. Gas intelligent dynamic adjustment: The intelligent control system can adapt to various complex working conditions, realize intelligent automatic adjustment, and match the corresponding gas volume.
3. Liugong independently developed a unique control system, multi-threaded control engine, real-time dynamic adjustment of gas and pressure in the right state to reduce excessive energy consumption.
Main Technical Parameters
| Technical specification | CSH1120A-31D | CSH1300A-34D | CSH1320A-34D | CSH1320A-35 |
| Pressure[Bar] | 18-25 18-31 |
21-25 21-34 |
21-25 21-34 |
21-25 21-35 |
| Free air delivery [m³/min] | 29-25 31.5-26 |
31-29 36-32 |
31-29 36.5-32 |
31-29 36.5-32 |
| Compressor oil[L] | 110 | 120 | 120 | 120 |
| Element | LGIR | LGIR | LGIR | LGIR |
| Dual transformation | Dual | Dual | Dual | Dual |
| Engine | ||||
| Manufacturer | Yuchai | Yuchai | Cummins | Yuchai |
| Type | YC6MK400-H300 | YC6K560-KT31 | QSZ13-C550 | YCK16775-T300 |
| Rated Power[kW] | 295 | 412 | 410 | 570 |
| Max.working speed/idle speed | 1750/1300 1900/1300 |
1600/1300 1830/1300 |
1600/1300 1830/1300 |
1600/1300 1830/1300 |
| Number of cylinders | 6 | 6 | 6 | 6 |
| Displacement[L] | 10.3 | 13 | 13 | 16 |
| Emission levels(Standard) | Stage III | Stage III | Stage III | Stage III |
| Fuel capacity [L] | 700 | 700 | 700 | 700 |
| UNIT | ||||
| Total weight[t] | 5 | 5.5 | 5.6 | 5.6 |
| Outlet*quantity | G2×1&G3%×1 | G2×1&G3%4×1 | G2×1&G%×1 | G2×1 &G3%4×1 |
| Tire size×quantit | skid-mounted | skid-mounted | skid-mounted | skid-mounted |
| Overall dimensions [mm] | 4100x1800x2050 | 4100x1800x2050 | 4100x1800x2050 | 4000x1850x2010 |
| Noise[dB(A)] | 83±3 | 85±3 | 85±3 | 85±3 |
Structural details
Structural details

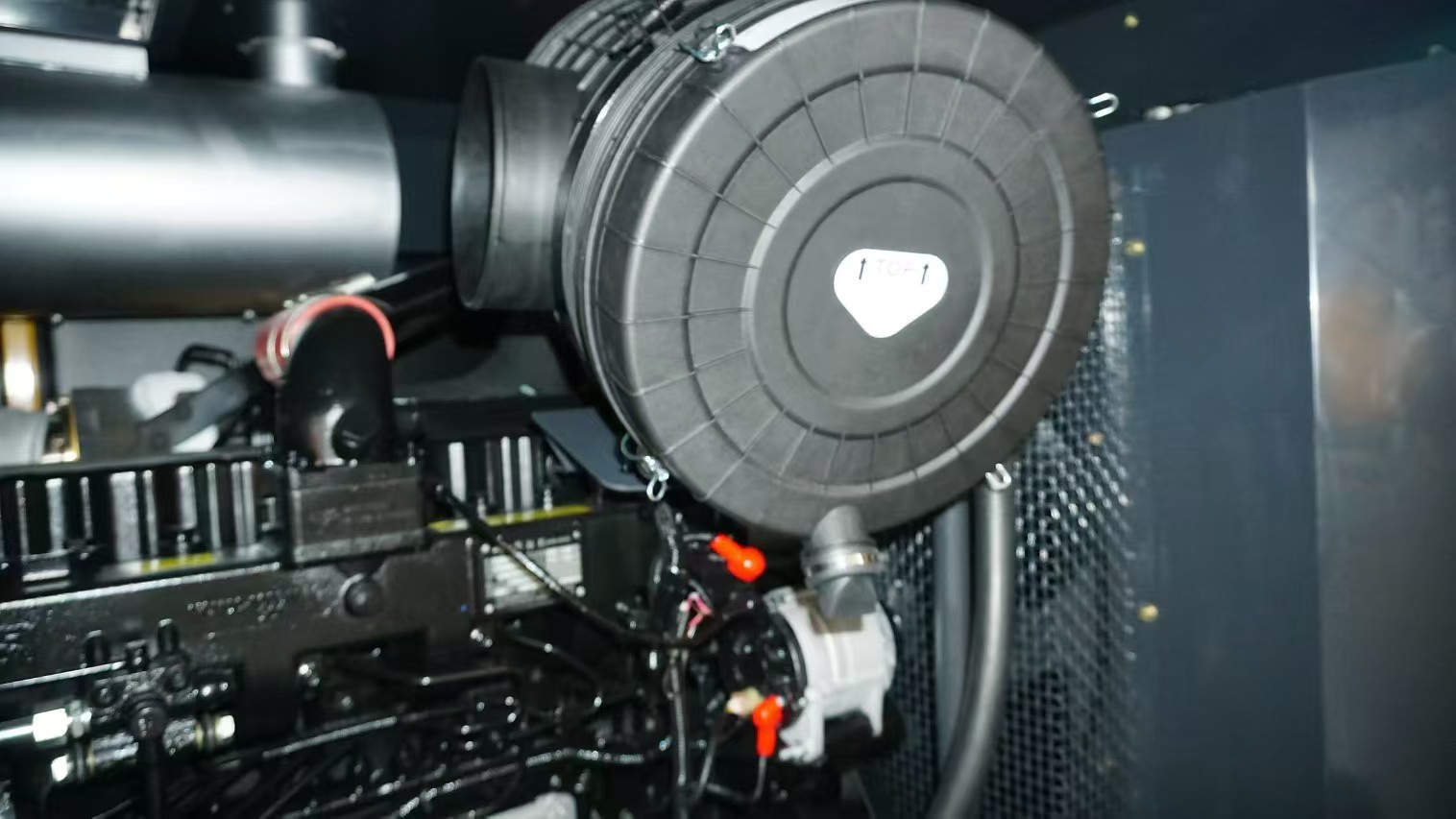

American Donaldson Air Filter Dual air filters, extending mechanical lifespan

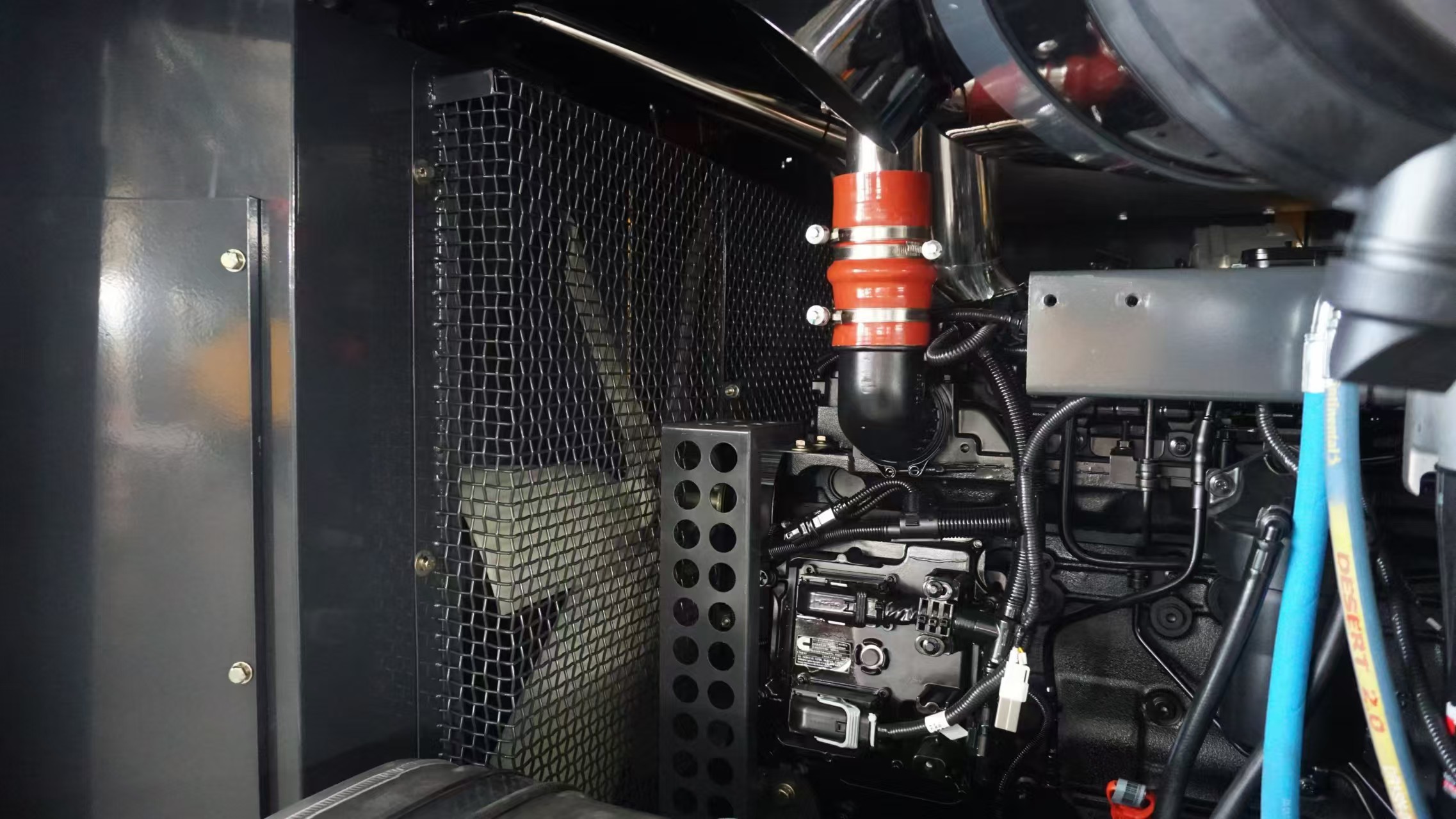

Yuchai engine The performance is stable and reliable, and it is highly cost-effective.

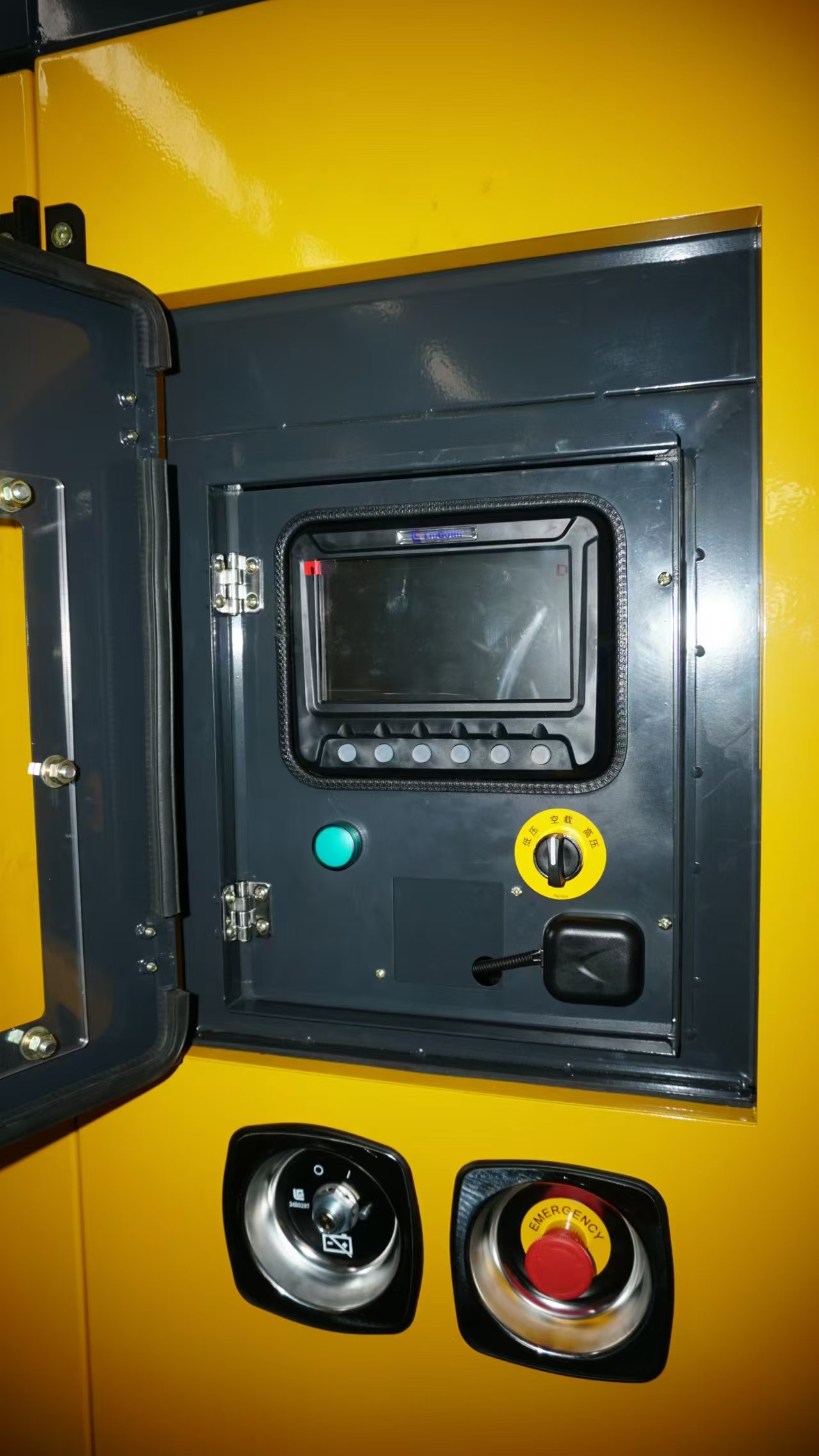

Intelligent control system 7-inch color screen / waterproof / easy to operate
German Mann brand oil separator LGIR Large Head
Related Products
CSH Series Medium Pressure Air Compressor
Main Applications:
Water well drilling
Pile foundation construction
Anti-floating anchor rod
Channel reef blasting
Oil and gas pipeline cleaning and pressure testing
SCY series air compressors
Brief Introduction
High air pressure screw compressor series primarily used with water well and geothermal project required 115-254mm drill rigs and various other air source requirement. To add to the benefits of the portable compressors, high air compresso: series specially good for continues running and with transportation requirement in consideration, upgraded for better durability and lower fuel consumption. All the high air pressure screw compressors with EU3A compatible engines.
