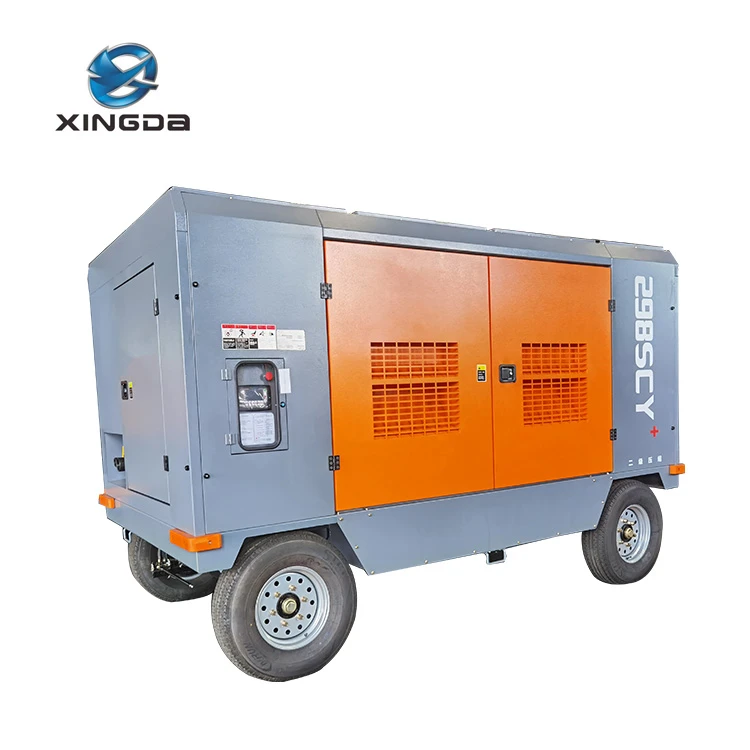

SCY series air compressors

Good Quality High Pressure Screw Air Compressor For Drilling


Brief Introduction
High air pressure screw compressor series primarily used with water well and geothermal project required 115-254mm drill rigs and various other air source requirement. To add to the benefits of the portable compressors, high air compresso: series specially good for continues running and with transportation requirement in consideration, upgraded for better durability and lower fuel consumption. All the high air pressure screw compressors with EU3A compatible engines.

Main features

1. Full series product optimized for stronger frame and better towing protection and safety; stronger roof loading capabilities to meet customer load carry needs with rubber protection strips.

2. All pressure pipes are connected with steel tubes, it has excellent sealing and protect rubber from prevent aging, never wear and has attractive appearance.

3. With patent designed safety air filter unit and stainless steel air inlet pipes for guaranteed dust filter ability and better protection against dirty air due to rubber horse damage.

4.All new designed cooler with independent modular unit and secured by structural component with cushion pad without any pressure points, effectively eliminating cooler damage by shroud deformation; independent damage unit placement made easy without removing the cooler assembly.

5. Diesel portable compressors all with international brand controller with optimized interface for only 3 switches to operate,power, on and off. Automatic preheating, loading and unloading process, pressure control and engine fuel injection,eliminating high pressure stop and oil outburst. Controller with water and moisture proof.

6.Easy access to all maintenance parts with document and tool box for better management of tools, records and safer for machine operation.

7. Electrical portable machine with breaker and power switch easy to access and protected for convenience and safety. 8. New designed protected cooler for higher efficiency and better safety protection. Full body sound absorbent cotton and rear car silencer designed to make operate noise reduce 40% less than normal products.

Main Technical Parameters

Model 95SCY-7 141SCY-12-15 146SCTY-12-18 162SCYT-12-18 190SCYT-15-18
China IV engine
(standard)
Yuchai/88 kW Yuchai/140 kW Yuchai/140 kW Yuchai/162 kW Yuchai/ 191 kW
Diesel tank volume 180L 230 L 230L 230L 345L
Air End Single Stage Compression Single Stage
Compression
Two-stage
compression
Two-stage
compression
Two-stage
compression
Rated FAD 12 m³/min 18/15 m³/min 17/15 m³/min 17/15 m³/min 24/20 m³/min
Rated Pressure 7bar 12/15 bar 12/18bar 12/18bar 15/18bar
Weight 1900 kg 2600 kg 2980 kg 3250 kg 3,870 kg
Type 2 wheel 4 wheel 4 wheel 4 wheel 4 wheel
Dimensions
(LxWxH)
mm
3000x1610x2170 3250×1610×2470 3345×1750×2460 3345×1750×2460 3900×1910×2520

Structural details

Hot Selling Diesel Engine Powered Mobile Portable Medium Pressure Screw Air Compressor Air Motor Pump for Drilling Construction
01

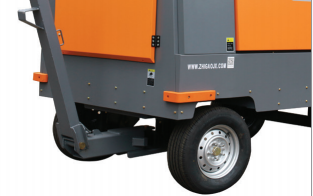

Full series product optimized for stronger frame and bette to meet customer load carry needs with rubber protection。

Hot Selling Diesel Engine Powered Mobile Portable Medium Pressure Screw Air Compressor Air Motor Pump for Drilling Construction
02

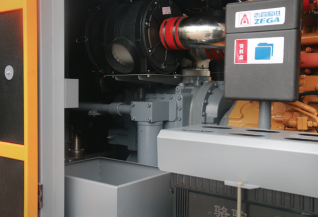

All pressure pipes are connected with steel tubes.it has excellent sealing and protect rubber from prevent aging,never wear and has attractive appearance.

Hot Selling Diesel Engine Powered Mobile Portable Medium Pressure Screw Air Compressor Air Motor Pump for Drilling Construction
03

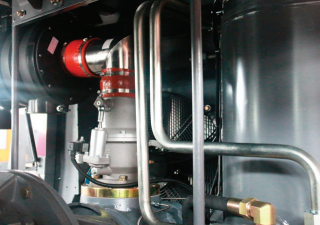

With Patent designed safety air filter unit and stainless steel air inlet pipes for guaranteed dust filter ability and better protection against dirty air due to rubber hose damage.

Hot Selling Diesel Engine Powered Mobile Portable Medium Pressure Screw Air Compressor Air Motor Pump for Drilling Construction
04

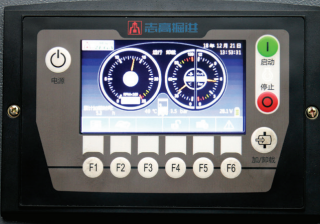

Diesel portable compressors all with international brand name controller with optimized interface for only 3 switches to operate, power, on and offo Automatic preheating, loading and unloading process, pressure control and engine fuelinjection, eliminating high pressure stop and oil outburst。  Controller with water and moisture proof.

Hot Selling Diesel Engine Powered Mobile Portable Medium Pressure Screw Air Compressor Air Motor Pump for Drilling Construction
05

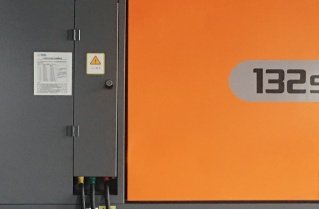

Easy access to all maintenance parts with document and tool box for better management of tools, records and safer for machine operation.

Hot Selling Diesel Engine Powered Mobile Portable Medium Pressure Screw Air Compressor Air Motor Pump for Drilling Construction
06

Electrical portable machine with breaker and power switch easy to access and protected for convenience and safety.

Hot Selling Diesel Engine Powered Mobile Portable Medium Pressure Screw Air Compressor Air Motor Pump for Drilling Construction
07

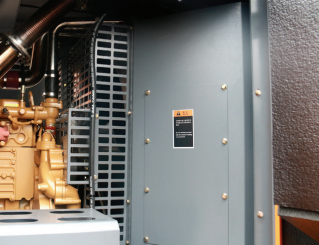

New designed protected cooler for higher efficiency and better safety protection. Full body sound absorbent cotton and rear car silencer designed to make operate noise reduce 40% less than normal
