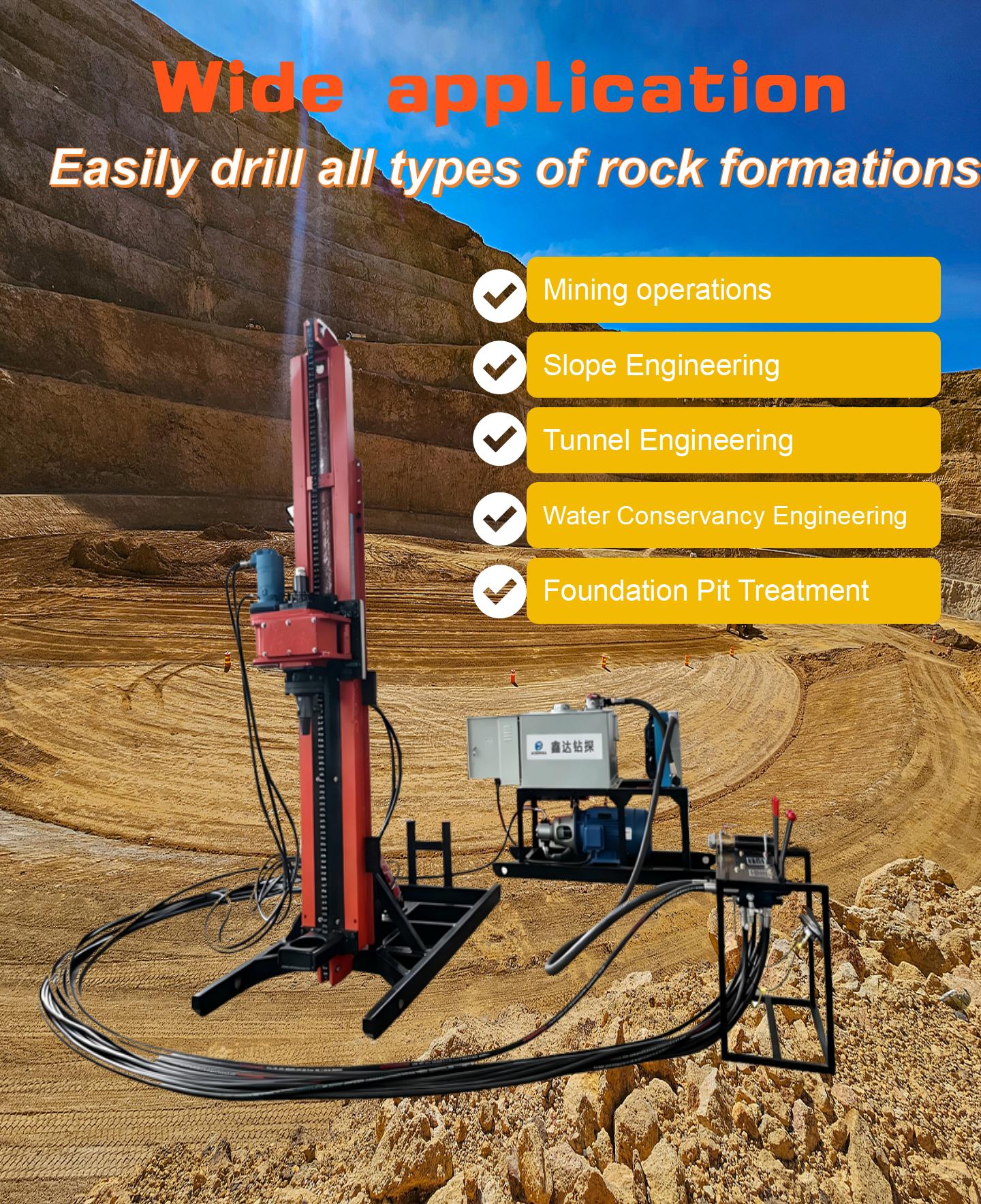

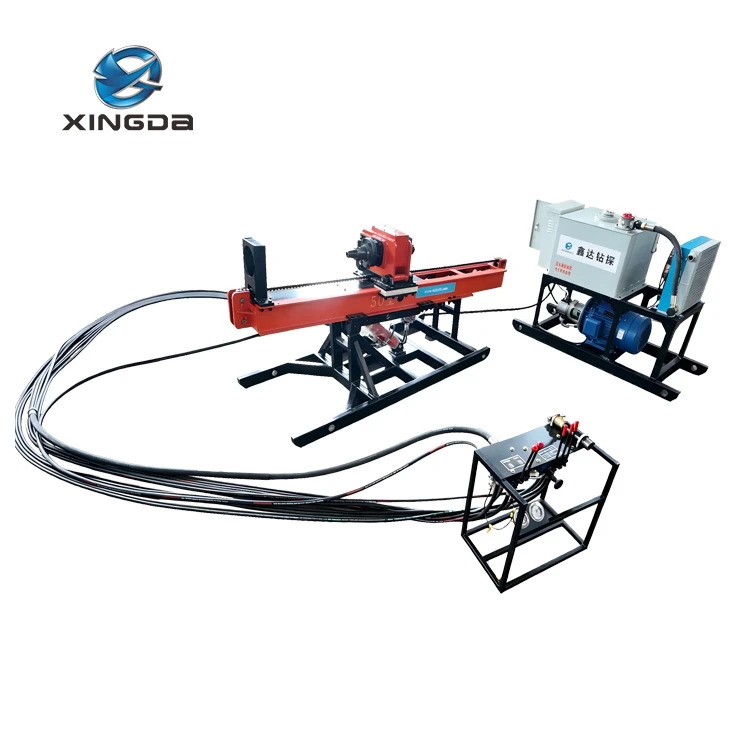

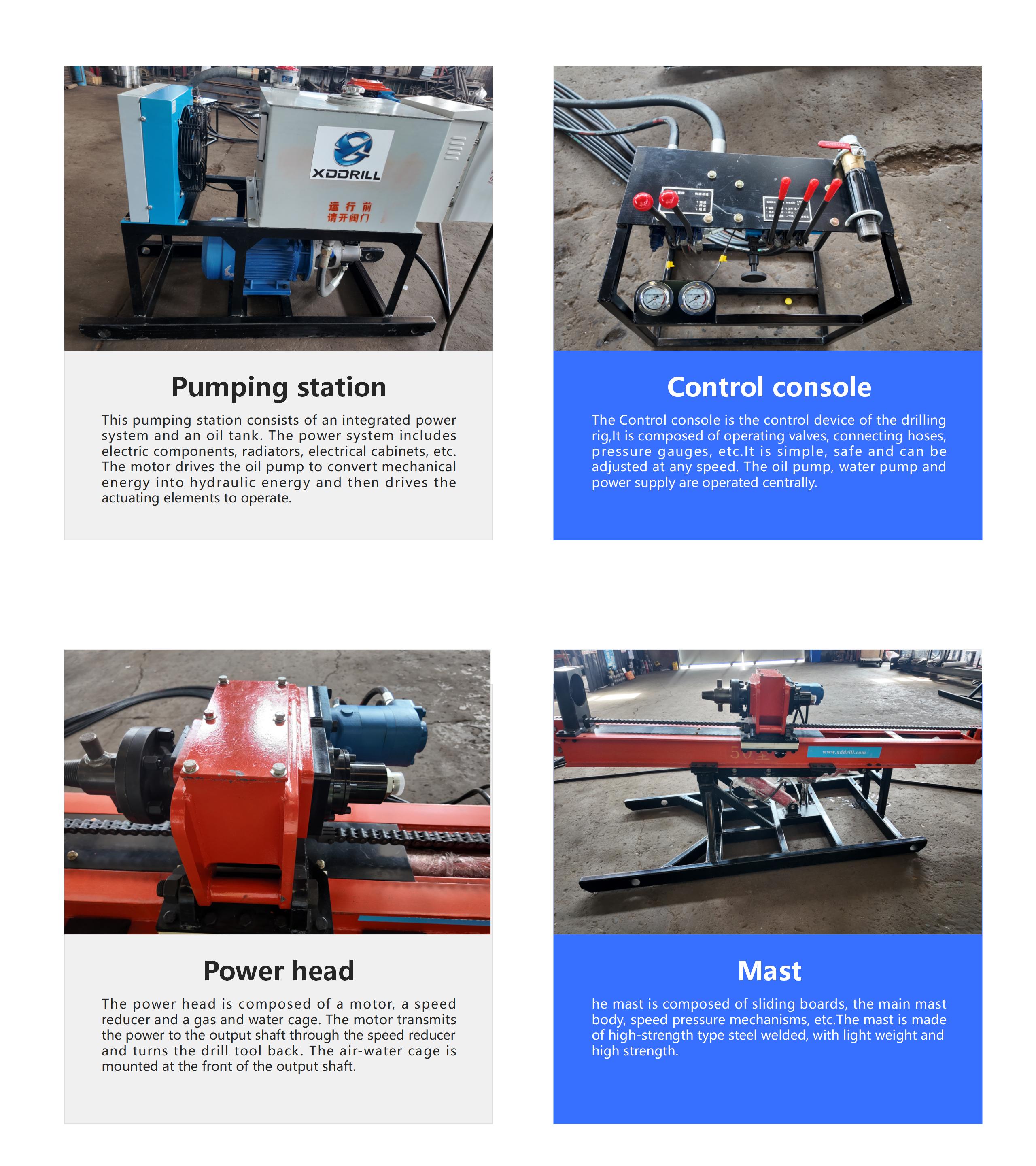

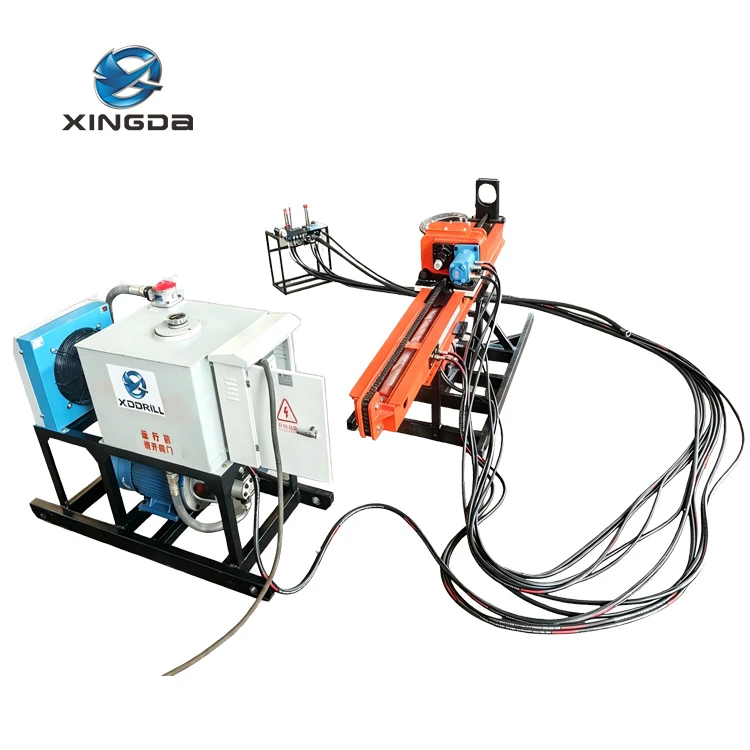

The XDGM50 full hydraulic anchor drilling rig adopts a modular structure, consisting of the power head, pump station, mast, control console, frame, etc. The components are connected flexibly, facilitating installation and disassembly, and also enabling quick on-site layout according to different construction environments.
Performance Features

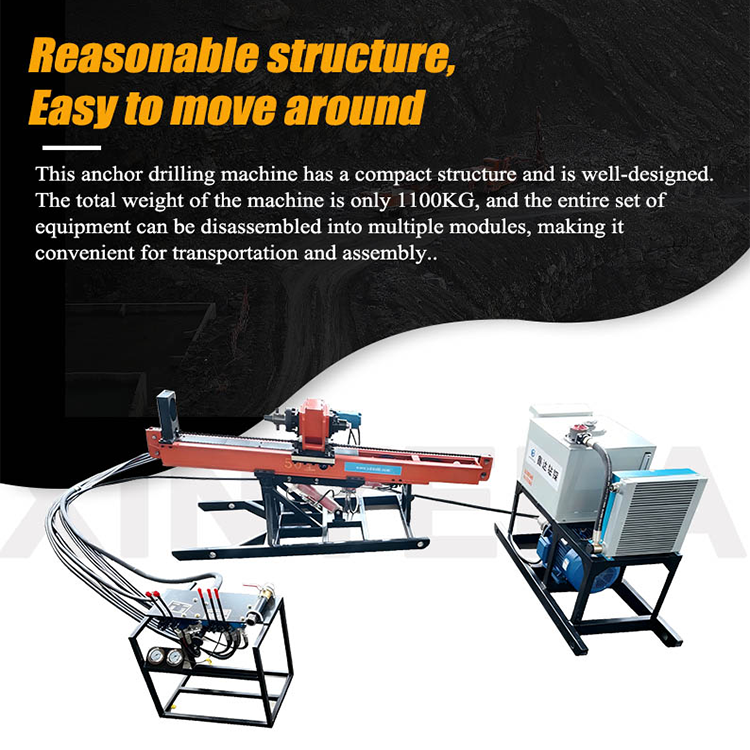

The whole machine adopts a split modular design, composed of three major assemblies: drilling main unit (mast + power head + frame), hydraulic power station and independent control console. All pipelines are equipped with quick couplings for easy disassembly, assembly and transportation. It is suitable for narrow construction scenarios including slope support, tunnel pipe shed, foundation pit anchoring and geological exploration.

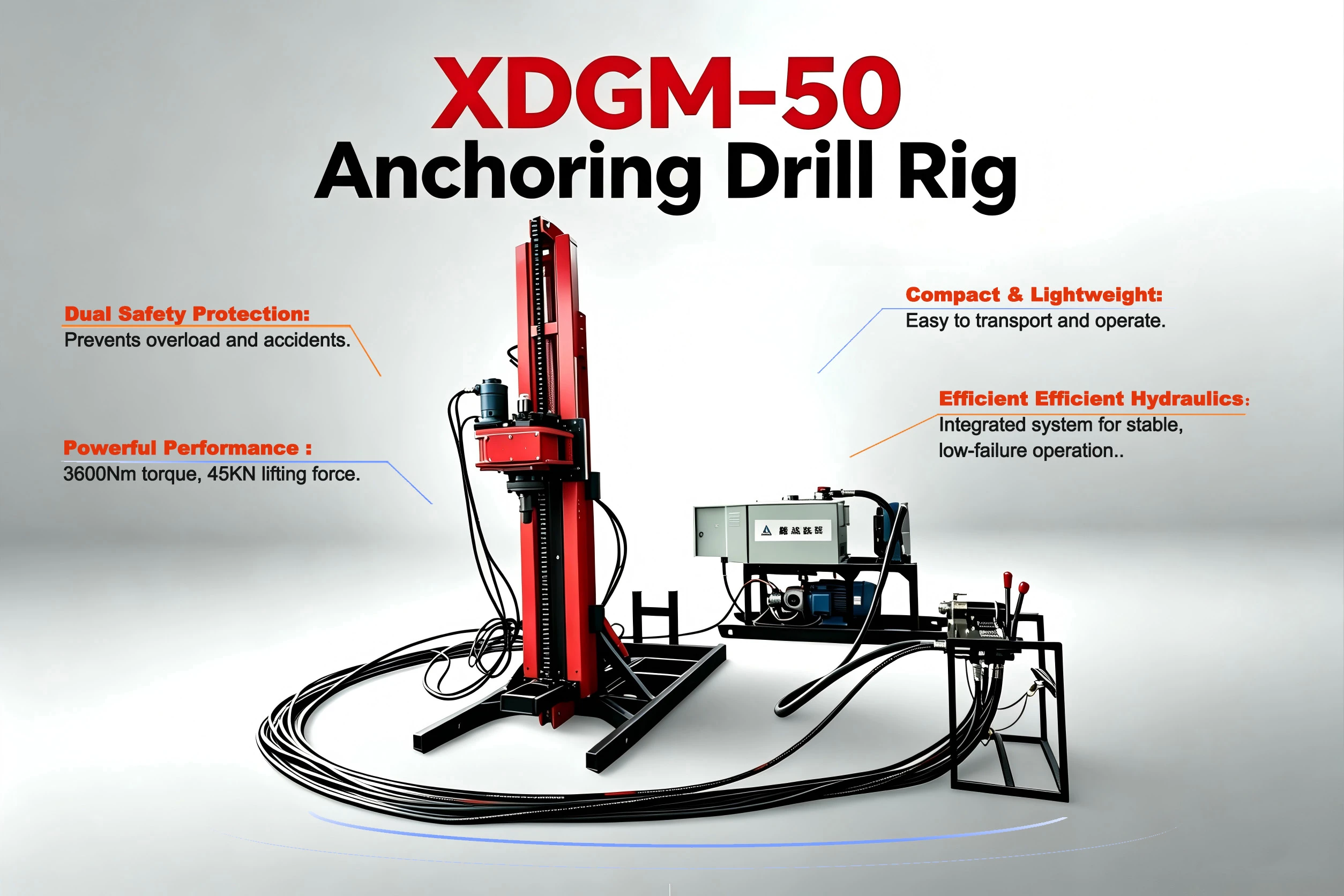

Performance Features of Anchoring Drill Rig:
(1) Compact, rigid structure with small size and light weight, featuring excellent disassembly performance. It is suitable for construction on high slopes and scaffolding platforms. Reasonable layout facilitates operation, and remote control enables safe and efficient construction. Easy to take apart for convenient transportation, cleaning and maintenance.

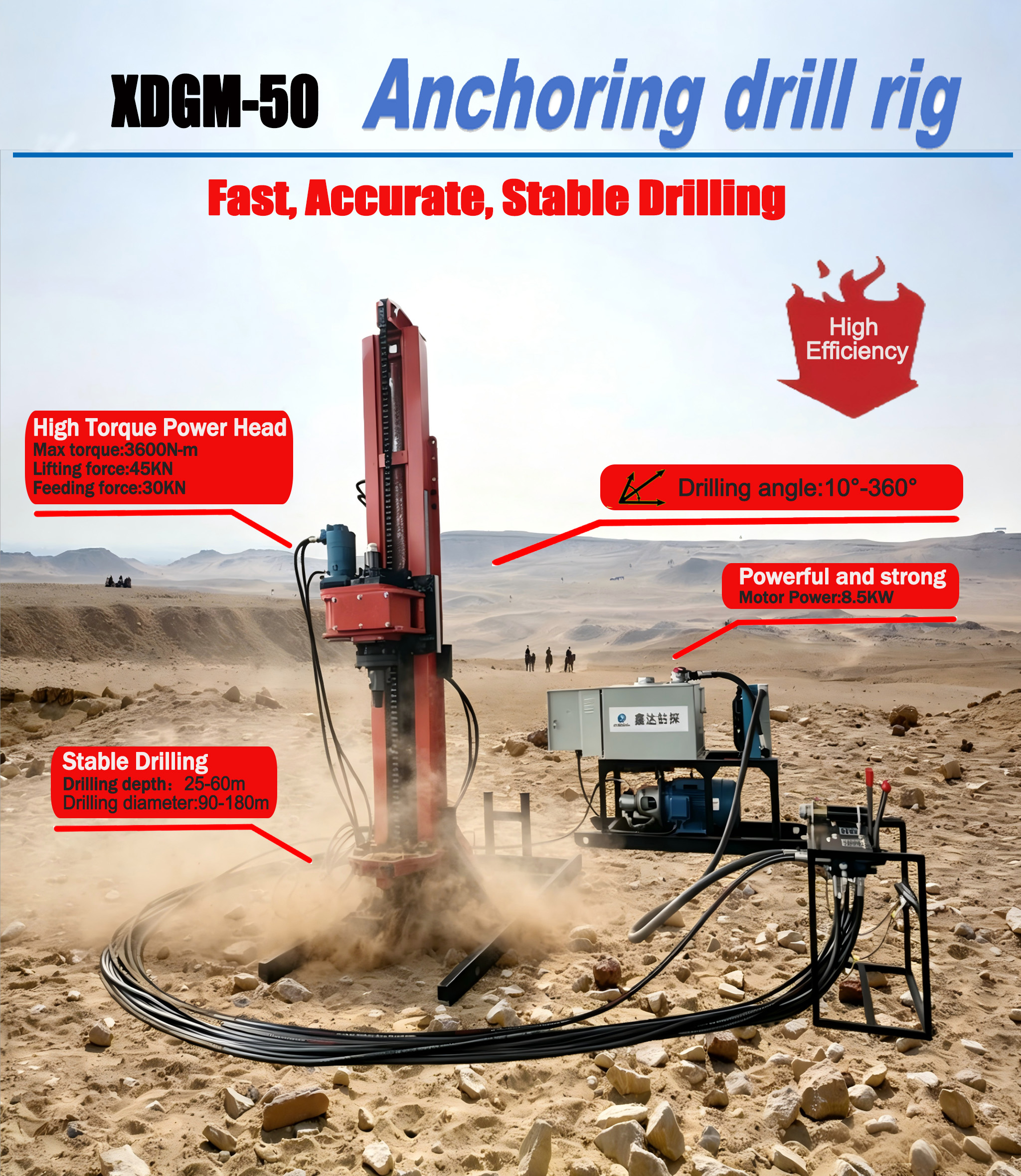

(2) Outstanding performance: the rotary torque of the drill rig reaches 3600Nm, with a lifting force of 45KN.
(3) Scientific integrated hydraulic circuit design, low failure rate, light weight and stable & high working efficiency.
(4) Dual safety protection for hydraulic circuits to avoid overload of oil inlet and return lines. It provides overload protection for the drill rig and downhole drilling tools, effectively preventing downhole accidents.
Main Technical Parameters
Application
Application
Related Products
XDGM-40 Anchorage engineering drilling rig
The frame is a structural part welded out of section steel, with light weight and high strength. The tower assembly can adjust the Angle of the mast through the power head rope mechanism, and the drilling height of a working face, the drilling machine is equipped with two support rods, the lower part is connected with the frame through the pin shaft, and the upper part is fixed with the mast.
XDGM-70 Anchorage engineering drilling rig
The frame is a structural part welded out of section steel, with light weight and high strength. The tower assembly can adjust the Angle of the mast through the power head rope mechanism, and the drilling height of a working face, the drilling machine is equipped with two support rods, the lower part is connected with the frame through the pin shaft, and the upper part is fixed with the mast.
Application:
It can be applied to railway, highway, bridge, subgrade, dam foundation and other industrial and civil buildings for foundation reinforcement, water isolation and leakage prevention, soft foundation treatment and geological disaster management. The machine is fully functional and can complete various jet grouting, anchor and anchor cable constructions.
QS-220 Hydraulic Multi-functional Drill Rig
The hydraulic multi-functional drill rig is widely used in various engineering projects, including anchoring for anti-floating anchor rods, reinforcement of highway and railway slope treatments, micro-pile drilling, dewatering wells, deep excavation support, roadbed reinforcement, metro grouting, tunnel pipe shed advance support, hydropower engineering dam reinforcement and seepage prevention treatment, drainage holes, and blasting holes in mines and quarries.
