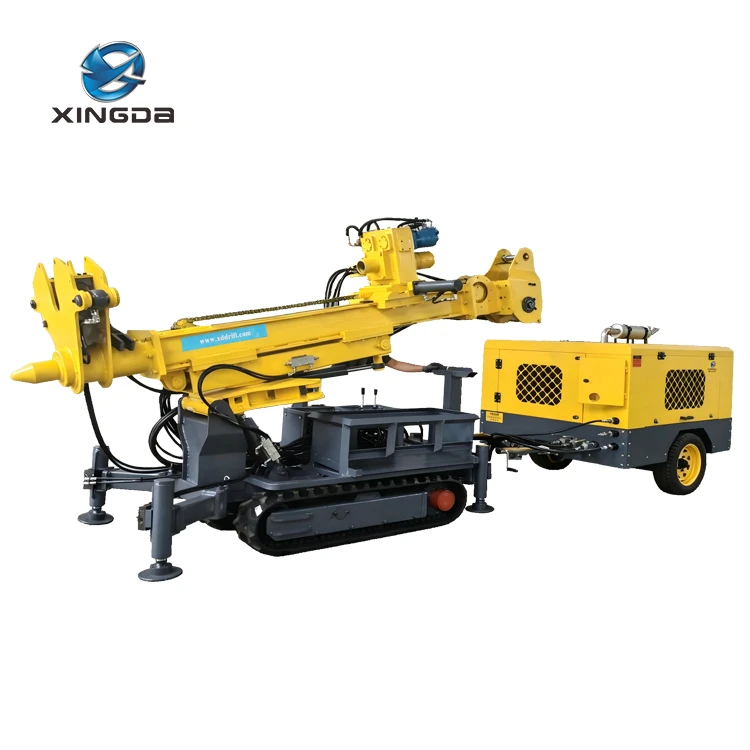

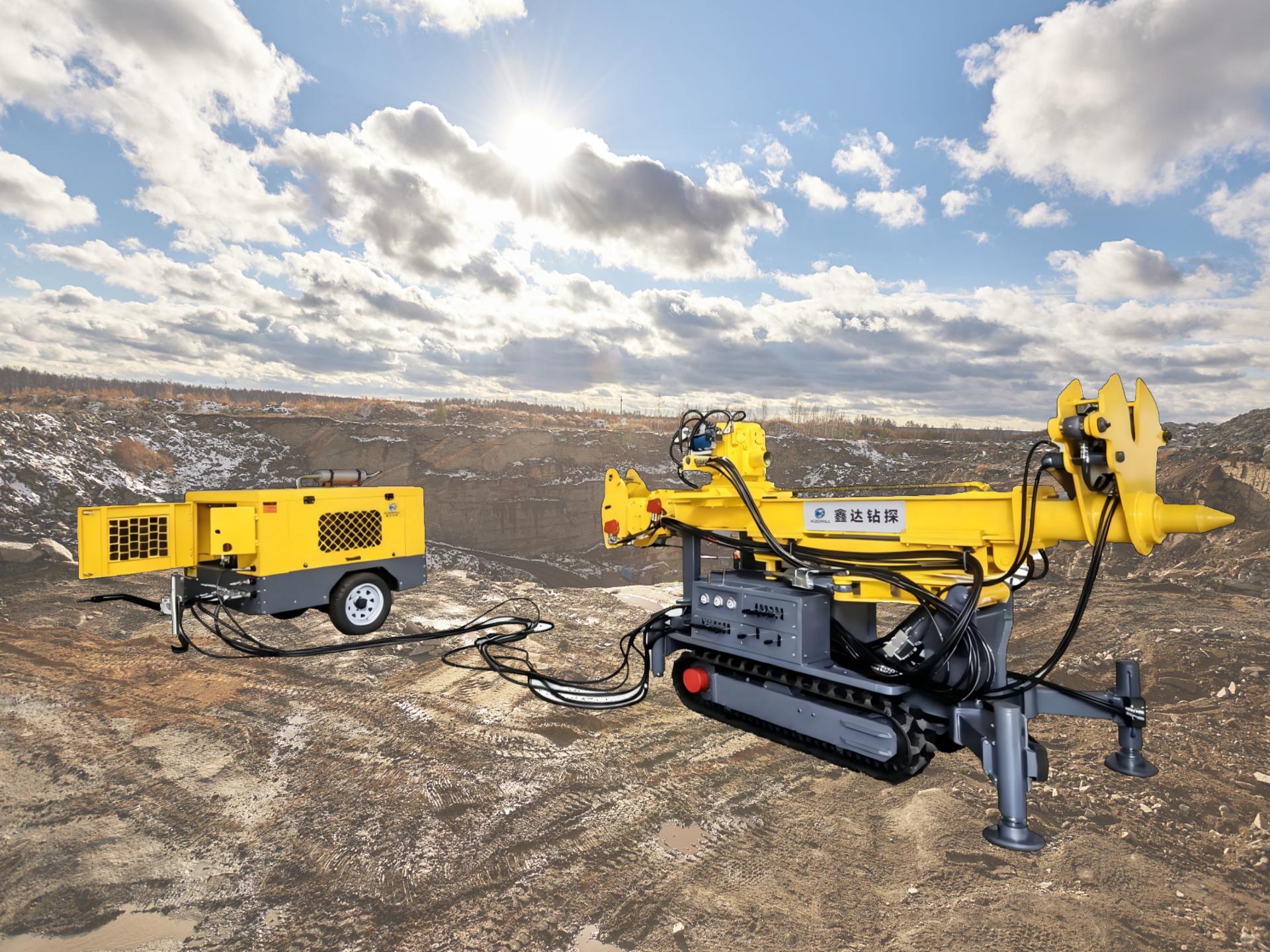

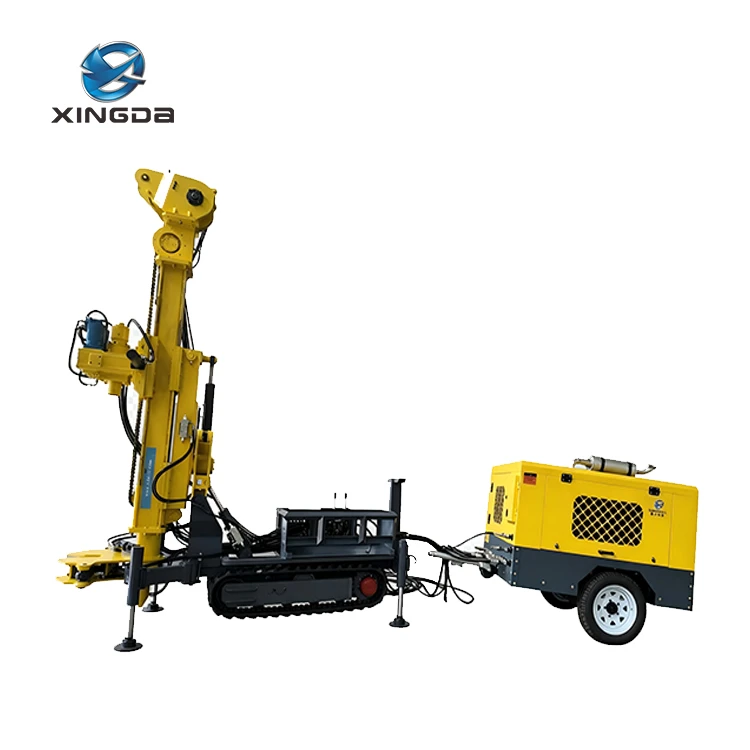

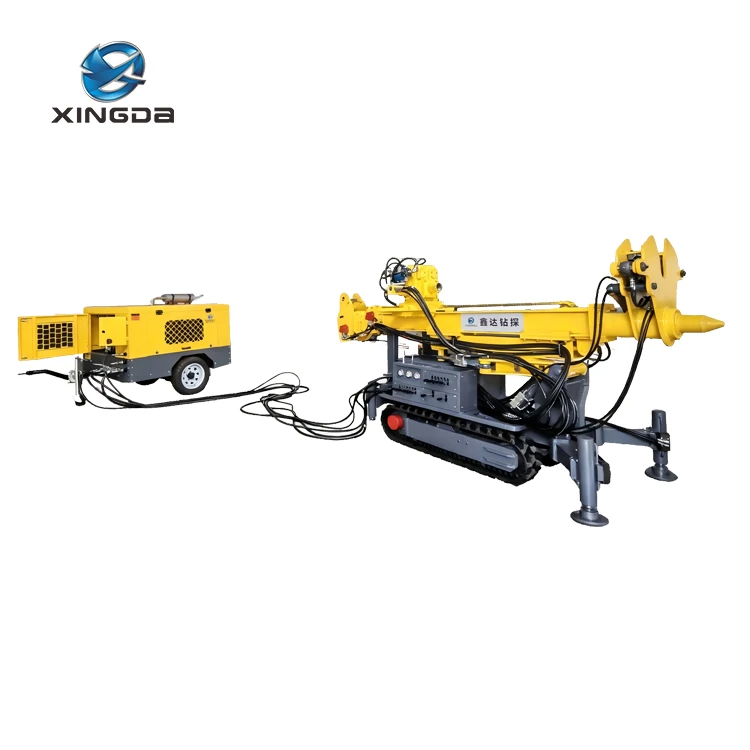

This split-type crawler hydraulic drill rig features a modular design consisting of a drill host and a separate power unit. It is a high-efficiency engineering drilling equipment integrating flexible mobility and multi-scenario adaptability, widely used in anchoring construction, foundation pit support, slope stabilization, geological exploration and other engineering fields.
Features
The drill host and power unit can be split for transportation, enabling easy relocation without large hoisting equipment. This design solves the pain points of limited site access and difficult transportation faced by traditional drill rigs.
The split structure significantly reduces transportation size and weight, making it compatible with small to medium-sized trailers. It also enables short-distance self-movement on-site, lowering cross-project relocation costs and improving efficiency.
The rubber track chassis features low ground pressure, easily adapting to complex construction sites such as muddy, rugged and narrow areas. With an adjustable mast, it supports vertical, inclined and multi-angle drilling, suitable for various working conditions.
Equipped with a high-torque hydraulic rotary head and high-strength feed beam, it delivers robust power and stable torque output, meeting the requirements for hard rock and deep hole drilling and significantly improving construction efficiency.
The rotary head is driven by dual hydraulic motors, delivering powerful performance to easily handle various complex formations and ensuring stable and efficient drilling operations.
Equipped with a hydraulic outrigger leveling system, the rig can be quickly stabilized during operation to effectively counteract drilling reaction forces. The centralized hydraulic control console with visual pressure gauges allows real-time monitoring of system status, reducing risks of jamming and overload.
The modular structure with independently arranged core components facilitates inspection and replacement of wearing parts. The fully enclosed track guards protect the traveling mechanism from debris intrusion, extending equipment service life and reducing long-term maintenance costs.
Main Technical Parameters
Applications
Applications

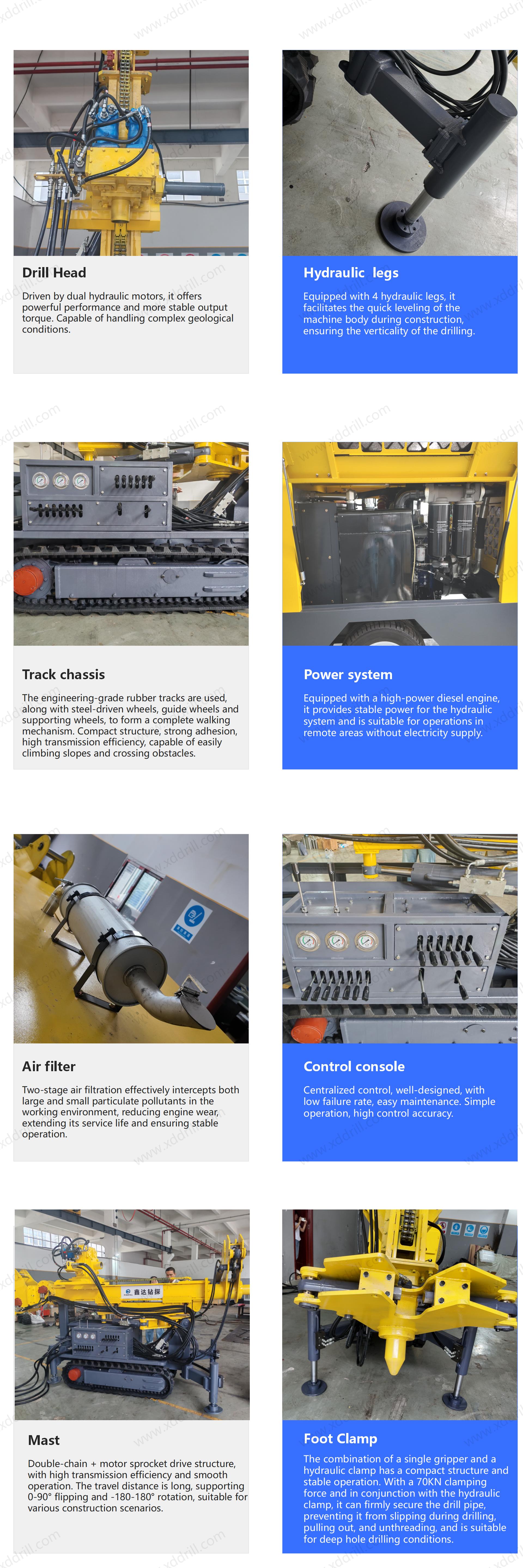

Structural details
Crafted with great care, the details reflect the quality.
