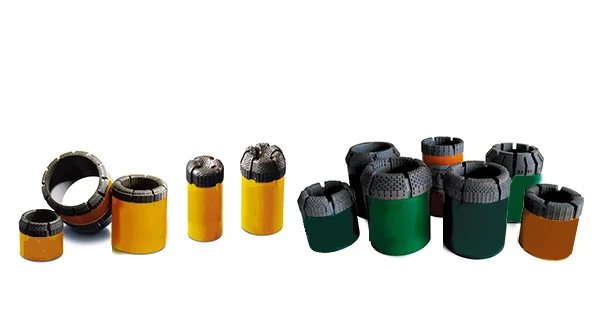

Impregnated Diamond Bits

Impregnated diamond bit

The synthetic diamond polycrystalline is manufactured by sintering the fine grains of synthetic monocrystals and at high temperature and high-pressure.Because of their advantages of high wear ability,hot hardness high compressive and impact strength,it is widely usd in geological exploration,petroleum drilling,mechanical processes,and so on. Diamond core bits are widely used in the drilling for geological exploration,water conservancy and power engineering,hydrogeological exploration and building construction,ets.

Inquire Now Contact Us

Features Main Technical Parameters Specificxations of Diamond

Features

Highlights at a glance

1.Cold Drawn Seamless Core Drilling Pipe High-Quality Synthetics Friction Welding Customized Solutions Mining Well Tools.

2.Durable Core Drill Pipe High-Quality Synthetics Heat Nitrogen Treatment Custom Training Water Conservancy Equipment.

3.Friction Welded Core Pipe High-Quality Synthetics Cold Drawn Seamless Custom Solutions Hydrogeological Drilling Machinery.

4.Core Drilling Pipe Cold Drawn Seamless High-Quality Synthetics Professional Training Multiple Specifications Tools.

5.Heat Nitrogen Treated Core Pipe High-Quality Synthetics Friction Welding Custom Services Construction Drilling Equipment.

6.Accurate Size Core Drill Pipe High-Quality Synthetics Cold Drawn Seamless Custom Solutions Geological Exploration Tools.

7.Cold Drawn Seamless Core Drilling Pipe High-Quality Synthetics Custom Training Durable Well Drilling Machinery.

8.Core Pipe Friction Welding High-Quality Synthetics Multiple Sizes Customized Solutions Hydrogeological Equipment.

9.Durable Seamless Core Pipe High-Quality Synthetics Accurate Size Professional Training Water Conservancy Drilling Tools.

10.Cold Drawn Core Drilling Pipe High-Quality Synthetics Heat Nitrogen Treatment Custom Services Construction Machinery.

Main Technical Parameters

钻头扩孔器尺寸Size of Core Bits and Reaming Shells
Description	钻头 Core bit		钻头Core bit		金刚石扩孔器 Reaming shell
规格型号Model	外径Outside Diameter		内径Inside Diameter		外径Outside Diameter
规格型号Model	Inches	mm	Inches	mm	Inches	mm
BTW	2.345	59.56	1.667	42.1	2.36	59.95
NTW	2.965	75.31	2.218	56.1	2.98	75.7
HTW	3.762	95.57	2.809	71.1	3.783	96.09
AC(AQ)	1.875	47.63	1.062	26.97	1.89	48.01
BCBQ)	2.345	59.56	1.433	36.4	2.36	59.95
BC3(BQ3)	2.345	59.56	1.32	33.53	2.36	59.95
NC(NQ)	2.965	75.31	1.875	47.63	2.98	75.7
NC3(NQ3)	2.965	75.31	1.775	45.08	2.98	75.7
HC(HQ)	3.672	95.57	2.5	63.5	3.783	96.09
HC3(HQ3)	3.672	95.57	2.406	61.11	3.783	96.09
PC(PQ)	4.805	122.05	3.345	84.96	4.828	122.65
PC3(PQ3)	4.805	122.05	3.27	83.06	4.828	122.65
T2-56	2.205	56	1.642	41.7	2.217	56.3
T2-76	2.992	76	2.429	61.7	3.004	76.3
T2-86	3.385	86	2.823	71.7	3.398	86.3
T2-101	3.976	101	3.295	83.7	3.988	101.3
T6-101	3.976	101	3.11	79	3.996	101.5
T6-131	5.157	131	4.252	108	5.157	131.5

Specificxations of Diamond

钻头选择参考表 Specificxations of Diamond

地层分类formation hardmess

岩层名称Rock

研磨性Abrasiveness

钻头胎体系Bit Matris Range

HRC
55

HRC
45-50

HRC
40-45

HRC
35-40

HRC
30-35

HRC
25-30

HRC
20-25

HRC
15-20

HRC
10-15

HRC
5-10

HRC
3-5

HRC
0-3

H-2

H-3

H-4

H-5

H-6

H-7

H-8

H-9

H-10

H-11

H-12

H-14

软
Soft

泥岩、页岩、很软的砂岩、泥炭岩、泥质岩、火山岩、凝灰岩等。
Clay,shale,verysoft sandstone,marl argilite，volcanic tuff，etc

强High

●

中Medium

●

弱 Low

●

中硬
Medium-hard

石灰岩、流纹岩、安山岩、大理岩、硬砂岩、褐铁矿、白云母、片岩等。
Limestone,rhyolite lava，andesite，marble，hard sandstone，limonite，dolomite，schist，ect.

强High

●

中Medium

●

弱 Low

●

硬
Hard

玄武岩、片麻岩、花岗闪长岩、角岩、伟晶岩、辉绿岩。
Basalt，gmeiss，granodiorite amphiblolite，pegmatite，diabase，ect.

强High

●

中Medium

●

弱 Low

●

坚硬

very hard

坚硬花岗岩、英砾岩、石英岩、硬板岩、流纹岩等。
Hard granite，quartzitic xonglomerate，quarizite hard slate，rhyolite，ect.

强High

●

中Medium

●

弱 Low

●

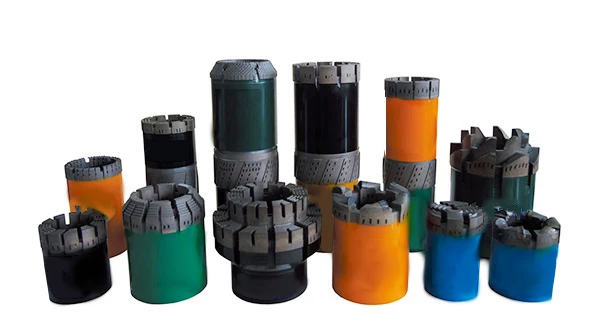

Impregnated diamond bit
