XD-420B Crawler Mounted DTH Drilling Rig

XD series crawler mounted DTH drilling rig is suitable for drilling medium-deep blasting holes in open-pit projects such as mining, quarrying, railways, transportation, water conservancy, building materials, and military, and for high-efficiency rock drilling operations. It is also widely used in anchor bolt support, channel excavation and drilling operations in sewer projects.

Diesel Engine	Yuchai YCD4R22T-8 60KW
Hole Dia(mm)	90-130
Drill Pipe Sizes(mm)	Φ76x3000

Inquire Now Contact Us

Main Features Main Technical Parameters Structure The main components are described as follows

Main Features of XD-420B crawler mounted DTH drilling rig

This model is equipped with a dual-motor rotating head and a variable-speed multi-channel valve. The rotation torque can reach 1950 N.m, meeting the requirements of 76mm drill rods and 130mm diameters. The maximum rotation speed can reach 150 rpm, meeting the needs of some customers for high-speed drilling in soft rock layers. At the same time, the 420B series models are standardly equipped with engineering tracks and piston motors, making the climbing ability stronger and the quality more stable and reliable. This model is the most fully-configured product among similar models.

This series of drilling machines is a cost-effective submersible drilling machine with high configuration and complete functions.

Main Technical Parameters

Model	XD-420B
Diesel Engine	Yuchai YCD4R22T-8 60KW
Hole Dia(mm)	90-130
Drill Pipe Sizes(mm)	Φ76x3000
DTH Hammer	4”/3.5”
Rotaton Torque(Max.)(N.m)	2200
Rotation Speed(rpm)	0-150
Feeding force(KN)	15
Lifting force(KN)	25
Feed Type	Chain Cylinder
Traveling speed (Max.)(km/h)	2.5
Climbing （°）	25
Total Weight(kg)	4500/4250
Transportion Dimensions(LxWxH)(mm)	490021002200

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Structure

The components of the XD-420B Crawler Mounted DTH Drilling Rig: 1. Walking motor track frame; 2. Power Unit, 3.Power head assembly, 4. Drilling arm, 5. Control console, 6. Air filter, 7.Level the cylinder, 8. tool box (8 parts)

The main components are described as follows

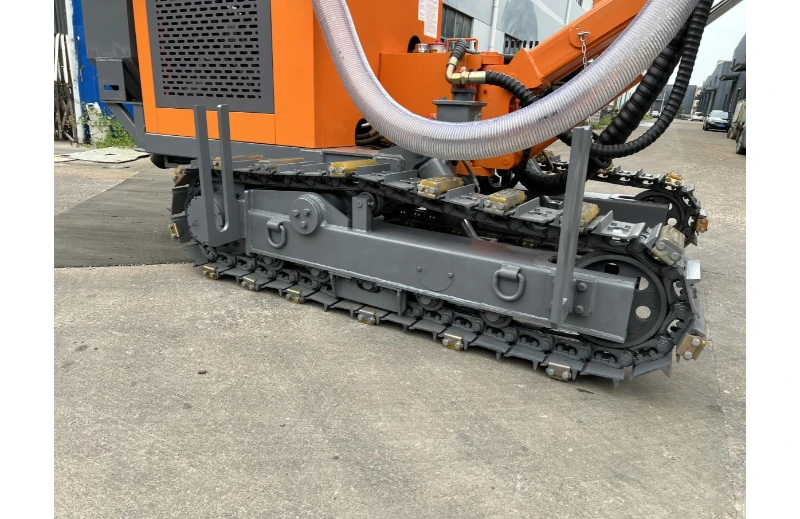

Walking motor track frame

Using engineering walking motor, climbing ability is strong, low failure rate.

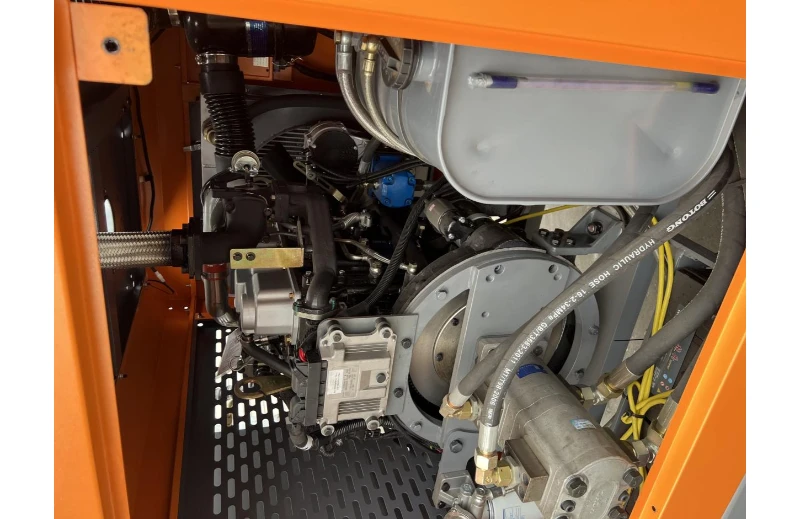

Power Unit

In order to adapt to different working environments and customer requirements, various specifications of diesel engines and electric motors are used to meet various requirements in line with national emission standards.

Remove the transmission case, directly connect to the engine, and the failure rate is low.

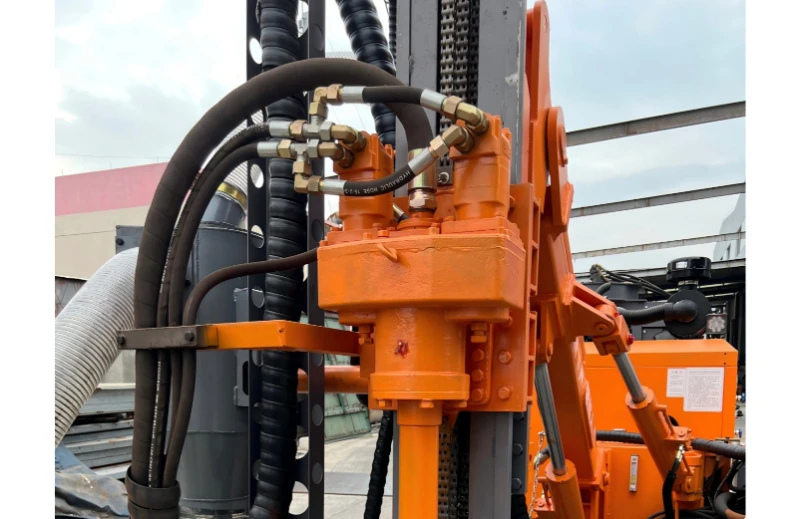

Drill Head

Equipped with double cycloidal motor gyroscope, with large rotary torque, efficient and durable characteristics.

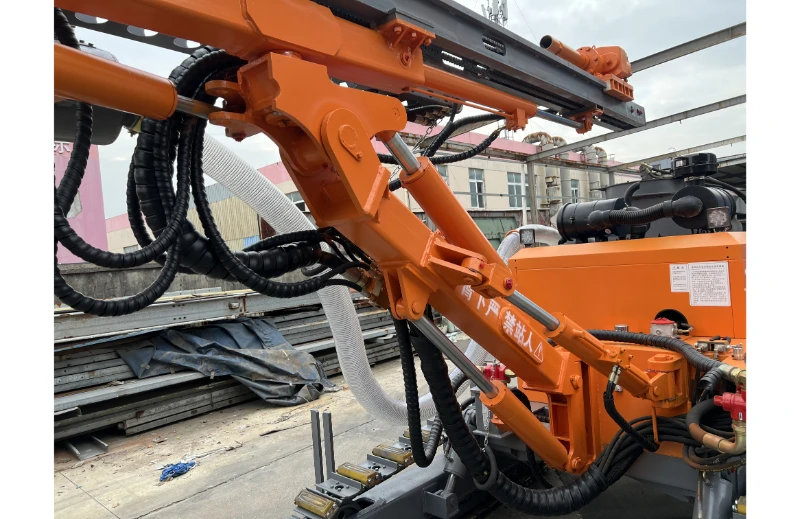

Drill arm

The drilling arm has a novel structure and convenient adjustment, which greatly improves the drilling operation range, and uses drilling low horizontal holes. Minimum horizontal hole height 300mm.

Control console

The new hydraulic system, with fast and slow speed, can shorten the operation auxiliary time. Meet the requirements of different working conditions.

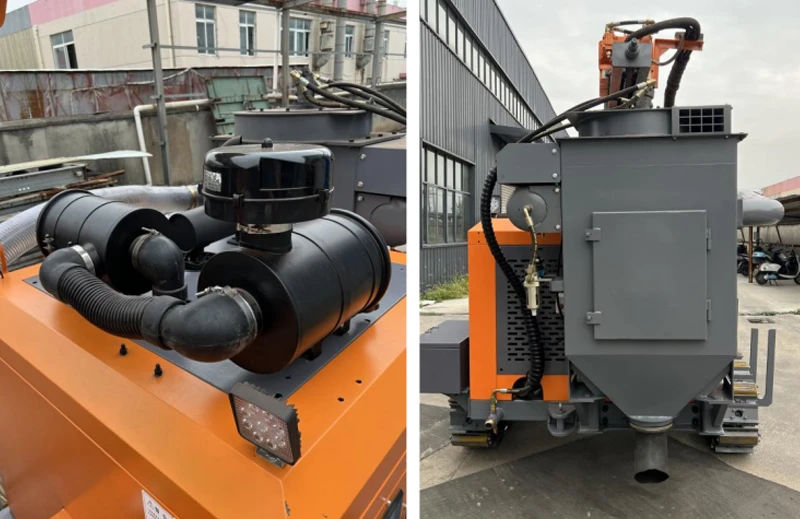

Air filter

The use of pre-filter, oil bath air filter and air filter three filtration, for the diesel engine in the high dust environment to provide a guarantee.

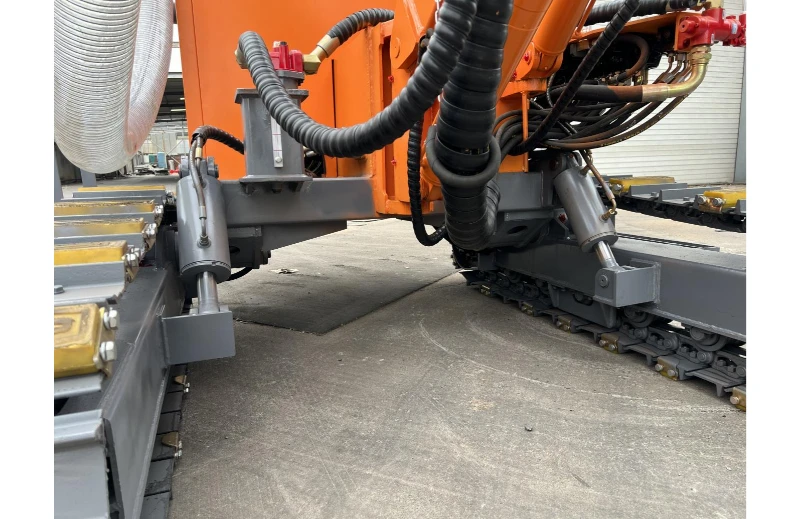

Level the cylinder

Track leveling cylinder, suitable for various terrain conditions to improve the stability of the whole machine.

Motor Power	45kw (optional)
Big frame	Double layer frame
Hydraulic legs	Four hydraulic legs

Hole Dia(mm)	90-127
Drill Pipe Sizes(mm)	Φ64x3000
DTH Hammer	3.5"
