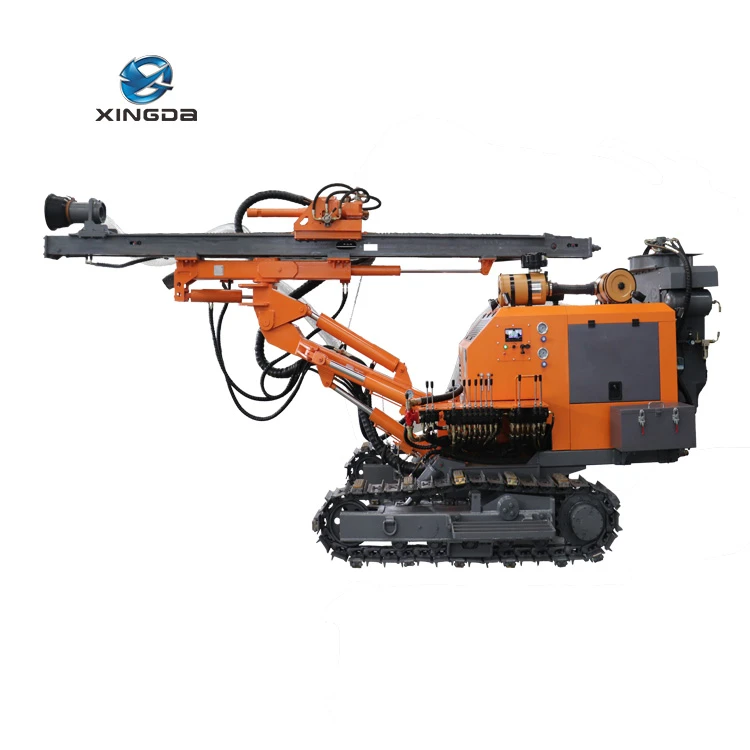

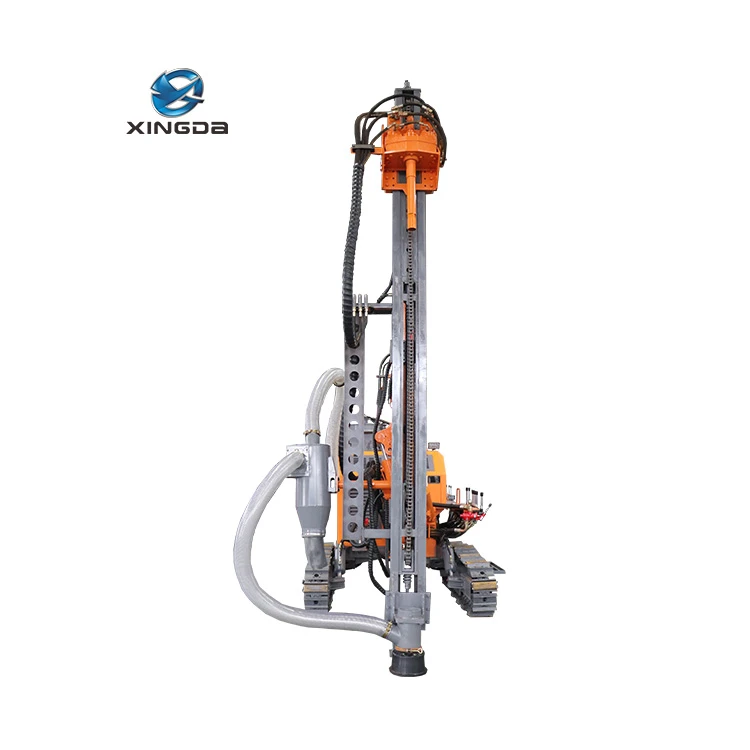

XD series crawler mounted DTH drilling rig is suitable for drilling medium-deep blasting holes in open-pit projects such as mining, quarrying, railways, transportation, water conservancy, building materials, and military, and for high-efficiency rock drilling operations. It is also widely used in anchor bolt support, channel excavation and drilling operations in sewer projects.
Product Features
This product features excellent performance, flexible operation, complete functions, wider adaptability and a relatively high cost performance. This product can be widely applied to rock drilling operations in various projects such as open-pit mining, foundation excavation, water conservancy, power stations, transportation and national defense construction. It can also be used to drill special-purpose rock holes such as anchoring holes, in-situ pressure measurement holes and drainage holes.
Product Details
01
Control console
The new hydraulic system, with fast and slow speed, can shorten the operation auxiliary time. Meet the requirements of different working conditions.
02
Walking motor track frame
Using engineering walking motor, climbing ability is strong, low failure rate.
03

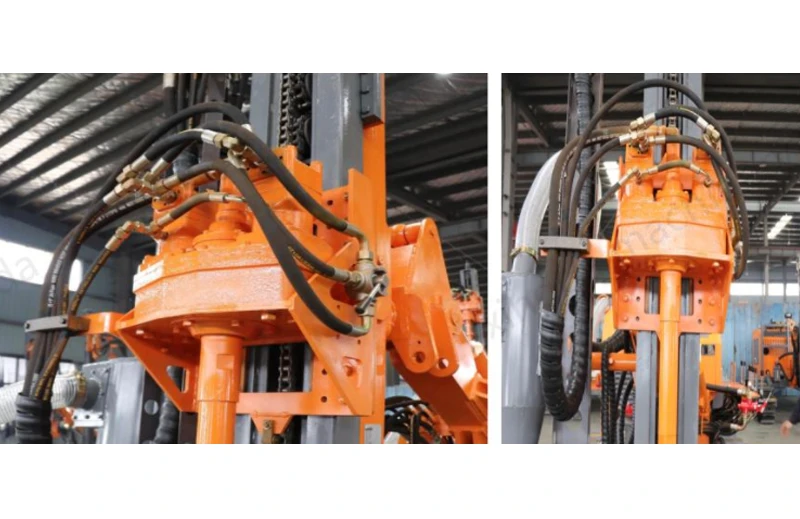

Double cycloidal motor gyrator
Equipped with double cycloidal motor gyroscope, with large rotary torque, efficient and durable characteristics.
04

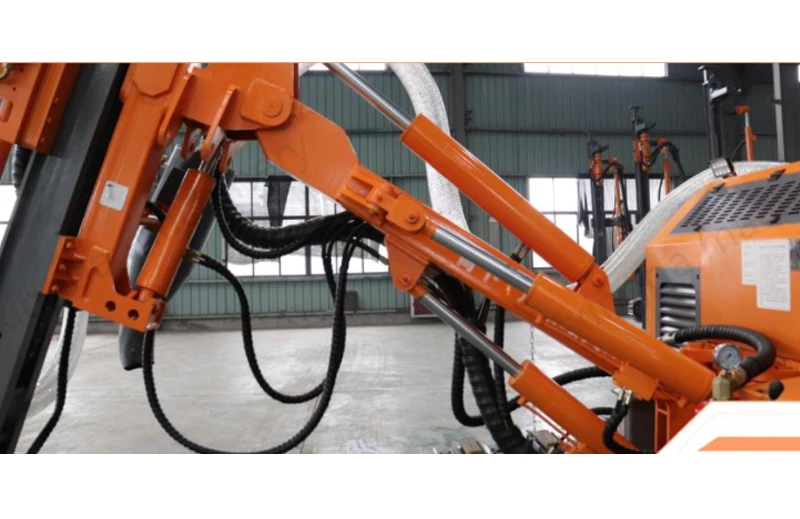

Drill arm
The drilling arm has novel structure and convenient adjustment, which greatly improves the drilling operation range and uses drilling low horizontal holes. Minimum horizontal hole height 300mm.
05
Air filter
The use of pre-filter, oil bath air filter and air filter three filtration, for the diesel engine in the high dust environment to provide a guarantee.
06

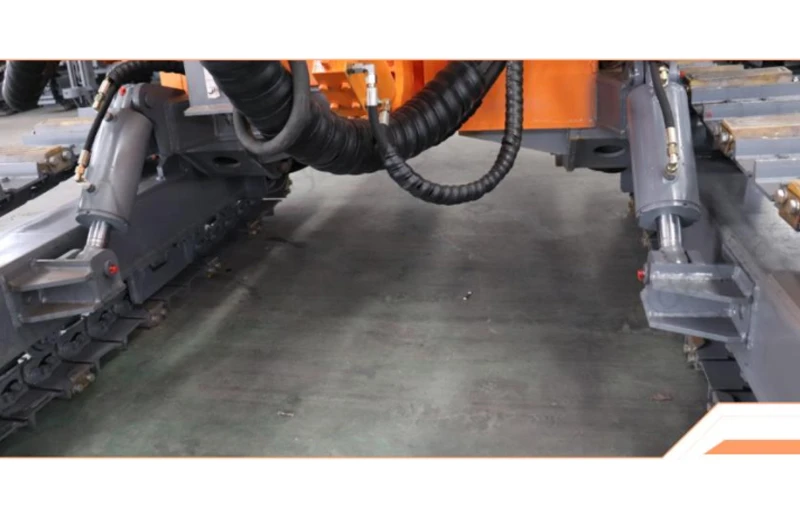

Level the cylinder
Track leveling cylinder, suitable for various terrain conditions to improve the stability of the whole machine.
Related Products
XDGJ Series Full hydraulic Crawler High-Lift Anchoring Drilling Rig
|
Motor Power |
45kw (optional) |
|
Big frame |
Double layer frame |
|
Hydraulic legs |
Four hydraulic legs |
XD-416 Crawler Mounted DTH Drilling Rig
|
Hole Dia(mm) |
90-127 |
|
Drill Pipe Sizes(mm) |
Φ64x3000 |
|
DTH Hammer |
3.5" |
XD-420B Crawler Mounted DTH Drilling Rig
|
Diesel Engine |
Yuchai YCD4R22T-8 60KW |
|
Hole Dia(mm) |
90-130 |
|
Drill Pipe Sizes(mm) |
Φ76x3000 |
