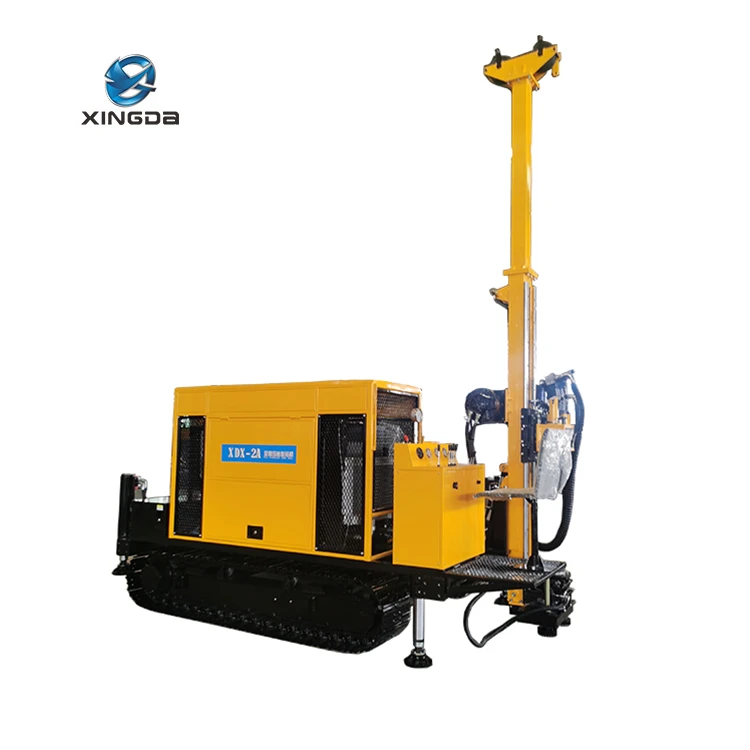

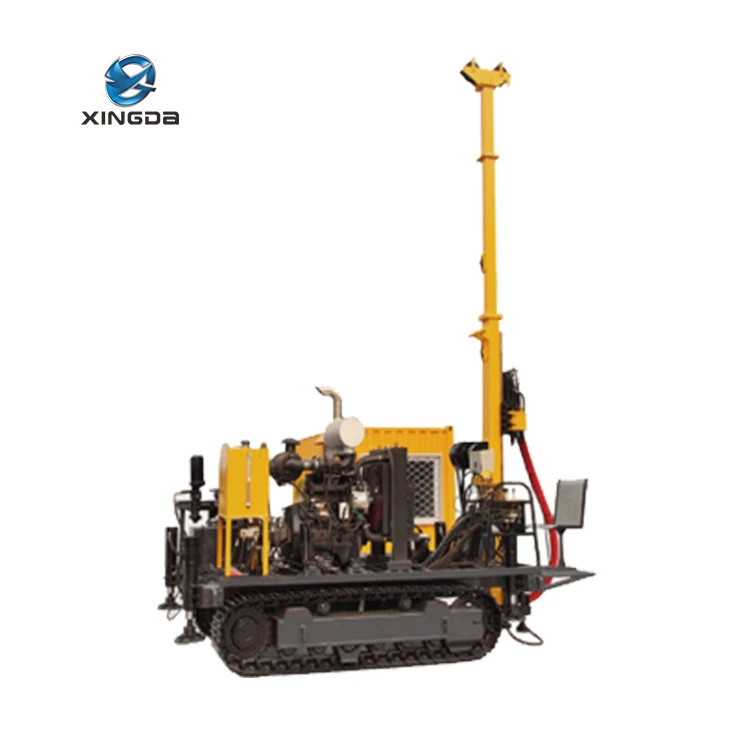

XDX-2A Full Hydraulic Core Drill Rig

XDX-2A Full Hydraulic Core Drill Rig is mainly used in core drill with diamond bit or hard tungsten-carbide tipped bit in the field of industries such as geology, metallurgy, coal, nuclear industry, hydrology, etc.

Drilling Depth	BQ Rod(φ55.6mm)
Drilling Depth	NQ Rod(φ69.9mm)
Drilling Depth	HQ Rod(φ88.9mm)

Inquire Now Contact Us

Features Main Technical Parameters Structure The main components are described as follows

Main Features of XDX-2A Full Hydraulic Core Rig

The rig adopts full hydraulic driving system and a crawler chassis.

Drill head adopts top drive structure, with lateral translation function and two gear stepless speed adjustment.

The rotation of drill head is driven by variable motor, with high working efficiency.

Mast is foldable, with adjustable leg supports at the lower part, and the upper mast could be equipped with extension joints as needed.

A hydraulic clamp with a stabilizer is adopted at the position above the drilling hole.

Main Technical Parameters

Model				Unit	XDX-2A
Item
Drilling Depth		BQ Rod(φ55.6mm)		m	500
		NQ Rod(φ69.9mm)			350
		HQ Rod(φ88.9mm)			120
		PQ Rod(φ114.3mm)			-
Drill Head Capacity		Speed Range	Grade I	r/min	405-874
			Grade II		560-1200
		Corresponding Torque	Grade I	N.m	900-425
			Grade II		630-293
		Max.Rotary Speed		r/min	1200
		Max.Torque		N ·m	900
		Hole Diameter of Spindle		mm	TDS (Top Drive)
		Max.Lifting Capacity		kN	50
		Max.Feeding Power			25
		Translational Distance		mm	265
Diesel Engine		Rated Power		kW	74(Cummins 4BTA3.9-C100)
		Rated Speed		r/min	2200
Hydraulic Pump	Pump 1	Rated Pressure		MPa	22
		Max.Flow		L/min	156
	Pump2	Rated Pressure		MPa	20
		Max.Flow		L/min	40
	Pump3	Rated Pressure		MPa	20
		Max.Flow		L/min	13
Mast		Total Height		m	6
		Adjusting Angle		°	0～90
		Drilling Angle			45～90
		Feeding Stroke		mm	1800
		Sliding Distance of Mast			715
Main Hoist		Single-wire Hoisting Capacity		kN	20
		Lifting Speed		m/min	84
		Dia.Of Steel Rope		mm	14
		Length of Steel Rope		m	30
Auxiliary Winch		Single-wire Hoisting Capacity		kN	8
		Lifting Speed		m/min	96
		Dia.Of Steel Rope		mm	6
		Length of Steel Rope		m	500
Mud Pump		Model		/	BW100
		Max.Displacement		L/min	100
		Max.Pressure		MPa	6
Overall Dimensions(L×W×H)		Working Dimensions		mm	4100×1840×6000
		Transport Dimensions			4200×1840×2400
Orifice Clamp		Applicable Rods			BQ,NQ,HQ,,PQ
		Via Diameter			Φ124
Traveling Speed				km/h	1.5-2.5
Climbing Capacity				°	≤30
Earth Contact Pressure Ratio				MPa	0.14
Weight of Main Machine				t	5.5
Model				Unit	XDX-2AA
Item
Drilling Depth		BQBQ Rod(φ55.6mm)		m	500
		NQNQ Rod(φ69.9mm)			350

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Structure

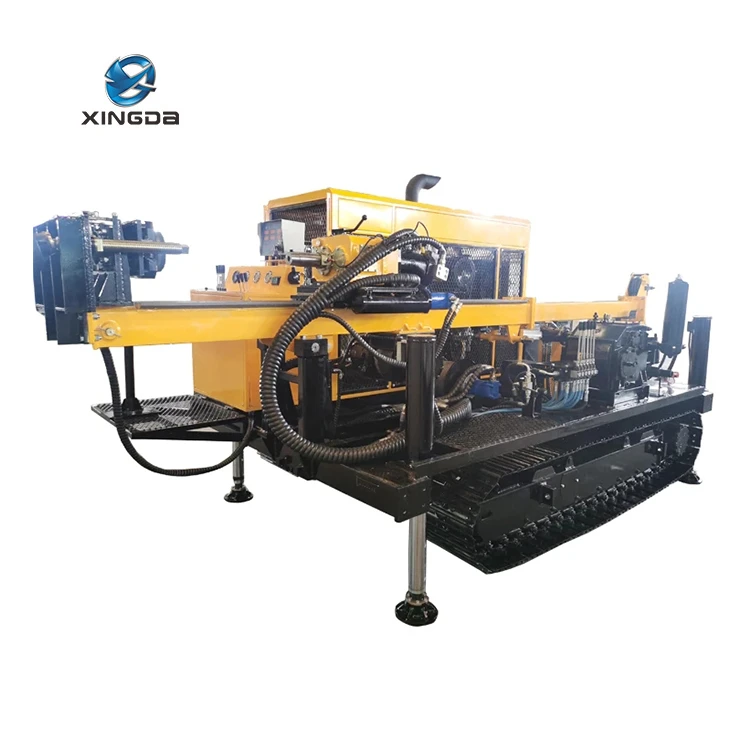

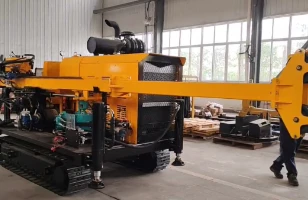

The components of the XDX-2A fully hydraulic core drilling rig: 1. Crawler chassis, 2. Power Unit, 3. Hydraulic system, 4. Power head assembly, 5. Mast, 6. Main winch, 7. Auxiliary winch, 8. Control panel, 9.Foot Clamp, 10. Mud pump (10 parts)

The main components are described as follows

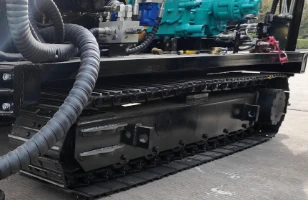

Crawler chassis

It adopts a steel track self-propelled chassis, which has strong adaptability to the site and high reliability.

Domestic well-known brand walking reducer, with stable performance and reliable quality.

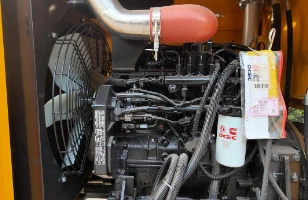

Power Unit

It is equipped with a Cummins turbocharged engine, which is powerful and meets the National II emission standards.

The water tank is made of copper, which has strong corrosion resistance.

The oil disperser is made of finned aluminum alloy, which has high pressure resistance and is rust-proof.

Hydraulic system

Main hydraulic components are selected from internationally renowned brands.

Hydraulic system adopts load sensitive control.

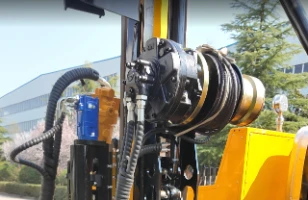

Drill Head

Drill head adopts a chuck type structure, with lateral translation function and four gear stepless speed adjustment.

The rotation of drill head is driven by variable motor, with high working efficiency.

The rotation of drill head spindle is driven by motor, with high operation efficiency and high torque.

Mast

Mast adopts oil cylinder lifting and lowering, foldable, convenient for transportation and storage, with sliding grounding function,

Mast is equipped with centering guide in its upper and lower part for inclined hole construction convenienty. A hydraulic clamp is adopted at the position above the drilling hole,

It can be remotely controlled wirelessly for movement, with high safety and strong climbing ability.

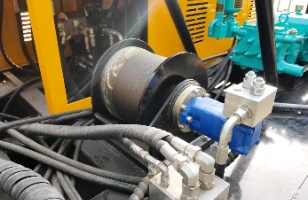

Main Hoist

It adopts a drive motor imported from South Korea

The lifting force of the main hoist is 20 kN

The drum is integrally cast, which offers better strength.

The main hoist has a follow-up function, making construction more convenient and efficient.

Auxiliary Winch

The lifting force of the auxiliary hoist is 8 KN

The diameter of the steel wire rope is 6mm

Rope speed: 96m/min

It is equipped with a braking function, providing excellent braking effect, large rope capacity and good structural strength.

Control Panel

The control system adopts a combination of closed and open types. The system design is simple, with a low failure rate and convenient maintenance.

The operation is simple and the control accuracy is high.

Foot Clamp

The gripper has a simple structure, a large clamping range, reliable clamping and a strong clamping force,Applicable Rods:BQ,NQ,HQ,PQ

The centralizer is easy to disassemble.

Mud Pump

Adopt well-known brand mud pumps，Max.Displacement 100L/min

The mud pump control adopts proportional control, and the mud flow can be adjusted according to the working conditions.

Equipped with a mixer interface.
