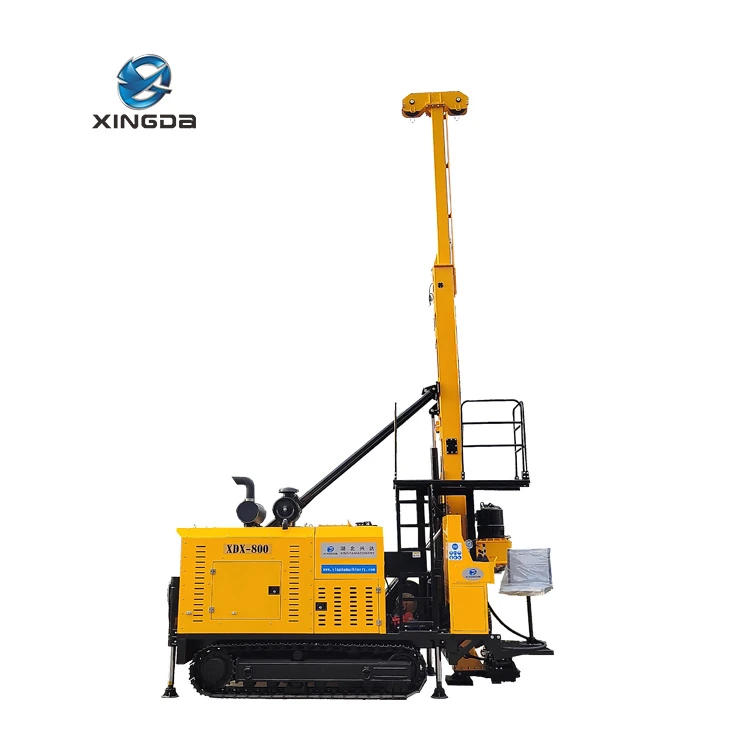

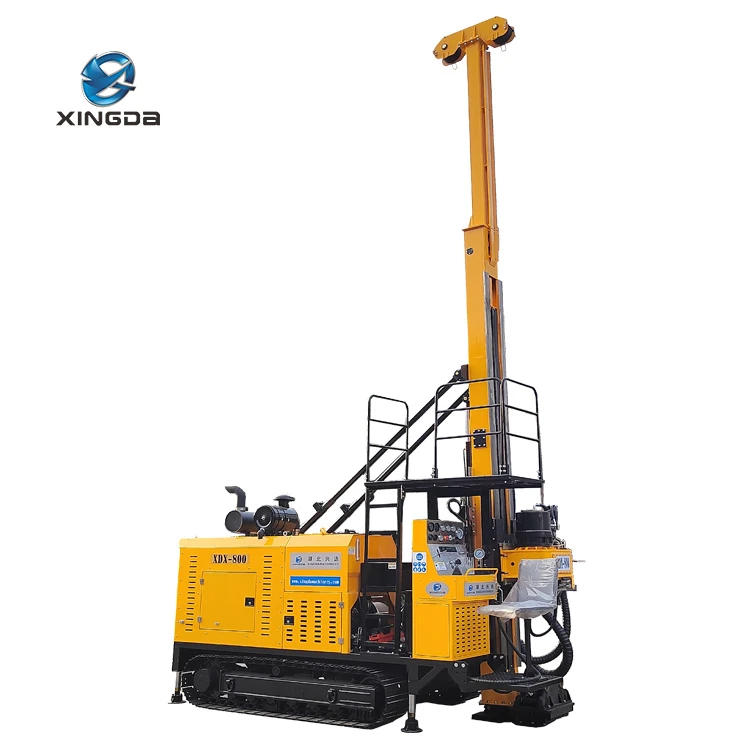

XDX-800 Full Hydraulic Core Drill Rig

XDX-800 Full Hydraulic Core Drill Rig is mainly used in core drill with diamond bit or hard tungsten-carbide tipped bit in the field of industries such as geology, metallurgy, coal, nuclear industry, hydrology, etc.

Drilling Depth	BQ Rod(φ55.6mm)
Drilling Depth	NQ Rod(φ69.9mm)
Drilling Depth	HQ Rod(φ88.9mm)

Inquire Now Contact Us

Features Main Technical Parameters Structure The main components are described as follows

Main Features of XDX-800 Full Hydraulic Core Rig

Hydraulic system adopts a combination of open hydraulic circuits and electro-hydraulic control, which is stable and reliable.

Drill head adopts a chuck type structure, with lateral translation function and two gear stepless speed adjustment.

The rig is driven by cylinder directly, with stable performance, high lifting force, and strong accident handling capacity.

Mast adopts oil cylinder lifting and lowering, foldable, convenient for transportation and storage, with sliding grounding function.

The rig moves with its steel crawlers, and the walking control mode 'operation handle+wired+wireless control' could be selected.

Main Technical Parameters

Model				Unit	XDX-800
Item
Drilling Depth		BQ Rod(φ55.6mm)		m	1000m
		NQ Rod(φ69.9mm)			800m
		HQ Rod(φ88.9mm)			600m
		PQ Rod(φ114.3mm)			400
Drill Head Capacity		Speed Range	Grade I	r/min	318-618
			Grade II		570-1100
		Corresponding Torque	Grade I	N.m	2400-1239
			Grade II		1343-690
		Max.Rotary Speed		r/min	1100
		Max.Torque		N ·m	2400
		Hole Diameter of Spindle		mm	98
		Max.Lifting Capacity		kN	200
		Max.Feeding Capacity		kN	100
		Translational Distance		mm	400
Diesel Engine		Rated Power		kW	129（Wei Chai WP4.1NG175E301）
		Rated Speed		r/min	2200
Hydraulic Pump	Pump 1	Rated Pressure		MPa	25
		Max.Flow		L/min	160
	Pump 2	Rated Pressure		MPa	20
		Max.Flow		L/min	70
	Pump 3	Rated Pressure		MPa	25
		Max.Flow		L/min	22
	Side Pump 1	Rated Pressure		MPa	5
		Max.Flow		L/min	12
Mast		Total Height		m	8.4
		Adjusting Angle		°	0～90
		Drilling Angle		°	45～90
		Feeding Stroke		mm	3500
		Sliding Distance of Mast		mm	725
Main Hoist		Single-wire Hoisting Capacity		kN	69(First layer)
		Lifting Speed		m/min	40
		Dia.Of Steel Rope		mm	16
		Length of Steel Rope		m	50
Auxiliary Winch		Single-wire Hoisting Capacity		kN	12(First layer)
		Lifting Speed		m/min	130
		Dia.Of Steel Rope		mm	6.0
		Length of Steel Rope		m	1000
Mud Pump		Model		/	BW160
		Max.Displacement		L/min	160
		Max.Pressure		MPa	10
Overall Dimensions(L×W×H)		Working Dimensions		mm	4600×2000×8400
		Transport Dimensions		mm	5500×2000×2450
Orifice Clamp		Applicable Rods		mm	BTW,NTW,HTW,BQ,NQ,HQ,PQ
		Via Diameter		mm	Φ154
Traveling Speed				km/h	1.5-2.5
Climbing Capacity				°	≤30
Earth Contact Pressure Ratio				MPa	0.14
Weight of Main Machine				t	9.5

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Structure

The components of the XDX-800 fully hydraulic core drilling rig: 1. Crawler chassis, 2. Power Unit, 3. Hydraulic system, 4. Power head assembly, 5. Mast, 6. Main winch, 7. Auxiliary winch, 8. Control panel, 9.Foot Clamp, 10. Mud pump (10 parts)

The main components are described as follows

Drilling rig tracked chassis

It adopts a steel track self-propelled chassis, which has strong adaptability to the site and high reliability.

Domestic well-known brand walking reducer, with stable performance and reliable quality.

Power Unit

Cummins non-road diesel engines are powerful and meet the National II and National III emission standards

The water tank is made of copper, which has strong corrosion resistance.

The oil disperser is made of finned aluminum alloy, which has high pressure resistance and is rust-proof.

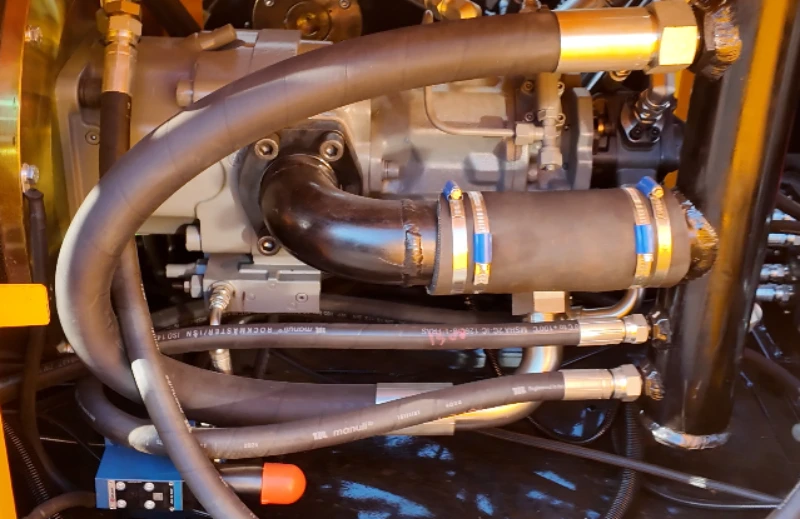

Hydraulic system

The rotation and feed lifting adopt an open hydraulic system.

Components of well-known domestic and foreign brands, reliable quality.

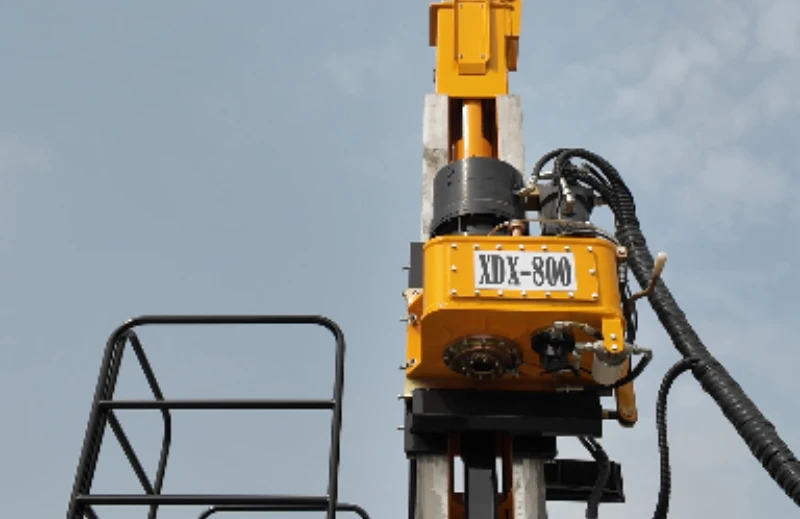

Drill Head

The power head is designed with mechanical 2-speed stepless speed regulation, The power head has a high rotational speed, smooth gear shifting and no gear skipping.

The power rotation is driven by a well-known domestic brand hydraulic motor, which has excellent shock resistance and a long service life.

Mast

The foldable oil cylinder direct-push mast is adopted, and the rear support oil cylinder is luffing.

The Angle adjustment operation is simple and has a wide range.

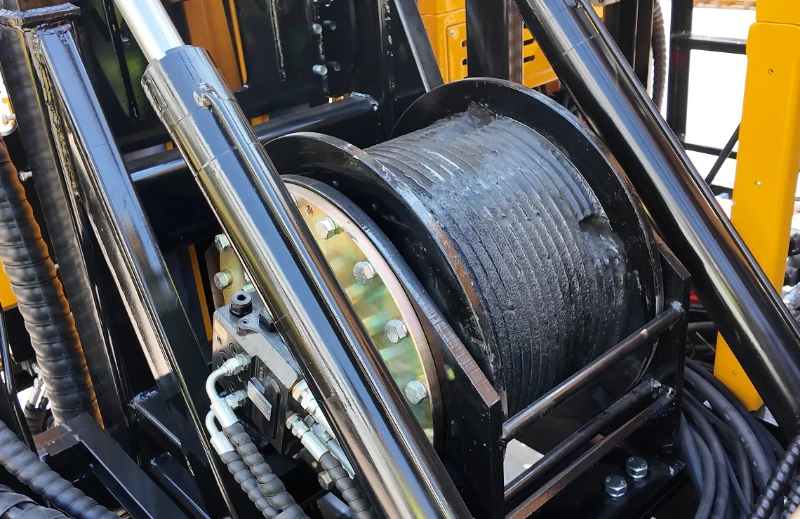

Main Hoist

It adopts a drive motor imported from South Korea.

The lifting force of the main hoist is 69 kN.

The drum is integrally cast, which offers better strength.

The main hoist has a follow-up function, making construction more convenient and efficient.

Auxiliary Winch

The lifting force of the auxiliary hoist is 12 KN.

The diameter of the steel wire rope is 6mm.

Rope speed: 130m/min.

It is equipped with a braking function, providing excellent braking effect, large rope capacity and good structural strength.

Control panel

The control system adopts a combination of closed and open types. The system design is simple, with a low failure rate and convenient maintenance

The operation is simple and the control accuracy is high

Foot Clamp

The drilling rig is equipped with a self-centering clamping unbuckle device, ensuring that the drill pipe is firmly clamped.

The operation field of vision is good, which is convenient for the maintenance and replacement of the card.

Matching kavas: BTW, N TW, HTW

Mud Pump

Adopt well-known brand mud pumps, Max.Displacement 160L/min

The mud pump control adopts proportional control, and the mud flow can be adjusted according to the working conditions

Equipped with a mixer interface.
