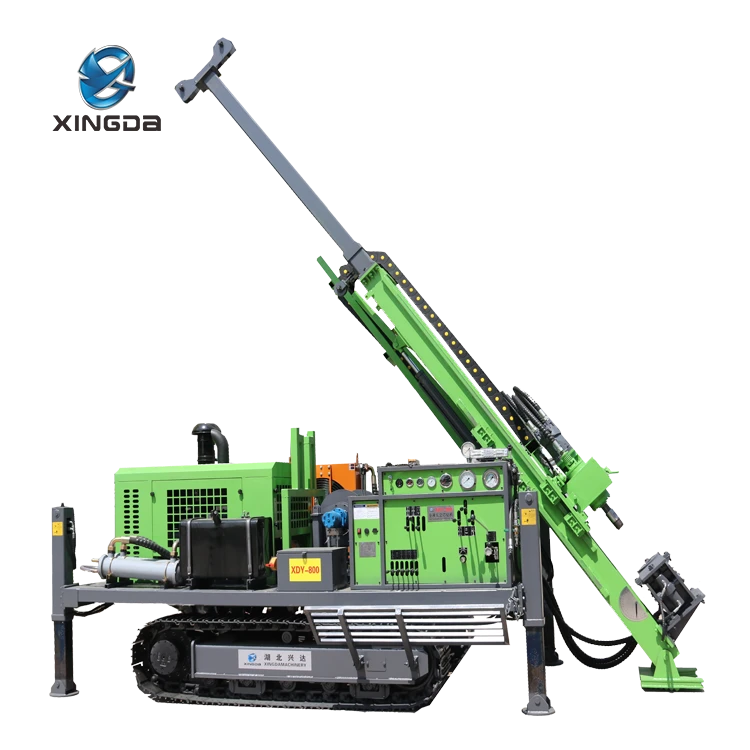

XDY-600(800) Full Hydraulic Core Drill Rig

XDY series fully hydraulic core drilling rig is a new type of drilling rig developed by our company on the basis of advanced technology of similar drilling rigs at home and abroad. It is widely used in geological exploration, shallow oil and gas drilling, and can also be used for drilling of railway, highway, bridge, water conservancy and hydropower, tunnel and other projects.

Power head	Max.Torque(N.m)	1400
Power head	Max. Speed(rpm)	1400
Power head	Max. Stroke(m)	1.8

Inquire Now Contact Us

Features Main Technical Parameters Structure The main components are described as follows

Main Features of XDY-600(800) Full Hydraulic Core Rig

The XDY series fully hydraulic drilling rigs is for diamond wireline coring drilling process, with excellent performance, high drilling speed, stable operation, easy operation, safe and reliable, and highly integrated design, making the whole machine compact and functional, with low failure rate and simple maintenance, which significantly improves drilling efficiency and drilling quality.

Main Technical Parameters

Model		XDY-600	XDY-800
Drilling capacity	BTW (m)	650	1200
	NTW (m)	600	1000
	HTW (m)	300	800
	PQ (m)	\	600
Hydraulic system	Rated pressure (Mpa)	main pump:95ml/r.32MPa auxiliary pump:80ml/r.25MPa	main pump:95ml/r.32MPa auxiliary pump:80ml/r.25MPa
Hydraulic system	type of cooling	air-cool	Secondary air cooling + primary water cooling
Diesel Engine	Model	Yuchai, four cylinders 92kW	Yuchai, six cylinders 92kw
	Power(KW)	92	92
	Rated speed(rpm)	2200	2200
Power head	Max.Torque(N.m)	1400	1800
	Max. Speed(rpm)	1400	1400
	Max. Stroke(m)	1.8	1.8
	Max.Pulling Force(KN)	240	300
	Feeding force(KN)	120	150
Winch	Steel Wire Length（m)	800	1000
	Hoisting Force（kN）	15	20
	Hoisting Speed(m/min)	110	110
	Steel Wire Diameter(mm)	6	6
Mast	Mast Height(m)	6.1	6
	Drilling Angle（°）	45-90	0-90
	Slippage Stroke(m)	800	1200
Foot Clamp		BQ/NQ/HQ/PQ	Trojan Clamp Φ146mm
Steel Crawler	Max. loading(t) Climbing ability(°)	6/20	6/20
Steel Crawler	Walking speed(Km/h)	2	2
Mud Pump		BW100	BW100
Dimensions (L × W ×H )		450019002300	560019002650
Weight（t)		4.6	7.5

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Structure

The components of the XDY-600(800) fully hydraulic core drilling rig: 1. Crawler chassis, 2. Power Unit, 3. Hydraulic system, 4. Power head assembly, 5. Mast, 6. Winch, 7. Auxiliary winch, 8. Control panel, 9.Foot Clamp, 10. Mud pump (10 parts)

The main components are described as follows

Crawler chassis

Rubber / 6t steel-made tracks.

Track adopts low speed and high torque hydraulic motor, wireless remote control walking, high safety, strong climbing ability.

The moving speed of the machine can reach 2km/h, which is suitable for transfer and operation in mountainous areas and muddy ground.

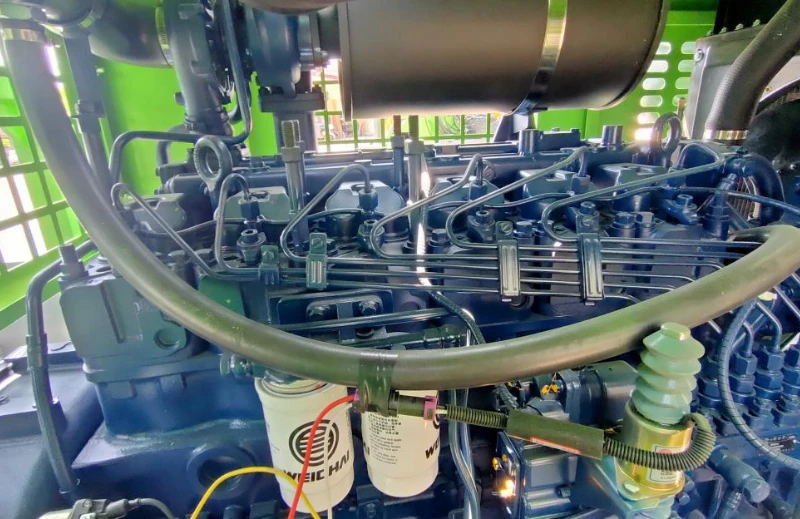

Power Unit

Yuchai turbocharged engine, Beijing Huade axial piston pump + triple gear pump full hydraulic drive, high system pressure, strong power output.

Hydraulic system

The hydraulic system is equipped with dual hydraulic oil filtration, two-stage air cooling + one-stage water cooling system to ensure the heat balance and cleanliness of the hydraulic system, so that the system temperature is kept within the specified range, and the stability and durability of the rig are greatly improved.

Hydraulic hose adopts two layers of steel wire braided high pressure pipe, plus protective sleeve, resistant to wear.

The hydraulic system adopts load-sensitive control, featuring high efficiency and large torque.

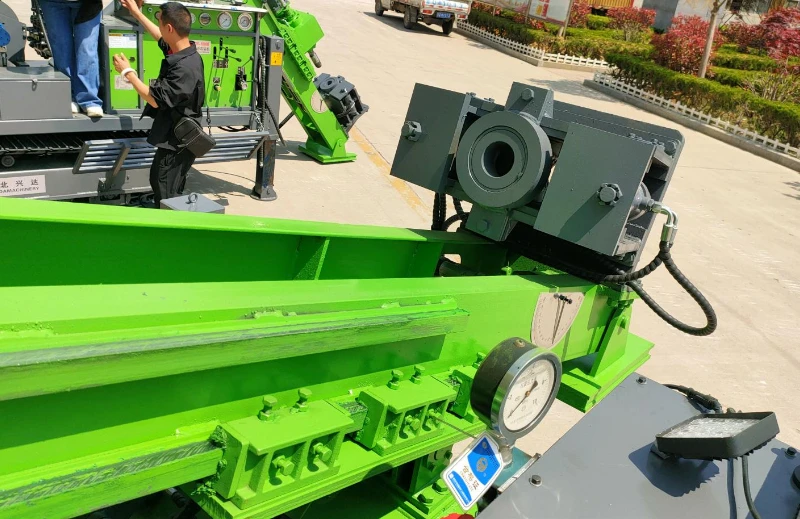

Drill Head

The power head adopts mechanical two-speed stepless speed regulation design, low-speed torque doubling, stable and reliable drilling, and the power head has a lateral translation mechanism, which is convenient to lift and release the drilling tool.

The rotary function of the power head is driven by an axial piston pump and a slanted shaft piston motor. It features a compact structure, small size, good shock resistance, long service life and high torque, which significantly improves the drilling efficiency.

Mast

Combined mast, automatically retractable, slip line up to 1200mm, can be 0-90°Drilling at any Angle.

Winch

Driven by a hydraulic motor, it operates smoothly.

The lifting force of the winch is 15 KN..

The drum of the winch is made by a single casting process, which results in better strength and a larger rope capacity.

Control panel

The control system is simple in design, has a low failure rate and is convenient for maintenance.

All parameter monitoring, easy to operate

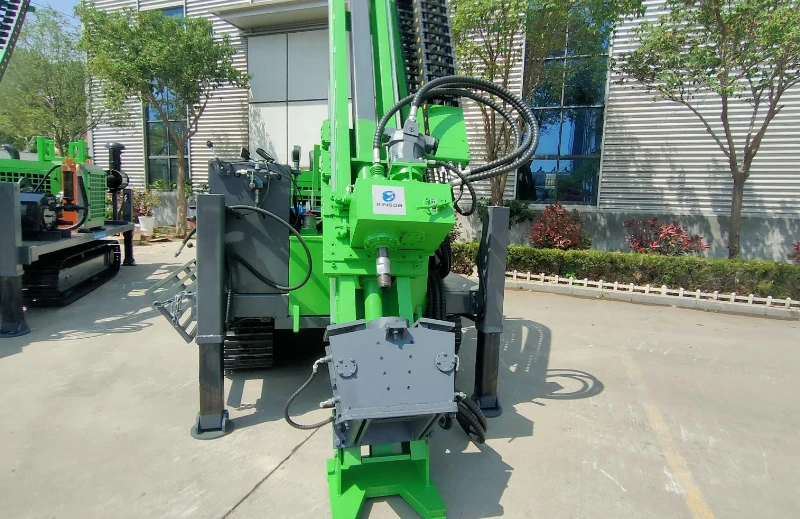

Foot Clamp

The gripper has a simple structure, reliable clamping and a strong clamping force.

Mud Pump

Adopt well-known brand mud pumps.

The mud pump control adopts proportional control, and the mud flow can be adjusted according to the working conditions.
