DTH Drill Rod

DTH drill rod

DTH drill pipe is a new type of DTH drill pipe, which is composed of rod barrel, male joint and female joint. The rod barrel, male joint and female joint are provided with axial holes, and the rear end of male joint and the front end of female joint are embedded into the axial hole of the rod barrel by both ends of the rod barrel in interference fit mode.A shaft shoulder is arranged on the male joint and female joint of the DTH drill pipe, and the end face of the rod barrel is welded to the end face of the shaft shoulder of the male joint and the female joint.The DTH drill pipe is a new type of drill pipe and the male and female joints are connected by radial interference fit and welded from the axial end face, so the DTH drill pipe has a high torsional strength, which can meet the drilling needs.It has the characteristics of less equipment investment and light weight of drill pipe.

Usage:

42mm, 50mm, 60mm dth drill pipe is mainly used on our XDQ70 and XDQ100 portable dth drilling rig for 50mm -130mm diameter,5-30m depth slope protection project hard rock drilling, or open-pit mine blasting hole hard rock drilling. They also used on soil drilling which weld auger vane on the pipe outside with three-wings bit drilling .

Inquire Now Contact Us

Features Main Technical Parameters Advantages

Features

The DTH drill rod / DTH drill pipe is an essential component in modern down-the-hole drilling systems, engineered for high-efficiency rock penetration and stable torque transmission in demanding drilling environments. Designed with a robust structure combining a rod barrel, male joint, and female joint, this drilling pipe ensures reliable performance under high-impact and high-rotation conditions.

Unlike conventional drill pipes, this DTH drill pipe adopts precision interference-fit assembly and axial-end welding technology, significantly improving torsional strength and structural integrity. The result is a lightweight yet highly durable drilling solution suitable for deep and hard rock applications.

Manufactured under strict quality standards by XDDRILL, this drill rod is optimized for compatibility with advanced DTH Drilling Rigs, ensuring stable energy transfer, reduced vibration, and longer service life in continuous drilling operations.

Highlights at a glance

1.Cold Draw Seamless DTH Drill Pipe 76-114mm Friction Welding Heat Nitrogen Treatment Water Well Drilling Rod .

2.DTH Drill Rod Cold Draw Seamless Body 89-114mm Friction Welding Durable Water Well Rock Drilling Pipe.

3.Water Well DTH Drill Pipe Cold Draw Seamless 76/89/102/114mm Nitrogen Treatment Friction Welding Rod.

4.Friction Welded DTH Drill Pipe Cold Draw Seamless 76-114mm Heat Treatment Multi Rock Water Well Drilling.

5.Cold Draw Seamless DTH Drill Rod 76-114mm Friction Welding Durable Nitrogen Treated Water Well Pipe.

6.DTH WaterWell Drill Pipe 76/89/102/114mm Cold Draw Seamless Friction Welding Heat Nitrogen Treatment.

7.Durable DTH Drill Pipe Cold Draw Seamless 76-114mm Friction Welding Nitrogen Treatment Rock Drilling Rod.

8.76-114mm DTH Drill Rod Cold Draw Seamless Friction Welding Heat Treatment Water Well Rock Drilling Pipe.

9.Cold Draw Seamless Friction Welded DTH Pipe 76/89/102/114mm Nitrogen Treatment Water Well Drilling Rod.

10.DTH Drill Pipe Cold Draw Seamless Body 76-114mm Friction Welding Durable Water Well Multi Depth Drilling.

Main Technical Parameters

Thread	Diameter /mm	length/mm	Wall thickness range/mm	Upset Type
APL 2-3/8REG	76	1000-6000	4-10	Internal Upset
API 2-3/8REG	83	1000-6000	4-10	Internal Upset
APL 2-3/8REG	89	1000-6000	4-10	Internal Upset
API 2-7/8REG	102	1500-6000	6-12	Internal Upset
API 3-1/2REG	114	1500-6000	6-12	Internal Upset
API 3-1/2REG	127	1500-6000	6-12	Internal Upset
API 3-1/2REG	133	1500-6000	6-12	Internal Upset
API 4-1/2REG	140	1500-6000	6-12	Internal Upset
CUBX21#	89	1000-6000	4-10	Internal Upset
CUBX21#	102	1000-6000	6-12	Internal Upset
CUBX24#	102	1000-6000	6-12	Internal Upset
CUBX28#	114	1000-6000	6-12	Internal Upset
CUBX28#	127	1000-6000	6-12	Internal Upset
Z2-1/2	102	1000-6000	6-12	Internal Upset
DIBH3-1/8	102	1000-6000	6-12	Internal Upset
DIBH3-1/2	114	1000-6000	6-12	Internal Upset

Applications of DTH Drill Rod / DTH Drill Pipe

The DTH drill rod is widely used in various drilling scenarios where efficiency, precision, and durability are critical. Its design allows it to perform consistently in both surface and subsurface rock conditions.

1. Slope Protection and Foundation Engineering

DTH drill pipes are commonly used in slope stabilization and foundation reinforcement projects. They are suitable for drilling anchor holes in hard rock formations with diameters ranging from 50mm to 130mm, ensuring strong structural support in civil engineering projects.

2. Open-Pit Mining Operations

In mining environments, the DTH drill pipe is used for blast hole drilling in hard rock formations. It provides excellent penetration speed and maintains stability even under high-impact drilling loads, making it ideal for large-scale mining production.

3. Water Well Drilling

The drill rod is widely applied in water well construction, especially in medium to deep boreholes. Its friction-welded structure and heat-treated body ensure reliable performance in long-duration drilling tasks.

4. Soil and Mixed Formation Drilling

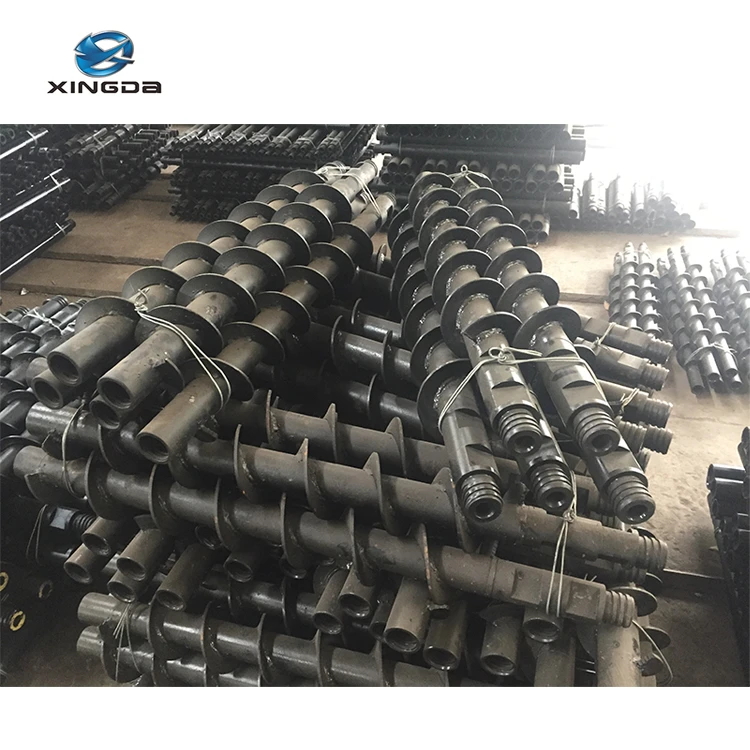

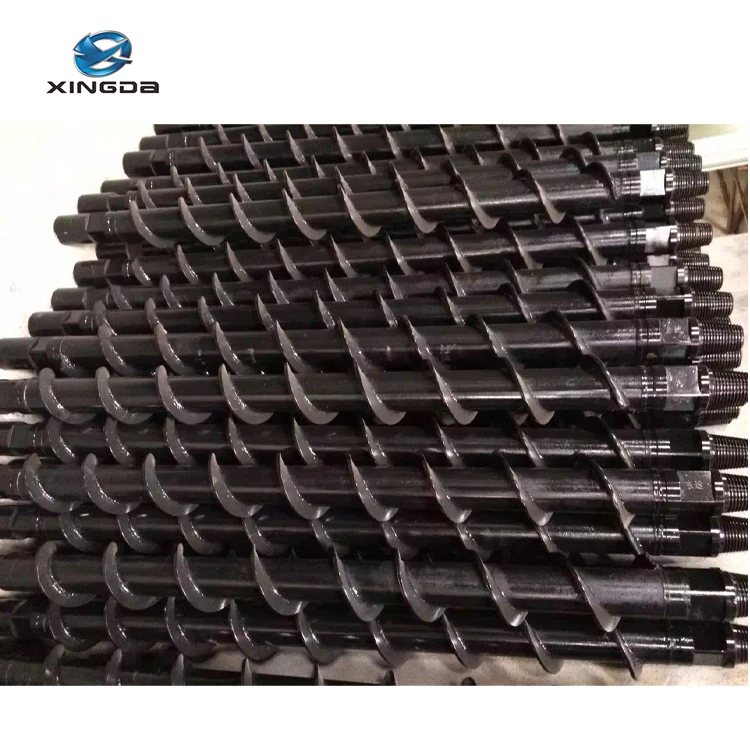

For softer ground or mixed geological layers, the drill pipe can be adapted with external auger vanes and tri-wing bits, enabling efficient soil drilling and improved cuttings removal.

5. Portable and Small Rig Applications

The 42mm, 50mm, and 60mm configurations are particularly suitable for compact drilling systems such as portable rigs. These sizes are commonly matched with XDQ70 and XDQ100 drilling rigs, offering flexibility for field operations with limited space or mobility requirements.

Key Application Advantages

Suitable for hard rock, mixed strata, and soil formations
Compatible with a wide range of DTH Drilling Rigs
High torsional strength for deep and high-impact drilling
Lightweight structure for easier handling and transport
Stable performance in both mining and civil engineering projects
Extended service life due to heat treatment and nitrogen hardening processes

The DTH drill rod / DTH drill pipe developed by XDDRILL delivers a balanced combination of strength, precision, and versatility, making it a reliable choice for demanding drilling operations across mining, construction, and water well industries.

Advantages

Drill rod
