Water Well Drill Pipe

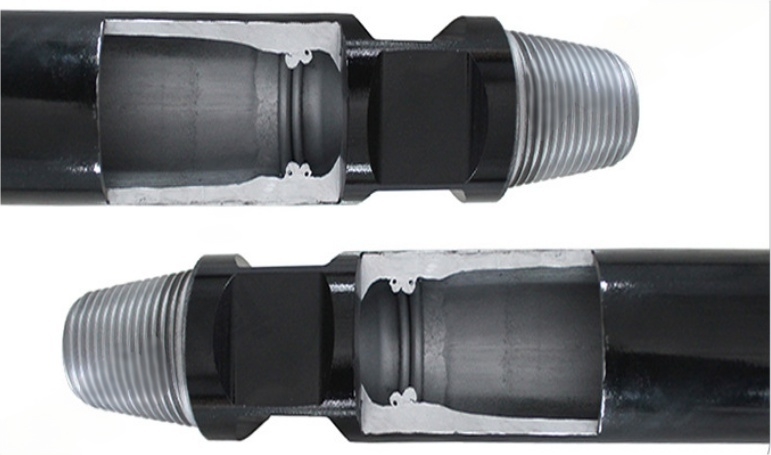

Water well drill pipe

Xingda's down-the-hole drill rods are made from high-quality raw materials and processed through multiple precise procedures. The production process is strictly controlled to ensure the structural stability and operational reliability of the products. They can be used with different models of down-the-hole drills and are suitable for various construction conditions, helping to improve construction efficiency.

Standard DTH drill pipe:

Diameter: 76mm, 89mm, 102mm, 114mm, 127mm, 140mm;

Length: 1000mm, 1500mm, 2000mm, 3000mm, 5000mm, 6000mm;

Thread: 2 3/8” API REG, 2 7/8” API REG, 3 1/2” API REG, 4 1/2” API REG,

2 3/8 API IF, 3 1/2 API IF

Pipe body : cold draw seamless pipe . so the pipe have the accurate size , good centralizer.

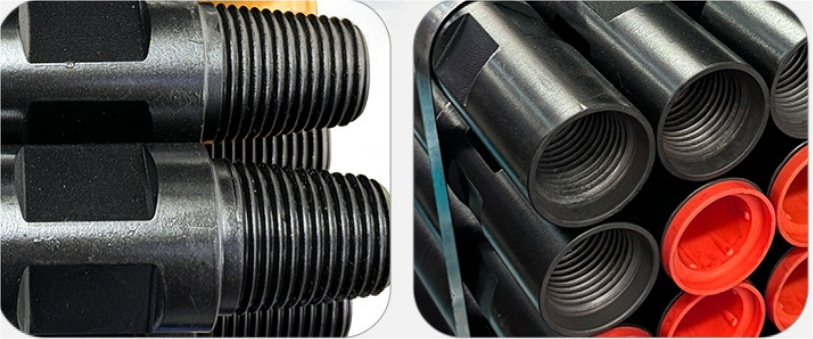

Thread connector :Heat and Nitrogen treatment , so the pipe is more durable and easier to load and unload .

Friction welding .

Inquire Now Contact Us

Features Main Technical Parameters PRODUCT PHOTOS

Features

Water Well Drill Pipe plays a critical role in modern drilling operations, especially in deep and complex geological formations. It serves as the essential connection between the drilling rig and the down-the-hole hammer, transmitting torque, airflow, and impact energy efficiently to the drill bit. With reliable performance and strong structural integrity, high-quality drill pipes help ensure smoother drilling progress, reduced downtime, and improved overall productivity.

XDDRILL focuses on delivering durable and precision-engineered drilling solutions designed for demanding environments. As an important component in Dth Drilling Rigs, the Water Well Drill Pipe must withstand high torque, repeated impact, and continuous operation while maintaining excellent straightness and connection stability.

Applications of Water Well Drill Pipe

Water Well Drill Pipe is widely used across multiple drilling scenarios due to its strength, compatibility, and operational efficiency. It is suitable for a variety of construction and exploration projects where stable drilling performance is required.

1. Water Well Drilling Projects

Used for deep and medium-depth groundwater extraction wells
Ensures stable transmission of drilling power in different soil and rock layers
Helps improve drilling speed and reduce energy loss during operation

2. Geothermal Drilling

Applied in geothermal energy development projects
Suitable for high-temperature underground environments
Provides reliable performance during long-duration drilling cycles

3. Mining and Quarry Drilling

Supports blast hole drilling in mining operations
Performs well in hard rock formations and complex geological conditions
Enhances efficiency in ore exploration and extraction preparation

4. Construction Foundation Engineering

Used for foundation pile drilling and infrastructure projects
Ensures accurate hole alignment and structural stability
Suitable for bridges, buildings, and large-scale civil engineering works

5. Geological Exploration

Applied in sampling and subsurface geological investigation
Helps obtain accurate data from different rock layers
Supports resource evaluation and engineering planning

With its strong compatibility and stable performance, Water Well Drill Pipe remains a key component in modern drilling systems, especially when used with advanced Dth Drilling Rigs for demanding field operations.

Main Technical Parameters

Size	Thread	Pipe Body Outside Diameter（mm)	Wall thickness of the pipe body（mm)	Upset Type	length(mm)	Wrench Flat Type
76 drill pipe	2-3/8REG	76	5-6	Internal Upset	1500-6000	Solid Wall
89 drill pipe	NC26	89	6-8	Internal Upset	1500-6000	Solid Wall/Double Wall
102 drill pipe	NC31	102	7-8.38	Internal Upset	1500-6000	Solid Wall/Double Wall
102 drill pipe	NC31	102	7-8.38	Internal & External Upset	1500-6000	Solid Wall/Double Wall
114 drill pipe	NC35	114	7-8.38	Internal Upset	1500-6000	Solid Wall/Double Wall
127 drill pipe	NC38	127	8-9.19	Internal Upset	1500-6000	Solid Wall/Double Wall
140 drill pipe	4-1/2REG	140	9.19	Internal Upset	1500-6000	Solid Wall/Double Wall
