| Drilling diameter | 110-130mm |
| Drilling depth | 21m |
| Engine | Yuchai 176KW |
Product Features
Automatic connecting and unloading rod system, to achieve single simple operation;
Aluminum alloy propulsion beam, lightweight design, more efficient and stable drilling;
Imported electrical original, dustproof and waterproof, more suitable for harsh mine environment;
Two-stage screw air compressor, high efficiency and energy saving;
Eaton rotor motor, stable and efficient;14 core dust removal filter, large filtering area, to meet the needs of 90-115 aperture;
Large maintenance space, easy replacement of wearing parts;Two-stage air filter to meet the needs of harsh mines.
Main Technical Parameters
| Model | XD103A |
| Drilling diameter | 110-130mm |
| Drilling depth | 21m |
| Engine | Yuchai 176KW |
| Compressor | Two-stage compression, Bowes18m^3， 18Bar |
| Weight | 10t |
| Drill magazine | 6+1（drill pipe: 3m-76 ） |
| Guide | aluminum alloy |
| Feed form | Wire rope + cylinder propulsion |
| Feed length | 1100mm |
| Rotation motor | Eaton 6K series |
| Pump | Military pump |
| Dust | Xuanhua 14 core |
| Rotary torque | 3500N.m （For hard rock） |
| Rotary speed | 0-120r/min |
| Size | 8800X2300X2600mm |
| Max.Feeding force | 12KN |
| Max Lifting force | 18KN |
| Max Drilling speed | 1m/s |
| Feed length | 3400mm |
| Walking speed | 1.5-3Km/h |
| Electric system | Imported electrical original, IP56 waterproof and dustproof |
| Hammer | 4"High air pressure hammer |
| Drill bit | 115 |
| Tank | 350L(Optional 100L auxiliary fuel tank |
| Valve | Qiang Tian |
| Fitting |
Product Details
01

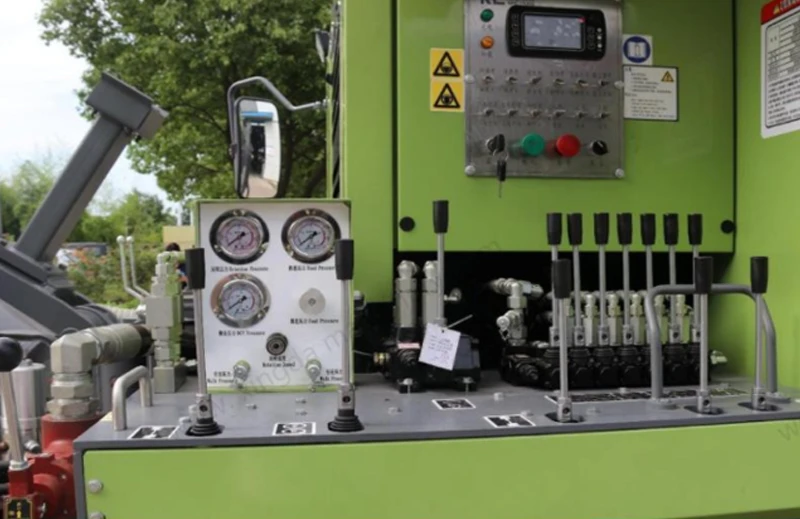

Humanized integrated operating, easy to use and operate.
02

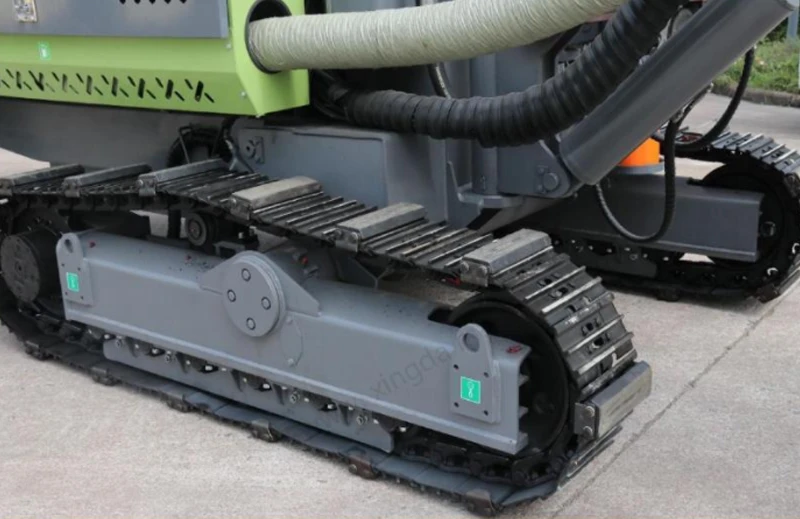

The imported Eaton walking motor is strong and powerful.
03
Yuchai engine, well-known brand accessories, smooth operation, low fuel consumption, strong output power.
04
Two-stage compressed air compressors are less noisy, more efficient and more reliable.
05
V-shaped linear guide, faster running, less wear, lower cost, longer life.
06

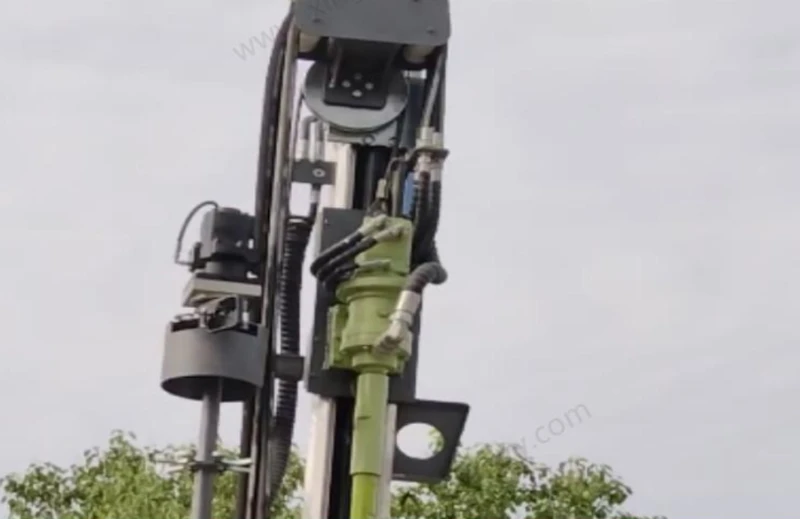

The power head rotation shaft adopts outer cone design, wear-resistant material, easy maintenance, longer overall life, and can be customized.
07
The dust removal system uses a two-stage filter element, which has high filtration efficiency, large air volume and high strength.
08

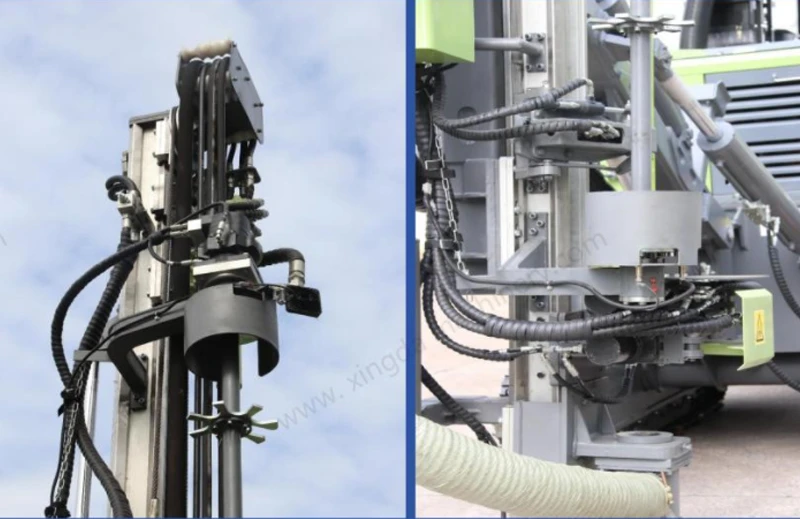

Equipped with drill pipe loading and unloading device, saving cost and improving efficiency.
