XDT35 Integrated Hydraulic DTH Drilling Rig

Track Walking System

The track walking system uses a construction machinery chassis structure with widened tracks for stronger support and smoother movement. The crawler-mounted structure improves climbing ability and off-road capability, while the leveling structure allows front and rear floating up to 10°, making rock drilling operations more stable on uneven ground.

The high and low walking speed options help reduce platform transfer time, while the propulsion mechanism uses hydraulic cylinders and steel cables for stable and powerful movement.

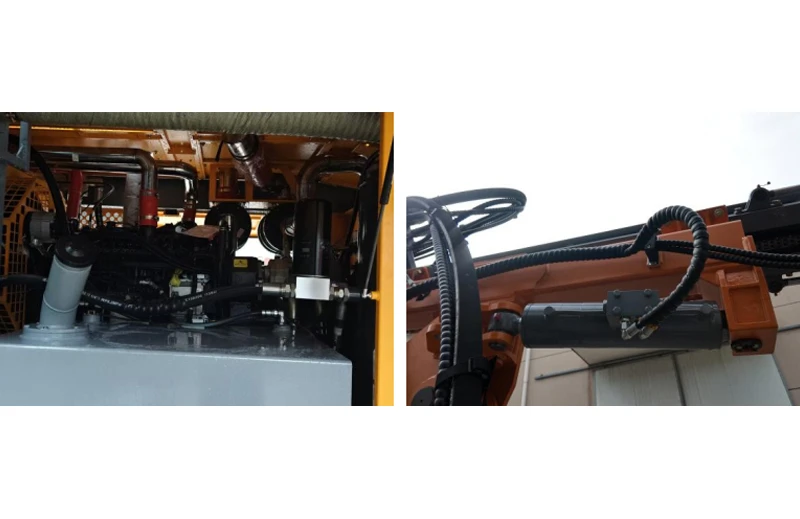

Power System

The power system adopts a water-cooled six-cylinder fuel-injected engine with stable performance and low energy consumption. The dual-stage dry air filter keeps intake air clean in dusty and harsh mine environments, helping reduce the engine failure rate.

The large-ratio three-in-one pump provides high pressure resistance, large displacement, stable quality, and longer service life. The two-stage compression screw air compressor improves energy efficiency, ensures stable air output, and supports reliable drilling speed.

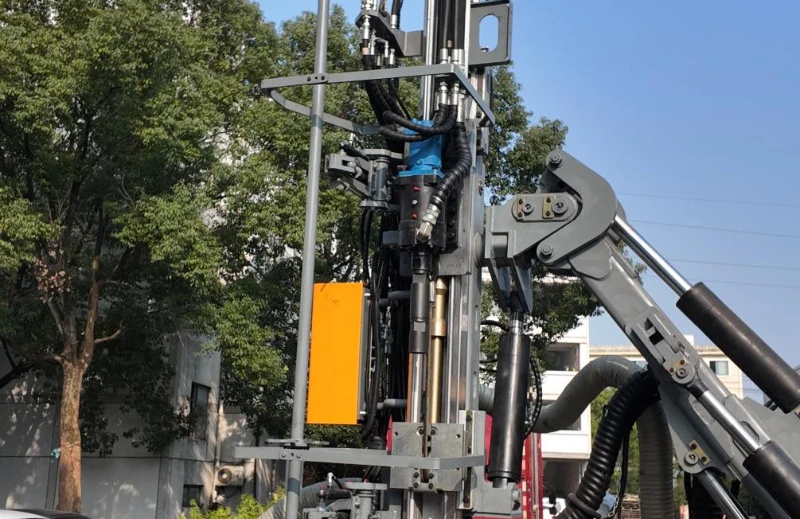

Rotary System

The rotary system uses a high-torque rotary head to provide stable and long-lasting rotating power. It is suitable for different rock formations and reduces the failure rate and daily maintenance cost of the surface DTH drilling rig.

Drill Pipe Replacement System

The drill pipe replacement system is designed for clear and simple operation. It supports loading and unloading drill pipes through single-to-single control, enabling single-person operation, reducing labor costs, enhancing operator safety, and improving drilling efficiency.

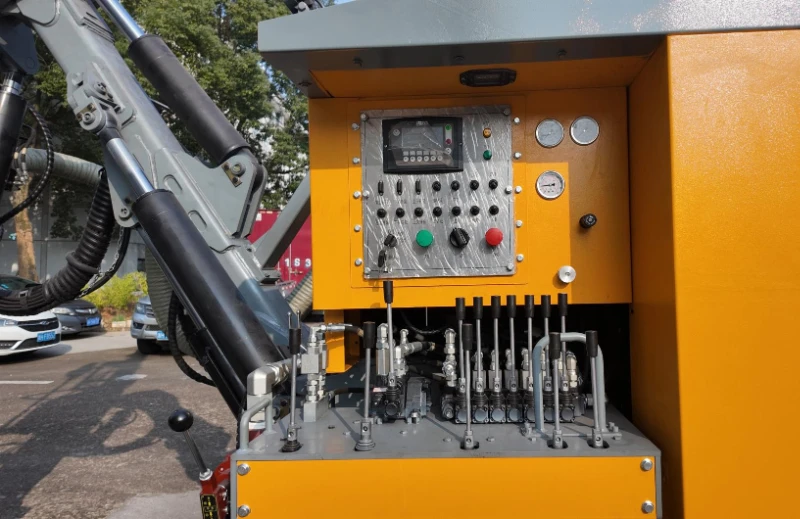

Electrical System

The electrical system adopts an electro-hydraulic direct control design. It is simple, practical, and easy to maintain. The system provides clear data display, real-time monitoring of operating parameters, and fault alarms for convenient troubleshooting.

Feed pressure and rotation speed can be adjusted steplessly, allowing the integrated DTH surface drill rig to adapt to more rock layer environments. Fast lifting and feeding functions also help reduce drill rod disassembly time and improve work efficiency.

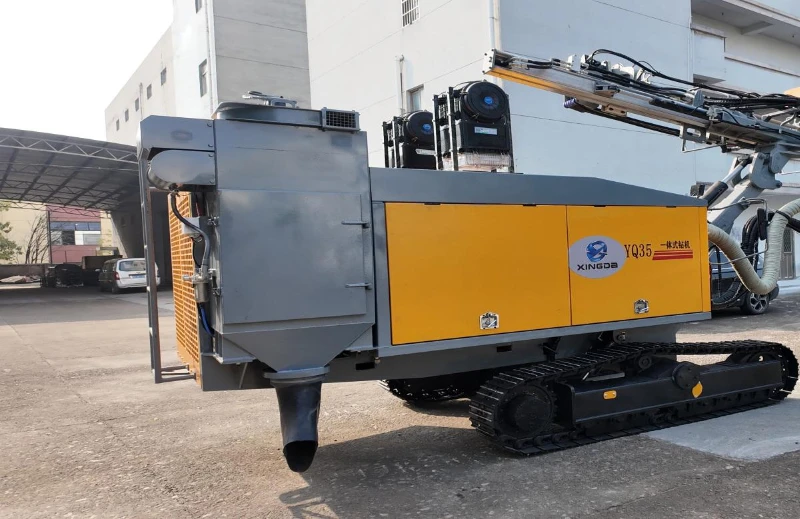

Dust Removal System

The efficient hydraulic dust collector is equipped with a sliding dust collection hood. It delivers high dust collection efficiency and stable performance, helping protect operators, extend equipment service life, and support environmentally friendly green mining operations.

Hydraulic System

The hydraulic system adopts reliable core hydraulic components from well-known brands. The stable hydraulic system reduces maintenance workload and provides practical, reliable support for feeding, lifting, walking, and other drilling operations.
