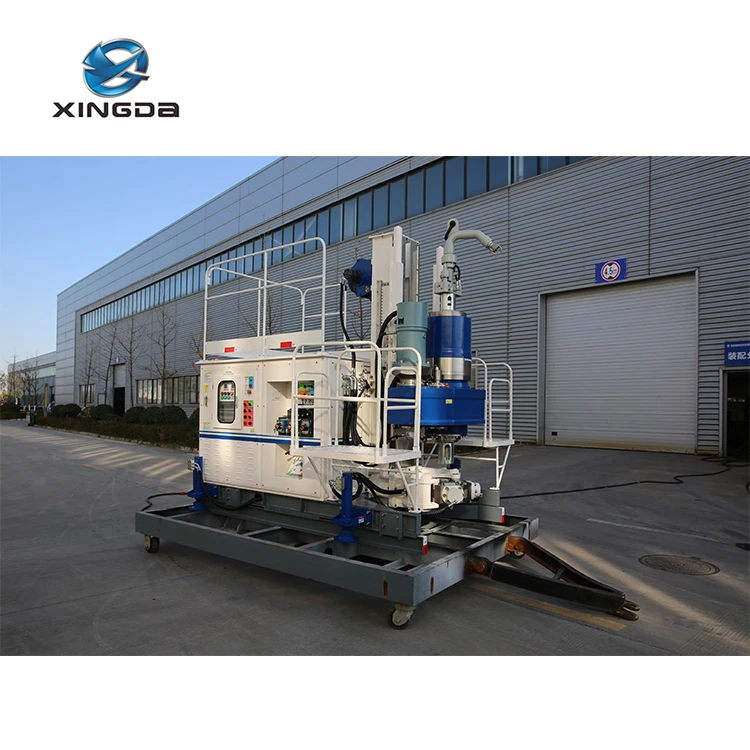

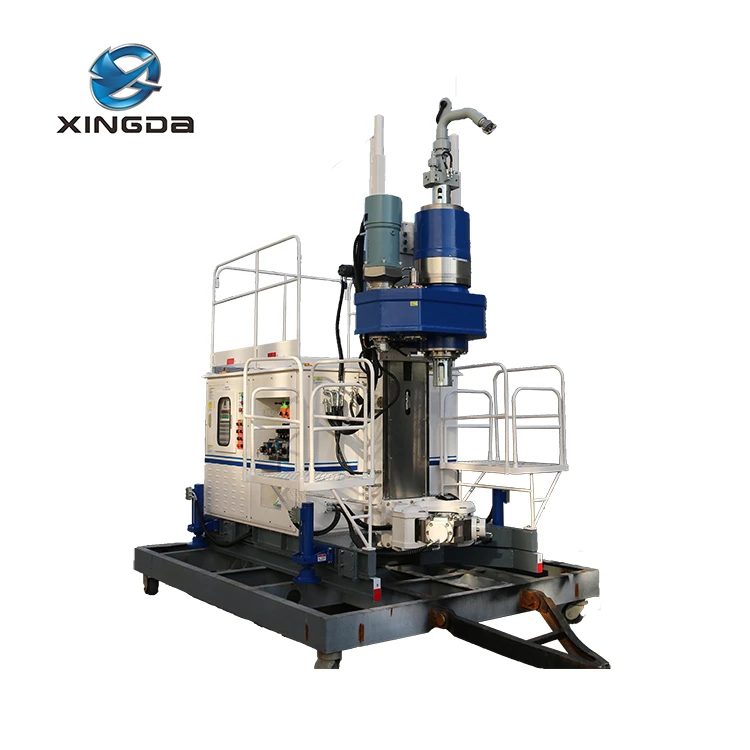

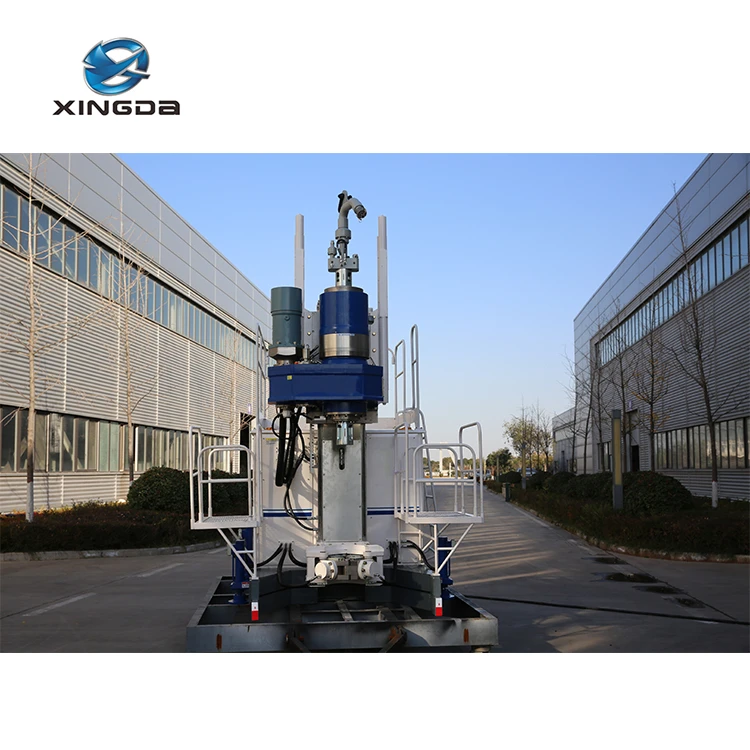

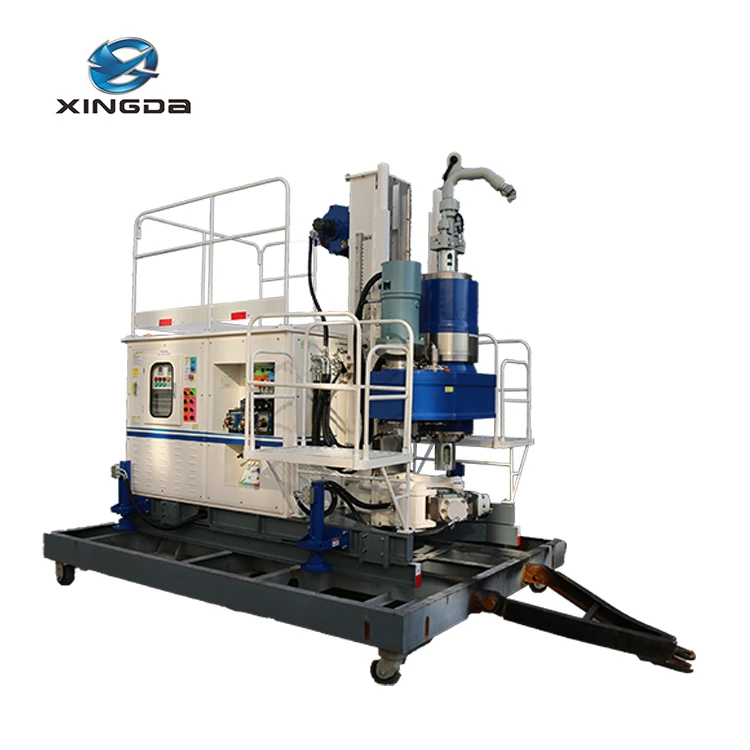

DGZ-150B All - directional multi - pipe jet grouting drilling rig

MJS multi - pipe jet grouting can be used for super - deep reinforcement, horizontal dad and inclined bottom reinforcement. The injection pressure is up to 40Mpa, the maximum pile diameter can reach 3m, and the depth can reach 50m.With a dedicated exhaust pipe, effective collection and management of mud to protect the environment.

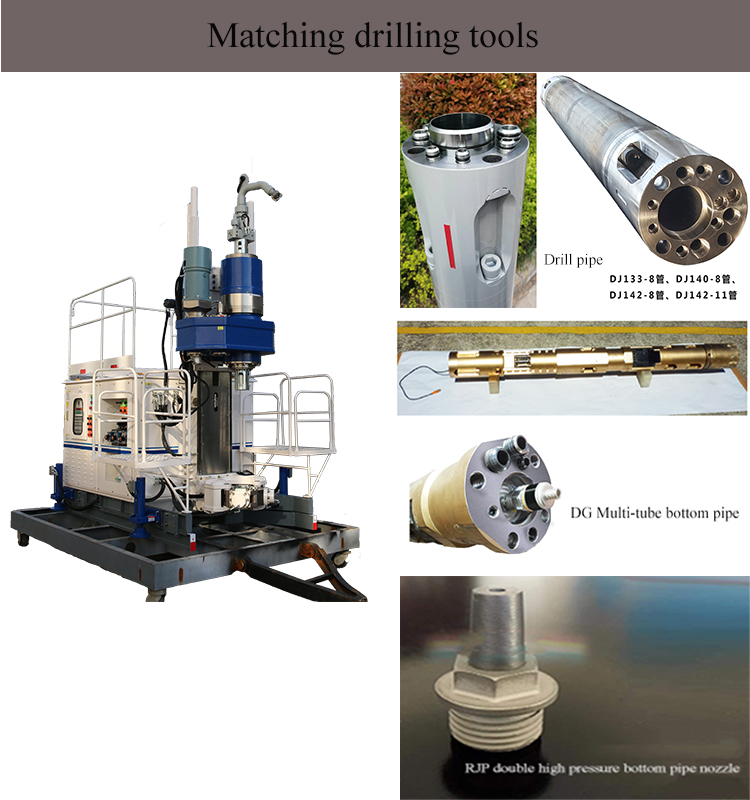

This series of rigs are suitable for multi-pipe rotary spraying method construction with a drill pipe outer diameter of less than 142; It can display mud volume, air volume, ground pressure, slewing speed, lifting speed, lifting distance, step distance, swing spray angle, etc; Printing section: It can print the instant mud volume, accumulated mud volume, instant grouting pressure, lifting speed, pressure in the bottom of the hole, air pressure, air flow, cutting hole water pressure and cutting hole water flow.

Inquire Now Contact Us

Features Main Technical Parameters Construction Case

Features

In order to prevent the drill pipe from falling into the hole, it is equipped with upper and lower clamping device. When carrying out the inverted drill pipe, it is ensured that at least one of the upper and lower clamping devices can tighten the drill pipe, and when the upper and lower clamping device are combined with each other, it must be ensured that when one of the two clamping devices tightened the drill pipe, the other clamping device or chuck can be opened; Optional wireless transmission mode, monitoring and equipment control on the rig. The wireless transmission range for a radius of 200 meters to 300 meters stable.

DGZ-150B All - directional multi - pipe jet grouting drilling rig

Main Technical Parameters

Model		DGZ-150B
Spindle bore	mm	150
Spindle speed	rmp	High speed	0~4.8
		Low speed	0~2.4
Spindle torque	kN･m	High speed	7.05
		Low speed	14.1
Spindle torque	mm	1000
Feed speed	m/min	up	0~4
		down	0~8
Drilling tower slip stroke	mm	300
Feeding and lifting ability	kN	up	100
		down	50
Drilling angle	°
Hoisting lifting force	Kg
Frame rotary	°
Motor Power	kW	45+11
Walking speed	Km/h	2
Departure angle	°
Shipping Dimension	mm	2750×2010×2800 （Without vice tower）
Working dimension	mm
Weight	kg	6150
MOQ	Set	1
Price	usd	148600

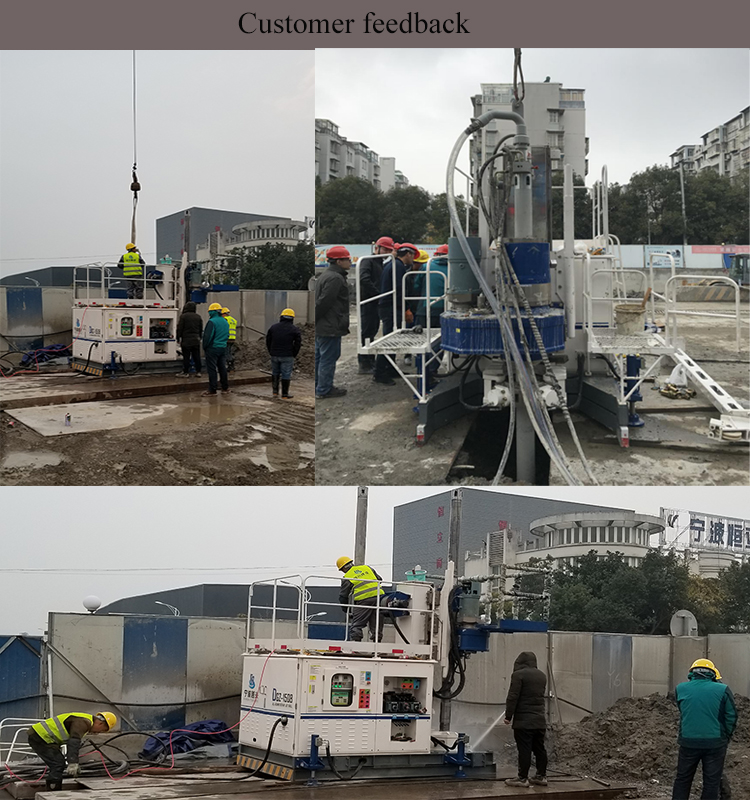

Construction Case
