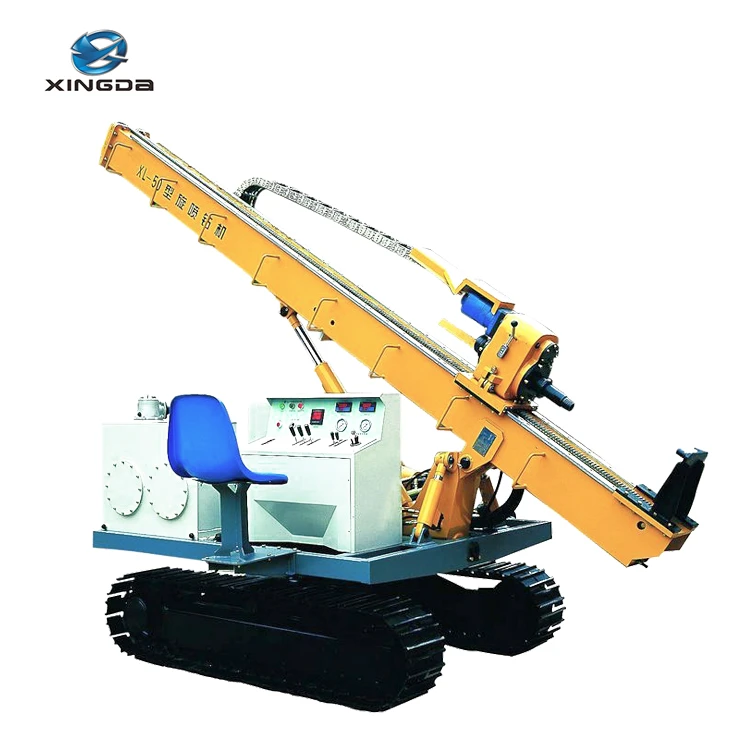

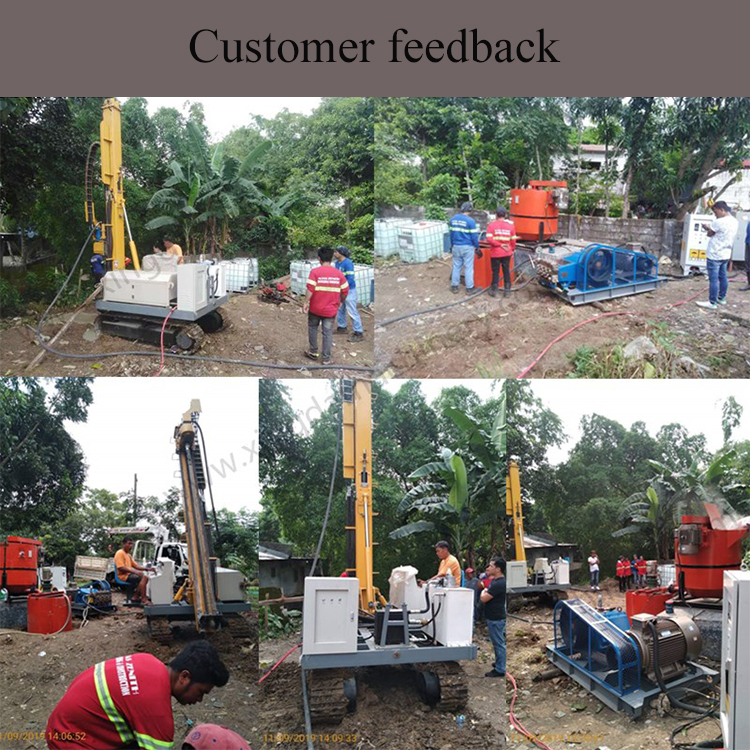

XL-50C model crawler mounted jet grouting rig

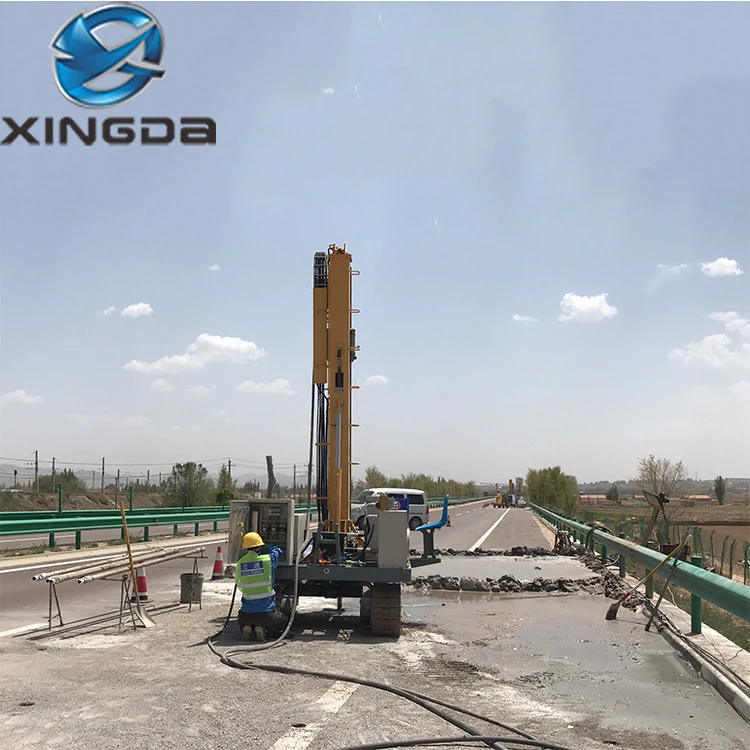

Applicable to the railways, highways, Bridges, dam foundation, and various industrial and civil building foundation treatment and reinforcement of jet grouting construction;Anchorage engineering of foundation pit support;Matching with air compressor and pneumatic DTH hammer, it can be used for pipe drilling, general rotary spraying (swing spraying, fixed spraying) engineering construction, but also for shallow hole drilling and engineering survey drilling and other engineering construction.

Inquire Now Contact Us

Features Main Technical Parameters Supporting drilling tools

Main feature

Adopt full hydraulic control, easy and flexible operation, crawler chassis loading, walking, moving position is convenient and fast, power head stroke is long, reduce auxiliary time.
direct load feedback fine-tuning variable hydraulic system, power changes with the load, high efficiency, low energy consumption.
The special valve with friction positioning is used in rotary rotation, and its characteristics fully meet the requirements of rotary jet technology.
The variable speed range of the power head is wide, which can meet the requirements of various formations and different drilling techniques.
Equipped with slewing support, the hole can be turned to the side of the track when needed.
Compact structure, centralized operation, convenient and safe.

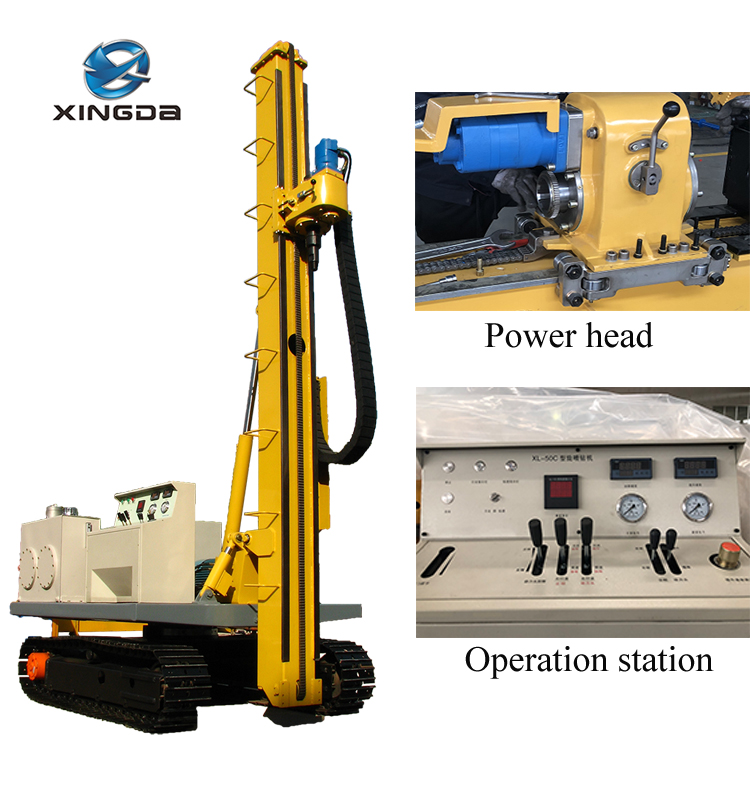

Equipped with drilling tower vertical, power head rotation and lifting speed display device.

Main Technical Parameters

Pore depth	50m
Pipe diameter	φ42mm φ50mm φ73mm
Hole angle	Left and right ± 3° bend forward 10°caster angle 90°
Maximum torque	3000N/m
Travel speed	1.km/h
Climbing ability	30°
Power head rotate speed	high：0—148r/min low：0—48r/min
Power head rated lifting force	30kN
Power head plus pressure	12kN
Lifting/plus pressure speed	Fine adjustment speed of rotary jet 0.06～0.9/1.8 m/min
Power head rapid lifting	0～22/0～28 m/min
Power head stroke	3500mm
dimension（working）	2600×1800×4600
dimension（transporting）	1780×1800×4600
Weight	2800 kg
MOQ	1Set
Price(usd)	36800

Supporting drilling tools

1、Single-tube drilling and spraying integrated method, the front end is equipped with a three-wing drill bit or a flat-shaped drill bit to drill a twisted 42 or Ф50 drill pipe; it is suitable for high-speed drilling of soil layers, sand layers and other formations.

2、Spiral jet anchor cable method, with 65 lock bolt propeller and anchor cable drilling pipe, is suitable for anchor cable reinforcement.

3、Single pipe, double pipe, three pipe rotary spray, swing spray, fixed spray, etc.
