The drilling machine can be used to reinforce the foundation of various industrial and civil buildings such as railway, highway, bridge, roadbed, dam foundation, waterproof and leak-proof engineering, soft foundation treatment and geological disaster control.
Features
Main Technical Parameters
|
Maximum torque |
6400N.m |
|
|
Power head rotate speed |
High speed 0～100 r/min |
Low speed 0-55r/min |
|
Power head maximum stroke |
3000 mm |
|
|
Power head rated lifting force |
75 kN |
|
|
Power head allows for added pressure |
35 kN |
|
|
Drill rod diameter |
Ф50mm; Ф73mm; Ф89mm |
|
|
Drill angle |
0-90° |
|
|
Lifting/pressurizing speed of power head |
fine adjustment speed of rotary jet : 0 ~ 2.5m /min |
|
|
Power head rapid lifting |
0～16/0～28 m/min |
|
|
Main pump system pressure |
20Mpa |
|
|
Auxiliary pump 1 system pressure |
18Mpa |
|
|
Auxiliary pump 2 system pressure |
18Mpa |
|
|
Electric power |
45 kW |
|
|
Column stretch |
1000 mm |
|
|
Climbing ability |
20° |
|
|
Travel speed |
1km/h |
|
|
Dimension |
（working mm）3500×2400×5260 |
|
|
(transporting mm）5400×2400×2270 |
||
|
Weight |
5000 kg |
|
|
MOQ |
1Set |
|
|
Price(usd) |
51700 |
|

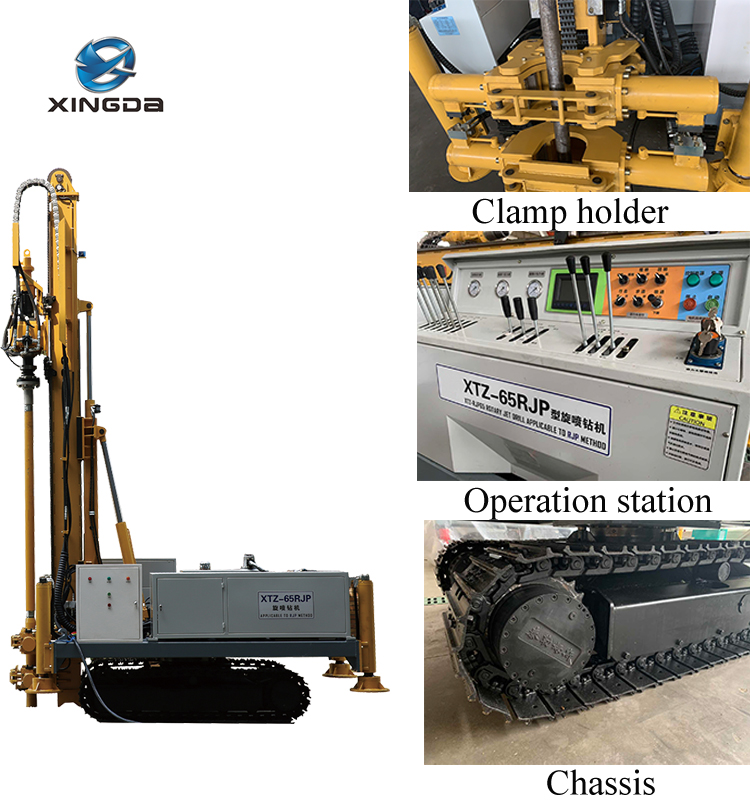

Structural details
