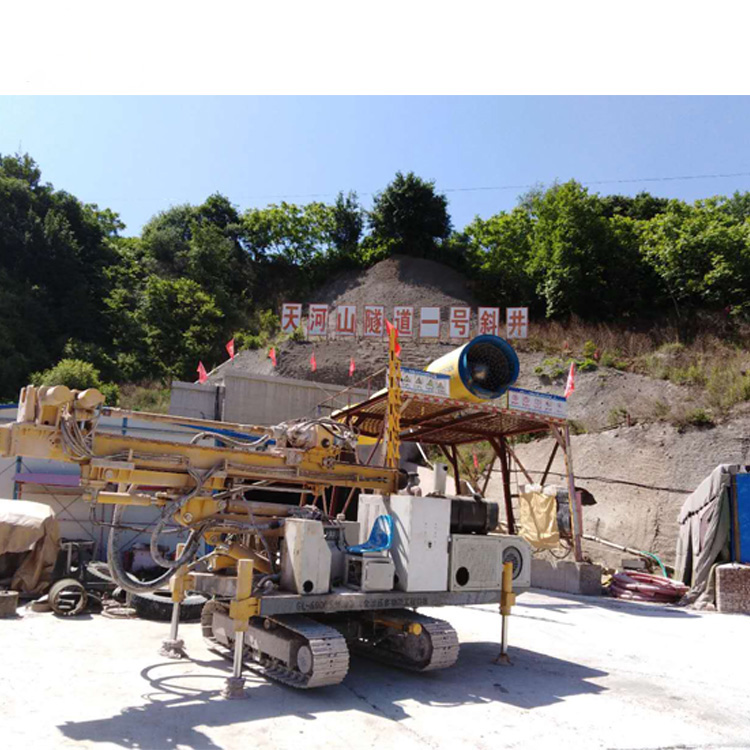

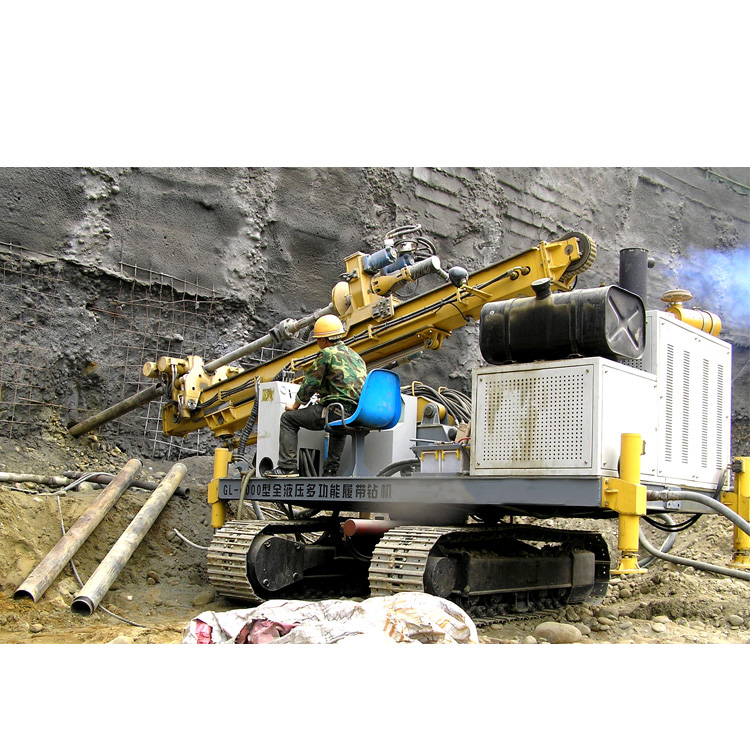

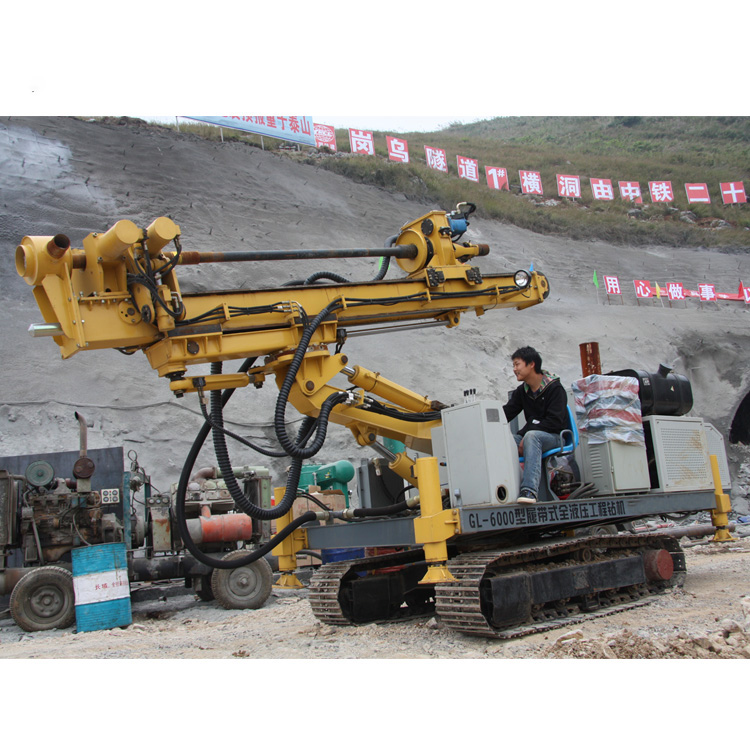

GL-6000S model Multi-function hydraulic engineering drilling rig

It is mainly used for hard alloy rotary drilling, screw drilling, pneumatic drilling with DTH hammer, pneumatic drilling with DTH hammer and casing, rotary jet, swing jet, fixed jet and other drilling technology;It can also be used in the engineering fields of tunnel pipe shed support, rock and soil anchorage, blasting hole, embankment reinforcement, ground source heat pump hole, hydrological well, foundation pile construction and geological disaster control. Note ：Users can choose diesel engine power, motor power, diesel engine power/motor dual power.

Inquire Now Contact Us

Features Main Technical Parameters Application

Features

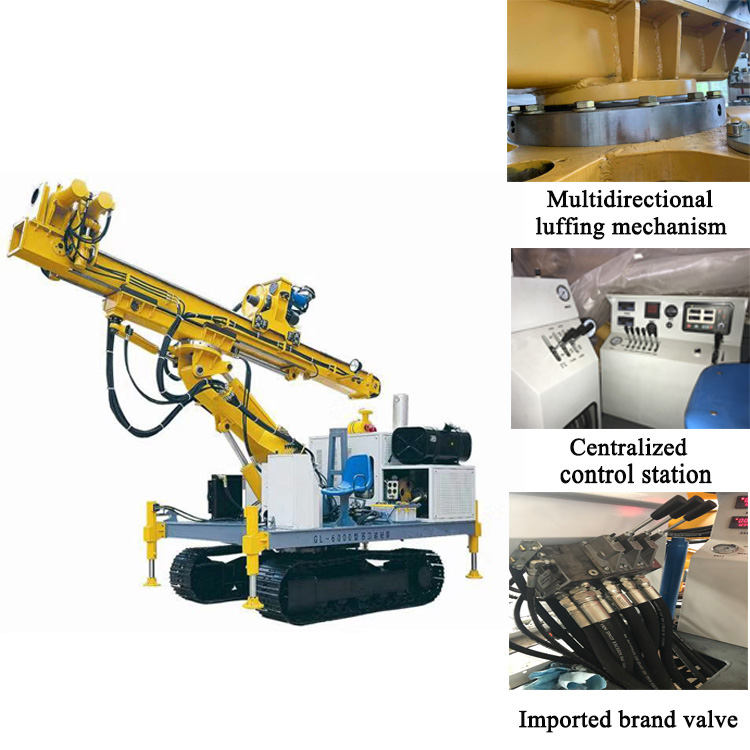

Multi-azimuth luffing mechanism, the drill can realize multi-row and multi-angle drilling in one position.

2、with big rotary torque ,long feeding stroke, effectively improve drilling efficiency.

3、The crawler moves by itself, equipped with the frame turning device, the device is easy to shift, fast and accurate to the hole.

4、Equipped with hydraulic gripper and shackle device, which can shorten drilling time and reduce labor intensity.

5、The main components of the hydraulic system are imported brand, the system is stable, reliable, long service life.

6、The power head adopts hydraulic variable-speed and hydraulic mechanical variable-speed mode, with different specifications of power head, which can meet the requirements of different drilling methods.

7、The hydraulic system adopts direct load feedback and fine-tuning variable, the power changes with the load, high efficiency and low energy consumption.

8、Equipped with power head rotation speed, lifting speed and vertical display device, hole positioning fast and accurate.

GL-6000S model Multi-function hydraulic engineering drilling rig

Main Technical Parameters

Hole depth	50～200m
Hole diameter	Φ110～Φ400mm
Drill rod spec	Φ60～Φ89×2500mm
Power head rotate speed	General power head ：low 8～55r/min high 16～110r/min
	High speed power head：low 8～275r/min high 16～550r/min
Power head torque	6000Nm～3000Nm
Power head stroke	3000mm
Maximum feeding force	58kN
Maximum lifting force	110kN
Column slide stroke	1200mm
Column swing angle	0°～90°
Column pitching angle	Pitch up：35°	Pitch down：16°
Horizontal hole height	high：3450mm	low：338mm
Traveling speed	1.5km/h
Climbing ability	20°
Power	Electric motor 55kW	Diesel engine 56kW
Dimension	L×W×H（5.6m×2m×2.93m）
Total weight	9500kg
MOQ	1Set
Price(usd)	78600

Application

Drilling rig construction scope:

1、Suitable for high-speed drilling in soil, sand and other strata, mud and slag removal;Three - wing bit and one - bit drilling,.

2、It is suitable for air dth drilling and air slag discharge in rock stratum and broken stratum.

3、It is suitable for drilling with hydraulic hammer at the bottom of the hole in water-bearing stratum such as broken stratum and sand egg stratum,Mud discharge.

4、Drill pipe drilling and casing drilling.

5、It can realize single pipe, double pipe, triple pipe rotary jet, swing jet, fixed jet and other rotary jet technology (customer optional).

6、It can be used as a complete set of equipment with the high-pressure grouting pump, mud mixer, rotary jet, rotary jet drill, flow deflector, nozzle, three-wing bit, one type bit and compound slice bit of our company.

7、It can be seamlessly connected with domestic and foreign drilling tools through reducer joint.
