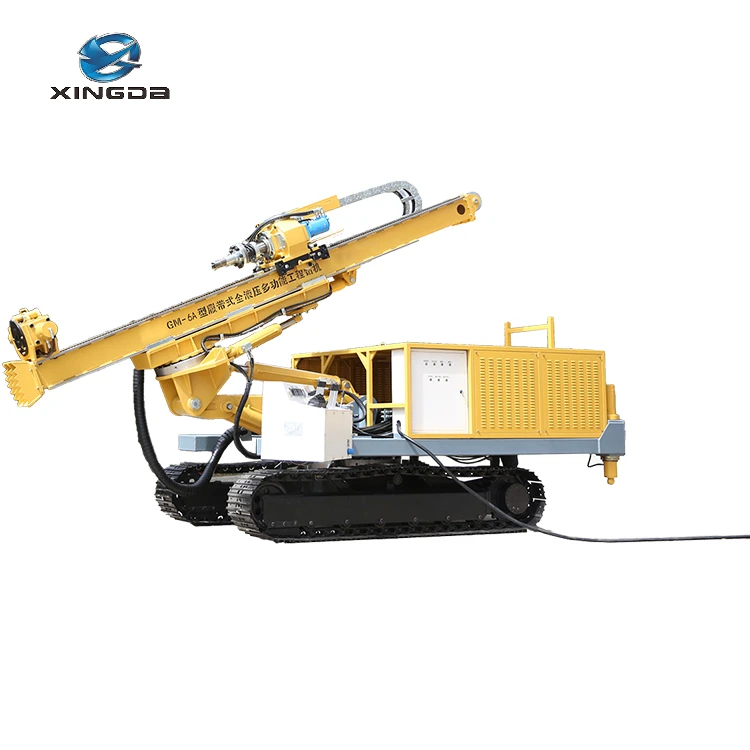

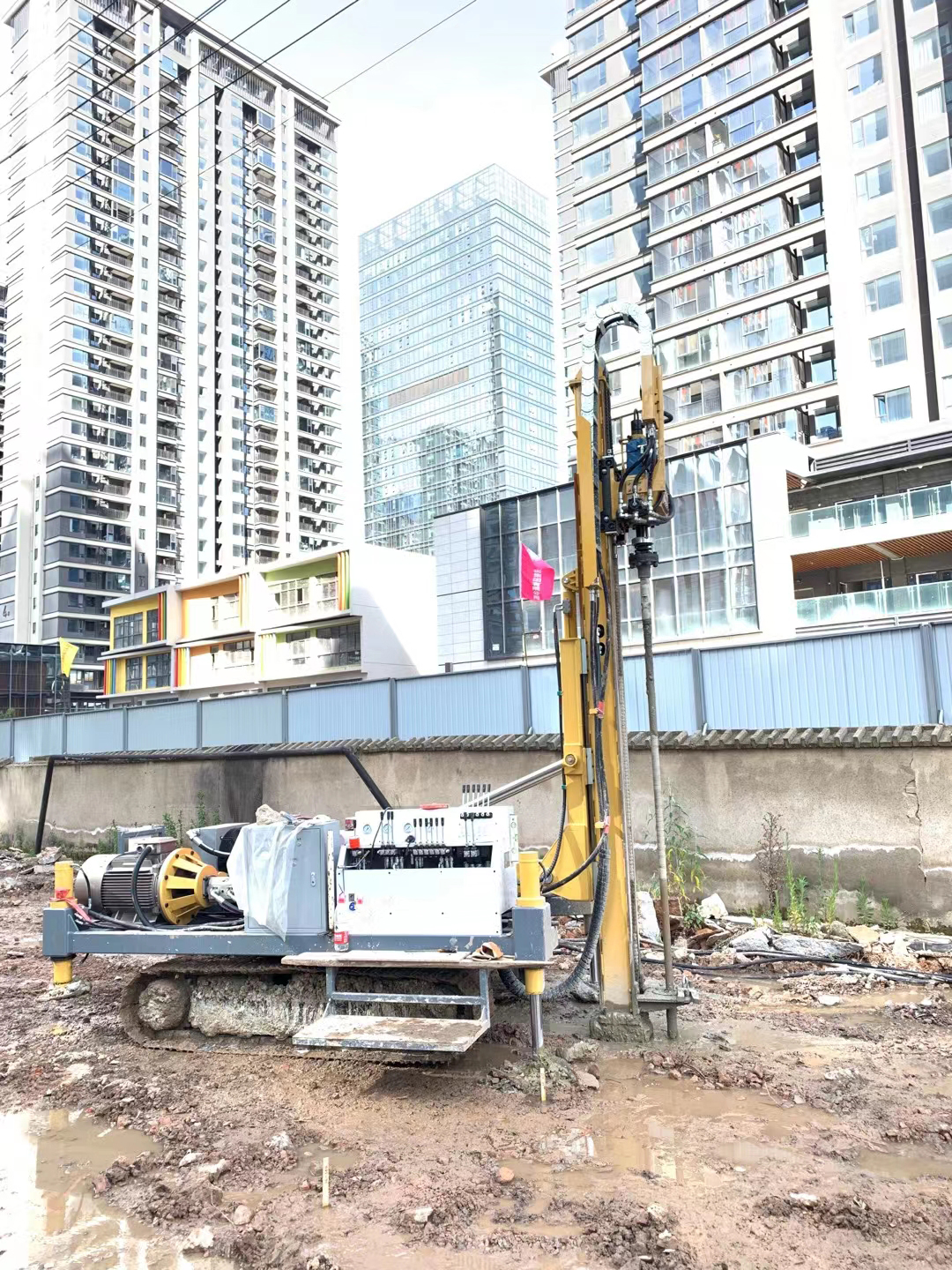

GM-6A Multifunctional Engineering Drilling Rig

This drilling rig is mainly applicable to various drilling techniques such as rotary drilling, spiral drilling, air percussion drilling, pipe-following drilling, and high-pressure jet grouting construction. It can be widely used in the following engineering fields: tunnel pipe support, advance prediction, deep foundation anchoring, open-pit quarry blasting holes, anti-floating anchoring, ground source heat pump holes, water and soil wells, and geological disaster control.

Inquire Now Contact Us

Features ： Main Technical Parameters Structural details

Main Features ：

The range of inclination angles is wide. The drilling rig can perform multi-row and multi-angle drilling from a single position, demonstrating strong adaptability.
It has the function of self-propulsion by means of tracks, and is equipped with a frame rotation device. This makes the equipment relocation both convenient and fast.
Optional hole-end single clamping device, equipped with a dedicated disassembly tool, makes it easier to remove the drill pipe. An optional double clamping device can also be selected, effectively reducing the labor intensity and operation time for the installation and removal of the drill pipe.
The main components of the hydraulic system are of high-end brands, ensuring the system's stability, reliability and long service life.
The power head adopts a hydraulic speed control method, which enables stepless speed adjustment within a certain range and is equipped with high and low gears.

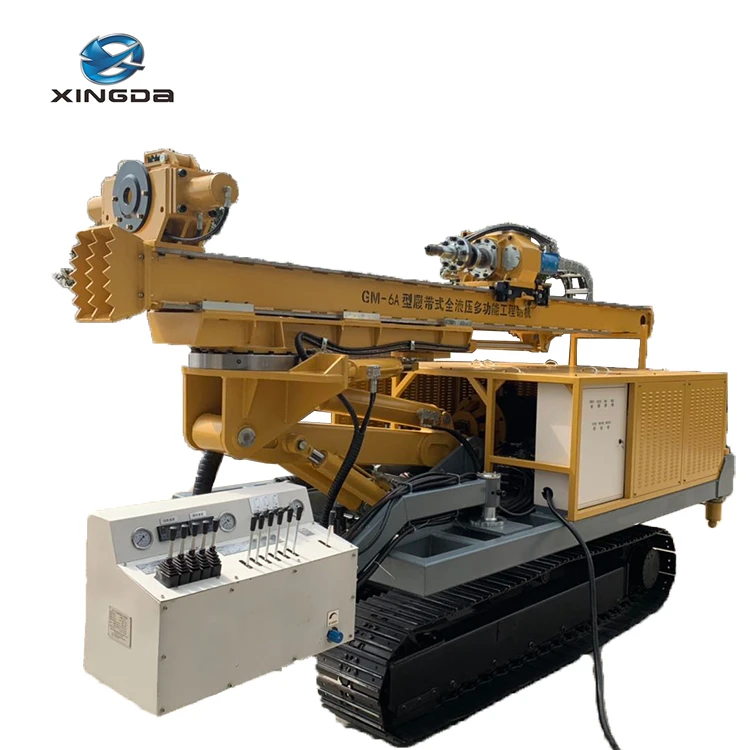

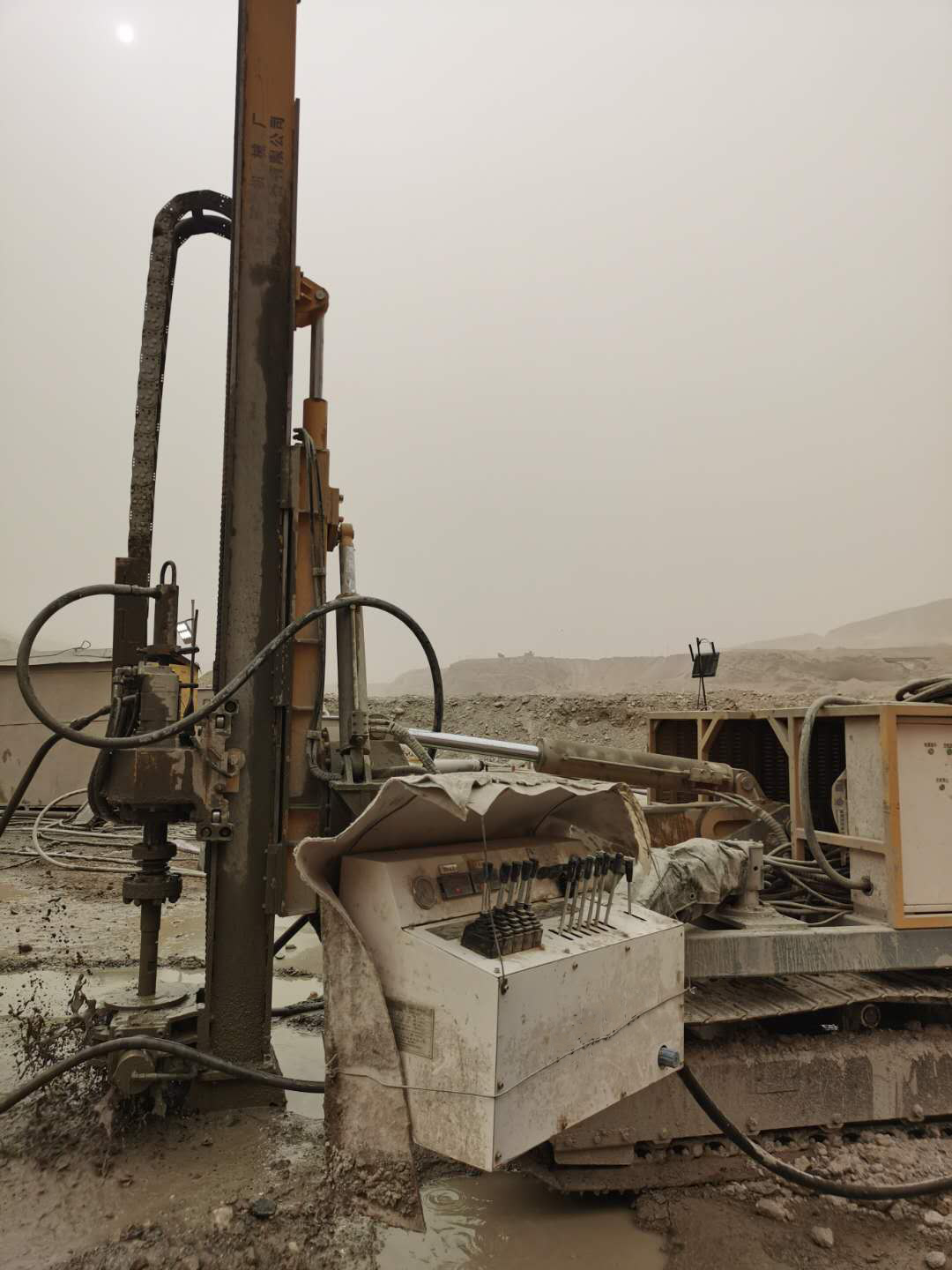

The control console can be swung and rotated, and the distance from the hole opening can be adjusted, making it convenient to observe the hole opening.
The sliding method of the power head is through rollers, ensuring stable drilling angle and low maintenance cost.
Modular design, with reserved positions for backup hydraulic systems, facilitating the later upgrade and modification of the top drive power head to enable top drive construction.

Main Technical Parameters

Model	GM-6A
钻杆直径 Drill rod diameter (mm) (mm)	90° -10°
动力头输出最大扭矩 Drill head maximum output torque (Nm)	8000
动力头最大行程 Maximum stroke of power head (mm)	3400
动力头最大提升力 Drill head maximum lifting force (kN)	65
动力头允许加压力 The power head allows for pressure application(kN)	35
电机功率 Motor power	55kw+5.5kw
动力头输出转速 Drill head output speed (rpm)	0-60 /0-120
钻进角度 Drilling angle (mm)	Tilt: 90° to -10° Swing: ±25°
水平举升高度 Horizontal lifting height (mm)	2100-3100
外形尺寸 Drilling rig vertical dimensions（mm）	500022002300
钻机总质量 Drilling rig gross weight (t)	7.5

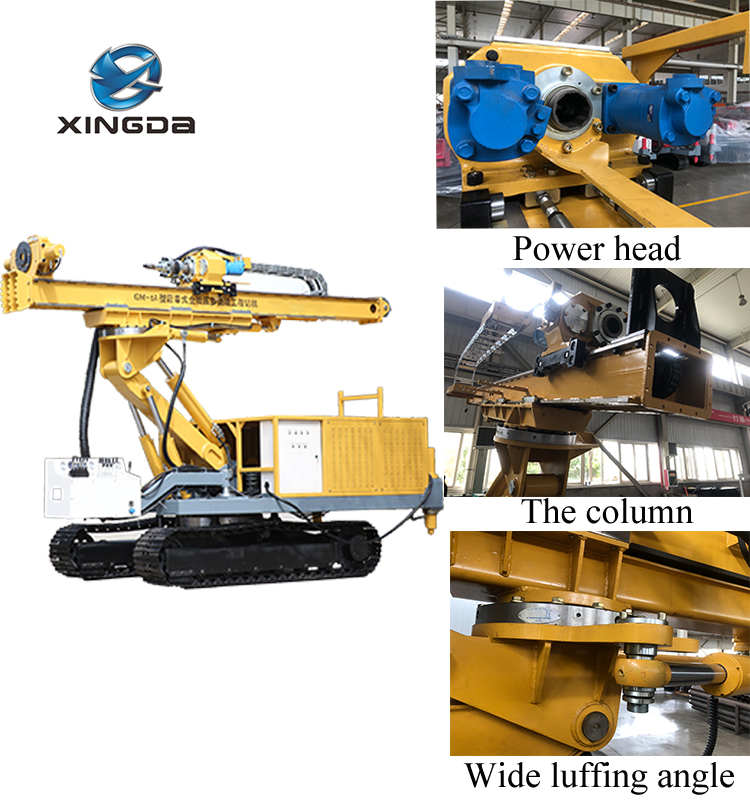

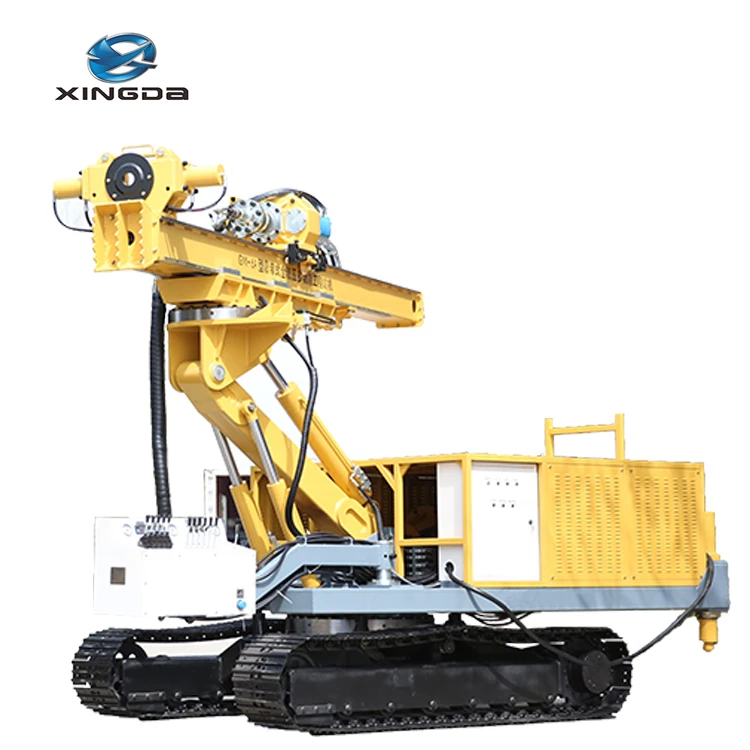

Structural details
