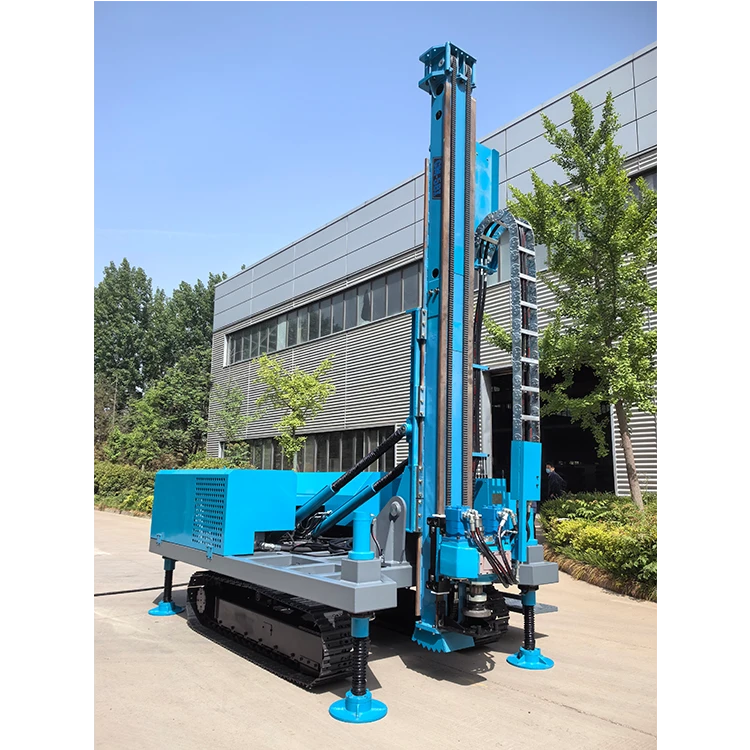

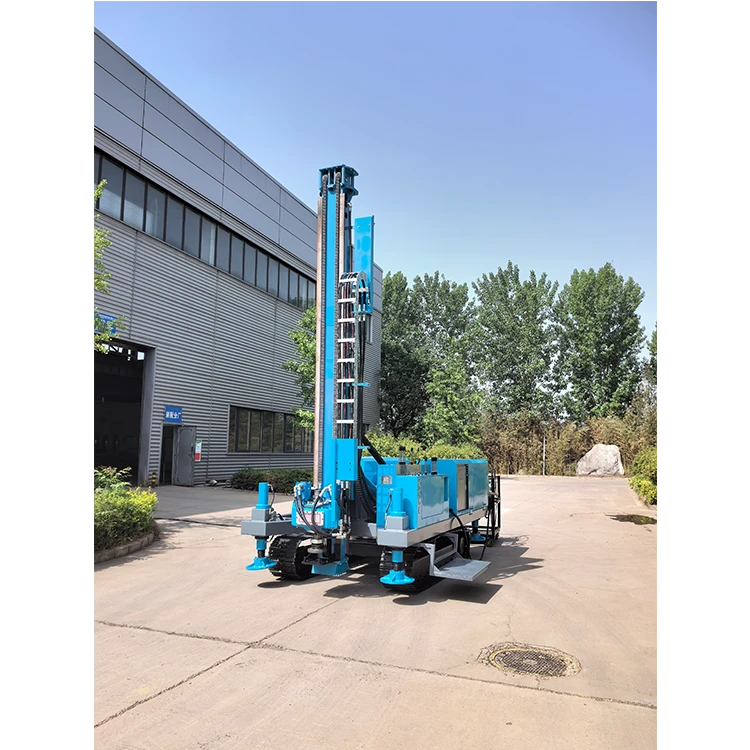

After long-term market research and communication with customers, this drilling machine has been developed based on the complex deep foundation pit anchor support construction conditions. It mainly adopts the deep foundation pit slope support technology and complements it with rotary jet grouting construction. It is a fully hydraulic crawler-type drilling machine that integrates deep foundation pit slope anchoring, rotary jet grouting, and water drainage, and can meet the requirements of various construction processes. It has the characteristics of good mobility, wide range of operation positions, high efficiency, excellent drilling quality and low pollution.
Main features
1. The system has a simple structure, is easy to maintain and has low cost. 2. The power head adopts a hydraulic speed-changing method and is equipped with high and low gears, which can meet the requirements of various strata and different drilling techniques. 3. The selective power ratio effectively reduces power consumption and waste. 4. The overall structure is simpler, the layout is more reasonable, and the operation is easy to understand and user-friendly. 5. The column can extend and retract, which can meet the needs of anchor bolt construction. 6. The frame rotation uses a large-diameter slewing bearing, and when necessary, the hole position can be easily turned to the side of the tracks for work. 7. The standard configuration adopts double clamps and is equipped with a special unloading tool, which reduces the labor intensity and operation time for the installation and removal of the drill pipe. 8. During rotary jet grouting, if a through-hole power head and an auxiliary tower are added, it can be upgraded to a high-tower frame rotary jet grouting drill rig, achieving a lifting of the drill pipe by 12 meters at one time, reducing the frequency of disassembling the drill pipe and improving the rotary jet grouting efficiency.
Main Technical Parameters
|
参数及名称 Parameters and names |
GM-5BI |
|
钻孔直径 Drilling Diameter |
φ50～250 mm |
|
钻孔深度 Drilling Depth |
100～120m |
|
钻塔倾角 Derrick Inclination Angle |
Downdip：0～90°Updip：0～10° |
|
动力头行程 Drill Head Stroke |
3400 mm |
|
动力头转速 Drill Head Rotational Speed |
180 r/min |
|
最大扭矩 Max.Torque |
12000 N.m |
|
下滑架给进行程 Sliding Frame Feed Stroke |
900 mm |
|
最大提升力 Max.Lifting Capacity |
100 kN |
|
电机功率 Motor Power |
55 kW+22 kW |
|
外形尺寸 Overall Dimensions(L×W×H) |
4900*2300*2150 mm |
|
重量 Weight |
7.3 t |
