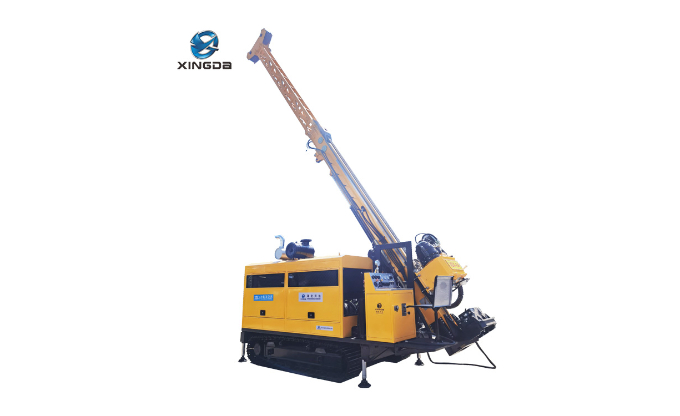

Exploration drilling rig is mainly used for underground geological sampling and resource exploration. It is a professional engineering drilling equipment commonly used in mineral exploration, geological survey, engineering exploration, and water source development. For mining contractors, geological exploration units, and various construction enterprises, it is an important tool for obtaining information on underground rock structure and resource distribution.

In modern mining and engineering construction, the operational capability and stability of exploration drilling rigs are directly related to exploration efficiency and data quality. Therefore, in the early stages of mineral resource development, such equipment often plays a key supporting role.

Main types of exploration drilling equipment

According to different geological conditions and construction requirements, exploration drilling rigs are mainly divided into the following types:

1. Core exploration drilling rig

Core exploration drilling rig is used to extract complete cylindrical rock samples, which can be used to analyze mineral composition and stratigraphic structure, and is widely used in mineral resource exploration projects.

2. Rotary exploration drilling rig

The rotary exploration drilling rig breaks the formation through rotary drilling and cyclic flushing, and is suitable for complex geological environments and deep hole construction.

3. Down the hole exploration drilling rig (DTH drilling rig)

The down the hole exploration drilling rig places the impactor at the bottom of the hole and breaks the rock through high-frequency impact, which is particularly suitable for exploration operations in hard rock mines and has the characteristics of high efficiency and high penetration power.

4. Spiral exploration drilling rig

Spiral exploration drilling rig is suitable for shallow soil exploration, environmental testing, and engineering geological sampling, with simple operation and high efficiency.

Working principle of exploration drilling rig

The working process of exploration drilling rig mainly includes three stages: equipment positioning, drilling operation, and sample collection.

Firstly, the equipment is stably supported by hydraulic support legs or track systems; Subsequently, the drilling rig performs drilling through rotational power or impact methods; During the drilling process, rock debris is expelled through an air, mud, or water circulation system.

For core exploration drilling rigs, core tubes are also used to extract complete rock samples to ensure the authenticity and completeness of geological data.

Brief description of the manufacturing process of exploration drilling rig

The manufacturing of a high-performance exploration drilling rig requires strict industrial processes to ensure its reliability under complex operating conditions.

1. Steel structure frame processing

High strength steel is welded and subjected to stress treatment to ensure the stability of the equipment during deep hole drilling.

2. Hydraulic system integration

Install high-performance hydraulic pumps, valve groups, and control systems to achieve precise control of drilling, lifting, and rotation.

3. Power system assembly

Equipped with a diesel engine or electric motor to provide continuous and stable power output for the exploration drilling rig.

4. Whole machine testing and debugging

Before leaving the factory, load testing, drilling testing, and simulated condition testing are conducted to ensure that the equipment meets international engineering standards.

Application areas of core drilling rig

Exploration drilling rigs are widely used in multiple industry sectors, including:

Mineral resource exploration (such as gold, copper, iron, coal, etc.)

Geological and Mineral Survey and Evaluation

Engineering Geological Survey and Foundation Construction

Geological drilling in the early stage of water well

Preliminary survey for tunnel and infrastructure construction

Environmental and Soil Testing Project

For mining companies, exploration drilling rigs can provide key underground structural data, providing scientific basis for subsequent mining plans.

Advantages of modern exploration drilling rigs

Advantages of modern exploration drilling rigs

Modern exploration drilling rigs have multiple advantages, making them essential equipment in geological exploration, mineral investigation, and engineering survey projects.

1. High-efficiency drilling capability in hard rock layers
   Modern exploration drilling rigs are designed with strong power systems, stable rotation torque, and reliable feeding force. They can maintain efficient drilling performance in hard rock, fractured formations, and complex underground conditions, helping contractors shorten exploration cycles and improve overall project efficiency.
2. Strong adaptability to complex terrain and working conditions
   Exploration drilling projects are often carried out in mountains, mines, remote areas, construction sites, and uneven ground. Crawler-mounted or compact exploration drilling rigs can move more easily in difficult terrain and adapt to different site conditions, making them suitable for both surface and underground exploration work.
3. Stable and reliable hydraulic control system
   A high-quality hydraulic system allows smooth drilling, lifting, rotation, and feeding operations. Stable hydraulic performance helps reduce equipment vibration, improve drilling accuracy, and lower the risk of mechanical failure during long-term operation.
4. Precise deep hole sampling capability
   For mineral exploration and geological surveys, accurate core samples are very important. Exploration drilling rigs can support deep hole drilling and core sampling, helping engineers obtain complete geological data, analyze rock structure, and evaluate underground resource distribution more accurately.
5. Higher automation and lower labor cost
   Modern exploration drilling rigs are becoming more automated and easier to operate. With improved control systems, operators can complete drilling tasks with greater safety and efficiency, reducing labor intensity and improving construction productivity.
6. Lower maintenance demand and better long-term performance
   Reliable structural design, durable components, and easy-access maintenance points help reduce downtime and maintenance workload. For mining companies and drilling contractors, this means better equipment availability and lower long-term operating costs.

These advantages make exploration drilling rigs play an irreplaceable role in mineral exploration, geological surveys, engineering investigation, and underground resource evaluation.

Precautions for buyer selection

When selecting an exploration drilling rig, the following parameters should be given special attention:

Maximum drilling depth and aperture range

Stratum adaptability (soft soil/hard rock)

Crawler or wheel type mobile mode

Power configuration (diesel or electric)

Post maintenance costs and accessory supply situation

Reasonable selection of exploration drilling rig models can significantly improve construction efficiency and reduce project risks.

Frequently Asked Questions FAQ

Q1: What is the main purpose of an exploration drilling rig?

Exploration drilling rigs are mainly used for underground sampling and geological analysis, for mineral exploration, resource assessment, and engineering geological surveys.

Q2: In which industries can exploration core drilling rigs be used?

Mainly used in industries such as mining, geological exploration, construction engineering, water resources development, and environmental testing.

Q3: How deep can exploration drilling rigs generally drill?

The drilling depth of different models of exploration drilling rigs ranges from tens of meters to hundreds of meters or even deeper, depending on the geological conditions and equipment configuration.

Q4: What is the difference between a core drilling rig and a rotary drilling rig?

Core drilling machines are mainly used to obtain complete core samples, while rotary drilling machines focus more on drilling speed, and the samples are usually in the form of rock fragments.

Q5: How to choose a suitable exploration drilling rig?

When choosing an exploration drilling rig, buyers should consider drilling depth, hole diameter, rock hardness, terrain conditions, mobility requirements, power system, hydraulic performance, and after-sales support. The right model should match the actual geological conditions and project requirements.

Q6: Can exploration drilling rigs be used in hard rock formations?

Yes. Many exploration drilling rigs are designed for hard rock drilling. Depending on the drilling method, core drilling rigs, rotary drilling rigs, and DTH exploration drilling rigs can be selected for different rock layers and exploration purposes.

Q7: What information should buyers provide before requesting a quotation?

Before requesting a quotation, buyers should provide the required drilling depth, hole diameter, geological condition, application area, project location, preferred power type, and mobility requirements. This helps the manufacturer recommend a more suitable exploration drilling rig model.

Summary

As essential equipment for mineral exploration and geological investigation, exploration drilling rigs provide strong support for modern resource development and underground data collection. With efficient drilling performance, reliable hydraulic control, and strong adaptability to different geological conditions, these rigs help mining enterprises obtain accurate subsurface information and make better decisions for future exploration and mining operations.
