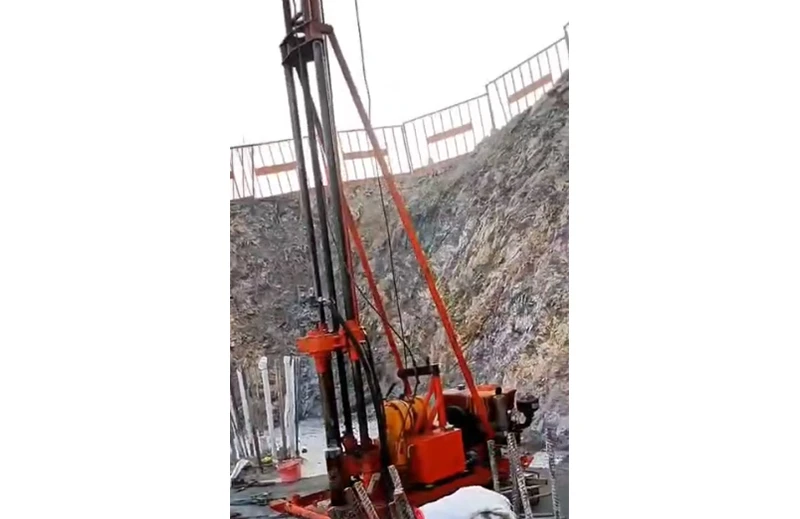

XD-100 Portable Core Drilling Rig

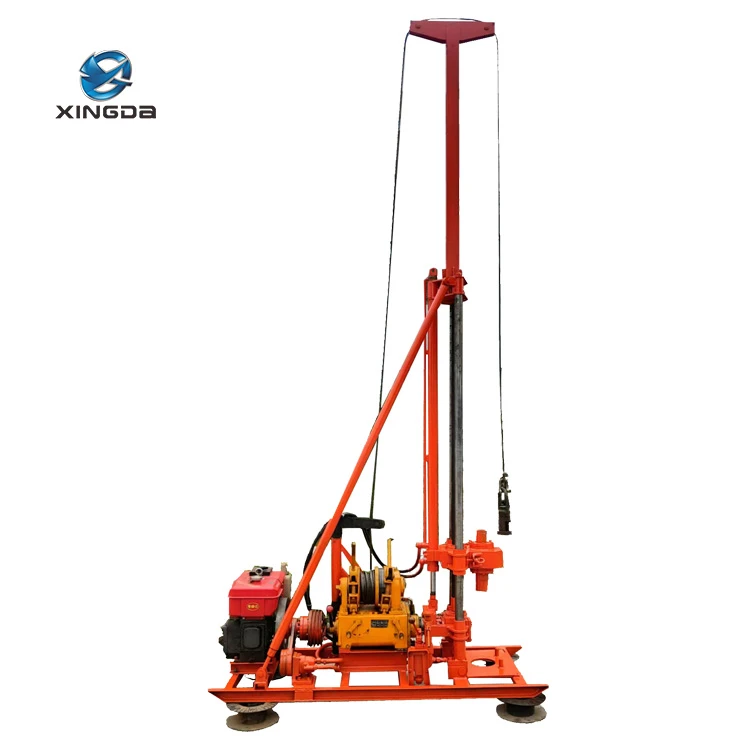

XD-100 The drilling rig is a light mechanical top drive engineering drilling rig used for industrial and civil construction, municipal engineering, transportation Traffic, water conservancy, environmental management and other industries; mainly using carbide and diamond drill bits for impact, rotary and compound drilling,, It can meet the requirements of engineering geological survey, core drilling, sampling, hydrology, small water wells, grouting and other engineering applications. Used for exploration drilling, sampling, in-situ testing, hole forming and well sinking in various formations.

Matching mud pump(optional)		BW-160
Machine weight(including power)(kg)		750
Winch single rope lifting force(KN)		11

Inquire Now Contact Us

Features Main Technical Parameters Structure The main components are described as follows

Main Features of XD-20BP Portable Core Drilling Rig

When drilling, it can directly drive the casing/core tube to drill. The effective stroke of the rotary actuator can reach 1.8m or 2.3m, improving the drilling efficiency.

The rotary unit adopts a new durable structure and can also be equipped with a large hole structure, which can meet the simultaneous construction requirements of casing/core tube rotary drilling and in-tube impact drilling in complex strata, significantly improving the drilling efficiency of complex strata.

The whole machine has a simple structure, is easy to disassemble and assemble, easy to maintain, and convenient to move.

Main Technical Parameters

Model No		XD-100
Drilling capacity	Drilling diameter(mm)	130	110	91	75
	Drilling depth(m)	50	80	100	120
Rotator parameter	Maximum torque(KN.m)	10
	Maximum feedforce (KN)	15
	Maximum lifting force	25
	Feeding stroke(mm)	1800/2300
	Diesel speed(r/min)	Low gear:142,302,716 High gear:475,960
Matching mud pump(optional)		BW-160
Machine weight(including power)(kg)		750
Power model	Rated power(kw)	Speed(r/min)
Diesel engine	12.1KW	2400r/min
Electric	11kw-4	1440r/min
Matching drill pipe	Drill rod diameter(mm)	042/050
	Drill rod length(m)	1.5/2.0
Winch single rope lifting force(KN)		11
Dimensions	Transport status(mm)	195012002550
	Working status(mm)	195012004250
Minimum operating clearance(chain length)		2550
Hote:The travel height can be customized according to customer

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Structure

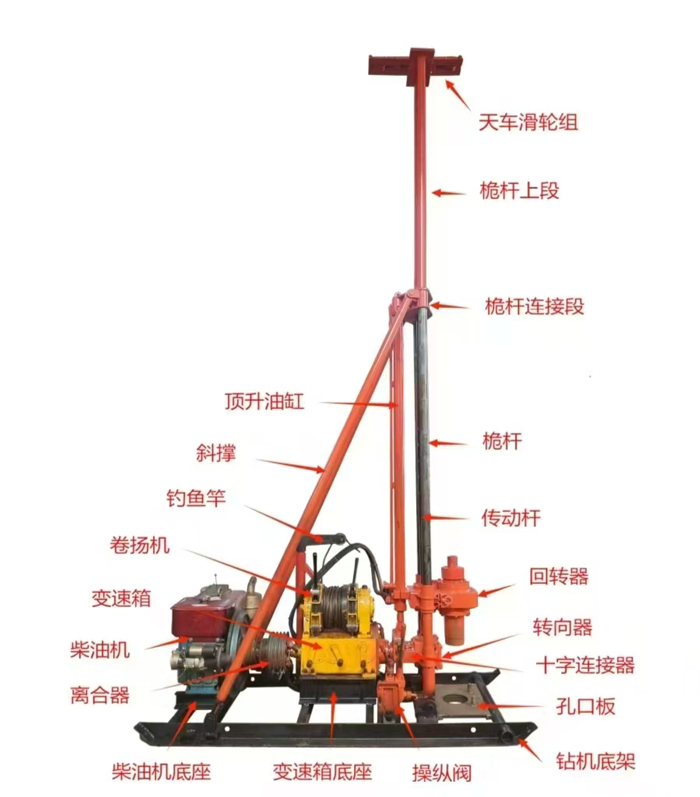

The components of the XD-20BP Portable core drilling rig: 1. Base, 2.Control valve, 3. Engine, 4. Power head, 5.Mast and support, 6. Winch, 7. Cylinde (7 parts)

XD-100 Portable Core Drilling Rig

The main components are described as follows

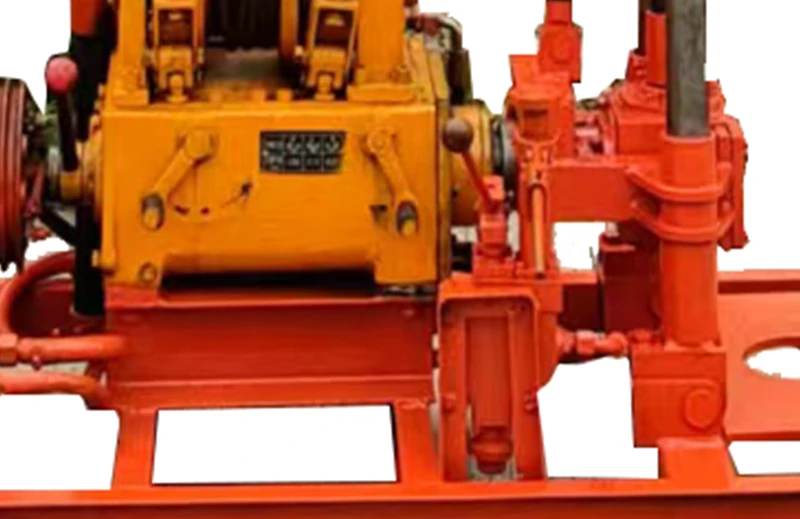

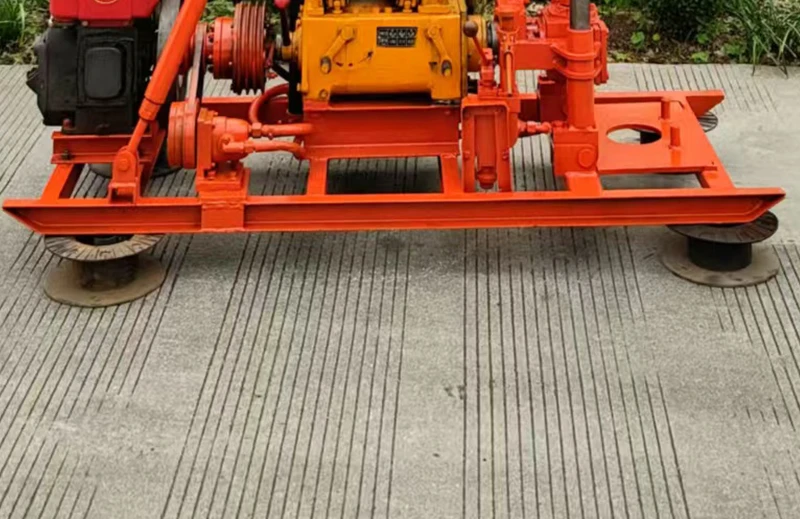

Base

The reinforced base of the drilling machine can stabilize the machine and make operation more stable in the field working environment.

Control valve

The operation handle is centrally controlled, making the operation simple and convenient.

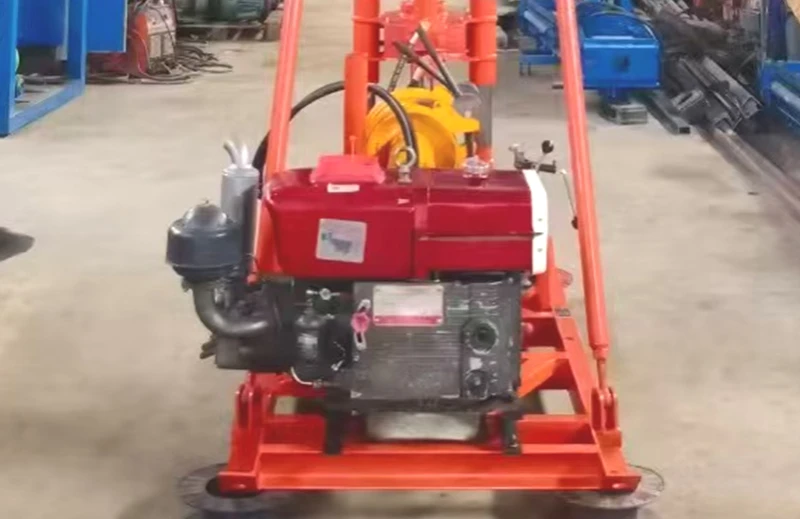

Power Unit

Using a 12KW renowned brand diesel engine, the operation is stable. The powerful engine and high-performance configuration ensure a longer service life of the machine.

Drill Head

Compatible with various drilling tools.The gearbox has three gears: high gear, low gear and neutral gear.

Powerful hydraulic head, quick drilling, not afraid of terrain.

Mast and supports

Equipped with a support stand, the drilling process becomes more stable while also saving manpower and enhancing work efficiency.

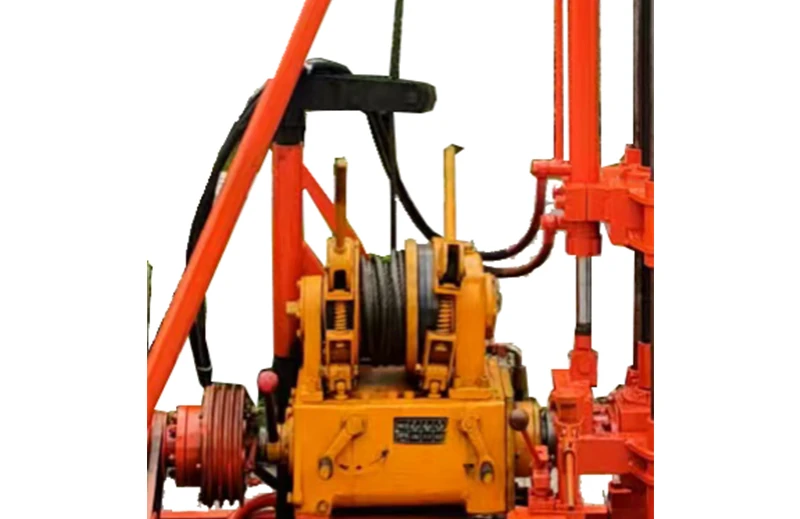

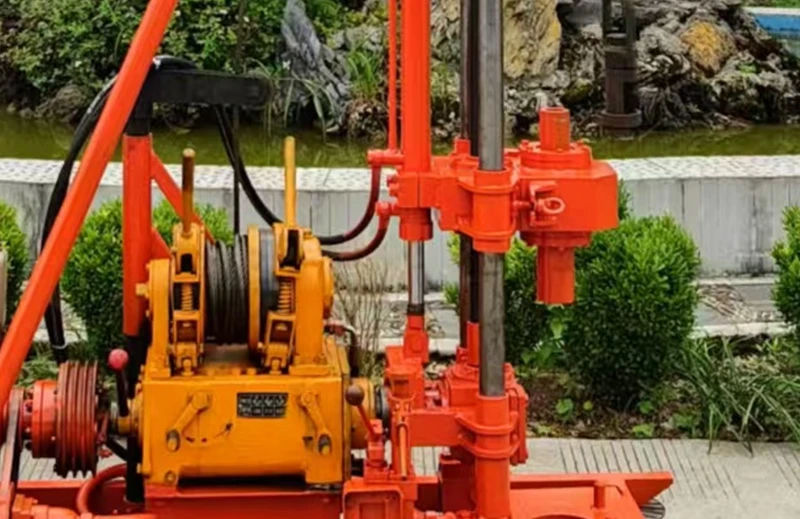

Winch

Equipped with a winch, the geological drilling can be lifted more conveniently and with greater efficiency. The winch, when combined with a heavy hammer, can be used for standard penetration tests, soil extraction and probing.

Feeding Stroke(mm)	1m
Drill pipe diameter(mm)	32mm
Max. power output speed(r/min)	963

Gasoline engine	3.3HP
Ignition method	Recoil pull cord
Coring Mode	Vertical Impact

Drill pipe stroke	1.2m
Drill pipe diameter(mm)	32mm, 42mm
Output max.torque	180N.m (low gear）
