It has the advantages of compact structure, small size, light weight, small water consumptio and convenient movement.
|
Feeding Stroke(mm) |
1m |
||||
|
Drill pipe diameter(mm) |
32mm |
||||
|
Max. power output speed(r/min) |
963 |
||||
XD-20BP Portable Core Drilling Rig Application Range
XINGDA XD-20BP core drill rig is tailored for the micro engineering rig used in mineral exploration, oi and gas exploration, geochemical exploration, shallow sampling, mineral vein exploration, geoscience research, geotechnical engineering investigation, oil field investigation, water and hydropower engineering investigation, highway engineering investigation, tunnel lining, invert detection.
The backpack-type shallow sampling core drilling rig is a small and lightweight drilling and sampling equipment mainly suitable for high mountains and areas with inconvenient transportation. Using this drilling rig can greatly reduce vegetation damage and protect the environment. In the geological industry, it is an indispensable technical means to cooperate with shallow geological exploration work such as trench exploration, regional geological mapping, geophysical and geochemical sampling, paleomagnetic sampling, and geological disaster prevention. In terms of power line survey, it can be defined by fast drilling speed and low drilling cost.
Main Technical Parameters
|
Model |
XD-20BP(Diesel version/ Gasoline version） |
||||
|
Drilling diameter(mm) |
110 |
91 |
75 |
60 |
46 |
|
Drilling depth(mm) |
5 |
10 |
15 |
20 |
25 |
|
Feeding Stroke(mm) |
1m |
||||
|
Drill pipe diameter(mm) |
32mm |
||||
|
Max. power output speed(r/min) |
963 |
||||
|
Max. torque at the speed of rotation(r/min) |
695 |
||||
|
Output max.torque（N.m） |
80（slow gear） |
||||
|
Matching engine |
Power: 4.5KW Max Speed: 3600r/min |
||||
|
Dimensions(L*W*H) |
800*600*1600mm(Increase the thickness of the turntable1800mm) |
||||
|
Drilling rig weight (including power) Weight(Kg) |
Complete machine: 90kg （Machine that can be disassembled for transportation） |
||||
Structure
The components of the XD-20BP Portable core drilling rig: 1. Base, 2. Walking assist wheel, 3. Engine, 4. Power head， 5.Mast, 6. Disc, (6 parts)
The main components are described as follows
01
Base

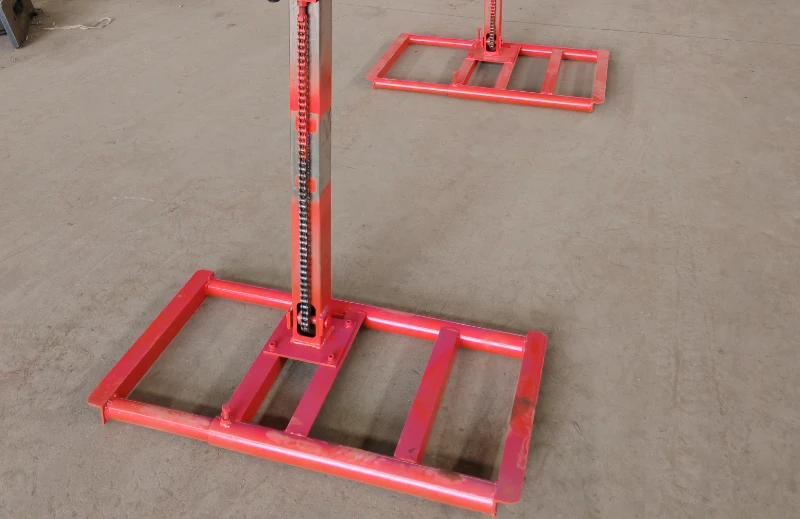

The reinforced base of the drilling machine can stabilize the machine and make operation more stable in the field working environment.
02
Walking assist wheel

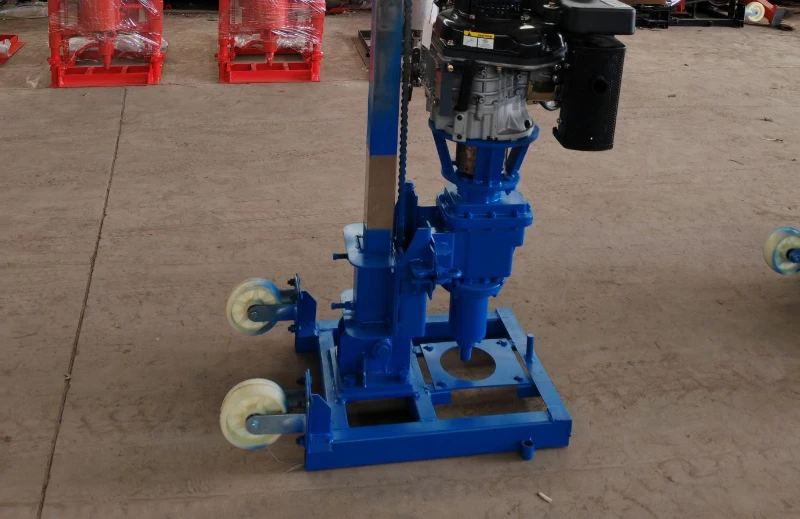

Equipped with a wheeled walking mechanism, it is convenient for short-distance relocation.
03
Power Unit

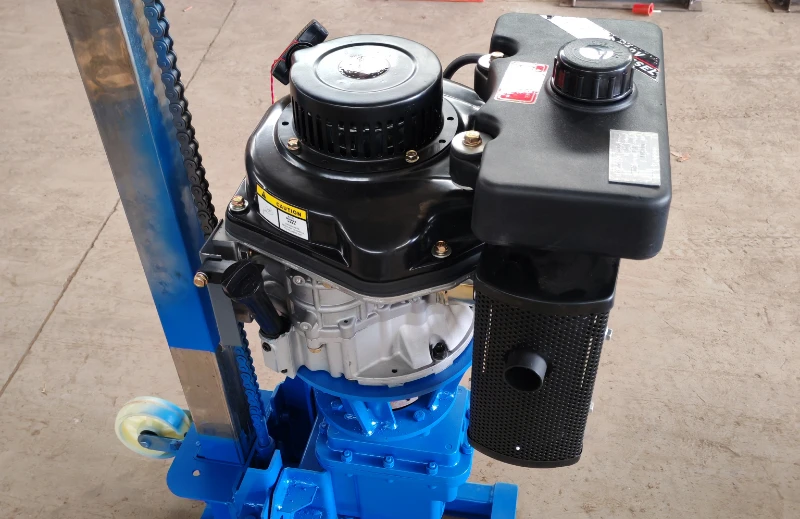

Using engines from well-known brands, the operation is stable. The powerful engine and high-performance configuration ensure a longer service life of the machine.
04
Drill Head

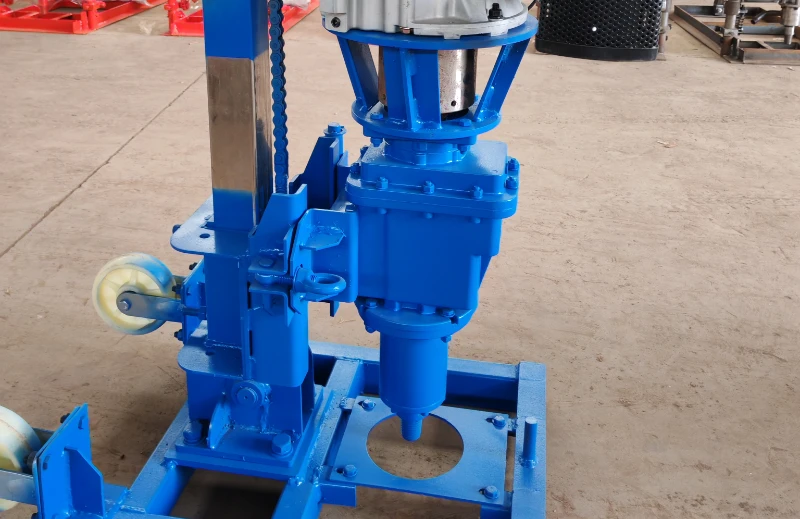

Powerful hydraulic head, quick drilling, not afraid of terrain.
