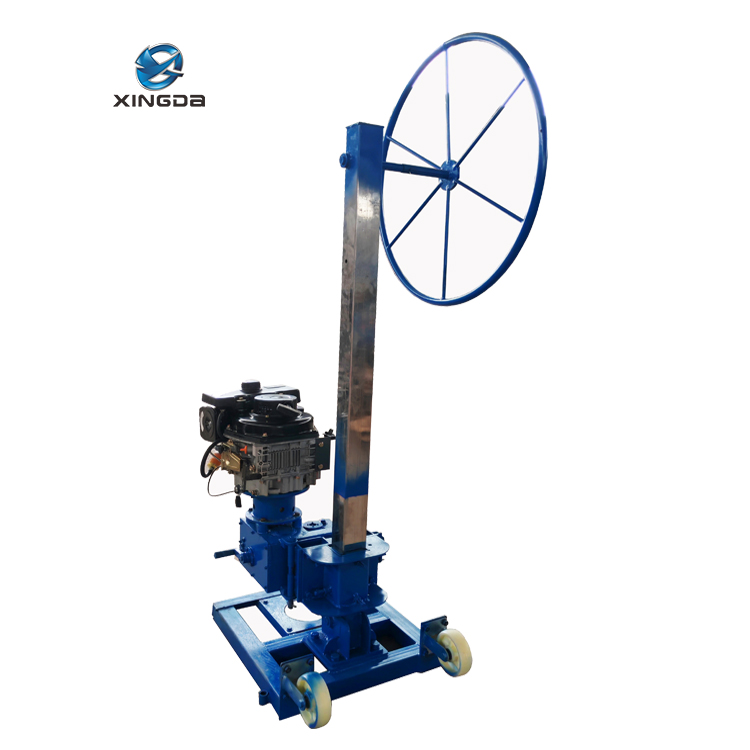

XD-50BP Portable Core Drilling Rig

It has the advantages of compact structure, small size, light weight, small water consumptio and convenient movement.

Drill pipe stroke	1.2m
Drill pipe diameter(mm)	32mm, 42mm
Output max.torque	180N.m (low gear）

Inquire Now Contact Us

Application Range Main Technical Parameters Rig Structure The main components are described as follows

XD-50BP Portable Core Drilling Rig Application Range

XINGDA XD-50BP core drill rig is tailored for the micro engineering rig used in mineral exploration, oi and gas exploration, geochemical exploration, shallow sampling, mineral vein exploration, geoscience research, geotechnical engineering investigation, oil field investigation, water and hydropower engineering investigation, highway engineering investigation, tunnel lining, invert detection.

The backpack-type shallow sampling core drilling rig is a small and lightweight drilling and sampling equipment mainly suitable for high mountains and areas with inconvenient transportation. Using this drilling rig can greatly reduce vegetation damage and protect the environment. In the geological industry, it is an indispensable technical means to cooperate with shallow geological exploration work such as trench exploration, regional geological mapping, geophysical and geochemical sampling, paleomagnetic sampling, and geological disaster prevention. In terms of power line survey, it can be defined by fast drilling speed and low drilling cost.

Main Technical Parameters

Model	XD-50BP/50NY
Drilling diameter(mm)	110 (soil layer)	91	75	60	46
Drilling depth(mm)	20	20	30	40	50
Drill pipe stroke	1.2m
Drill pipe diameter(mm)	32mm, 42mm
Max. power output speed	low gear 225r/min High gear 535r/min
Output max.torque	180N.m (low gear）
Matching engine	Diesel engine: 6KW Max.Speed: 3600r/min
Dimensions(LWH)	68012003900mm
Weight(Kg)	complete machine165kg(Machine that can be disassembled for transportation）

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Rig Structure

The components of the XD-50BP Portable core drilling rig: 1. Base, 2. Walking assist wheel, 3. Engine, 4. Power head, 5.Mast, 6. Disc, (6 parts)

XD-50BP Portable Core Drilling Rig

The main components are described as follows

Base

The reinforced base of the drilling machine can stabilize the machine and make operation more stable in the field working environment.

Walking assist wheel

Equipped with a wheeled walking mechanism, it is convenient for short-distance relocation.

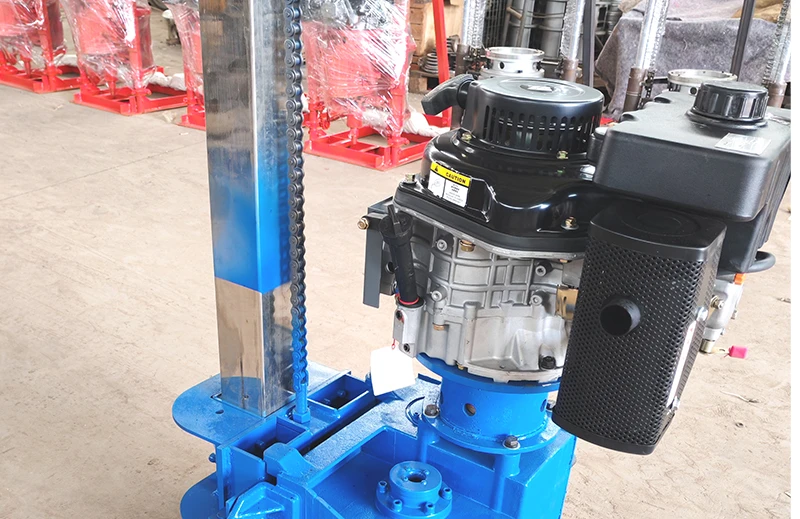

Power Unit

Equipped with well-known brand diesel engines, it operates stably. The powerful performance and high-performance configuration ensure a longer service life of the machine.

Drill Head

Powerful hydraulic head, quick drilling, not afraid of terrain.

Feeding Stroke(mm)	1m
Drill pipe diameter(mm)	32mm
Max. power output speed(r/min)	963

Gasoline engine	3.3HP
Ignition method	Recoil pull cord
Coring Mode	Vertical Impact
