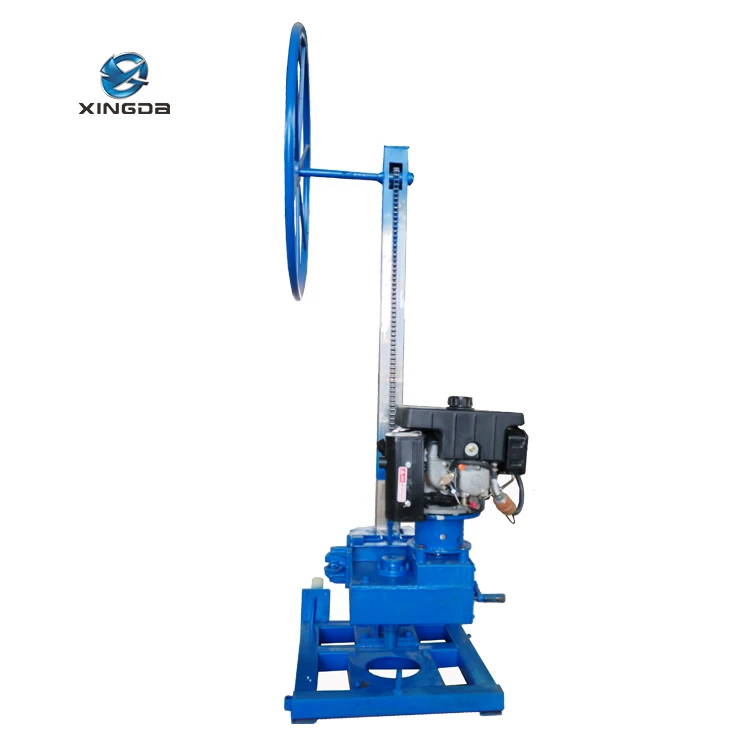

XD-50NY Portable Core Drilling Rig

It has the advantages of compact structure, small size, light weight, small water consumptio and convenient movement.

Drill pipe stroke	1.2m
Drill pipe diameter(mm)	32mm, 42mm
Output max.torque	180N.m (Slow mode）

Inquire Now Contact Us

Application Range Main Technical Parameters Structure The main components are described as follows

XD-50NY Portable Core Drilling Rig Application Range

XD-50NY core drill rig is tailored for the micro engineering rig used in mineral exploration, oi and gas exploration, geochemical exploration, shallow sampling, mineral vein exploration, geoscience research, geotechnical engineering investigation, oil field investigation, water and hydropower engineering investigation, highway engineering investigation, tunnel lining, invert detection.

The backpack-type shallow sampling core drilling rig is a small and lightweight drilling and sampling equipment mainly suitable for high mountains and areas with inconvenient transportation. Using this drilling rig can greatly reduce vegetation damage and protect the environment. In the geological industry, it is an indispensable technical means to cooperate with shallow geological exploration work such as trench exploration, regional geological mapping, geophysical and geochemical sampling, paleomagnetic sampling, and geological disaster prevention. In terms of power line survey, it can be defined by fast drilling speed and low drilling cost.

Main Technical Parameters

Model	XD-50BP/50NY
Drilling diameter(mm)	110 (soil layer)	91	75	60	46
Drilling depth(mm)	20	20	30	40	50
Drill pipe stroke	1.2m
Drill pipe diameter(mm)	32mm, 42mm
Max. power output speed	Slow mode: 225r/min Fast mode: 535r/min
Output max.torque	180N.m(Slow mode）
Matching engine	Diesel 6KW Max Speed: 3600r/min
Dimensions(LWH)	68012003900mm
Weight(Kg)	Complete machine: 165kg(Machine that can be disassembled for transportation）

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Structure

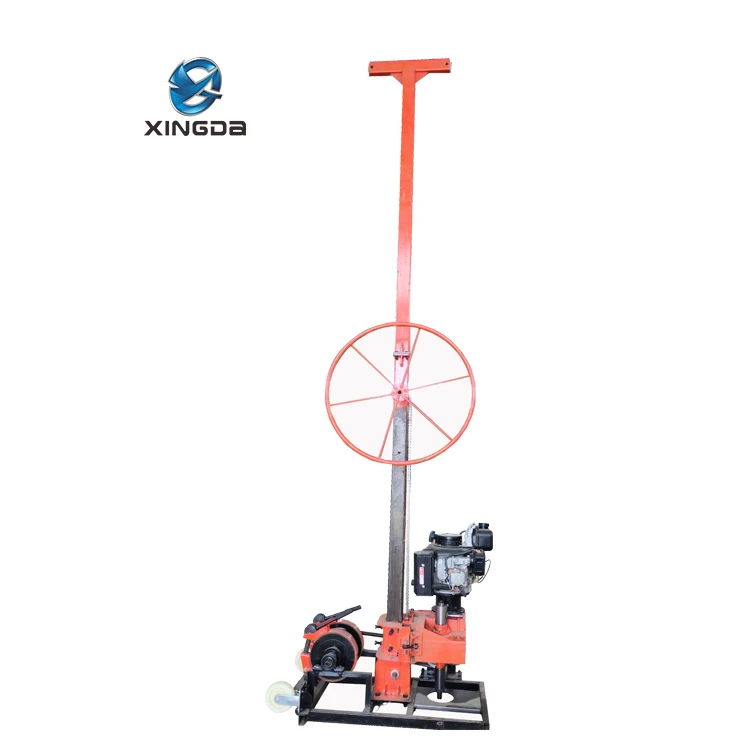

The components of the XD-50NY Portable core drilling rig: 1. Base, 2. Walking assist wheel, 3. Engine, 4. Power head, 5.Mast, 6.Winch, 7. Manual turntable, (7 parts)

XD-50NY Portable Core Drilling Rig

The main components are described as follows

Base

The reinforced base of the drilling machine can stabilize the machine and make operation more stable in the field working environment.

Walking wheels

Equipped with a wheeled walking mechanism, it is convenient for short-distance relocation.

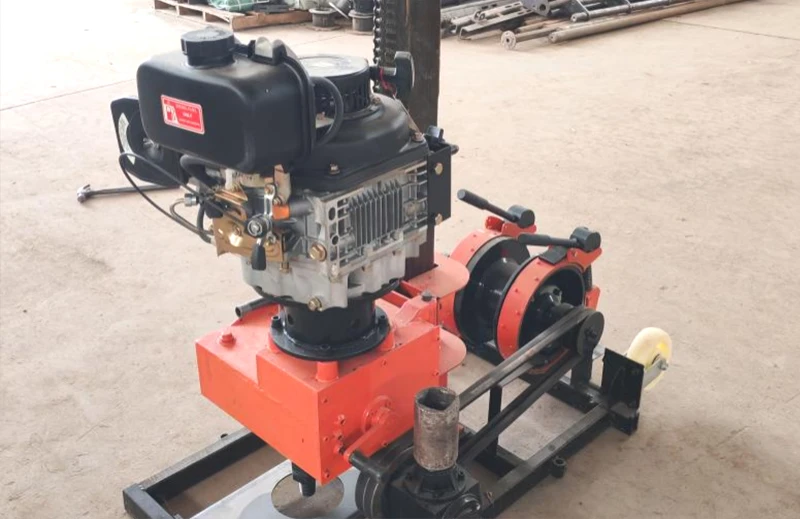

Power Unit

Using engines from well-known brands, the operation is stable. The powerful engine and high-performance configuration ensure a longer service life of the machine.

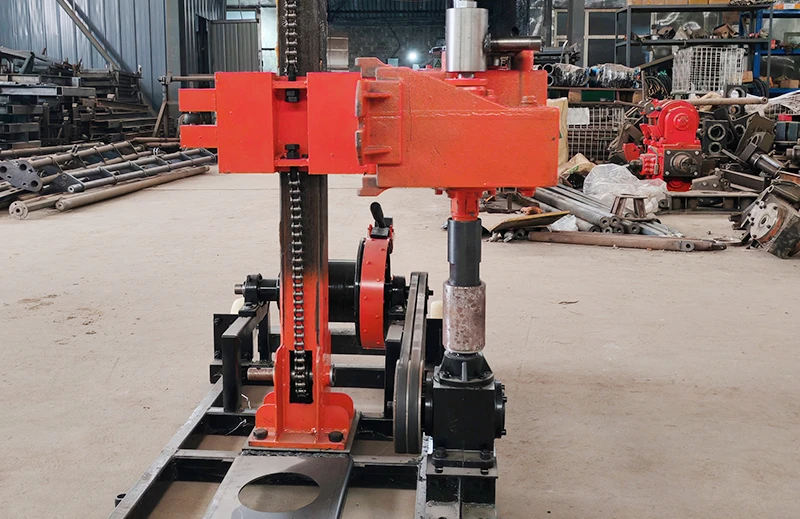

Drill Head

Compatible with various drilling tools.The gearbox has three gears: high gear, low gear and neutral gear.

These gears can be adjusted according to different terrains to make the drilling process more efficient.

Mast

Equipped with a support stand, the drilling process becomes more stable while also saving manpower and enhancing work efficiency.

Winch

Equipped with a winch, the geological drilling can be lifted more conveniently and with greater efficiency. The winch, when combined with a heavy hammer, can be used for standard penetration tests, soil extraction and probing.
