Compact structure, small size, light weight, two-speed transmission, easy to move,gasoline engine power, convenient for construction in the field.
|
Feeding Stroke |
1m |
||||
|
Drill pipe diameter(mm) |
32mm |
||||
|
Output speed(r/min) |
200-570 |
||||

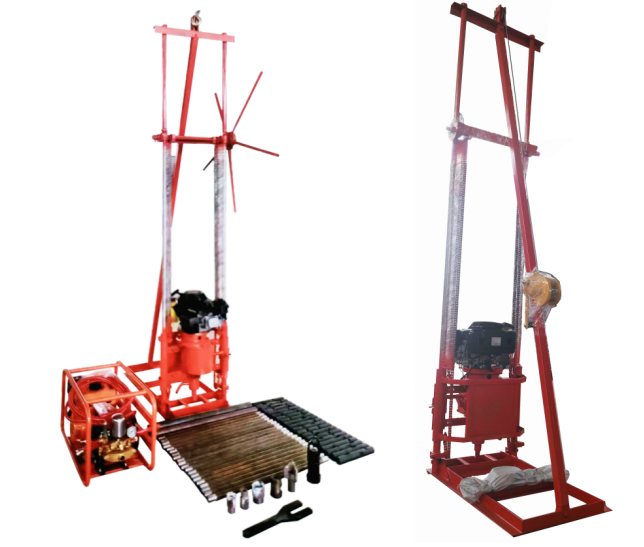

XDQ-30 Portable Core Drilling Rig Application Range
XDQ-30 sampling drilling rig is a portable multi-purpose, miniature engineering drilling rig, it is suitable for industrial and civil construction, bridges, railways, highways, hydropower and other industries for geological prospecting, geophysical pilot holes, advance drilling holes, grouting holes, embedded parts pilot holes, blast holes, inspection holes, small household water wells,etc. It supports drilling depths of 5-30m and hole diameters of 45-110mm. Certified by CE, ensuring compliance with EU safety standards and providing market access. Supplier highlights: This supplier mainly sells in the Philippines, Guinea, and Colombia, offering product certifications and SDK. Minor customization is possible. The positive review rate is 100.0%.
Main Technical Parameters
|
Model |
XDQ30（Gasoline engine /Electric motor） |
||||
|
Drilling diameter(mm) |
110 (soil layer) |
91 |
75 |
60 |
45 |
|
Drilling depth(mm) |
5-10 |
10-15 |
15-20 |
20-25 |
30 |
|
Feeding Stroke |
1m |
||||
|
Drill pipe diameter(mm) |
32mm |
||||
|
Output speed(r/min) |
200-570 |
||||
|
Torque |
Gasoline engine: 130N.m |
||||
|
Matching engine |
Gasoline engine: Model IP75FAA Power: 4.5KW, Speed: 2000-36000r/min |
||||
|
Dimensions(L*W*H) |
1000*500*2850mm（With a winch） |
||||
|
Weight(Kg) |
120kg(Gasoline engine）/110kg(Electric motor） |
||||
Advances in technology design, we can not change the product effective notice to you, please forgive me!
Structure

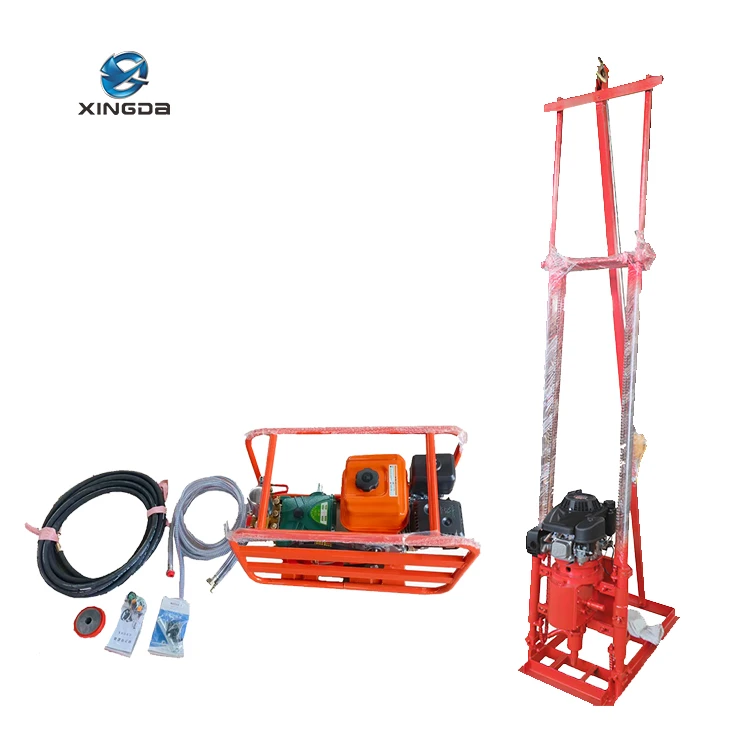

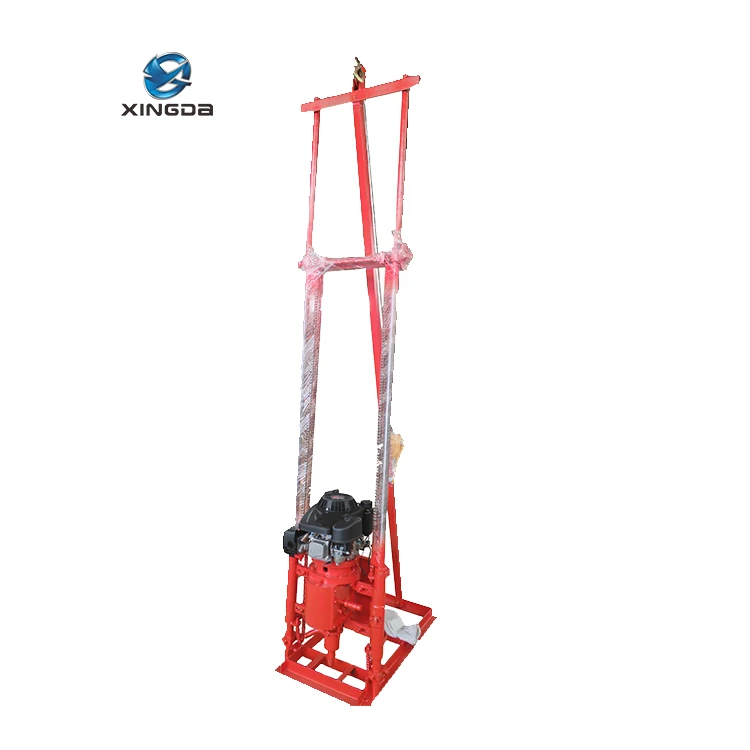

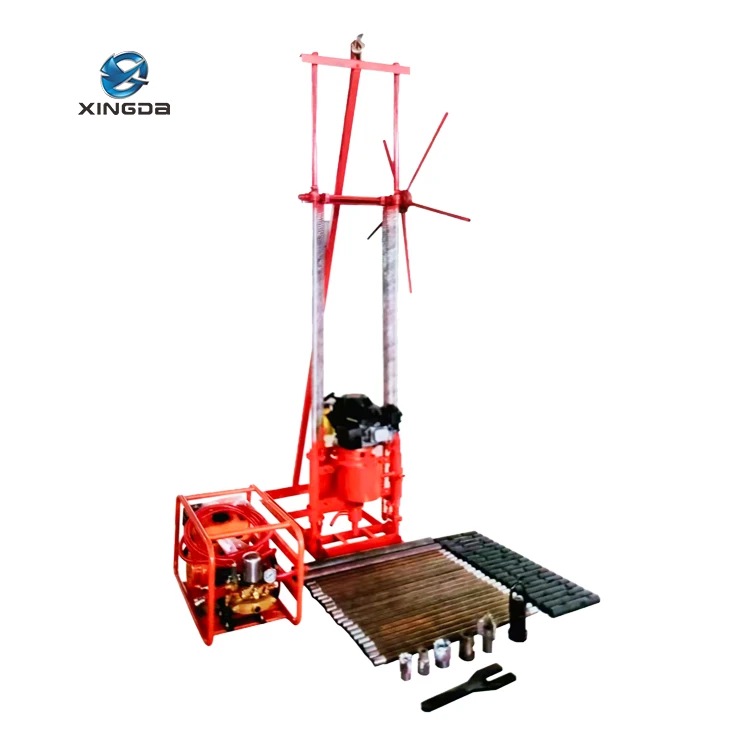

The components of the XDQ-30 Portable core drilling rig: 1. Base, 2. Tower, 3. Engine, 4. Power head, 5.winch, 6. Disc(6 parts)
The main components are described as follows
01

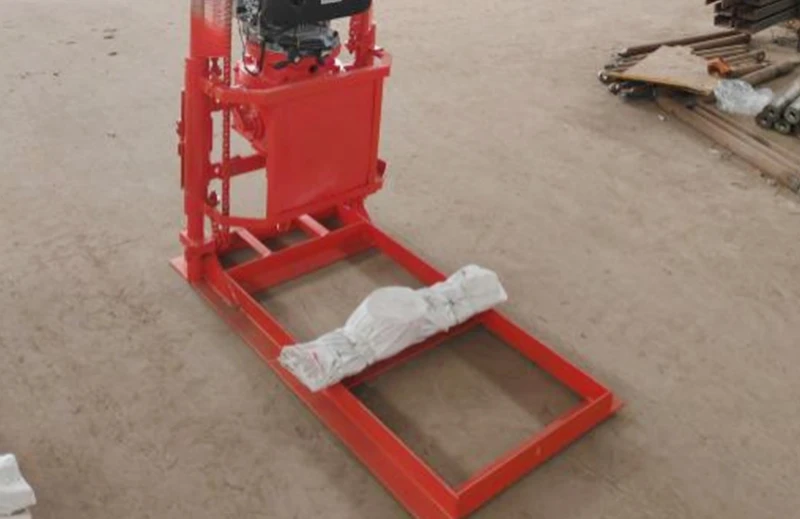

Base
The reinforced base of the drilling machine can stabilize the machine and make operation more stable in the field working environment.
02
Tower
The drilling rig tower is made of high-quality geological steel, which is safe, reliable and durable.
03
Power Unit
Either gasoline engines or electric motors can be selected. They offer powerful performance, stable operation and high efficiency.
04
Drill Head
Two-speed transmission, capable of using various drilling tools, suitable for drilling in different terrains, with high efficiency..
05
Winch
Optional manual winch is available, which saves time and effort when lifting the drill pipe.
