XDQB-6 Portable Full Hydraulic Core Drilling Rig

The XDQB-6 portable full-hydraulic core drilling rig is widely used in geological prospecting and mineral exploration due to its easy access, high drilling efficiency and quick relocation; railway, highway, bridge, water conservancy and hydropower and tunnel belt engineering survey; it can also be used in municipal and civil construction projects geological survey; railway, highway, bridge,water conservancy and hydropower and tunnel belt engineering survey; it can also be used for engineering geological surveys such as municipal and civil construction; especially good at core drilling and surveying in mountainous areas, woodlands, plateaus and other areas with complex terrain and inconvenient transportation. It greatly saves the investment in building temporary roads, shortens the exploration period, saves labor, and reduces handling risks and costs for clients.

Power Unit	Model	V1505-T
Power Unit	Power(KW)	33
Power Unit	Rotation Speed(rpm/min)	3000

Inquire Now Contact Us

Features Main Technical Parameters Structure The main components are described as follows

Main Features of XDQB-6 Portable Full Hydraulic Core Drilling Rig

The drilling rig adopts hydraulic drive, modular design, safe and reliable structure, easy to operate, reduces labor intensity, and is more user-friendly; mast-type drill frame, without drilling tower, can be drilled at any angle from 45 to 90 degrees; the key parts adopt internationally well-known brands, which are powerful, stable and reliable; the hydraulic system is highly integrated, does not leak oil, and has a very low failure rate; high drilling efficiency and fewer accidents.

Main Technical Parameters

Model		XDQB-3	XDQB-4	XDQB-6	XDQB-8
Drilling Capability	BTW ( Φ55) m	450	600	800	1000
	NTW (Φ71) m	300	400	600	800
	HTW (Φ89) m	150	200	400	600
Power Unit	Model	V1505-T	V1505-T	V1505-5T	V1505-5T
	Power(KW)	33	33	33	33
	Rotation Speed(rpm/min)	3000	3000	3000	3000
	Number of powermachines (Set)	1+1	2	3	4
	Total power(KW)	33+13.2 (Mud Pump)	66	99	132
Drill Head	Rotation Speed(rpm/min)	0~1300	0~1300	0~1300	0~1300
	Max.Rotary Torque of Spindle(N.m)	600	760	1170	1565
	Max.Pull Force(KN)	100	120	160	160
	Max. Feed Force(KN)	50	62	80	80
	Feed Stroke(mm)	1800	1800	1800	1800
	Drilling Angles(°)	45°~90°	45°~90°	45°~90°	45°~90°
Hydraulic system	Max.Pressure(MPa)	16	20	25	25
Mud Pump	Model	BW100/6-X	BW100/6	BW100/6	BW100/6
	Max.Output(L/min)	100	100	100	100
	Max.Pressure(MPa)	6	6	6	6
Main Winch	Hoisting Capacity (KN) (Single-wire/empty-drum)	10	10	10	10
Main Winch	Dia. of Steel Wire(mm)	6	6	6	6
Foot Clamp	Clamping Range (mm)	BTW/NTW/HTW	BTW/NTW/HTW	BTW/NTW/HTW	BTW/NTW/HTW
Foot Clamp	LD. of Spindle Hole (mm)	134	134	134	134

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Structure

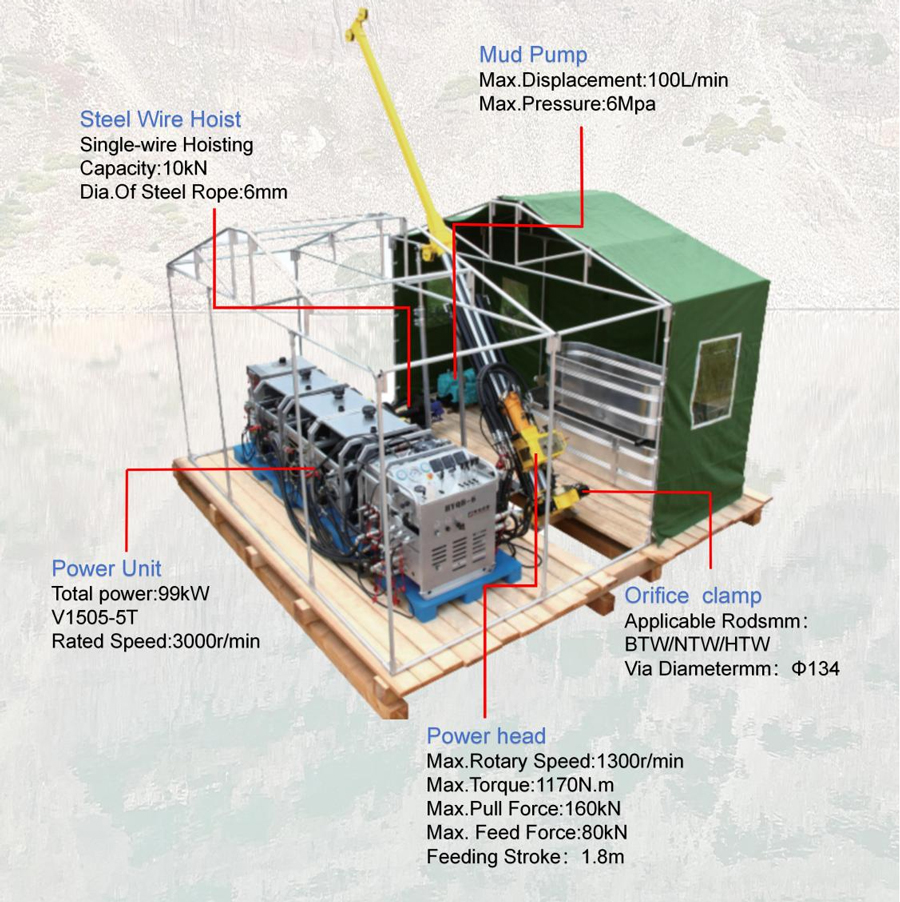

The components of the XDQB-6 portable full hydraulic core drilling rig: 1.Main machine, 2.Operation panel, 3.Power unit, 4. Mud pump (4 parts)

XDQB-6 Portable Full Hydraulic Core Drilling Rig

The main components are described as follows

Main Machine

The main body is mainly composed of five components: ① foot clamp; ② mast assembly; ③ power head; ④ winch; ⑤ base

The description of the main machine is as follows:

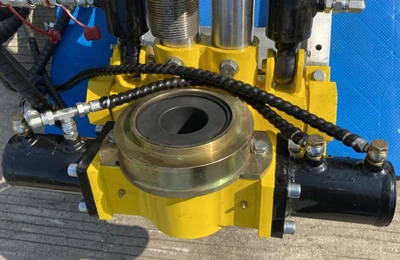

① Foot Clamp

It is in the structure of clamping or releasing hydraulic chuck with two cylinders pushing the taper sleeve. It is in the function as: ① To work together with drill head, the clamp can hold rod for making and breaking. ② There is a centralizer to control the rod for its reliability to guarantee the well drilling.

② Mast

The universal dual-support system forms a spatial triangular structure with the feed beam. It can drill at any angle ranging from 45 degrees to 90 degrees, ensuring the stability and reliability of the feed beam at any angle.

③ Power head

Its form is a top drive structure driven by a hydraulic motor, with hydraulic stepless speed regulation and a mechanical two-speed gear system. It prevents accidental disengagement of the drill pipe, has a large propulsion force and high efficiency.

④ Winch

Hydraulic control is achieved by retracting and extending the steel wire rope to lift and lower the load.

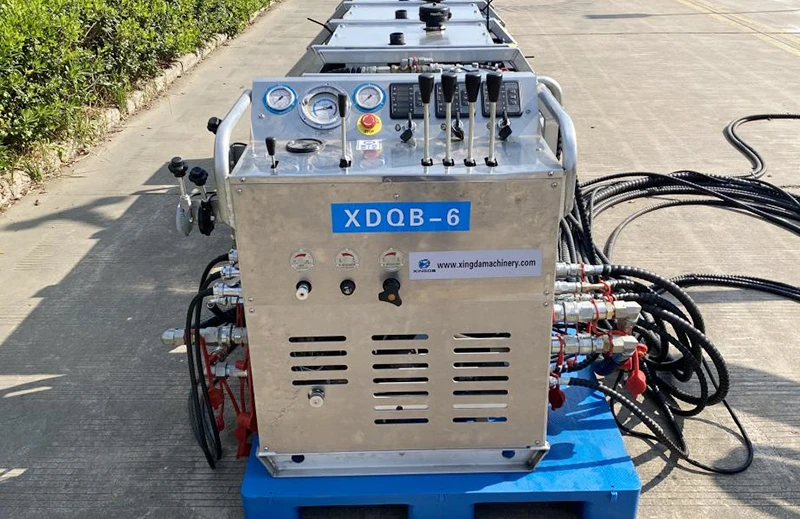

Control Panel

The operation valve is highly centralized, with flexible control, stable performance and high controllability. It is also more aesthetically pleasing and direct.

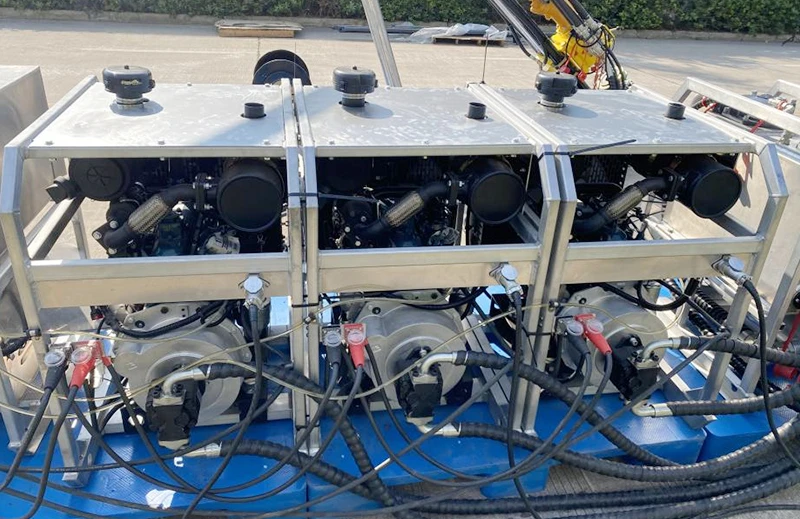

Power Unit

Modular design, convenient for transportation. Equipped with renowned brand engines, the machine operates stably. The powerful engine and high-performance configuration ensure a longer service life of the machine.
