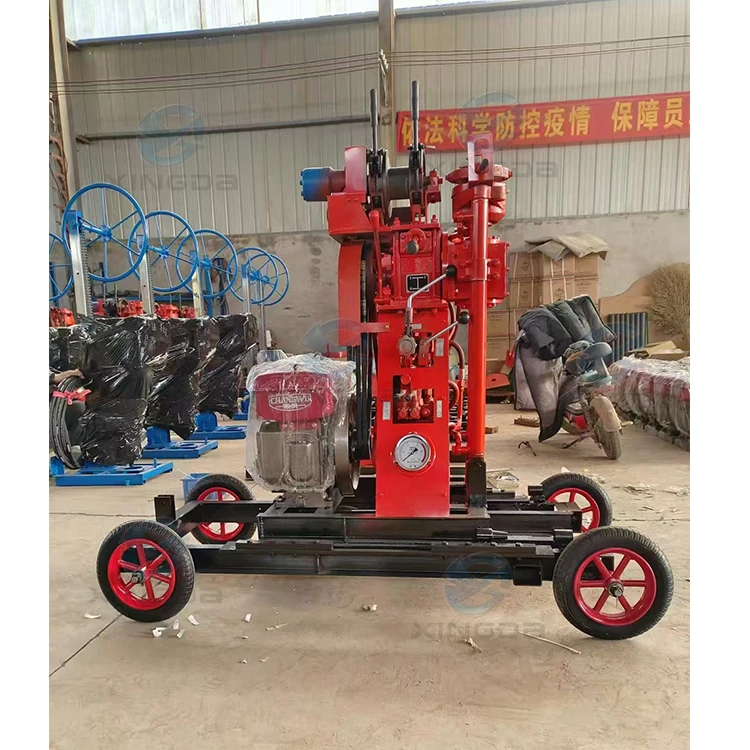

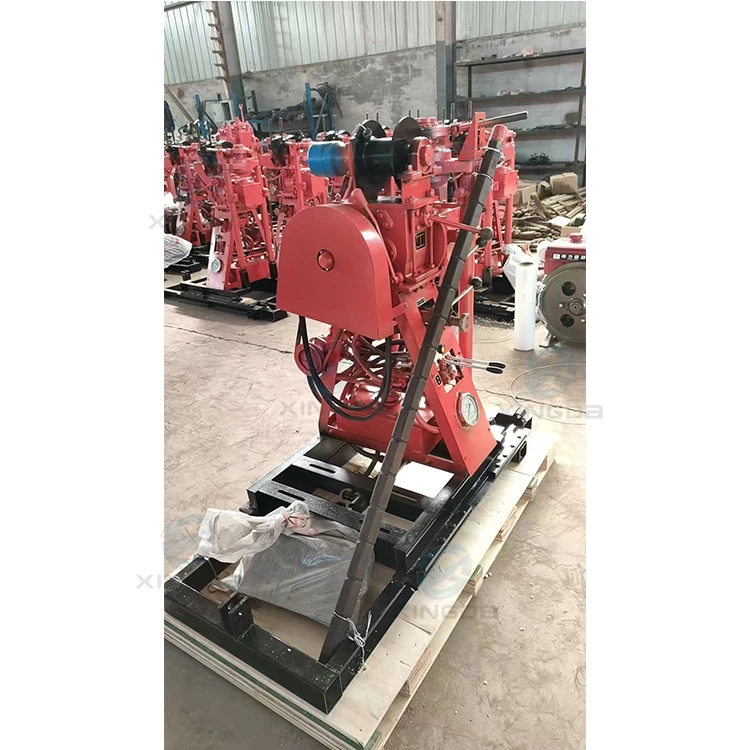

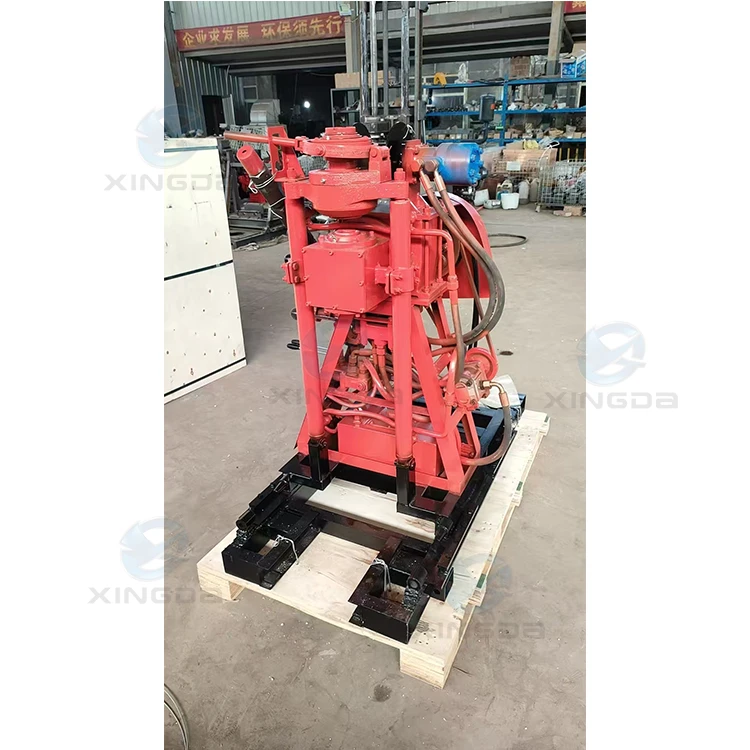

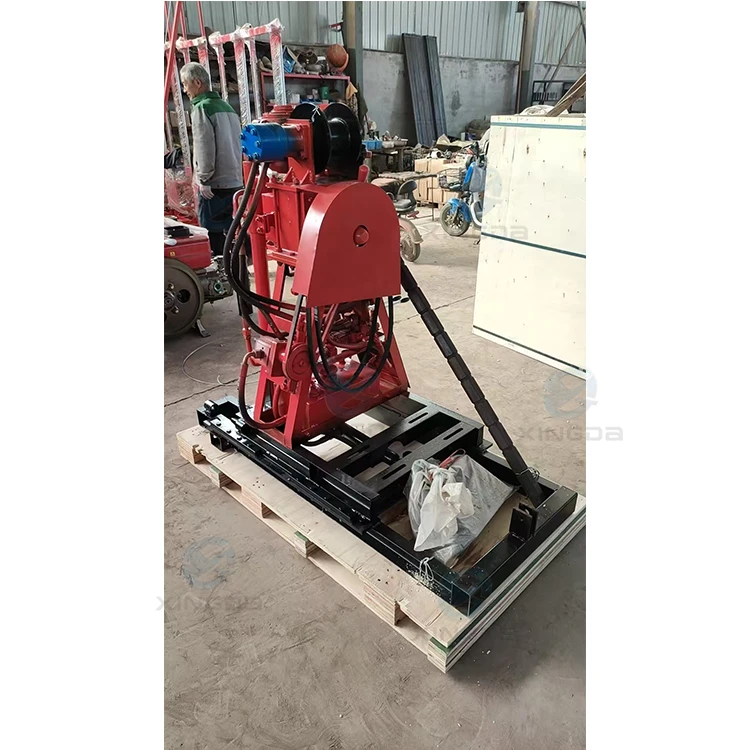

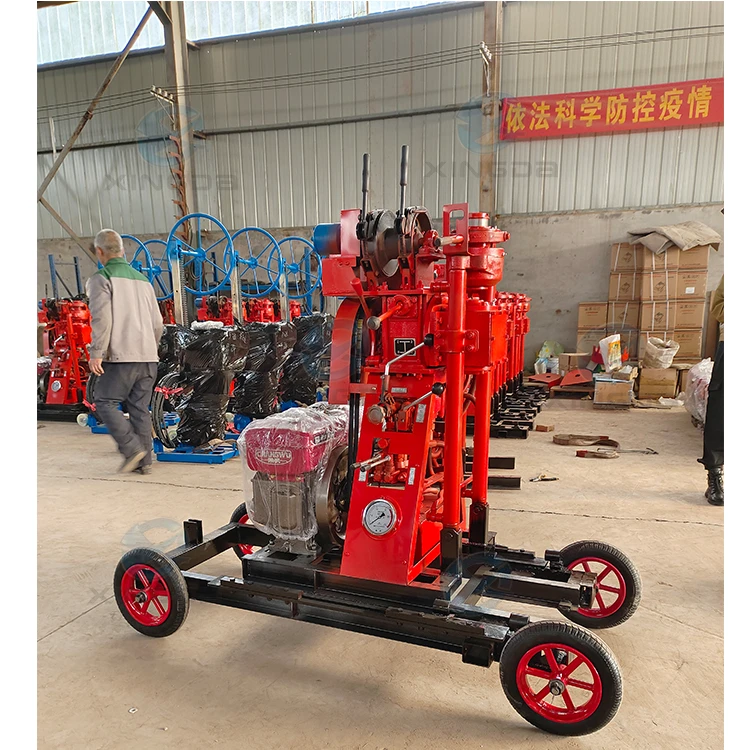

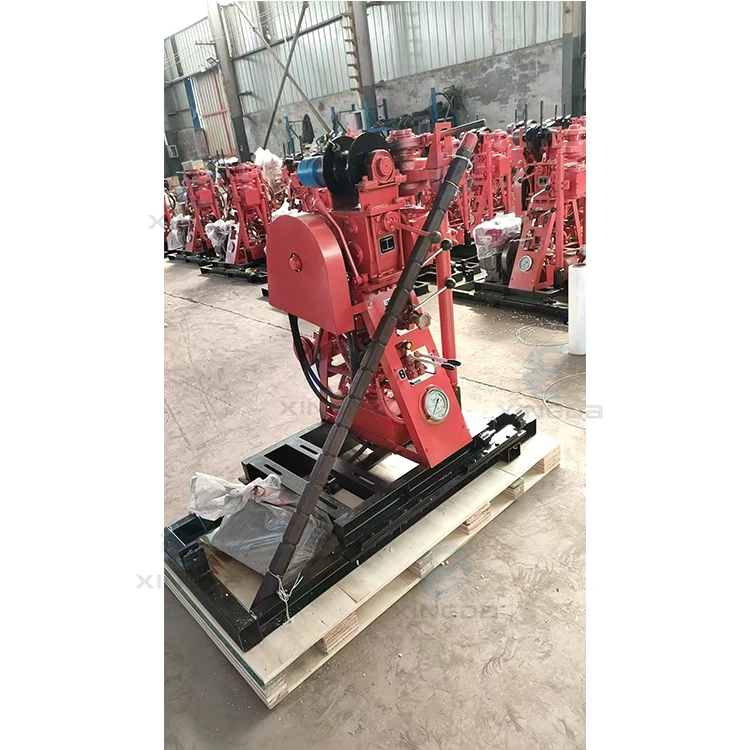

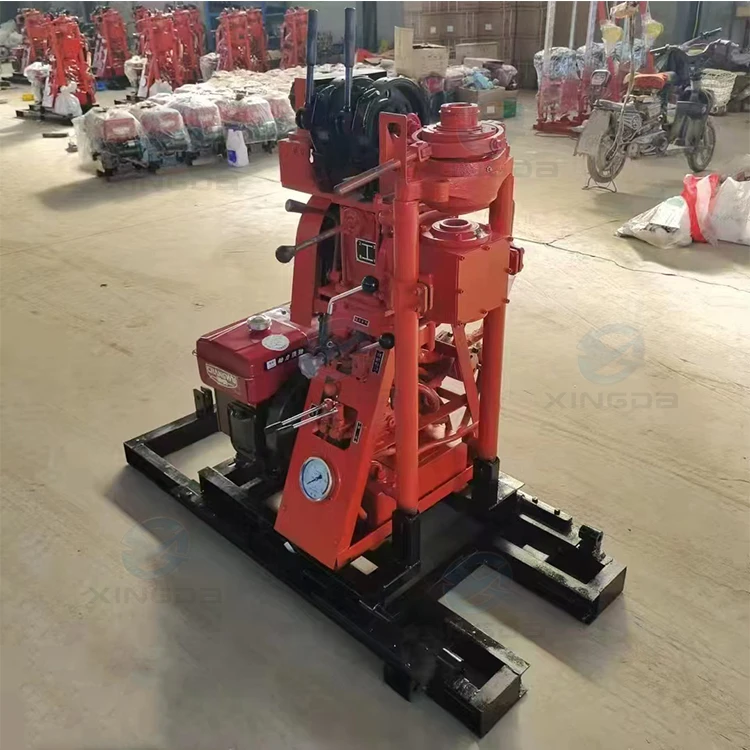

XINGDA XY-50/50Y portable hydraulic core drilling rig is a small sampling drilling equipment widely used in plains/mountains/and areas with inconvenient transportation and energy. It has the advantages of compact structure, small footprint, light weight and convenient movement. Suitable for railway, water conservancy and other construction projects and geological sampling surveys in outdoor mountainous areas, geological core drilling rigs, small grouting hole blasting holes, etc.
|
Hole depth |
50m |
|
Hole diameter |
75-108mm |
|
Spindle speed |
70-650(1-3gear) |
Drilling rig use and scope of application
Engineering geological survey of structures such as railways, hydropower, transportation, bridges, and dam foundations.
Geological core drilling and physical surveys.
Drilling of small grout holes and blast holes.
Drilling of small water wells.
Main Technical Parameters
|
Model No. |
50 |
50Y |
|
Hole depth |
50m |
50m |
|
Hole diameter |
75-108mm |
75-108mm |
|
Weight (not include the engine) |
200kg |
260kg |
|
Dimension |
1180*680*1600mm |
1400*680*1230mm |
|
Rod size |
42*550mm |
42mm |
|
Spindle speed |
70-650(1-3gear) |
70-650(1-3gear) |
|
Reverse speed |
50-130(R gear) |
50-130(R gear) |
|
Matching engine |
R180 model engine (5.7KW) |
R180 model engine (5.7KW) |
|
Cylinder stroke |
1.1m |
600 |
|
Drill slide distance |
----- |
200 |
|
Winch lifting |
----- |
500kg |
