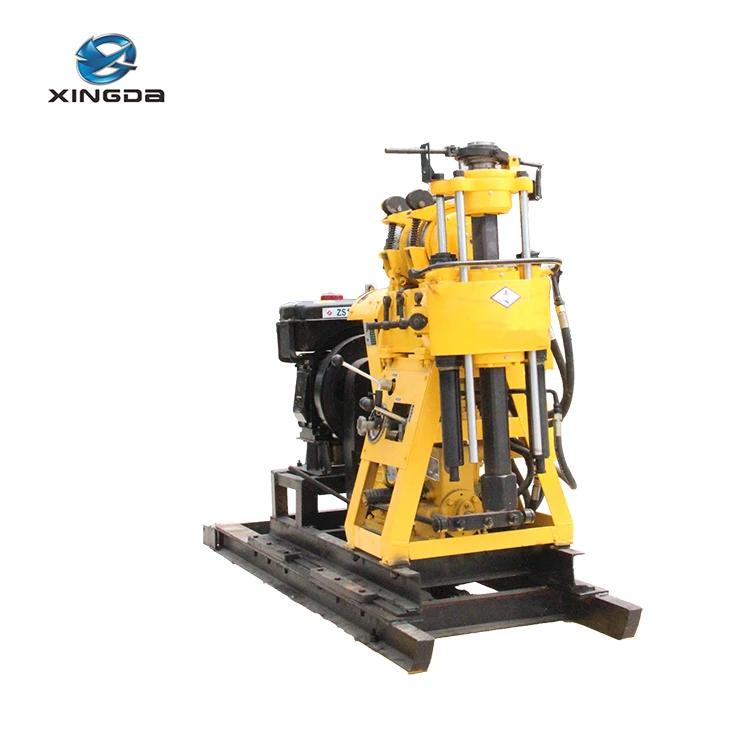

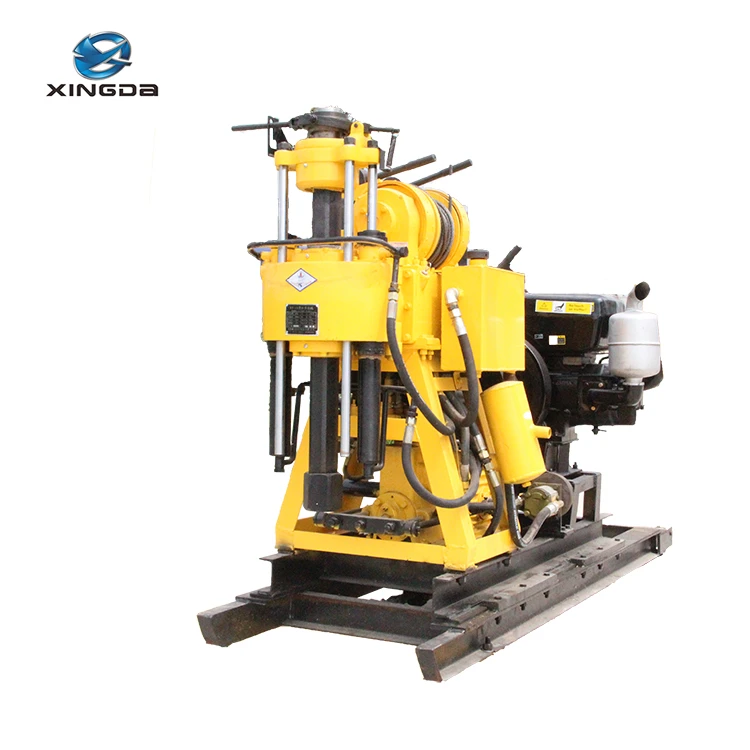

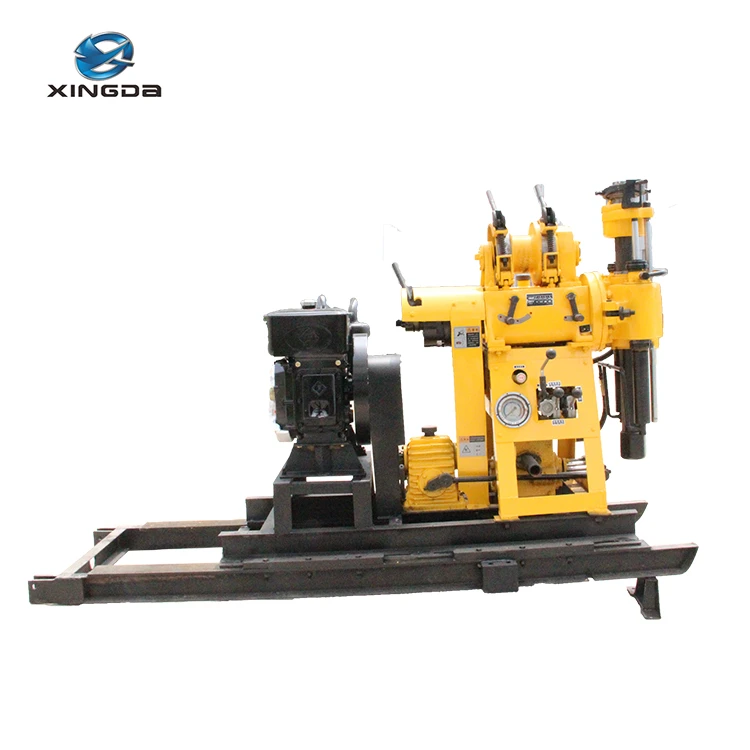

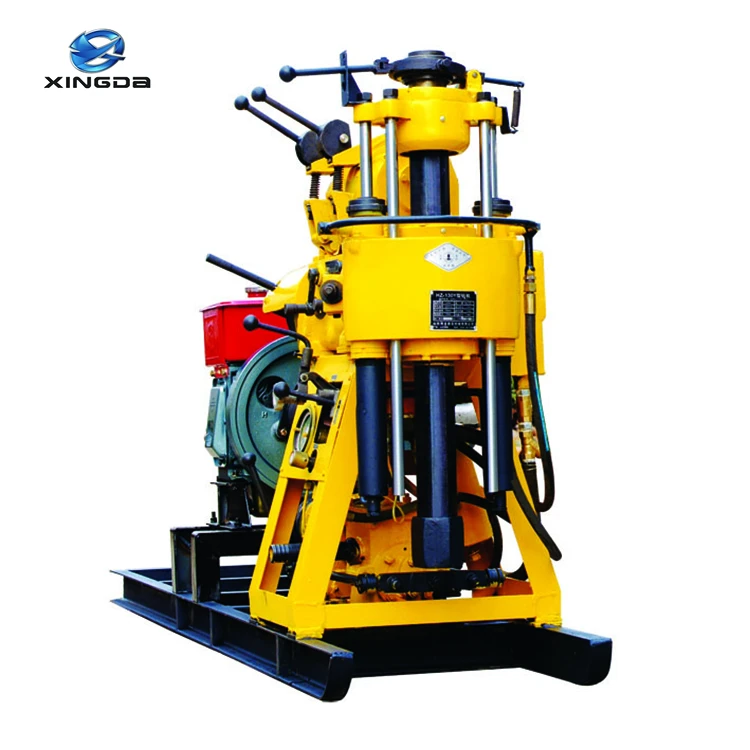

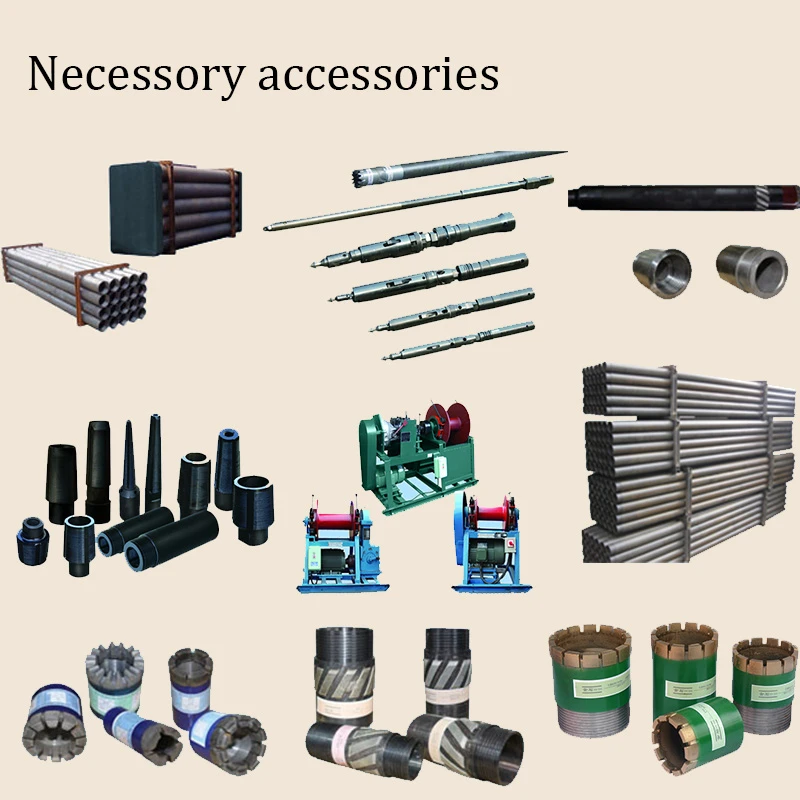

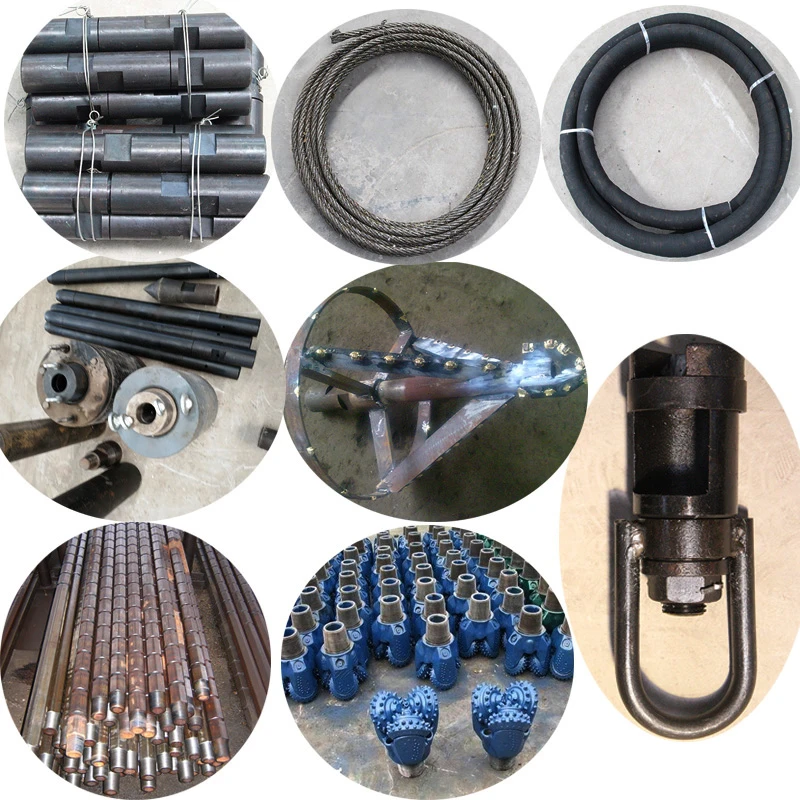

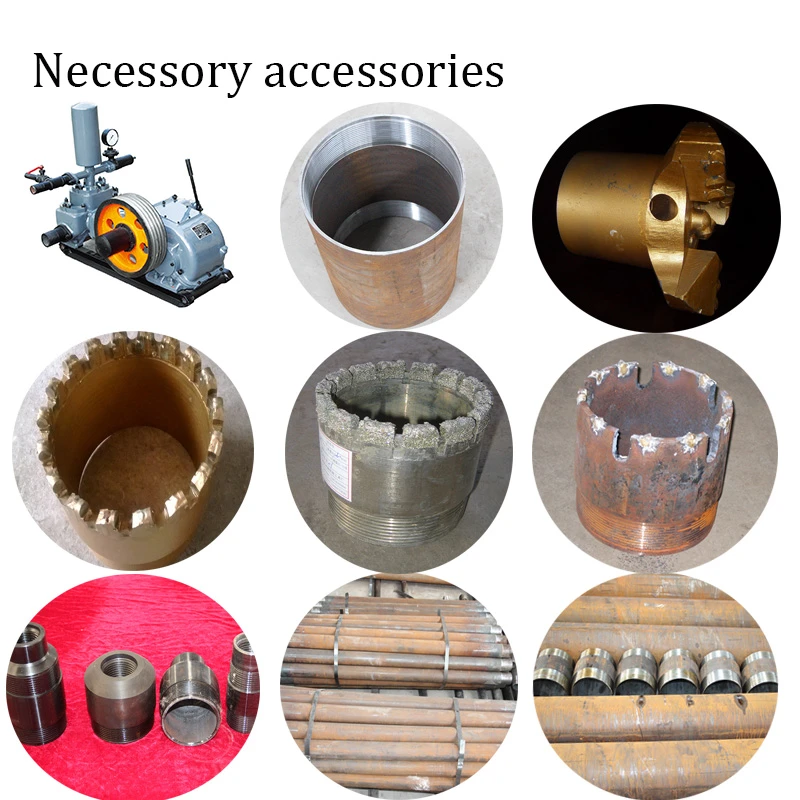

XY-130 Drilling Rig

XY-130 drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner.

Drilling depth	10-130m
Max open hole diameter	220mm
End hole diameter	75mm

Inquire Now Contact Us

Main Features Main Technical Parameters

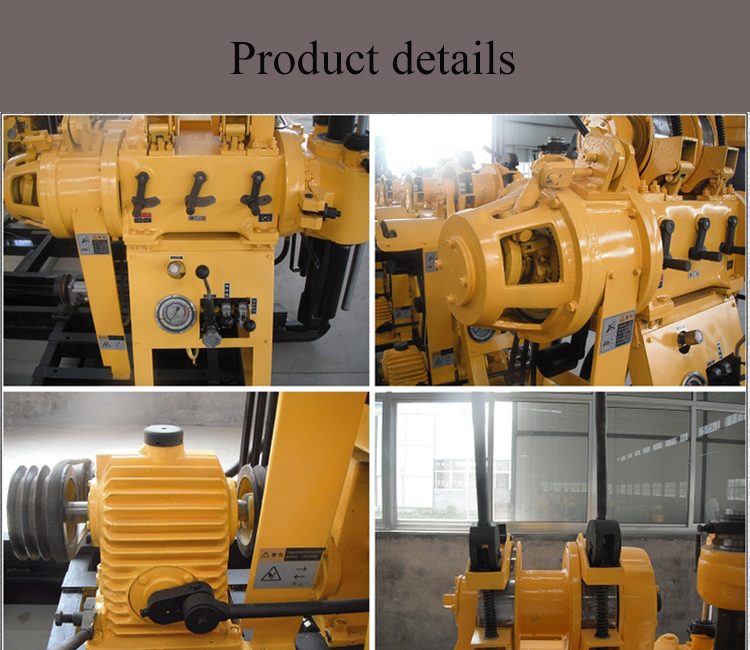

Main Features

53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.

For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.

Additional, XY-130 with five gears, and the highest speed can reach 1045r/min, improving drill efficiency.

XY-130 Drilling Rig

Main Technical Parameters

Model	XY-130
Drilling depth	10-130m
Max open hole diameter	220mm
End hole diameter	75mm
Drill rod diameter	50mm
Drilling angle	90°-75°
Drill weight (without power)	510kg
Power	Diesel engine 18HP
Dimension	2.40.81.4
Spindle
Spindle speed	142，285，570r/min
Spindle stroke	450mm
Hoist
Max.lifting capacity	2000kg
Single line lifting speed	0.41，0.82，1.64m/s
Wirerope diameter	13mm
Wirerope length	27m
Mud Pump
Type	Horizontal single-urn twin-action
Displacement	95/77L/min Diesel
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Inlet pipe diameter	51mm
Outlet pipe diameter	32mm
Triangle conveyer belt	B1575mm

Feeding Stroke(mm)	1m
Drill pipe diameter(mm)	32mm
Max. power output speed(r/min)	963

Gasoline engine	3.3HP
Ignition method	Recoil pull cord
Coring Mode	Vertical Impact

Drill pipe stroke	1.2m
Drill pipe diameter(mm)	32mm, 42mm
Output max.torque	180N.m (low gear）
