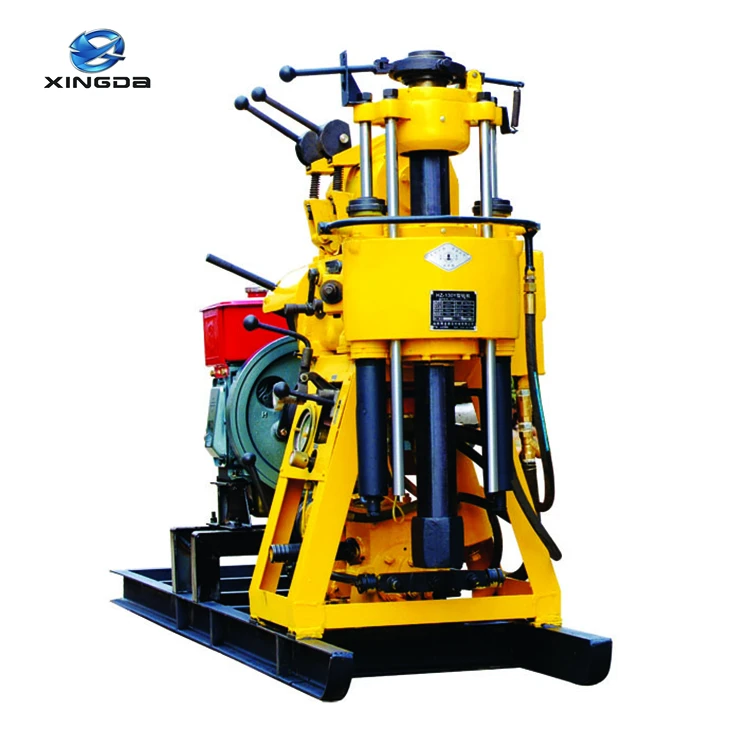

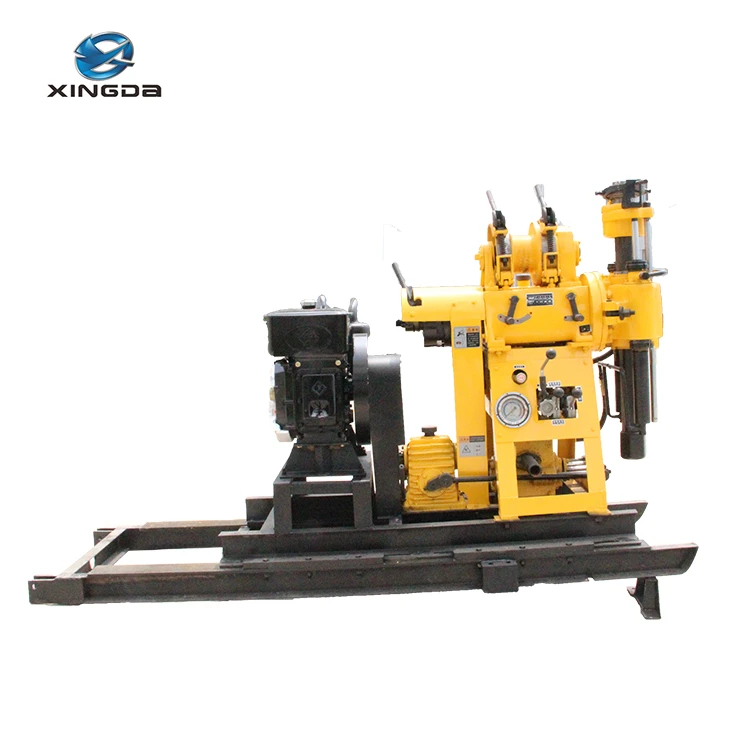

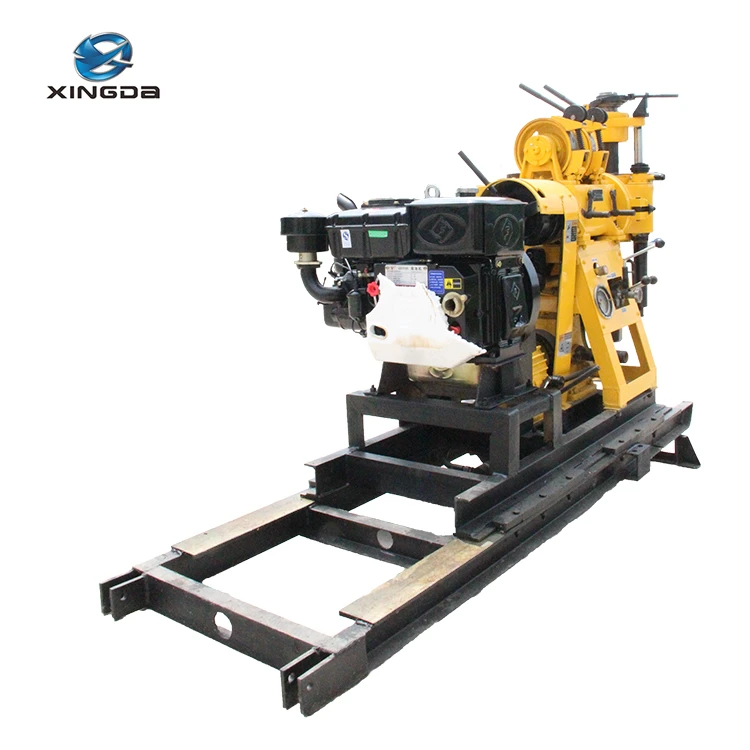

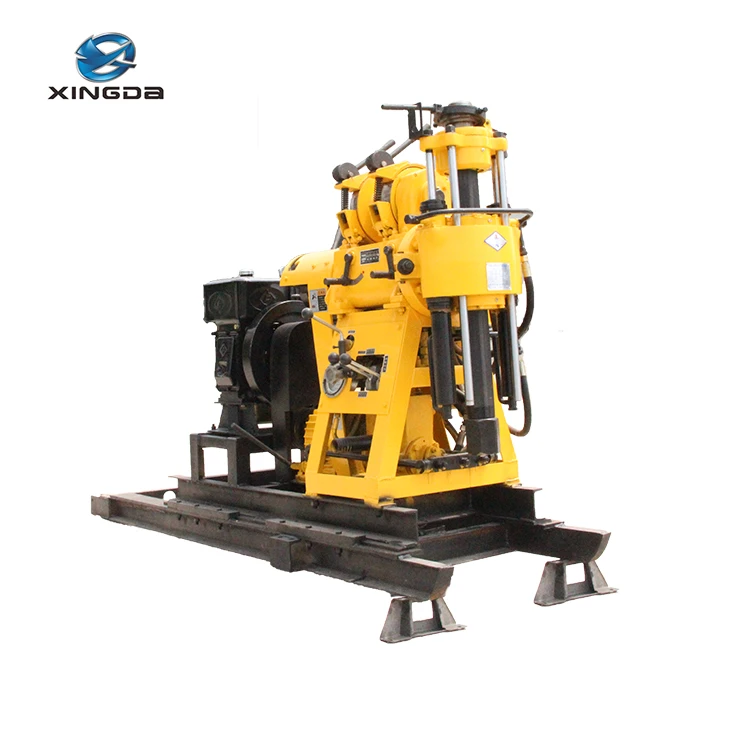

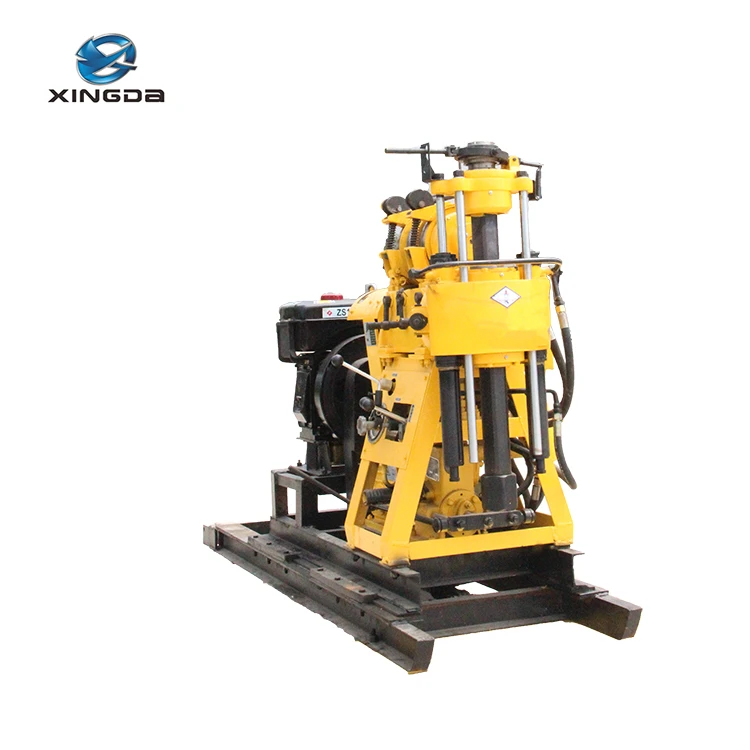

XY-180 Drilling Rig

It is suitable for geological exploration of railways, highways, bridges, dam foundations and other buildings, water wells, geological core drilling, small grouting holes, blasting holes.

Drilling depth	30-180m
Max open hole diameter	220mm
End hole diameter	75mm

Inquire Now Contact Us

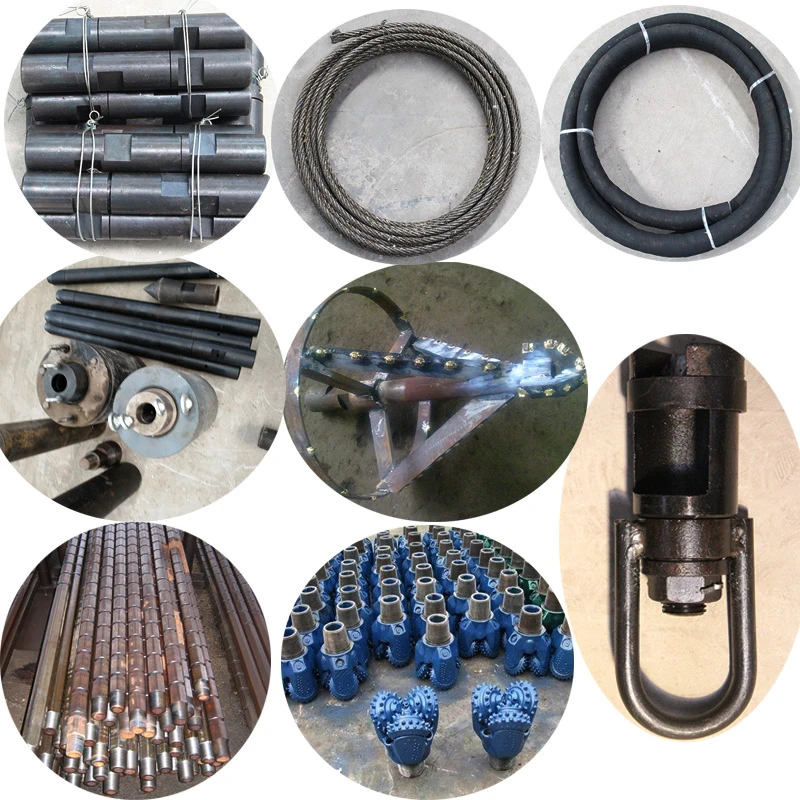

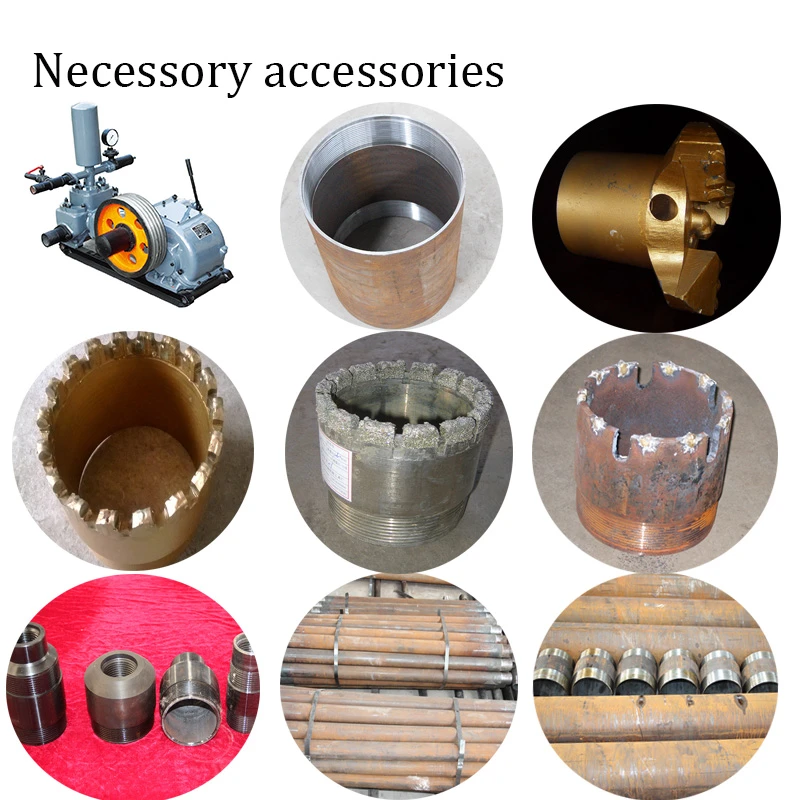

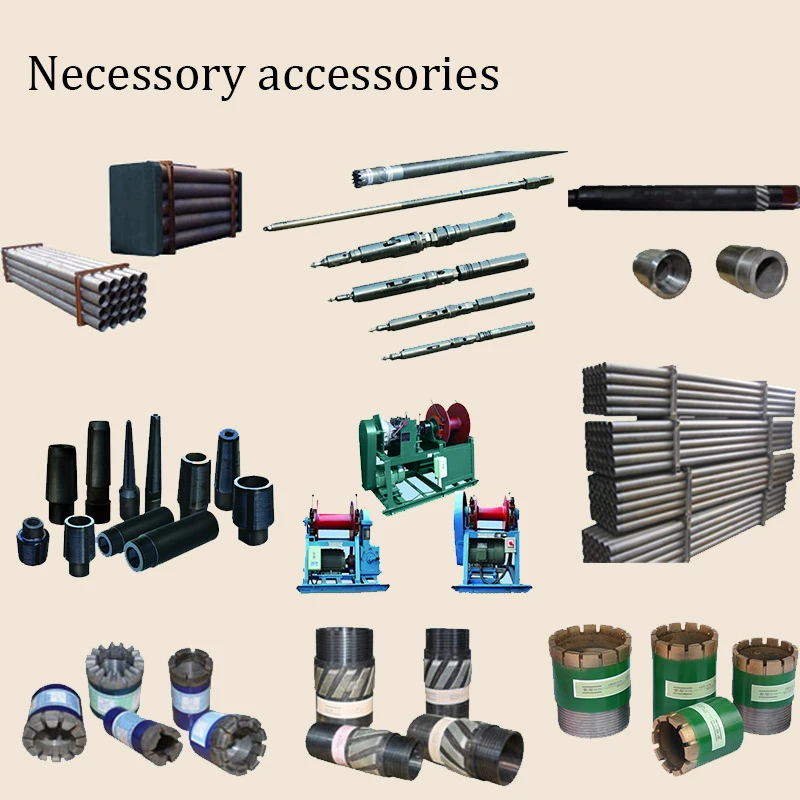

Main Features Main Technical Parameters

Main Features

53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.

For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.

Additional, XY-180 with five gears, and the highest speed can reach 1045r/min, improvingdrill efficiency.

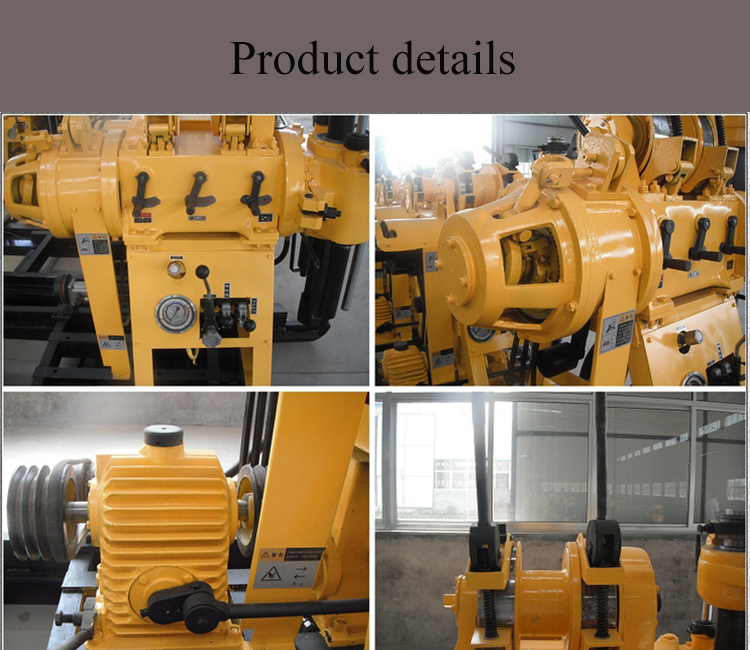

XY-180 Drilling Rig

Main Technical Parameters

Model	XY-180
Drilling depth	30-180m
Max open hole diameter	220mm
End hole diameter	75mm
Drill rod diameter	42mm
Drilling angle	90°-75°
Drill weight (without power)	610kg
Power	Diesel engine 18HP
Dimension	2.40.81.3
Spindle
Spindle speed	130，300，480,730,830,1045r/min
Spindle stroke	450mm
Hoist
Max.lifting capacity	2100kg
Single line lifting speed	1.06，0.67，0.32m/s
Wirerope diameter	13mm
Wirerope length	35m
Mud Pump
Type	Horizontal single-urn twin-action
Displacement	170L/min
Maximum pressure	1.5Mpa
Work pressure	0.7Mpa
Inlet pipe diameter	51mm
Outlet pipe diameter	32mm
Triangle conveyer belt	B1728mm

Feeding Stroke(mm)	1m
Drill pipe diameter(mm)	32mm
Max. power output speed(r/min)	963

Gasoline engine	3.3HP
Ignition method	Recoil pull cord
Coring Mode	Vertical Impact

Drill pipe stroke	1.2m
Drill pipe diameter(mm)	32mm, 42mm
Output max.torque	180N.m (low gear）
