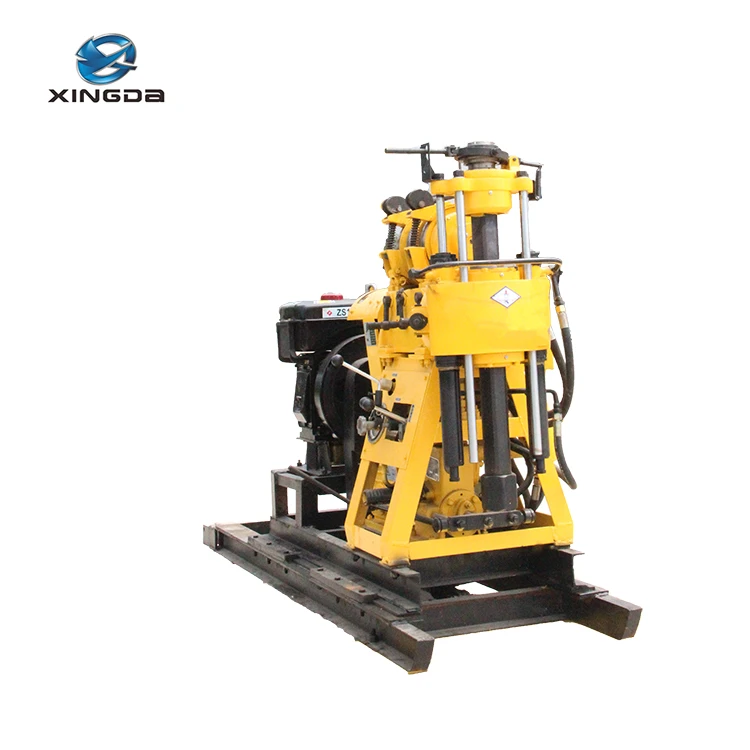

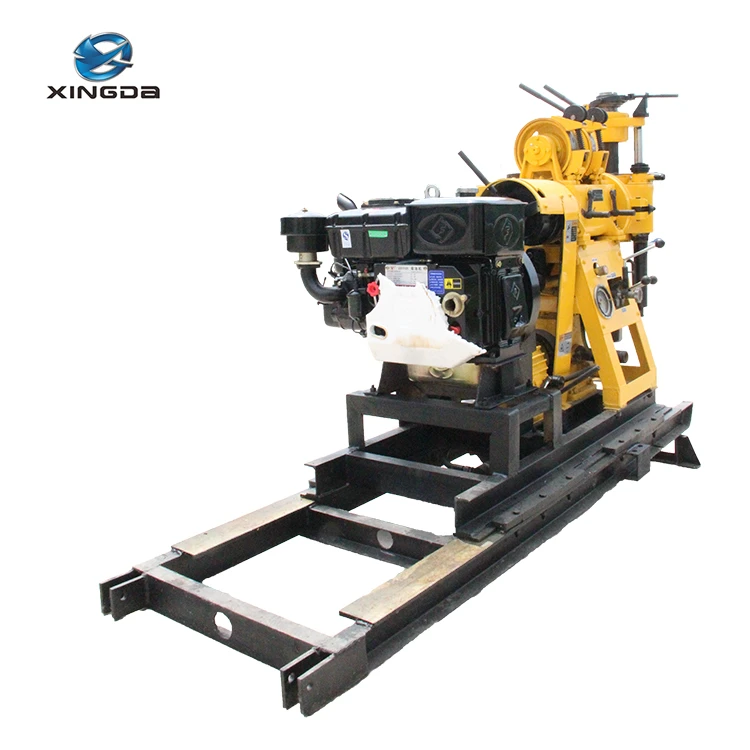

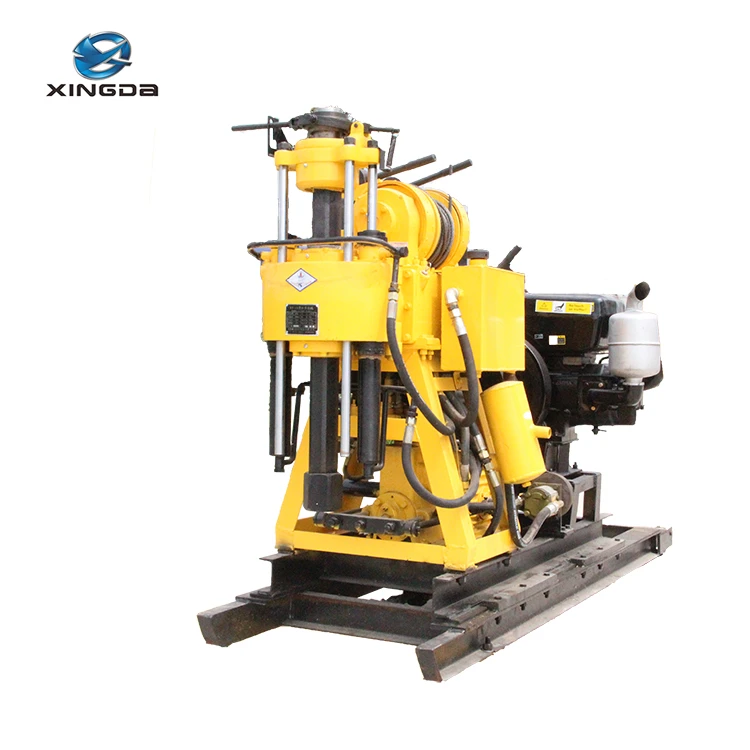

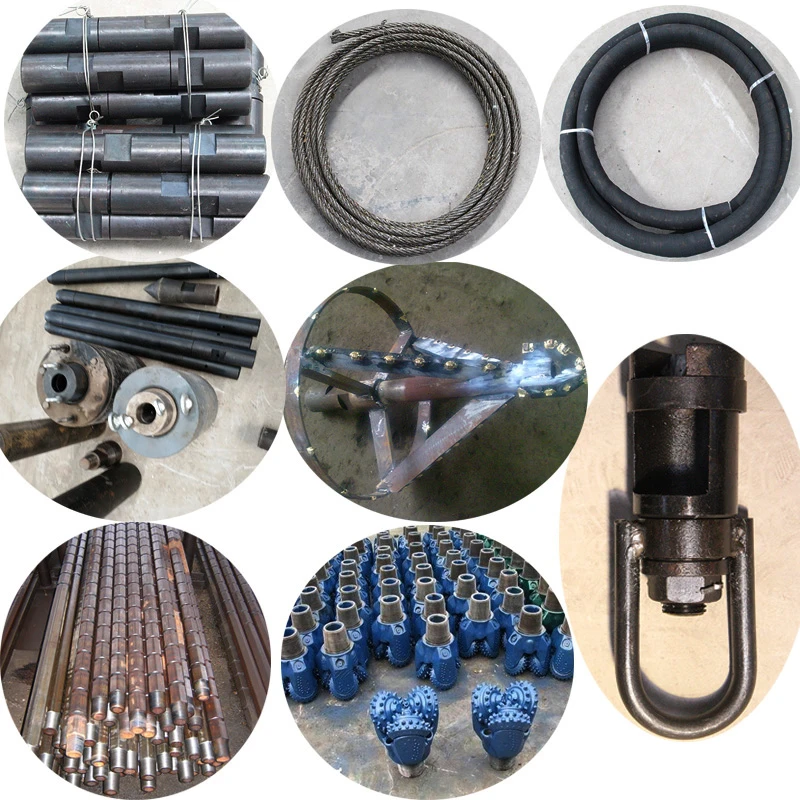

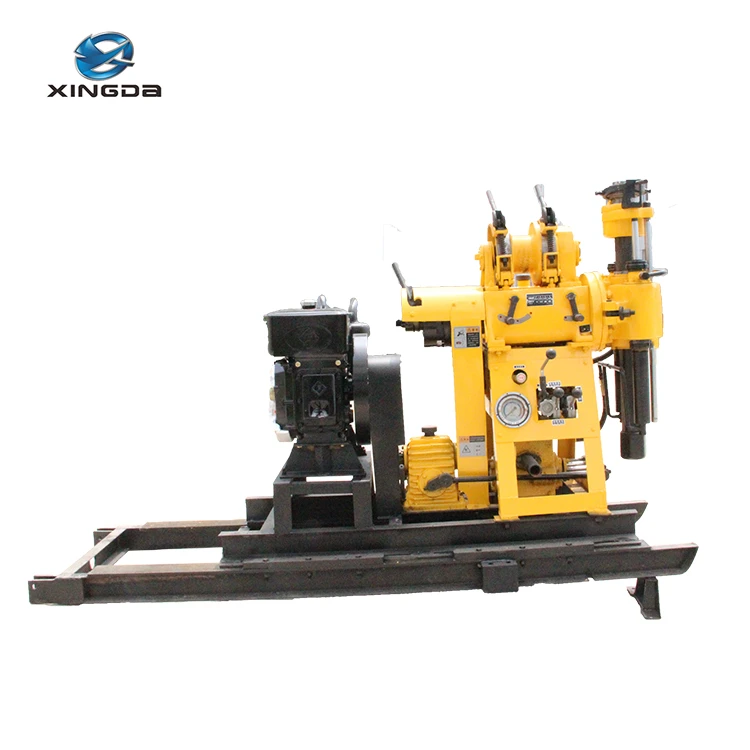

XY-200 Drilling Rig

XY-200 drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner.

Drilling depth	200m
Max open hole diameter	300mm
End hole diameter	75mm

Inquire Now Contact Us

Main Features Main Technical Parameters

Main Features

53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.

For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.

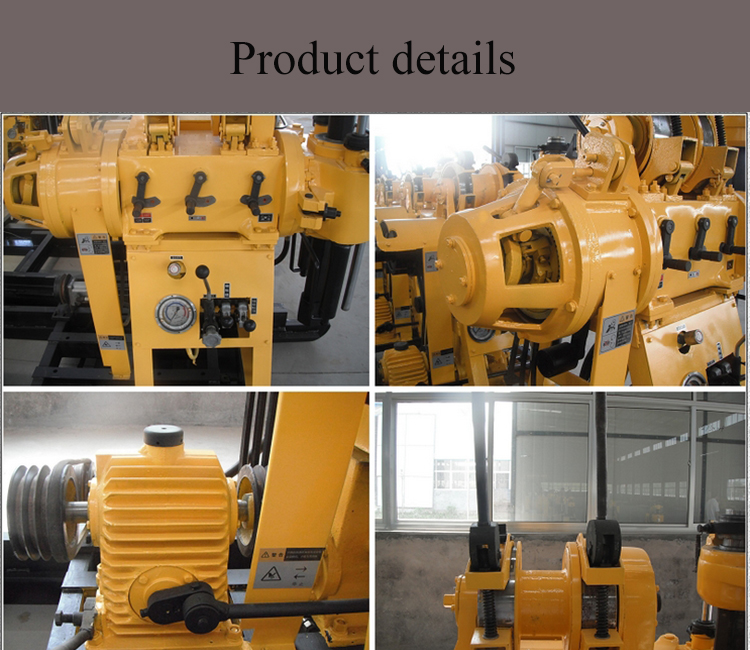

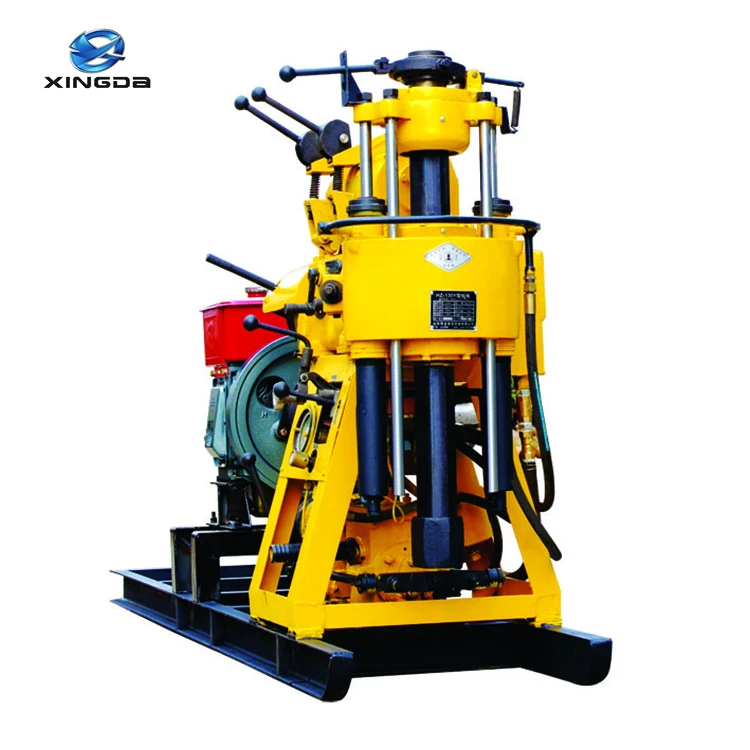

XY-200 Drilling Rig

Main Technical Parameters

Model	XY-200
Drilling depth	200m
Max open hole diameter	300mm
End hole diameter	75mm
Drill rod diameter	60mm
Drilling angle	90°-75°
Drill weight (without power)	975kg
Power	Diesel engine 22HP
Dimension	2.70.91.5
Spindle
Spindle speed	64，128，287，557r/min
Spindle stroke	450mm
Hoist
Max.lifting capacity	2500kg
Single line lifting speed	0.41，0.82，1.64m/s
Wirerope diameter	13mm
Wirerope length	35m

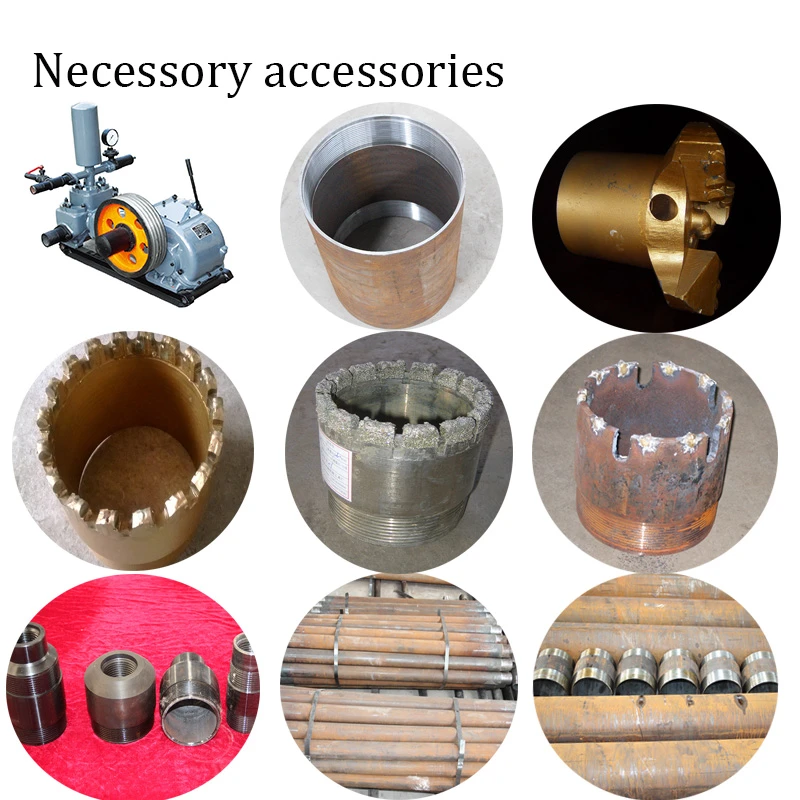

Mud Pump
Type	Horizontal single-urn twin-action
Displacement	Diesel engine l70L/min Electric motor 150L/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Inlet pipe diameter	51mm
Outlet pipe diameter	32mm
Triangle conveyer belt	B1728mm
