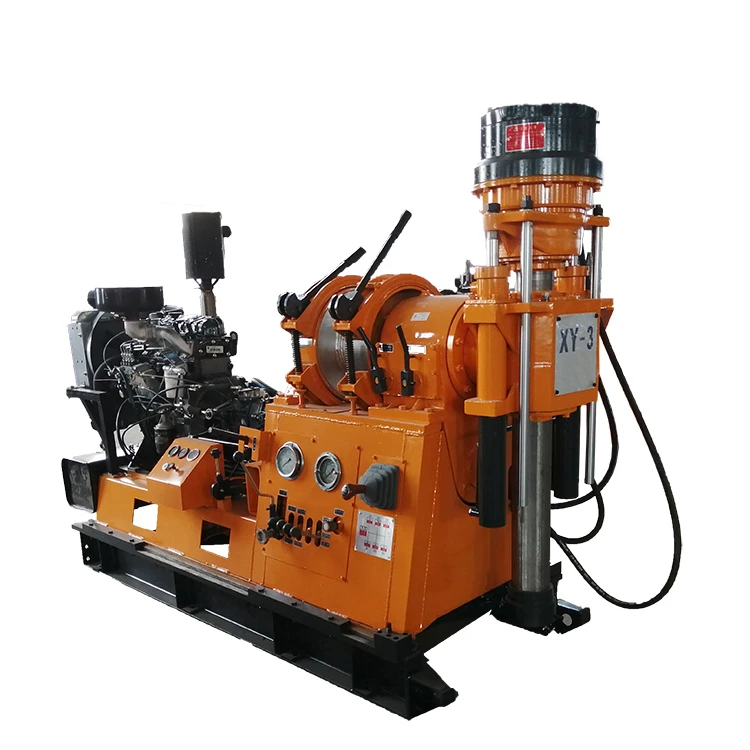

XY-3 Borehole Drilling Rig

XY-3 borehole drilling rig is mainly used for geological exploration, hydropower project, road and railway construction, building project and big diameter water well project.

Structure	Unit	Rotary
Power (diesel engine)	kW	42
Work state dimension	m	2.60.91.75

Inquire Now Contact Us

Features Main Technical Parameters

Features

Large engine power and two reverse rotation gears, can easily solve the drilling work accident.

The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.

Equipment with normal closed hydraulic chunk, operation is flexible and reliable

Spindle and hoist can be operated separately.

Spindle has big inner diameter, able to use big hexagonal drilling rod.

Main Technical Parameters

Structure		Unit	Rotary
Power (diesel engine)		kW	42
Work state dimension		m	2.60.91.75
Weight		kg	1800
Drilling angle		°	90-65
Max open hole diameter		mm	300
Borehole dia.		mm	300	250	150	75
Drilling depth		m	100	200	300	600
Drive Rod		mm	53×59×4200/φ50, φ60
Drill bit		mm	φ75-φ300
Rotary speed		r/min	57，99，157，270，470，742，1024
Winch	Roll diameter	mm	φ200
	Single line lifting specd	m/s	0.3，0.9，1.4，1.9
	Single line lin force	t	4.5
	Roll capacity	m	6.5
	Wirerope dia.	mm	φ13
Drill Tower(Optional)	Rated load	t	34
	Valid height	m	6.7
	Mast leg spec	mm	200×150×5
Water swivel （optional）	Max. lift force	t	27
	Matching hose diameter	mm	φ50
Mud pump	Model	/	BW250
	Flow	m³/h	15
	Pump head	m	60
	Reciprocating times	times/min	42,72,116,200

Feeding Stroke(mm)	1m
Drill pipe diameter(mm)	32mm
Max. power output speed(r/min)	963

Gasoline engine	3.3HP
Ignition method	Recoil pull cord
Coring Mode	Vertical Impact

Drill pipe stroke	1.2m
Drill pipe diameter(mm)	32mm, 42mm
Output max.torque	180N.m (low gear）
