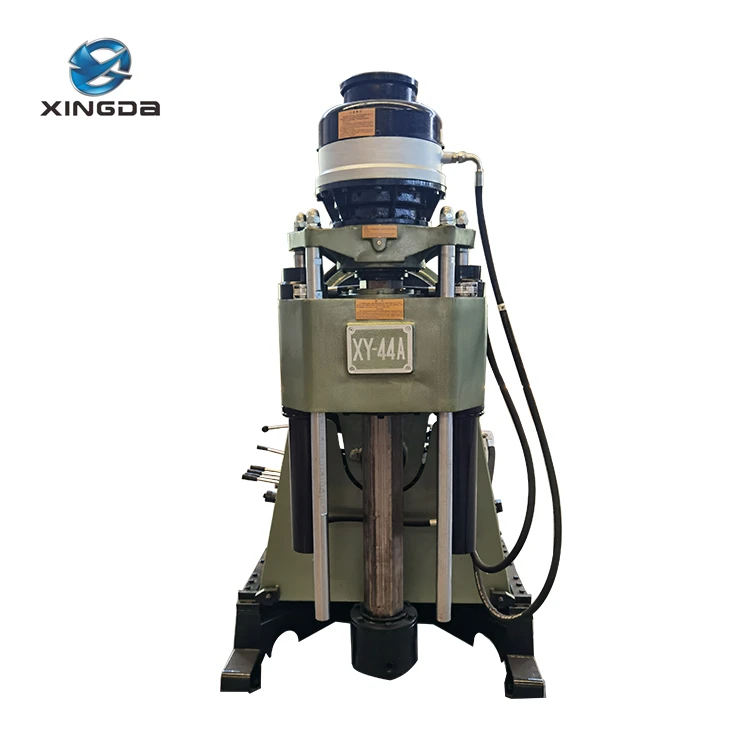

XY-44A Spindle Core Drill Rig

1.There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 3200 N·m (2358 lbf·ft). The drill is adapted on core drilling with tungalloy-carbid-tipped and diamond oil as well as engineering geology exploration, hydrology well drilling and basic pile engineering.

2.With large spindle I.D. 93mm(3.66 inch), the drill is fed with double hydraulic cylinders with much longer stroke up to 600mm(23.62 inch). With strong technological adaptability, the rig can be adapted on many field, especially on large diameter drill rod drilling, (upper part coring) extracting core with wire line. Thus it is more effective in improving drilling efficiency with less faulty in hole.

3.With powerful drilling capacity, the rated drilling depth comes up to 1,000m(39.37 inch) with 71mm(2.80 inch) wire-line coring drill rod.

4.Light in weight, and in fine dismountability, the rig can be dismantled into ten parts easily; the biggest apparatus is in 300 kg (661.5 lb). The whole drill is in 2300kg(4741 lb), it can be moved easily especially in mountain area.

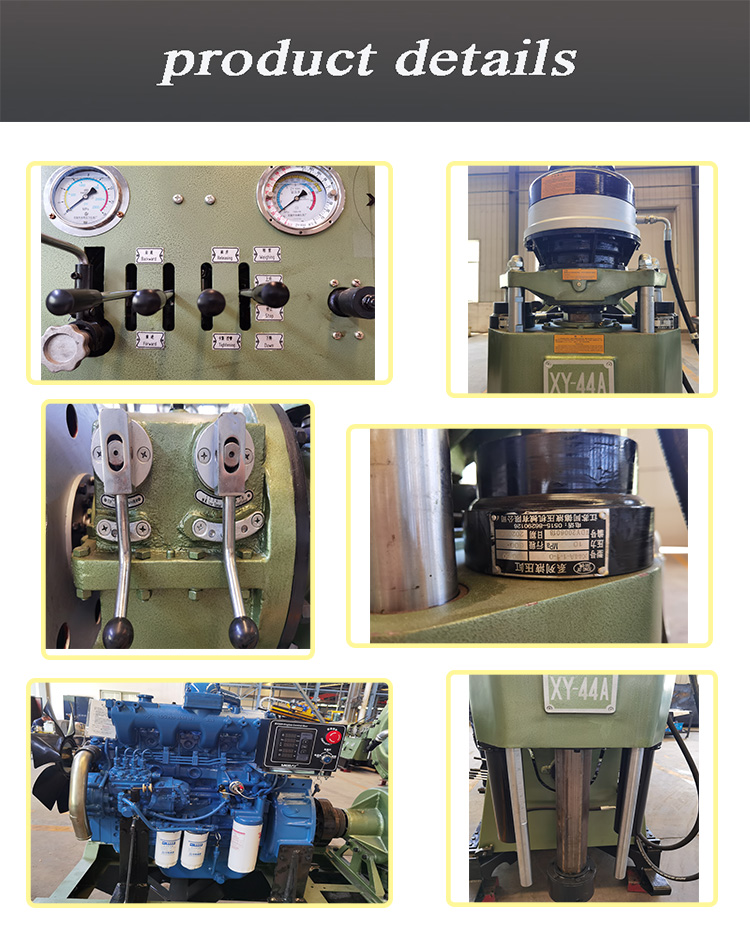

5.Clamped with belleville spring and loosened with hydraulic cylinder, the hydraulic chuck is adopted with three-jaws self centering. It is in strong and steady clamping force.

6.Equipped with a water brake for steady and smooth deep hole drilling.

7.Supplying oil with a simplex gear pump, it is easy for installation and operation; lower in energy consumption and in low oil temperature of hydraulic system; the rig is for sure in steady drilling. The hand-operated oil pump can be put in use to hoist the drilling tools in hole upon the power engine failing to operate.

8.With compact structure and reasonable layout, with all components exposed, and with non overlapped ones, it is convenient for maintenance.

9.With low center of gravity and long travelling distance up to 460mm(18.1 inch), the rig is reliable and stable in high speed drilling.

10.It is easy to get to know the conditions in hole with an antivibration meter. Less in operating handles, the rig can be operated credibly and flexibly.

Drill Capacity

Core Drilling

Hydrogeology Well Drilling

MOQ: 1set

Price: 21400usd-22400usd.

XY-44A core drill rig is an improved product based on XY-44 drill rig. Besides all the facilities of XY-44, guide rod structure is adopted on this machine, in addition, the machine is equipped with water brake and manually contrlled oil pump.

XY-44A is mainly adapted to suit for core drilling with diamond bit or tungsten-carbide tipped bit. It can also be used forl engineering exploration, water well and foundation hole drilling. In addition to China, it is also exported to South-east Asia, Africa, Latin America and European countries.
