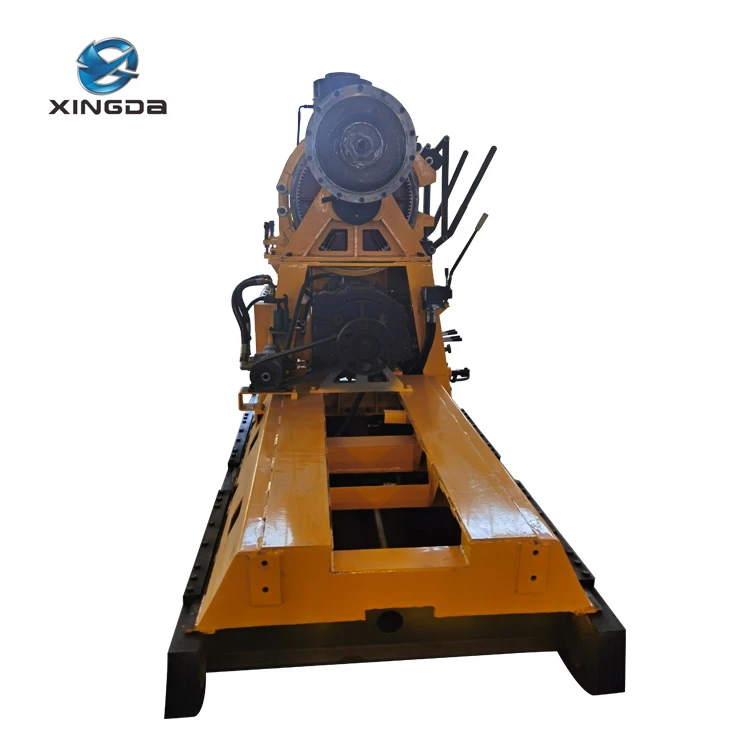

XY-6B Core Drill Rig

Steel wire diameter		21.5mm
Content of winding drum		160m
Max. hoisting force		76kN

Inquire Now Contact Us

Features Main Technical Parameters

Features

XY-6B core drill rig integrated with the advantages and characteristics of various core drills manufactured in China andl abroad, is a kind of hydraulic-driven, spindle, diamond-bit small-diameter core drill with fairly powerful drilling force. It is mainlyl suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in core drill with diamond bit or hardl tungsten-carbide tipped bit in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also bel used in the fields of superficial-zone petroleum and natural gas mining, mines' gallery ventilation and water discharge tunnell drilling as well as large-diameter hole foundation stake drilling.

The machine is fit for engineering works of inclined and vertical hole drilling. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed. Equipped with waterl brake, XY-6B CORE DRILL, with high hoisting force, is convenient in low-position lift brake application.

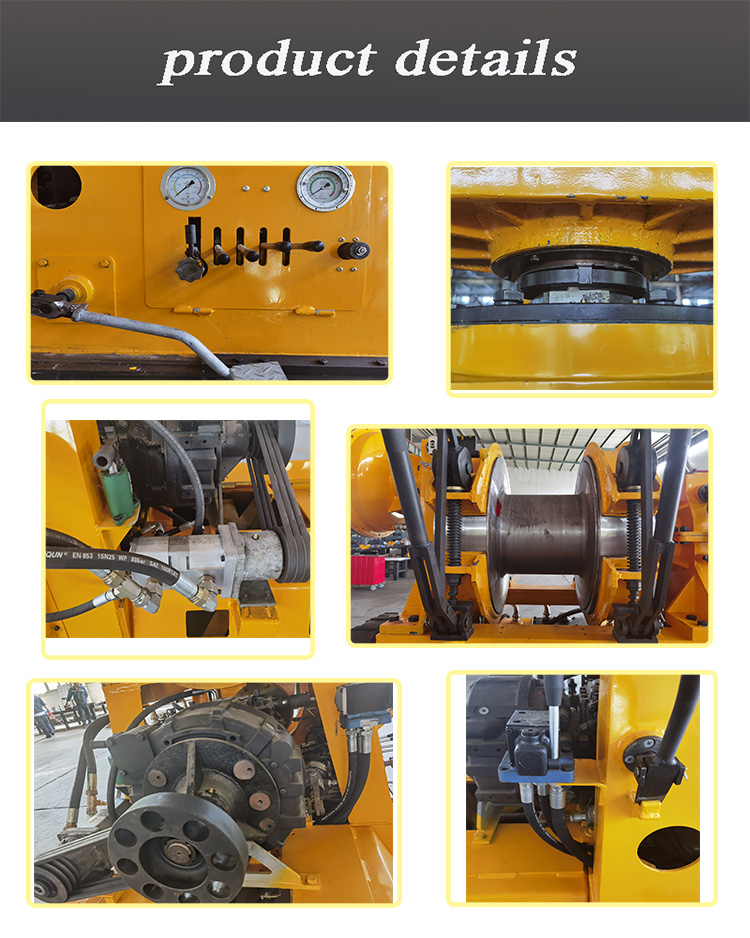

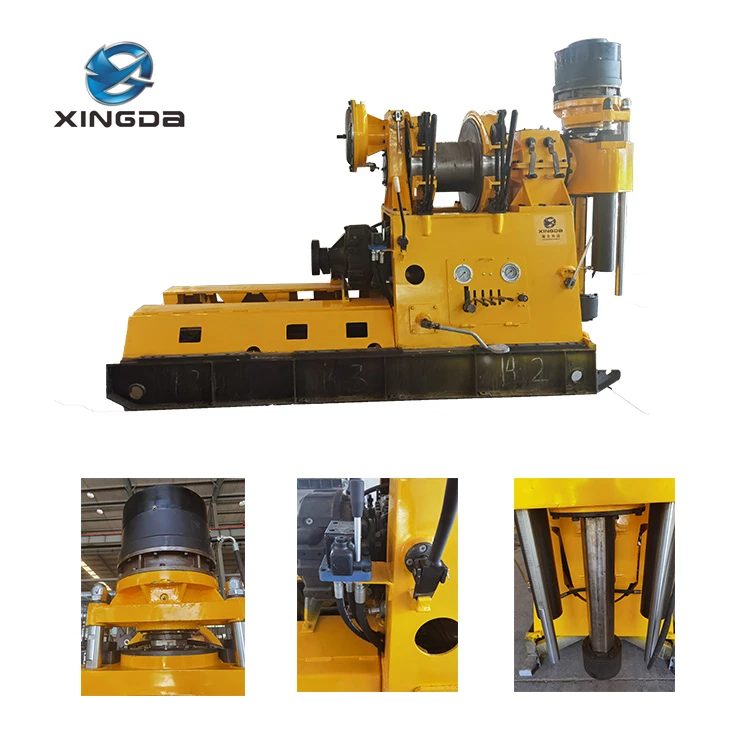

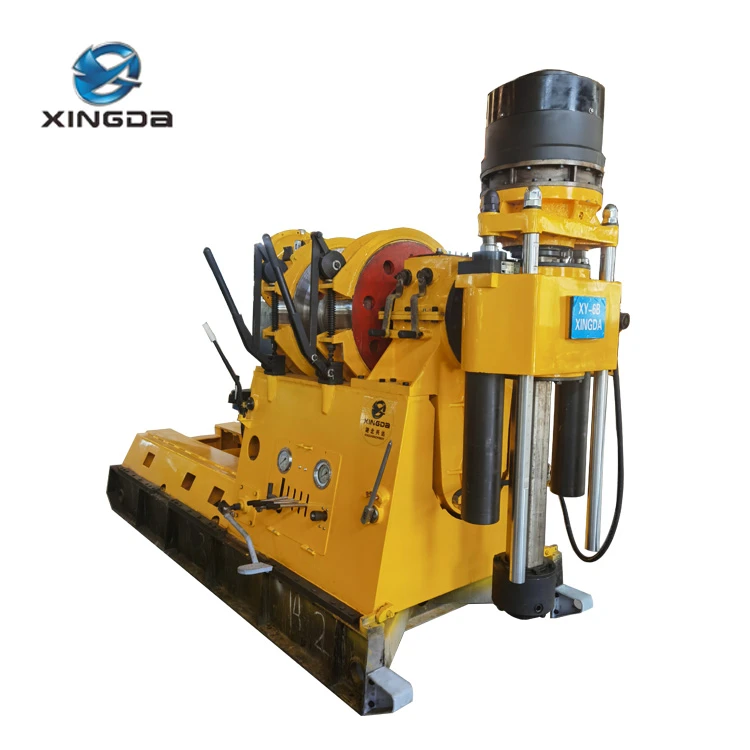

XY-6B Core Drill Rig

Main Technical Parameters

Model		XY-6B	XY-6A
Drilling depth		1100-2200m	1100-2200m
Rotation angle of spindle		0-360°	0-360°
Spindle speed	Positive	100,169,258,368,278,468,716,1018rpm	96,162,247,352,266,448,685,974rpm
Spindle speed	Negative	70,196rpm	67,187rpm
Max rotary torque of spindle		7163N.m	7460N.m
Spindle stroke		720mm	720mm
I.D of spindle		116mm	92mm
Power		Y2-280S-4 electric motor 75KW/1480rpm	Y2-280S-4 electric motor 75KW/1480rpm
Power		YC6B135Z-D20 diesel engine 84KW/1500rpm	YC6B135Z-D20 diesel engine 84KW/1500rpm
Max.lifting capacity of spindle		196kN	196kN
Max .pressuring force of spindle		146kN	146kN
Dimensions (LWH)		359013002370mm electric motor	354813002305mm electric motor
Dimensions (LWH)		379013002370mm diesel engine	378613002305mm diesel engine
Steel wire diameter		21.5mm	21.5mm
Content of winding drum		160m	160m
Max. hoisting force		76kN	76kN
Weight (without power unit)		4360kg	4180kg

Feeding Stroke(mm)	1m
Drill pipe diameter(mm)	32mm
Max. power output speed(r/min)	963

Gasoline engine	3.3HP
Ignition method	Recoil pull cord
Coring Mode	Vertical Impact

Drill pipe stroke	1.2m
Drill pipe diameter(mm)	32mm, 42mm
Output max.torque	180N.m (low gear）
