XDH-110 (150) Portable Hydraulic DTH Drilling Rig

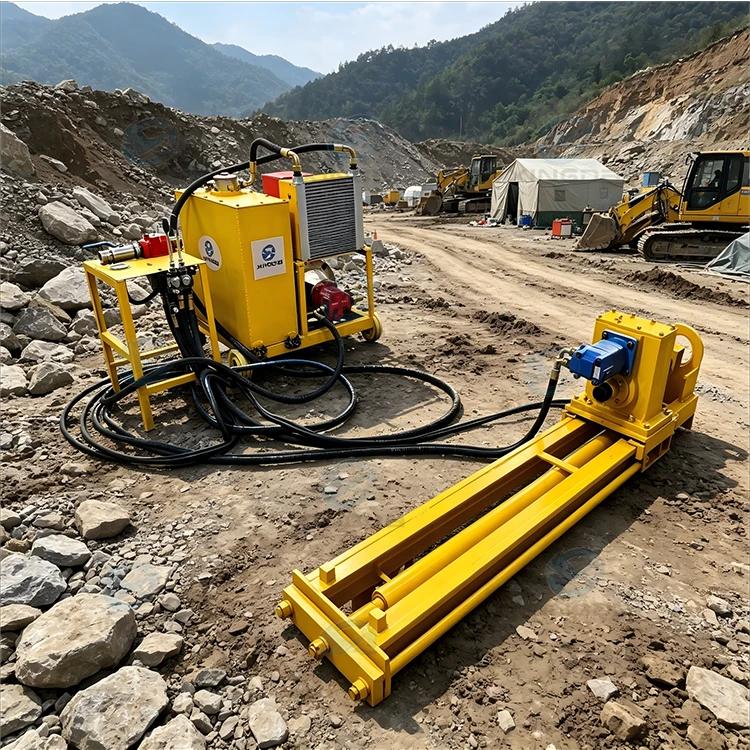

XDH-110(150) hydraulic DTH drilling rig is widely applied to road, national defence, water conservancy, open-pit mine small blast-hole drilling, slope protection projects etc. It is specially useful for rugged and accidented areas where other DTH drilling rig can not work normally. With compact structure, easy operating, fast drilling, high efficiency,easy to disassemble and carrying.

Air consumption(m³)	5-17m/min
Hole diameter	76-150mm
DTH hammer	70/90/110mm hammer

Inquire Now Contact Us

Main Features Main Technical Parameters Structure The main components are described as follows

Main Features of XDH-110 Portable Hydraulic DTH Drilling Rig

Lightweight host, only 160kg, two people can move it.

The rig has large torque 980KN.

The speed of loading and unloading the drill pipe is controllable and the safety is high.

Adopt 14Mpa hydraulic system, stable and reliable output.

Nylon sliders are used for easy replacement.

Main Technical Parameters

Model	XDH-110(Motor type)	XDH-150(motor type)
Air consumption(m³)	5-17m/min	5-17m/min
Hole diameter	76-150mm	76-150mm
DTH hammer	70/90/110mm hammer	70/90/110mm hammer
Drilling depth	10-40m	10-60m
Drill pipe specification	60*1000mm	60*1000mm
Max torque	980N-m	1500N-m
Max stroke	1200mm	1200mm
Lifting force	25kN	25kN
Feeding force	25kN	25kN
Max pressure	12mpa	14mpa
Power	7kW	11kW
Weight	320KG	350KG
Rotation speed	0-80rpm	0-80rpm
Driling angle	10°-90°	10°-90°

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Structure

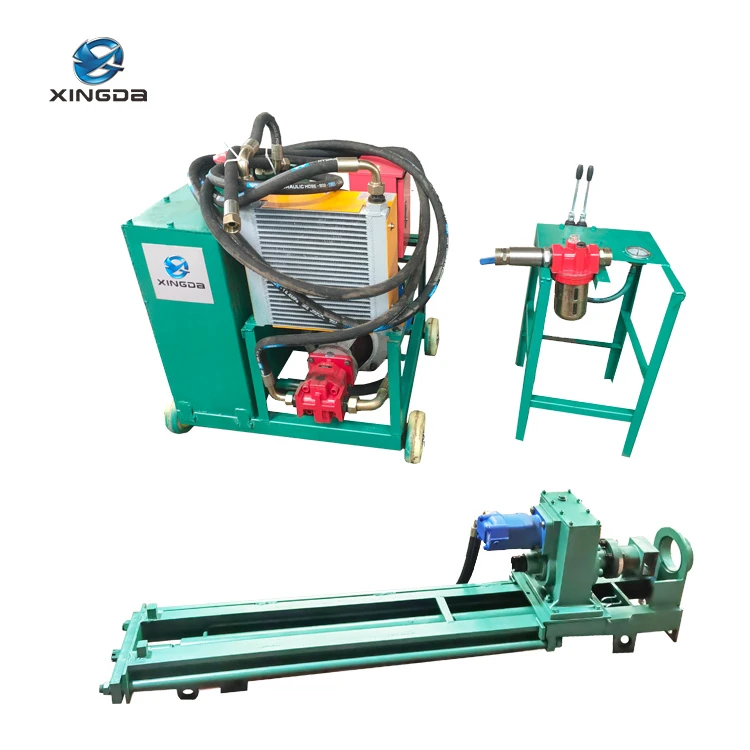

The components of the XDH-110(150) Portable Hydraulic DTH Drilling Rig: 1. Control console, 2. Power head assembly, 3.Mast assembly, 4.Pumping station, 5. Connection hose (5 parts)

The main components are described as follows

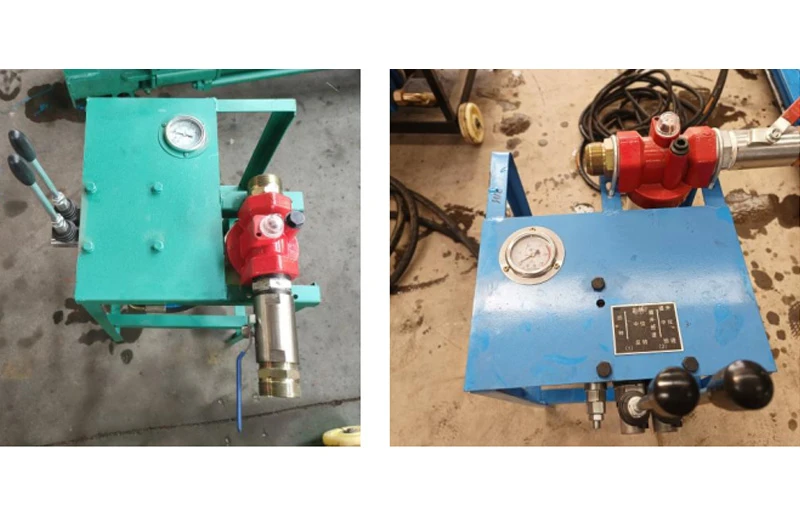

Control console

The Control console is the control device of the drilling rig.It is composed of a control valve, a frame, an oil mist generator, a pressure gauge, etc.The reversing valve controls the power head to feed in.The pressure gauge on the console shows the feed force of the power head. The oil mist generator atomizes the lubricating oil and injects it into the pneumatic system. It lubricates the moving parts such as the solenoid valves and cylinders to reduce mechanical friction and extend the service life of the equipment. The control console has a simple structure and is easy to operate and move.

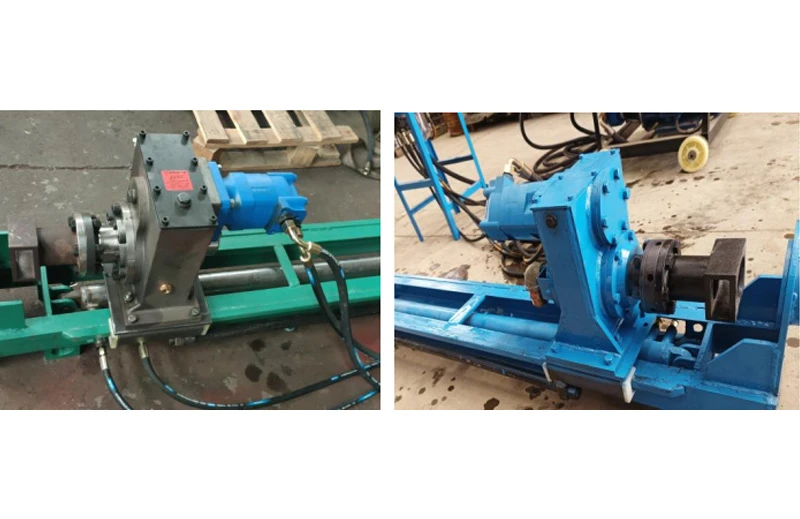

Power head assembly

It consists of 3kw or 4kw air motor, reducer and transimission box. It has strong power and high efficiency.Precautions: The box needs to be filled with butter before use, otherwise it will reduce the life of the gear.

Mast assembly

It consists of mast and air cylinder. The mast is made of high-strength type steel welded, with light weight and high strength. Precautions: When using for a long time and encountering air leakage from the cylinder, replace the sealing ring on the cylinder head at the end of the cylinder in time, and check whether the piston cup on the white piston rod is damaged by the way.

Pumping station

This pumping station consists of an integrated power system and an oil tank. The power system includes electric components, radiators, electrical cabinets, etc. The motor drives the oil pump to convert mechanical energy into hydraulic energy and then drives the actuating elements to operate.The large-capacity fuel tank ensures the smooth operation of the drilling rig for a long period of time.

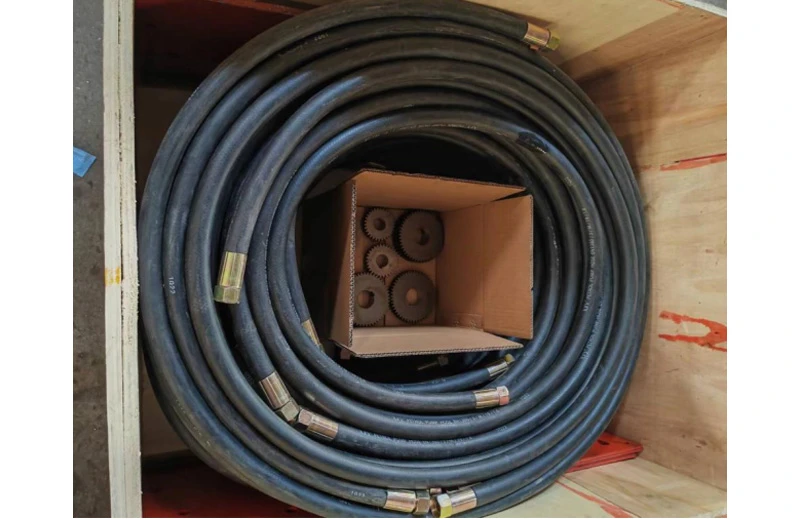

Connection hose

Using high-strength density rubber, it has excellent flexibility and is highly wear-resistant. The joints are tightly connected to the pipes and have stable performance.

Rock hardness	≥20	≥20
Working pressure	0.5~0.7Mpa	0.5-0.7Mpa
Rod length	1025mm	1025mm
