XDQ-70 (100) Pneumatic DTH Drilling Rig

Xingda XDQ series penumatic DTH drilling rig is widely applied to road, national defence, water conservancy, open-pit mine small blasthole drilling, slope protection projects etc. It is specially useful for rugged and accidented areas where other DTH drilling rig can not work normally.

Rock hardness	≥20	≥20
Working pressure	0.5~0.7Mpa	0.5-0.7Mpa
Rod length	1025mm	1025mm

Inquire Now Contact Us

Main Features Main Technical Parameters Structure The main components are described as follows

Main Features of XDQ-70(100) Pneumatic DTH Drilling Rig

The XDQ series pneumatic submersible drilling rig features a compact structure, simple operation, fast drilling speed, high efficiency, ease of disassembly and portability.

Main Technical Parameters

Model	XDQ70	XDQ100
Hole dia	50~90mm	80-130mm
Rock hardness	≥20	≥20
Hole depth	≥15m	≥25m
Rotary speed	110r/min	110-160r/min
Rod spec	42mm	50mm/60mm
Working pressure	0.5~0.7Mpa	0.5-0.7Mpa
Air consumption	7m³/min	13m³/min
Lifting force	3600N	9600N
Pneumatic motor power	3kW	4kW
Rod length	1025mm	1025mm
Weight	150kg	450kg
Dimension	1740260420mm	2230380550mm
Remark	pneumatic	pneumatic
Portable screw air compressor	550CFM,15bar for 2sets XDQ70 work	460CFM,10bar for 1set XDQ100 work

Advances in technology design, we can not change the product effective notice to you, please forgive me!

Structure

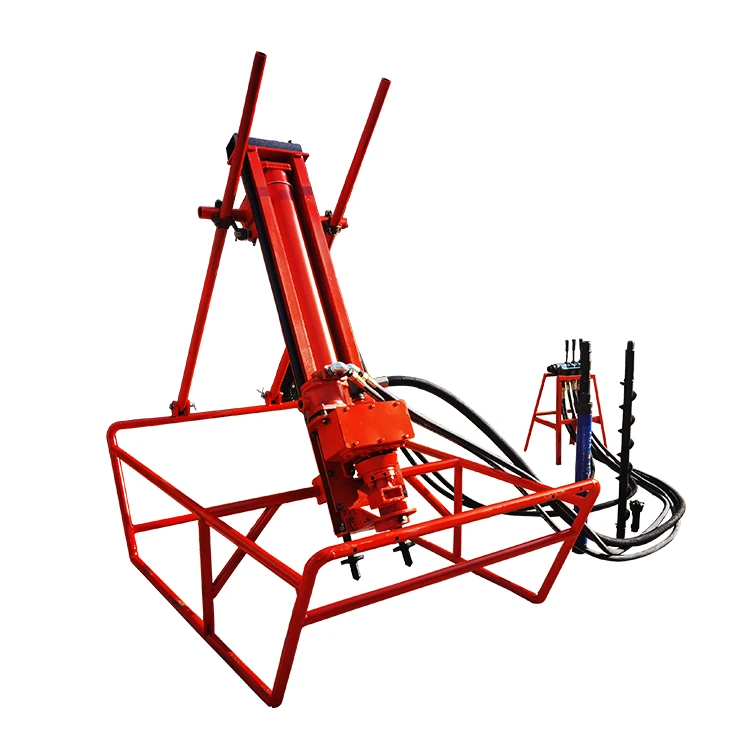

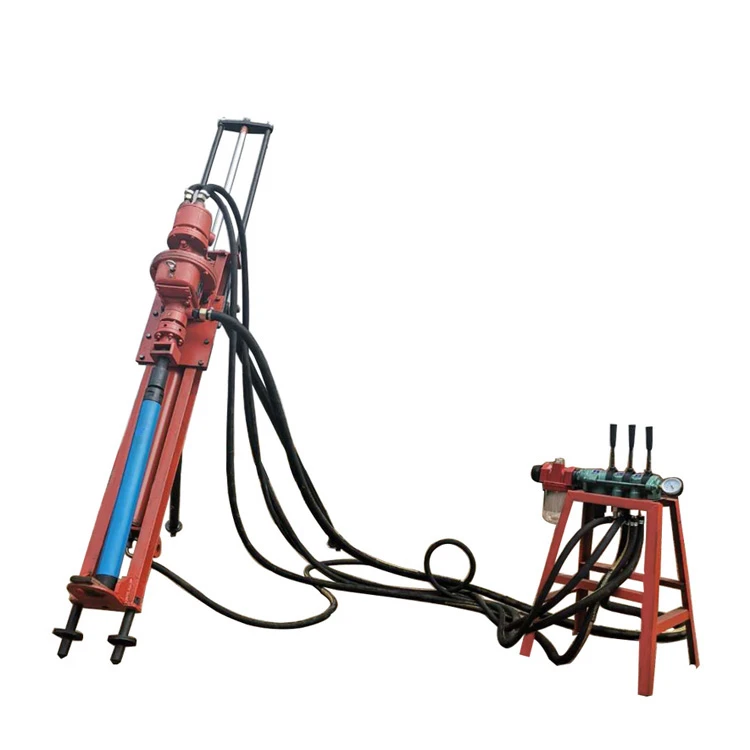

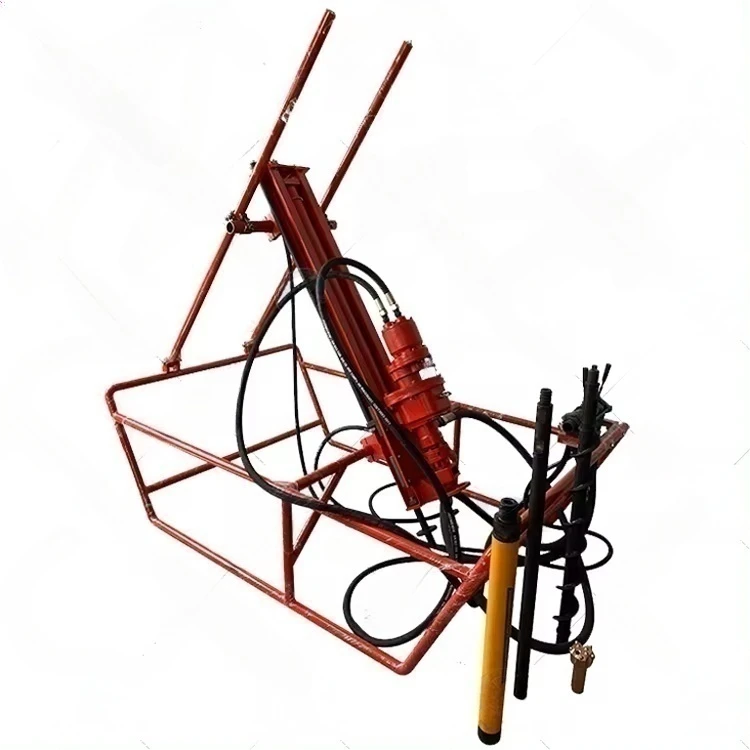

The components of the XDQ-70(100) Pneumatic DTH Drilling Rig: 1. Control console, 2. Power head assembly, 3. Mast assembly, 4.Connection hose (4 parts)

The main components are described as follows

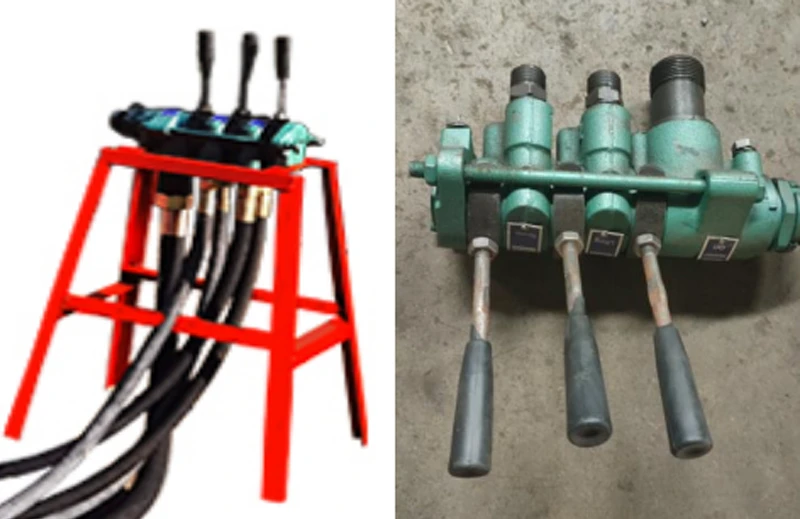

Control console

It consists of control valve and frame.The structure is simple and it is easy to move.

Power head assembly

It consists of 3kw or 4kw air motor, reducer and transimission box. It has strong power and high efficiency.Precautions: The box needs to be filled with butter before use, otherwise it will reduce the life of the gear.

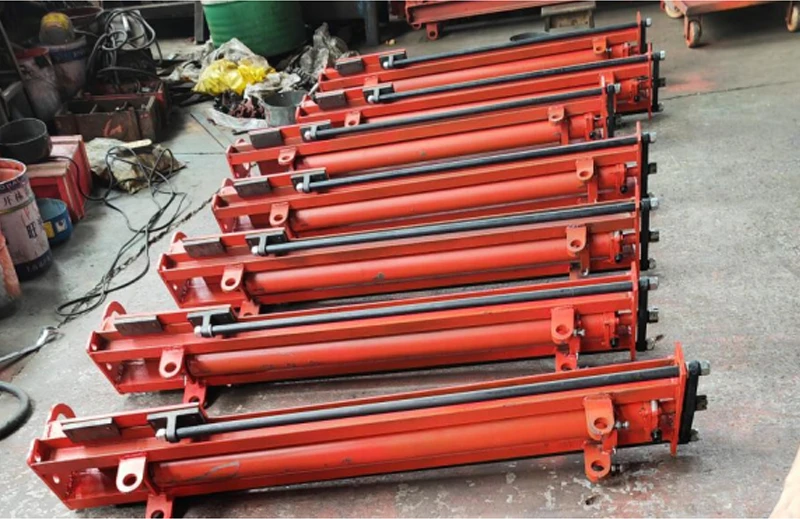

Mast assemby

It consists of mast and air cylinder.The mast is made of high-strength type steel welded, with light weight and high strength. Precautions: When using for a long time and encountering air leakage from the cylinder, replace the sealing ring on the cylinder head at the end of the cylinder in time, and check whether the piston cup on the white piston rod is damaged by the way.

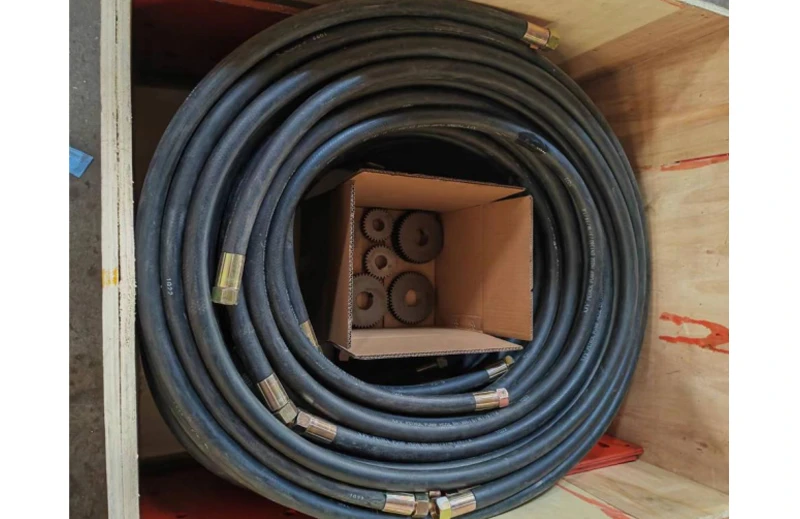

Connection hose

Using high-strength density rubber, it has excellent flexibility and is highly wear-resistant. The joints are tightly connected to the pipes and have stable performance.

XDQ70 include 1pcs 25mm hose, 2pcs 19mm hose, 2pcs 13mm hose

XDQ100 include 1pcs 38mm hose, 4pcs 19mm hose
