The XDS-100 Disc type tunnel DTH drilling rig is a medium-deep hole rock drilling equipment powered by compressed air and hydraulic oil. It is mainly used for connecting rods in underground mining fields to drill upward fan-shaped or ring-shaped medium-deep blast holes. It can also be used for roof caving in underground stopes and anchor bolt support in roadways, as well as for similar blast holes in stonework projects. The drilling diameter is 80-130mm and the drilling depth is over 25 meters.
Main Features of XDS-100 Disc type tunnel DTH drilling rig
The XDS-100 disc-type tunneling drilling rig features a compact structure, simple operation, fast drilling speed, high efficiency, ease of disassembly and portability.
Main Technical Parameters
|
Model |
XDS100 |
|
Hole dia |
80-130mm |
|
Rock hardness |
≥20 |
|
Hole depth |
≥25m |
|
Rotary speed |
110-160r/min |
|
Rod spec |
50mm/60mm |
|
Working pressure |
0.5-0.7Mpa |
|
Air consumption |
13m³/min |
|
Lifting force |
9600N |
|
Pneumatic motor power |
4kW |
|
Rod length |
1025mm |
|
Weight |
450kg |
|
Dimension |
2230*380*550mm |
|
Remark |
pneumatic |
|
Portable screw air compressor |
460CFM,10bar for 1set XDQ100 work |
|
Drilling Angle |
0-360° |
Advances in technology design, we can not change the product effective notice to you, please forgive me!
Structure

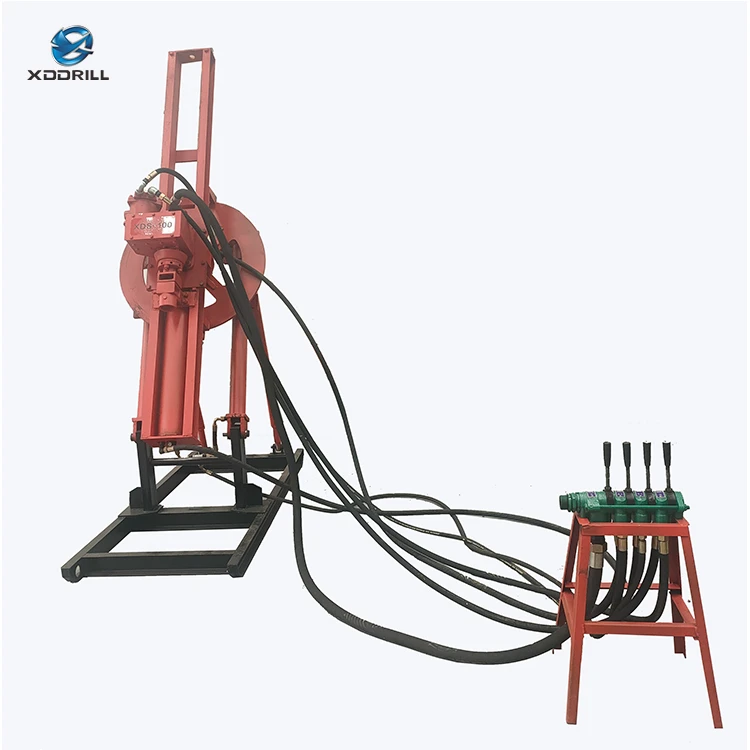

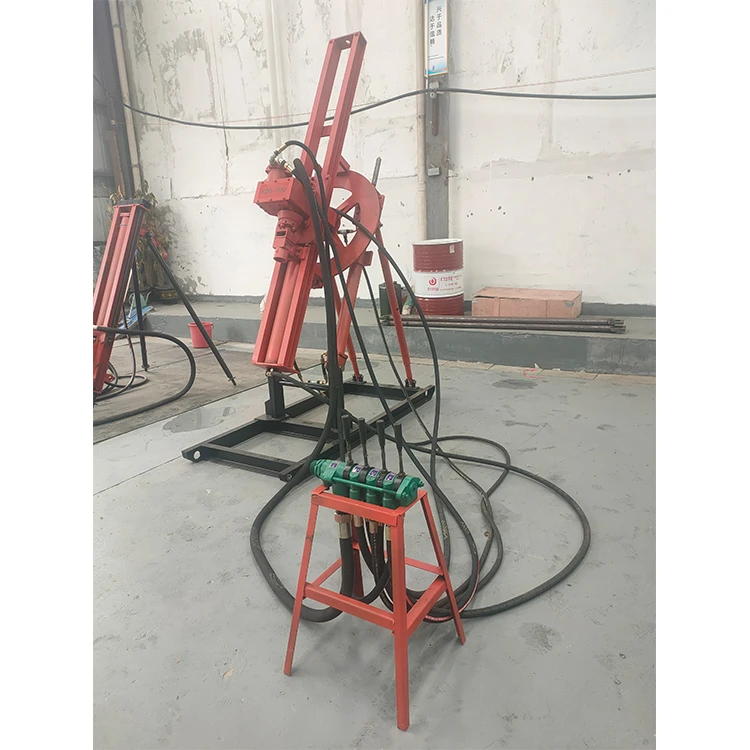

The components of the XDS-100 Disc type tunnel DTH drilling rig: 1. Control console, 2.Power head assembly, 3.Mast assembly ，4.Connection hose ，5. Disc(5 parts)
The main components are described as follows
01
Control console
It consists of control valve and frame.The structure is simple and it is easy to move.
02
Power head assembly
It consists of 3kw or 4kw air motor, reducer and transimission box. It has strong power and high efficiency.Precautions: The box needs to be filled with butter before use, otherwise it will reduce the life of the gear.
03
Mast assemby
It consists of mast and air cylinder.The mast is made of high-strength type steel welded, with light weight and high strength. Precautions: When using for a long time and encountering air leakage from the cylinder, replace the sealing ring on the cylinder head at the end of the cylinder in time, and check whether the piston cup on the white piston rod is damaged by the way.
04

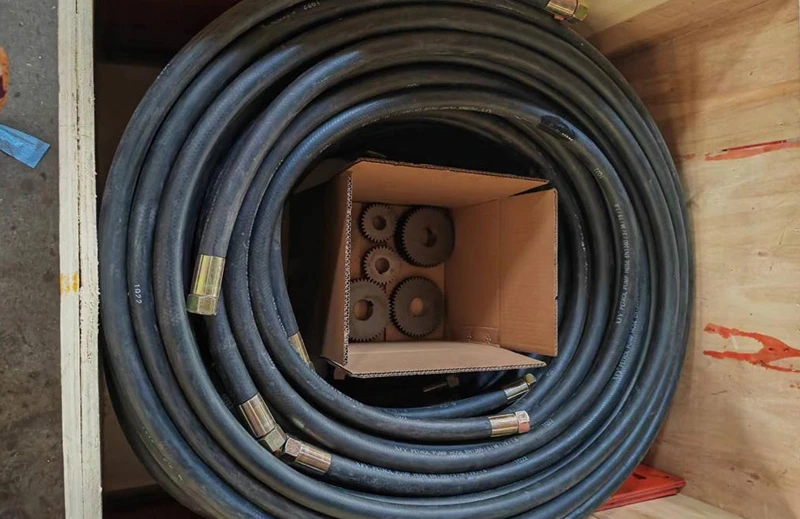

Connection hose
Using high-strength density rubber, it has excellent flexibility and is highly wear-resistant. The joints are tightly connected to the pipes and have stable performance.
05
Disc
Using high-quality steel, it is sturdy and reliable, enabling the drilling machine to drill in all directions. This meets the customers' needs and enhances work efficiency.
