Ⅰ.Project Overview

The mining area of Fuyun Jinshan Mining & Metallurgy in Xinjiang features complicated hydrogeological conditions, abundant fissure water and high confined groundwater pressure underground, which poses severe water inrush risks during roadway excavation. Conventional split drilling rigs consume massive time on relocation and inconvenient transfer between underground working faces, failing to meet large-scale advanced hydrological exploration demands. The mine adopted Xingda KY-600BL crawler full hydraulic tunnel drilling rig for advanced water exploration boreholes and pressure relief drainage boreholes. Relying on self-propelled crawler structure, high-pressure water stop system and powerful hydraulic drilling performance, the rig detects hydrogeological data in advance and drains confined groundwater to guarantee safe roadway tunneling.

ǁ.Core Equipment Advantages & Underground Construction Application

1. Self-propelled Crawler Chassis for Flexible Transfer in Narrow Underground Roadways Equipped with solid steel crawler chassis, the KY-600BL requires no disassembly for transportation. It can travel and turn freely on muddy, slippery and confined underground roadways under its own power. For cyclic construction across multiple underground working faces, it eliminates repeated disassembly and manual handling, drastically cutting relocation time. It perfectly adapts to the mining area’s branched roadways and damp muddy underground environment, greatly improving construction continuity.

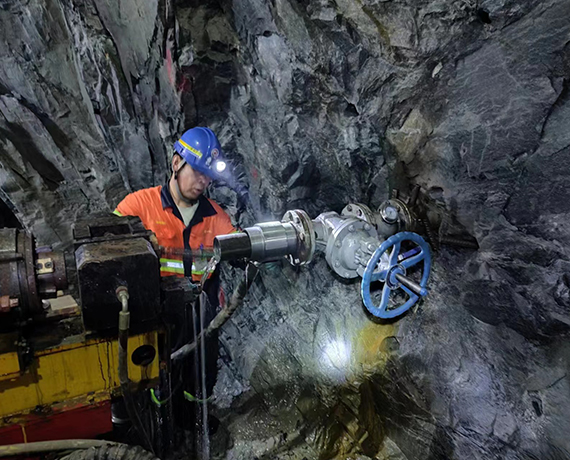

2. Complete High-pressure Water Stop Assembly for Fully Controllable Pressurized Drainage The rig is equipped with high-pressure resistant water stop casings and pressure control valves tailored for water-rich high-pressure strata. After borehole completion, water stop casings are installed to seal hole walls. Operators can slowly release confined groundwater to reduce formation pressure via handwheel valves; the pipeline can be rapidly shut off in case of sudden water surge to avoid uncontrolled water outflow. The fully enclosed pressurized drainage design effectively solves technical bottlenecks of underground water hazard control for water-rich mines in Northwest China.
3. High-power Full Hydraulic System for Efficient Drilling, Risk Reduction & Cost Saving The high-power full hydraulic system delivers sufficient torque and stable feeding force, achieving high drilling efficiency in water-bearing fractured rock with fast hole-forming speed and intact core recovery. The rig accurately detects aquifer distribution, water pressure and fractured rock scope ahead of tunneling faces. Construction teams optimize excavation schedules based on reliable hydrological data, avoiding useless blind tunneling. It fundamentally lowers water inrush accidents, shortens construction period and cuts labor & material costs, balancing safe mining and economic benefits.
4. Multi-functional Capability to Cover Diverse Underground Drilling Tasks Beyond core water exploration and pressure relief drainage, the crawler rig is also applicable to productive core sampling, surrounding rock anchoring holes, gas drainage holes and geological pressure relief holes. One single machine integrates water hazard prevention, mineral exploration and roadway support, boosting equipment utilization rate and providing an all-in-one underground drilling solution for mines.

Ⅲ.Project Outcomes

The KY-600BL crawler tunnel drilling rig has been steadily operated underground at Fuyun Jinshan Mining & Metallurgy for a long time. Its superior mobility ensures smooth multi-point water exploration work; advanced hydrological detection accurately forecasts water hazards and drains confined groundwater in order, systematically curbing underground water inrush risks. Unnecessary tunneling volume is greatly reduced, underground safety standards and overall mining economic benefits are improved simultaneously. With outstanding flexibility, safe pressure resistance and durable performance, Xingda KY series crawler tunnel drilling rigs stand as the preferred drilling equipment for hydrogeological exploration and water hazard prevention in water-rich metal mines across Northwest China.
