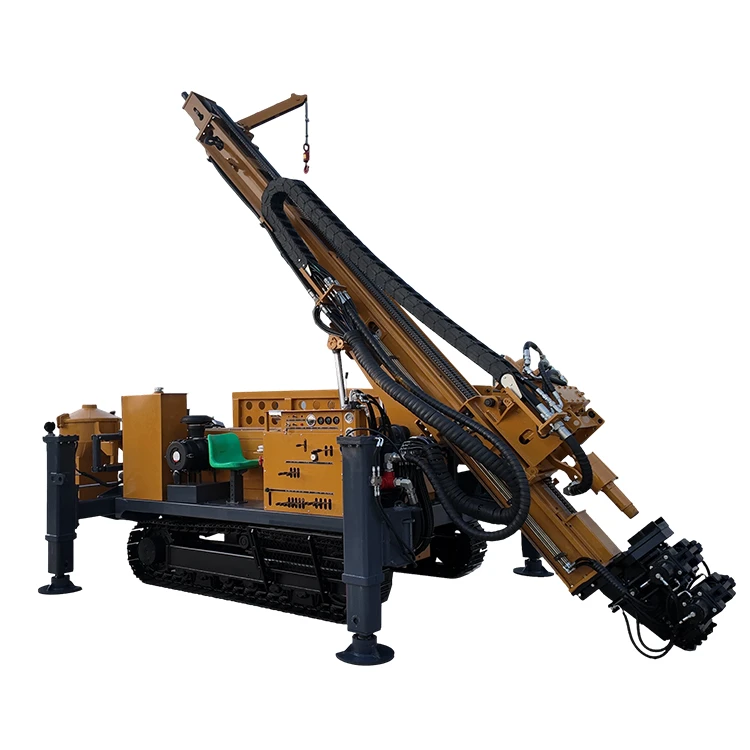

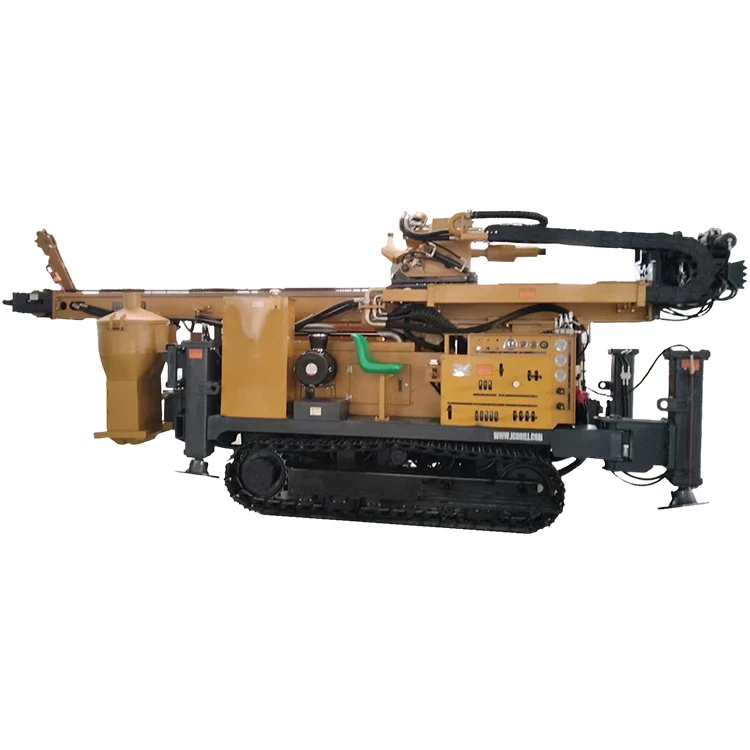

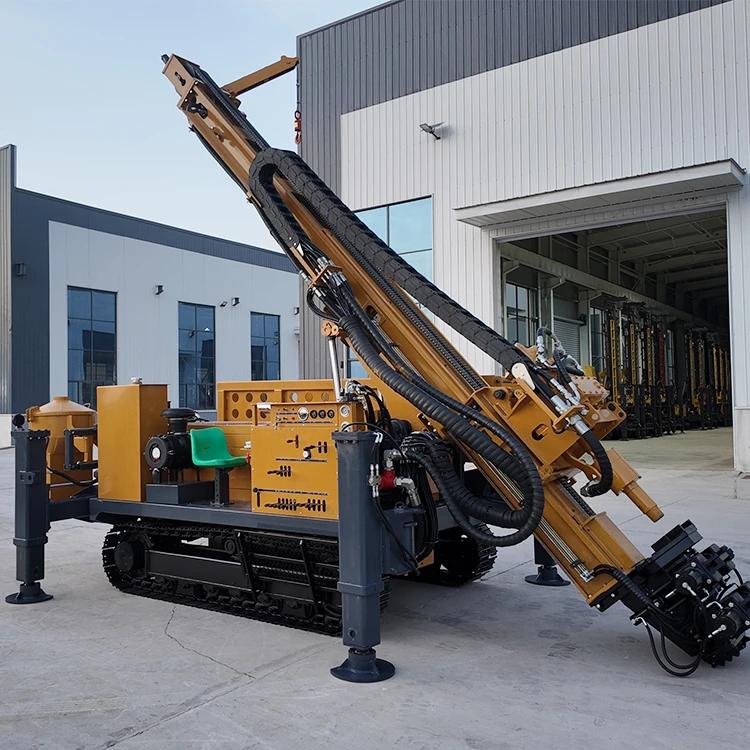

XDL- RC Series Drilling Rig

XDL- RC series drilling rig is mounted on a crawler chassis, driven by full hydraulic system, power head type drilling rig, which is used to drill vertical or inclined hole, and also the drilling techniques way of the following: Drill auger drill Down-The-Hole hammer drill Mud forward circle drill ODEX tools(casing pipe following) drill with DTH hammer Medium reverse circle drill The drilling rig is able to resolve the difficulty of boring in the soft and loose cover ground condition, the screes and gravels area and also the fragmentation stratum according to different drilling techniques ways. Therefore, it is widely used in varieties of the boring work. The drilling rig is mainly applied in RC drill/water well and observation well, geothermal hole,mini foundation pile hole.

Fast Lifting Speeding (m/min)	30	30
Moving Speed (km/h)	3	2.5
Rotary Torque (N.m)	6000/3000	6000/3250

Inquire Now Contact Us

Product Features Technical Sepcification Product Details

Product Features

Fast and economical.

High production rates compared with traditional core drilling

High quality, uncontaminated mineral samples.

Reverse circulation is a quick and efficient method that has the potential to cut overall drilling costs significantly,while maintaining good sampling quality.

Technical Sepcification

项目Model		单位Units	XDL-200	XDL-300		XDL-400		XDL-500
钻进能力 Drilling capacity	最大钻孔深度 Max drilling depth	m	200	300		400		500
	钻孔直径 drilling diameter	mm	Φ300	Φ325		Φ350		Φ400
发动机 Engine	发动机品牌 Engine brand	/	云内Yunnei	云内 Yunnei	康明斯 cummins	玉柴 Yuchai	康明斯 cummins	康明斯cummins
	额定功率 Rated power	Kw	85	85	75	92/6cyl	93	132
进给系统 Propulsion system	提升力 Lifting force	T	10	12		14		26
	快速提升速度 Speed of fast lifting	m/min	30	30		30		30
	加压力 Feeding force	T	5.5	6		8		10
	快速下放速度 Speed of fast putting down	m/min	60	60		60		60
	最大进给行程 Max feeding stroke	mm	3600	3600		3600		3600
回转系统 Rotation system	最大回转扭矩 Rotary torque	N.m	6000/3000	6500/3250		8000/4000		11000/5500
	最大回转速度 Rotary speed	r/min	70/140	70/140		70/140		70/140
行走系统Travelling system	行走速度 Travel speed	Km/h	2.5	2.5		2.5		2.5
	爬坡能力 Grade ability	°	21	21		21		21

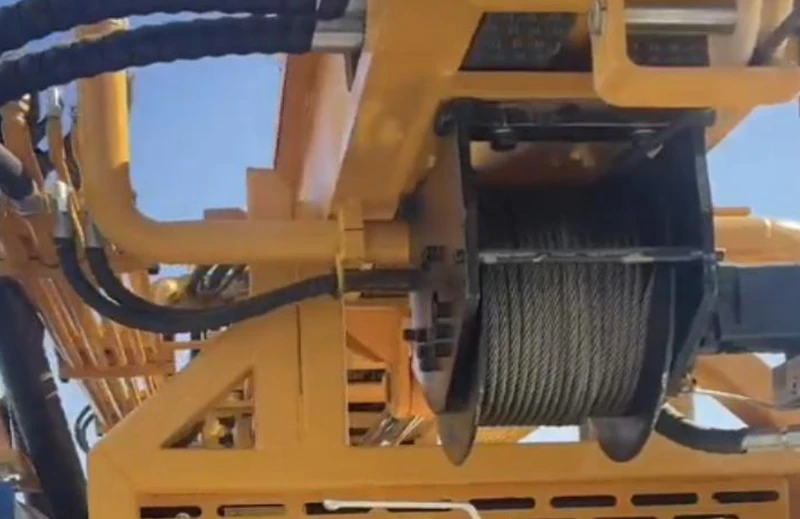

工具卷扬 Tool winch	提升力 Lifting force	T	1.5	1.5		1.5		1.5
运输尺寸 Transport dimension	长x宽x高 LengthWidthHeight	mm	542018002400	576018502450		596019502450		686022002600
整机重量 Machine weight		T	5.5	7		9		11
推荐钻杆直径 Drilling rods diameter		mm	89/102	89/102		89/102		89/102/114
可选配的配件Optional accessories			发电电焊机、泡沫泵 Welding generator、Foam Pump	发电电焊机、泡沫泵 Welding generator、Foam Pump		发电电焊机、泡沫泵 Welding generator、Foam Pump		发电电焊机、泡沫泵 Welding generator、Foam Pump

Product Details

Hydraulic Unit

Using Permco 757525 hydraulic oil pump, reliable quality, smooth operation, strong pressure and wear resistance.

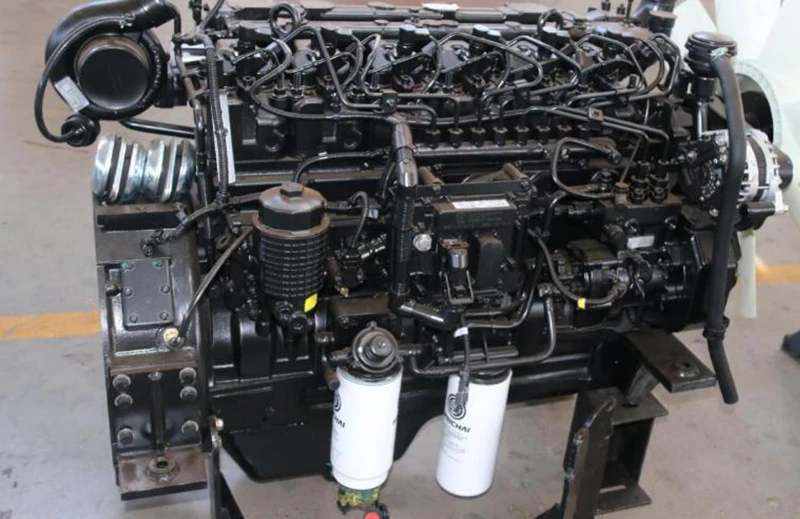

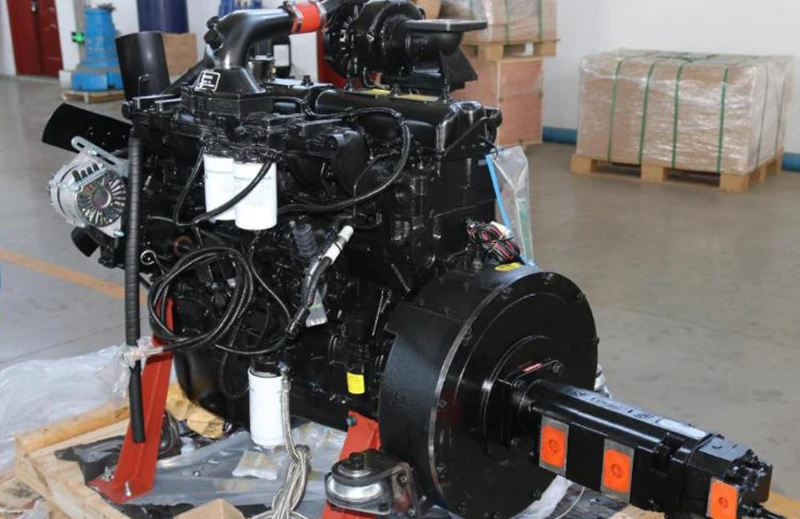

Power Unit

Cummins 132 kW six cylinder direct injection motor, strong power, low fuel consumption, long service life.

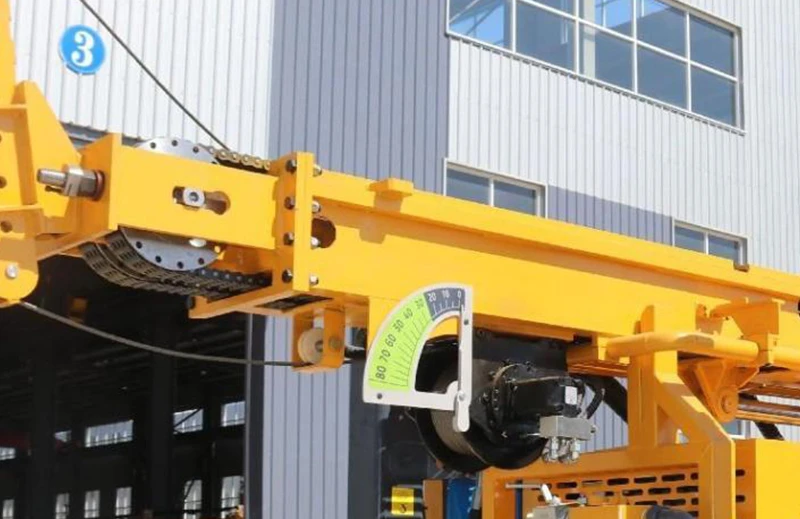

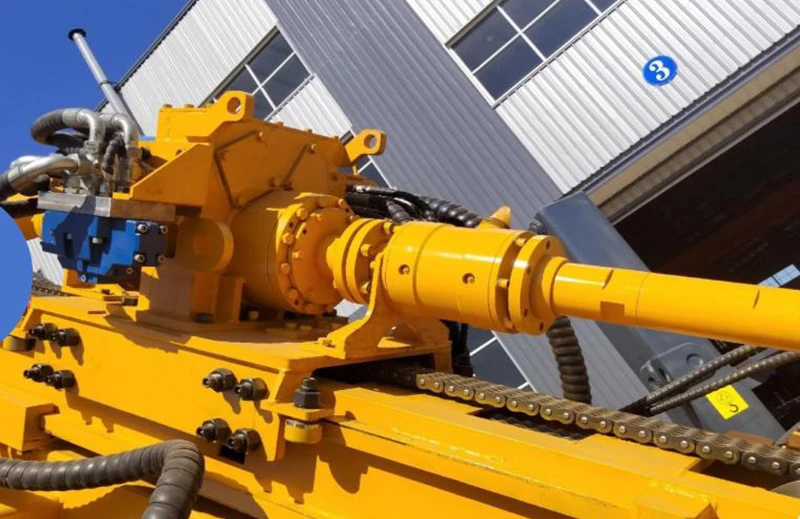

Power head

The power head adopts mechanical two-speed stepless speed regulation design, low-speed torque doubling, stable and reliable drilling, and the power head has a lateral translation mechanism, which is convenient to lift and release the drilling tool.

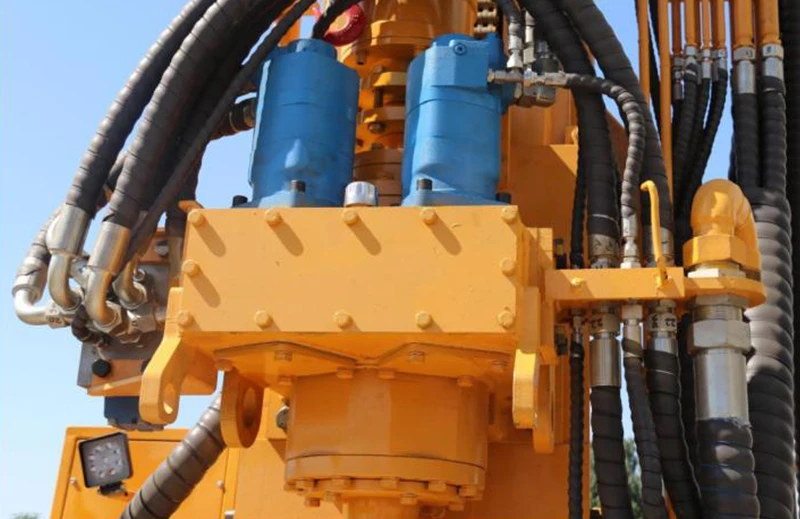

Hydraulic motor

The use of Danfoss 6K490 rotary motor, compact structure, small size, impact resistance, long life, large torque, greatly improve the drilling efficiency.

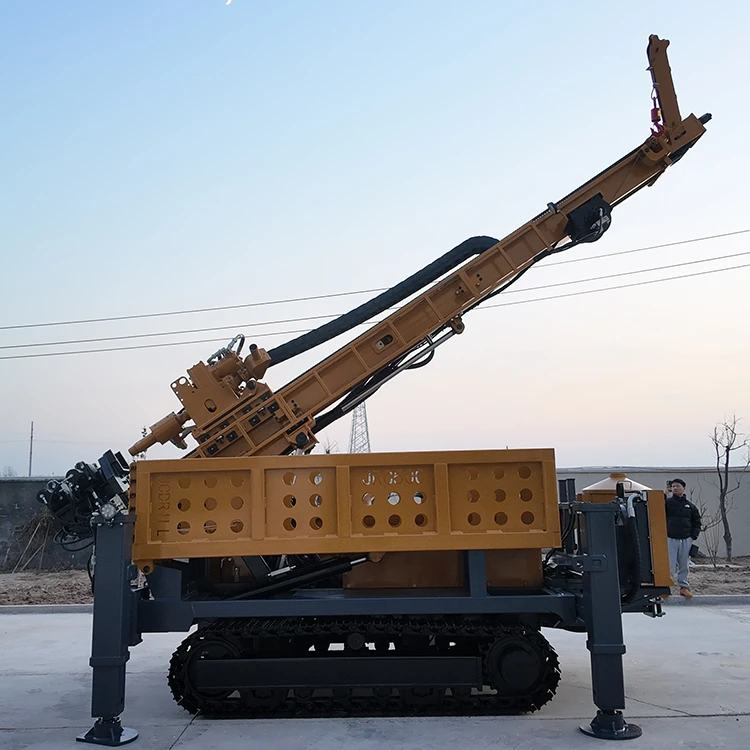

Mast

Combined mast, automatically retractable, slip line up to 1200mm, can be 0-90° Drilling at any Angle.

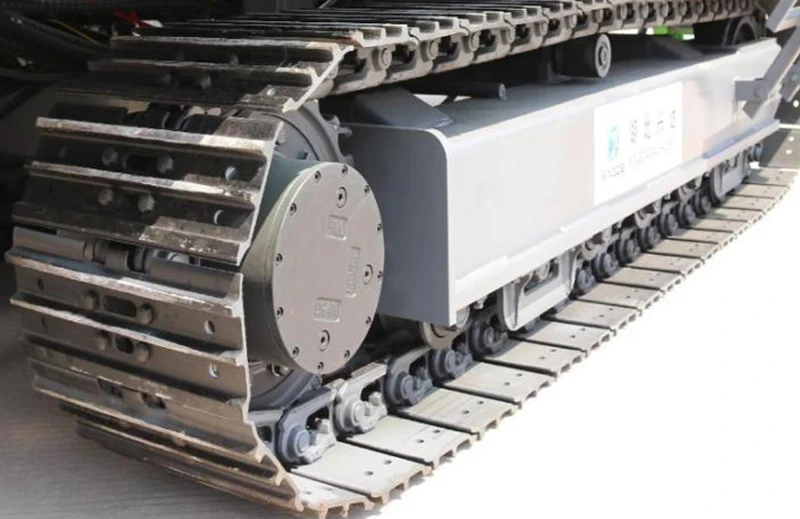

Steel Crawler

Track adopts low speed and high torque hydraulic motor, wireless remote control walking, high safety, strong climbing ability. The moving speed of the machine can reach 2km/h, which is suitable for transfer and operation in mountainous areas and muddy ground.

Mast

Combined mast, automatically retractable, slip line up to 1200mm, can be 0-90° Drilling at any Angle.

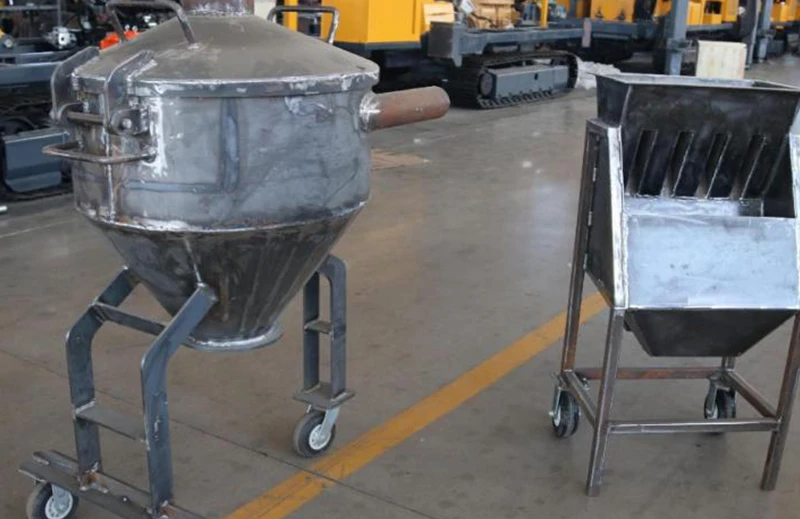

Cyclone collector (Cyclone separator)

Cuttings enter the sample collector through the inner pipe of the drill pipe and do not touch other areas, thus avoiding cross-contamination and resulting in high-quality, reliable samples. Samples are easy to classify and track, have exact location and depth, and can accurately determine the mineralized location.
