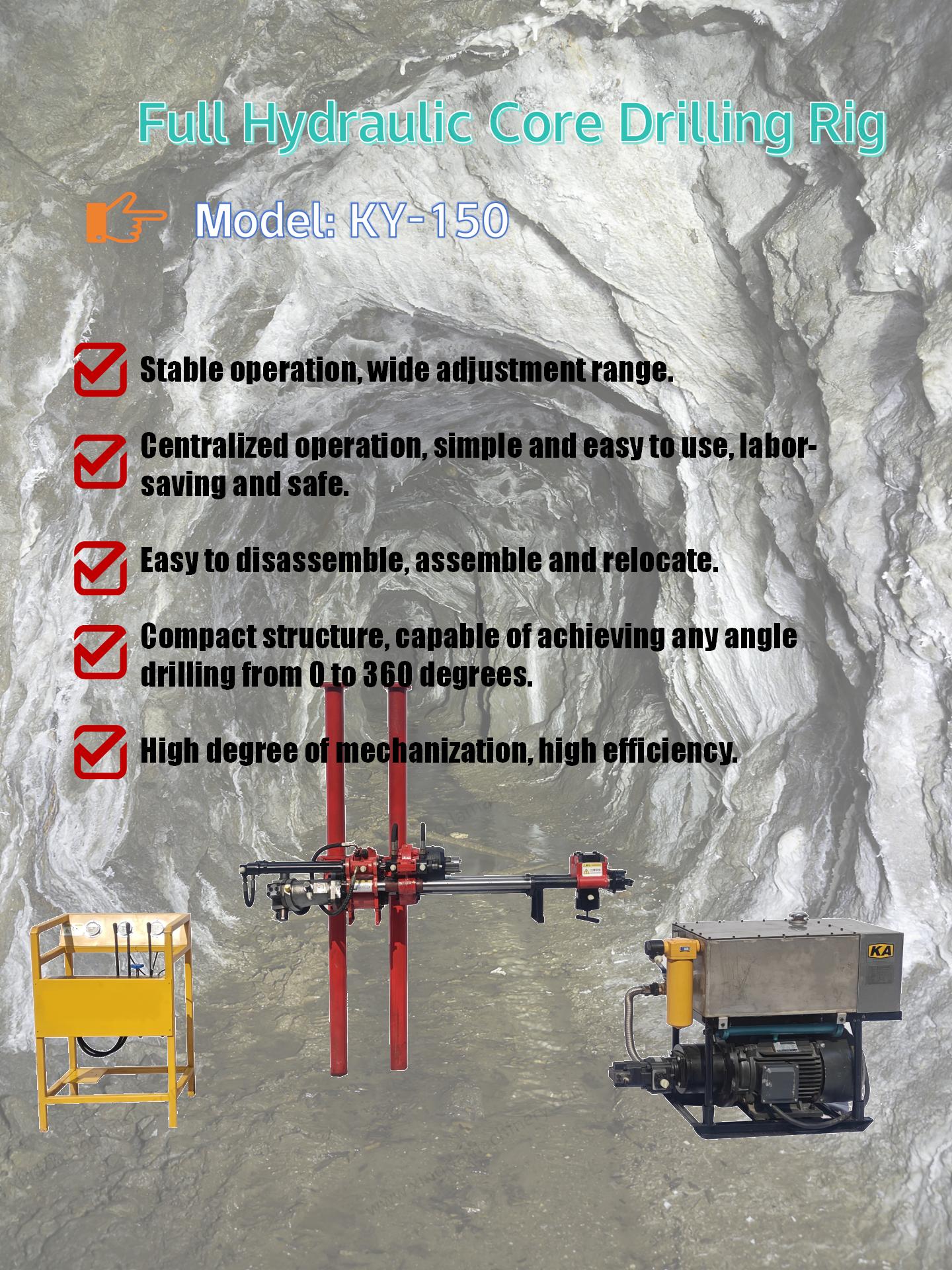

KY-150 Full Hydraulic Underground Drilling Rig

It can be used for construction in mine roadway or in landmark construction. The operation is concentrated, simple, labor-saving and safe. Good disassembly performance, easy to disassemble and relocate. The structure is compact, safe and convenient, and can be drilled at any angle.

Technical parameters	unit	KY-150/ZDY130
Hole diameter	mm	37	47
Core diameter	mm	21.5	29

Inquire Now Contact Us

Features Main Technical Parameters Applications Product Details

Features

1. The spindle is driven by a manual variable motor to rotate, with a wide adjustment range and stable work. Suitable for diamond high-speed drilling, also suitable for carbide low-speed drilling rigs.

2. Centralized, simple, labor-saving and safe operation.

3. Good disassembly performance, easy to disassemble and relocate.

4 Compact structure, easy installation, can drill holes in 0°~360° azimuth.

5. The hydraulic transmission controls the chuck, the holder and the feed cylinder to make the pulling drilling tool linkage. The mechanical torsion tube has a high degree of mechanization, which greatly reduces the labor intensity of workers.

6. The hydraulic system adopts the multi-pump dual-system oil supply design, and the power matching of the drilling rig is reasonable.

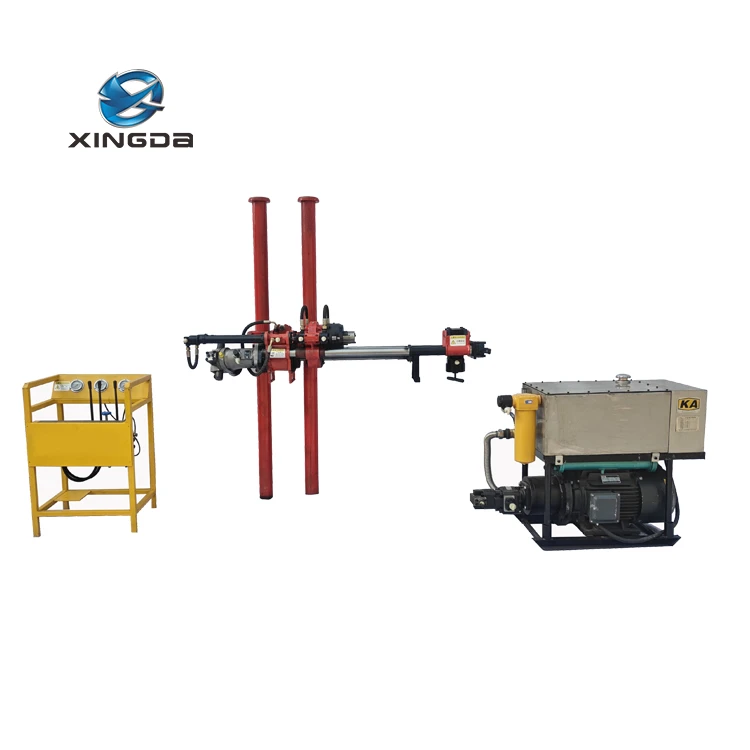

KY-150 Full Hydraulic Underground Drilling Rig

Main Technical Parameters

Technical parameters		unit	KY-150/ZDY130
Hole diameter		mm	37	47
Core diameter		mm	21.5	29
Hole depth		m	150	100
Drilling Angle		°	0-360
Rotary speed		r/min	620-910
Rotary torque		N．m	130-85
Rated feed force		kg	1000
Rated lifting force		kg	1100
Motor power		kW	18.5
Main Machine	Dimensions	mm	1800400500
	Weight	kg	176
Power Unit	Dimensions	mm	1200540950
	Weight	kg	76
Control console	Dimensions	mm	580450900
	Weight	kg	76
Stand column	Dimensions	mm	1800-2800
	Weight	kg	34*2
Total weight of the bare machine		kg	580

Applications

1. In the exploration of mineral resources, relatively complete and unmixed stratum rock samples are taken out.

2. Hydrogeological survey before production prospecting and roadway excavation, and water hole exploration.

For example, the construction of water detection holes and water discharge holes in the roadway is equipped with professional water-stop casings and valves, which are resistant to high pressure. Fast, efficient and low-cost detection of geological conditions and hydrological conditions in front of the roadway, reducing unnecessary roadway construction, effectively reducing the risk of water penetration, and reducing safety accidents.

3. Engineering geological survey, hydrogeological survey.

Hydrogeological survey before the construction of railway and highway tunnel projects, quickly, efficiently and at low cost to find out the geological conditions and hydrological conditions ahead of the roadway. Improve engineering efficiency and reduce construction risks.

4. Grouting holes for special purposes in engineering, geological survey holes, etc.

Product Details

Power head

It is using manual variable motor driven spindle rotation, with wide adjustment range and stable working. It is suitable for high-speed diamond drilling, but also for low-speed hard alloy drilling.

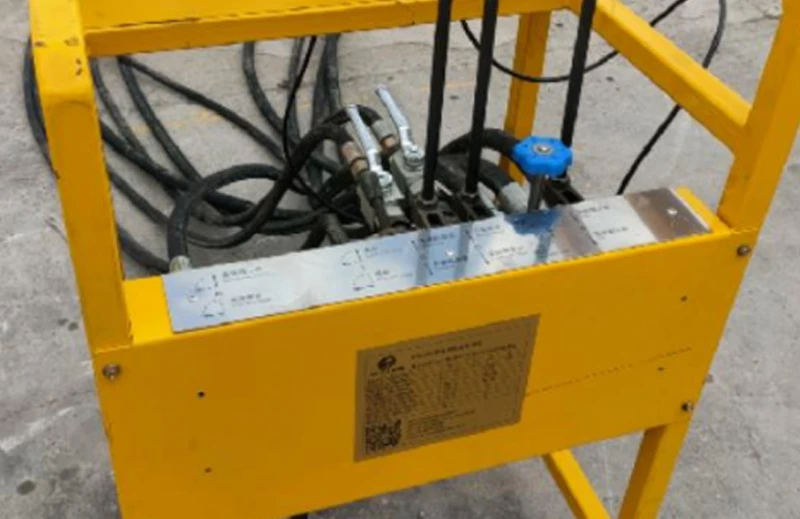

Control console

The operation is centralized, simple, labor-saving and safe.

Main Machine

It is compact, easy to install, can drill 0° ~ 360° azimuth holes. Hydraulic system control chucks, gripper and the feed cylinders so that so linking pulling and sending drill. It is mechanical torsion tube, high degree of mechanization, thus greatly reducing the labor intensity.

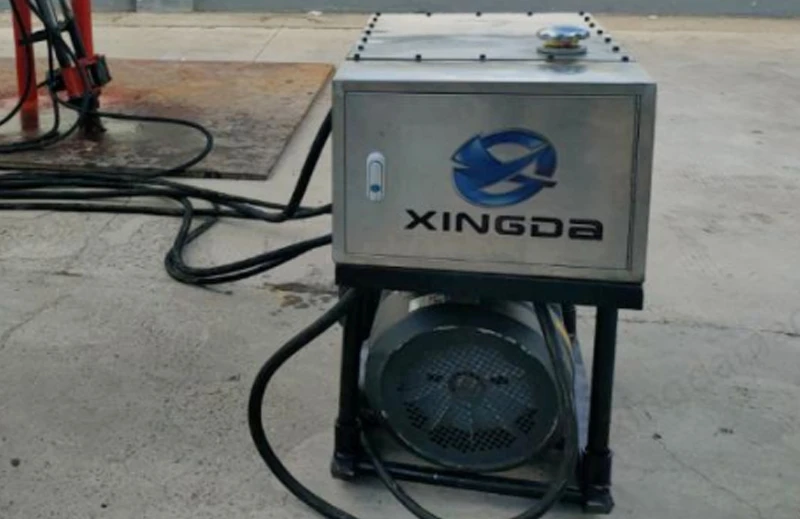

Power Unit

High-power hydraulic pump station, with powerful power and long-lasting durability.
