KY-500 Full Hydraulic Underground Drilling Rig

It can be used for construction in mine roadway or in landmark construction. The operation is concentrated, simple, labor-saving and safe. Good disassembly performance, easy to disassemble and relocate. The structure is compact, safe and convenient, and can be drilled at any angle.

Drilling Angle	°	0-360
Rotary speed	r/min	180-800
Rotary torque	N．m	1000-260

Inquire Now Contact Us

Features KY-500 Performance Parameter Applications

Features

1. The spindle is driven by a manual variable motor to rotate, with a wide adjustment range and stable work. Suitable for diamond high-speed drilling, also suitable for carbide low-speed drilling rigs.

2. Centralized, simple, labor-saving and safe operation.

3. Good disassembly performance, easy to disassemble and relocate.

4 Compact structure, easy installation, can drill holes in 0°~360° azimuth.

5. The hydraulic transmission controls the chuck, the holder and the feed cylinder to make the pulling drilling tool linkage. The mechanical torsion tube has a high degree of mechanization, which greatly reduces the labor intensity of workers.

6. The hydraulic system adopts the multi-pump dual-system oil supply design, and the power matching of the drilling rig is reasonable.

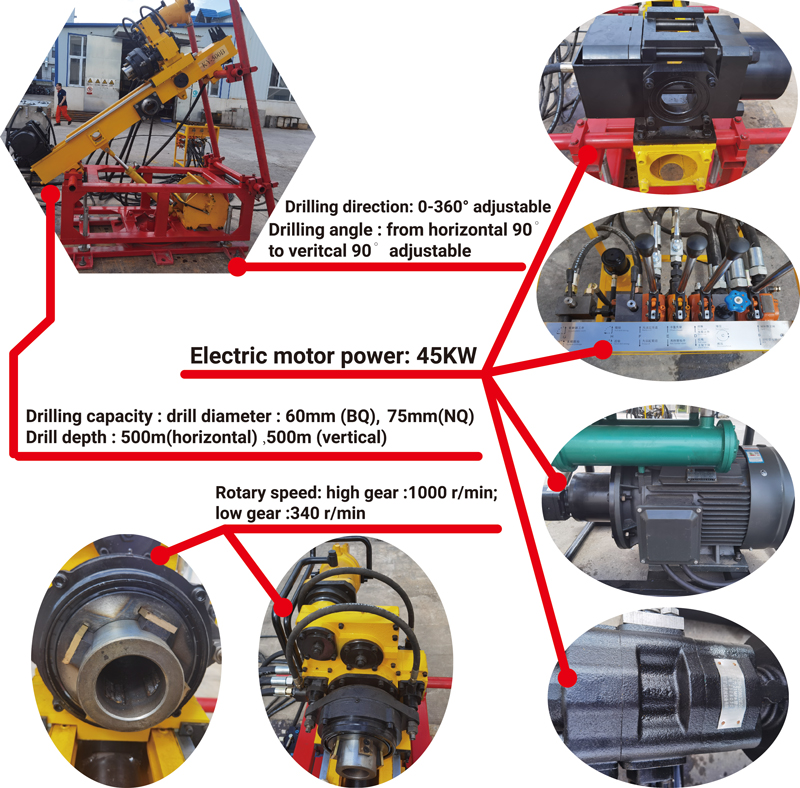

KY-500 Full Hydraulic Underground Drilling Rig

KY-500 Performance Parameter

Technical parameters		unit	KY-500
Hole diameter		mm	47	60	76
Core diameter		mm	29	36.5	47.5
Hole depth		m	500	500	480
Drilling Angle		°	0-360
Rotary speed		r/min	180-800
Rotary torque		N．m	1000-260
Rated feed force		kg	7000
Rated lifting force		kg	5000
Motor power		kW	45
Main Machine	Dimensions	mm	23004601030
	Weight	kg	696
Power Unit	Dimensions	mm	12506001180
	Weight	kg	540
Control console	Dimensions	mm	640550900
	Weight	kg	124
Stand column	Dimensions	mm	1800-2800
	Weight	kg	34*4
Total weight of the bare machine		kg	1496

Applications

1. In the exploration of mineral resources, relatively complete and unmixed stratum rock samples are taken out.

2. Hydrogeological survey before production prospecting and roadway excavation, and water hole exploration.

For example, the construction of water detection holes and water discharge holes in the roadway is equipped with professional water-stop casings and valves, which are resistant to high pressure. Fast, efficient and low-cost detection of geological conditions and hydrological conditions in front of the roadway, reducing unnecessary roadway construction, effectively reducing the risk of water penetration, and reducing safety accidents.

3. Engineering geological survey, hydrogeological survey.

Hydrogeological survey before the construction of railway and highway tunnel projects, quickly, efficiently and at low cost to find out the geological conditions and hydrological conditions ahead of the roadway. Improve engineering efficiency and reduce construction risks.

4. Grouting holes for special purposes in engineering, geological survey holes, etc.
